@voxel support@voxelvision.com.tw
專業攝影機

BirdDog
P4K
4K PTZ 專業攝影機

BirdDog攝影機 BirdDog攝影機

BirdDog P4K NDI 遙控式 PTZ 專業攝影機內建 1英寸 Sony Exmor R CMOS 感光元件與 1,440萬有效像素,使 P4K 能夠以FULL NDI 提供 4K UHD 高畫質影像。傑出的 BirdDOG P4K 非常適合所有廣播應用,體育賽事,遠端製作,新聞編輯,教堂禮拜和任何對高品質要求的拍攝。

FULL NDI 完全支援不妥協
在 NDI 世界有兩種傳輸標準,FULL NDI 與 NDI|HX。NDI 支援可變 bit rate, 使用無壓縮 140Mbits 1080p60 I-Frame 編碼。而 NDI|HX 則是採用壓縮的 12Mbits 1080p60 long-GOP, H.264 編碼。兩者不同的傳輸量可應用在不同需求的環境,支援高畫質與極緻畫質的傳送,不論是哪種 NDI 規格 BirdDog P4K NDI 遙控式 PTZ 專業攝影機全面支援。

建議售價 : NT 320000 元( 新台幣 32 萬元 )(歡迎來電享優惠 02-25591919)

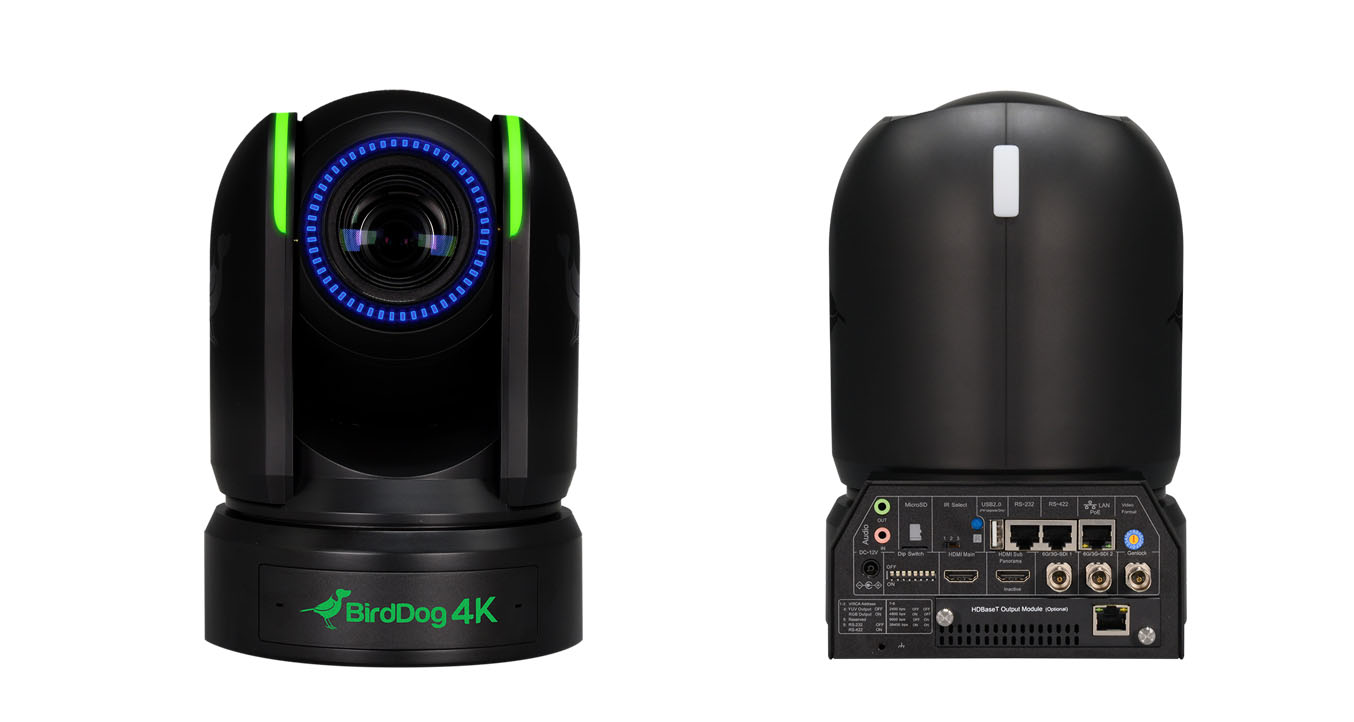

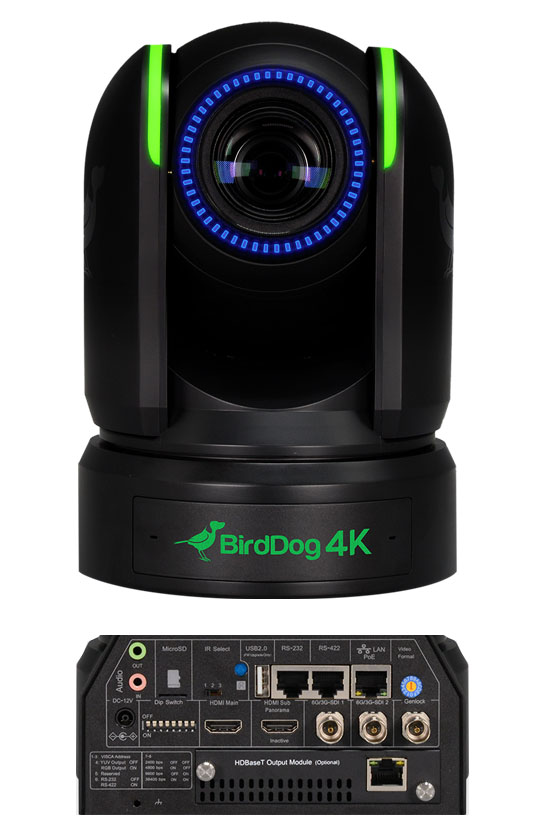

BirdDog P4K NDI 遙控式 PTZ 專業攝影機 BirdDog P4K NDI 遙控式 PTZ 專業攝影機

產品規格
BirdDog
P4K NDI PTZ 專業攝影機

詳細規格
Image Sensor 1.0-type back-illuminated Exmor R CMOS sensor
Number of effective pixels 14.2 Megapixels
Picture elements 3840 x 2160, 8.29 Megapixels
Lens Optical, 12X
Digital Zoom igital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD
Horizontal Angle of View Focal Length 64.6 ̊ (Wide) – 6.1 ̊ (Tele),f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)
Min. object distance 80mm (Wide), 1000mm (Tele)
Aperture F2.8 Constant (W)~(T), 16 Steps
Min. Illumination 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)
Shutter Speed 1/10000s to 1/8 (59.94/29.97)
Focus Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit
White Balance AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
Exposure Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
Features: High Sensitivity, Defog mode, Backlight Compensation, HLC,E-FLIP, Mirror, Flicker Control, Day/Night, Defog
Pan Movement Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S )
Tilt Movement Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°~50°/S)
Preset Position 0~5 Level Adjustable
Preset Speed 0~5 Level Adjustabl
4K Video Output Main 4K HDMI Type-A (x1), 6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2
HD Video Output Main HD HDMI Type-A (x1),G-SDI x2
HDMI Color Space YCbCr, 4:2:2 RGB, 4:4:4
NDI Video Encode Full bandwidth NDI
NDI Version NDI v4.0 (Firmware upgradeable)
IP Video Stream UP to 4K/30 and 1080p60
Camera Control Interface RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control
Control Protocol NDI, VISCA, VISCA Over IP
LAN RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt)
External Sync. Input BNCX1, 75Ω, HD 3-level sync, SD Black Burst
Audio I/O Audio input x1, Audio output x1, 3.5mm audio jack
Audio Output Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo, Embedded with NDI
Tally Light Front and Back
Mount Ceiling mount, Wall mount, Tripod
Operating Temperature -10 to +40 (°C), 32 to 104 (°F)
Operating Humidity ≤80% Suitable for Use
Power Input 12VDC, PoE++ (IEEE 802.3bt)
Power Consumption 22W
Dimension 165x196x247mm
Weight 3.4kg







關鍵字 : #4k.#fullhd.#ndi.#ip製作.#FULLNDI

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
