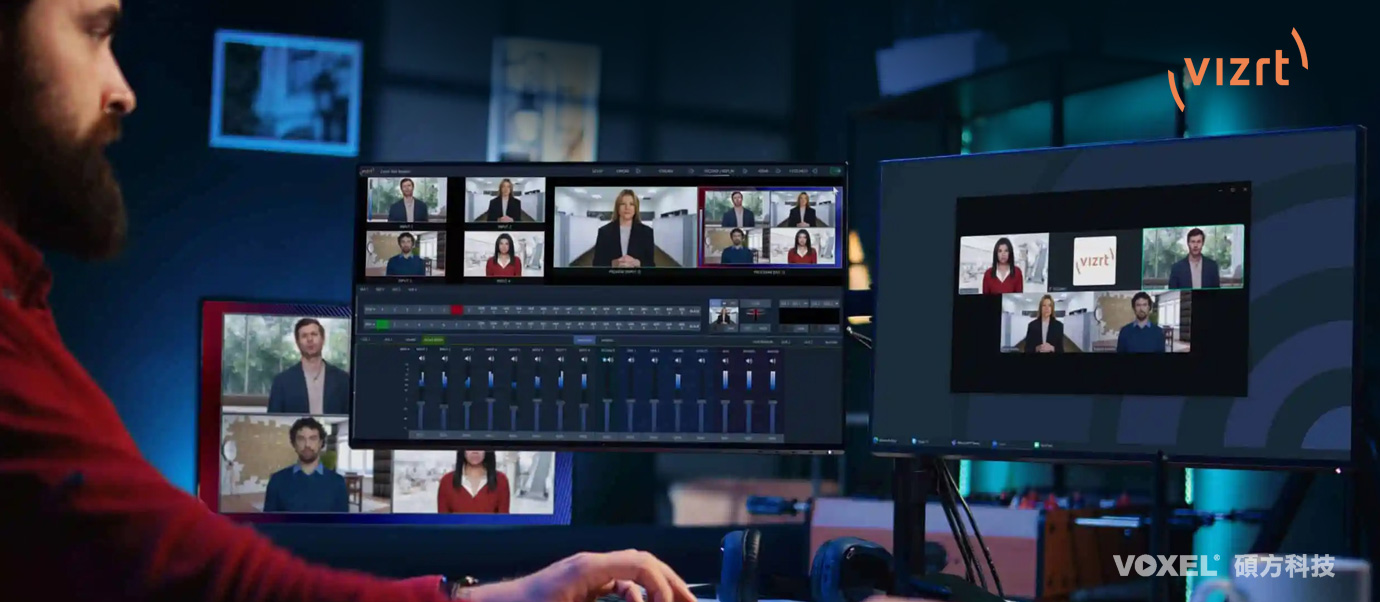

TriCaster Mini S 全媒體廣播級製播系統
TriCaster Mini S 全訂閱制軟體系統是一套以軟體為基礎的視訊製作解決方案，它結合了全球專業影音最佳的【Vizrt 維斯】TriCaster 即時製作解決方案強大功能，讓您節省成本，以經濟實惠的訂購價格，靈活地部署在合格的原有硬體上，或交由碩方科技幫您打造。
TriCaster Mini S 是串流媒體、直播主、網紅、企業、教育、醫療院所、政府機關、宗教團體與數位影音串流，完美的即時製播解決方案。
您不須要是影音專家，也能以廣播級高質量效果製播您的精彩故事。使用 TriCaster Mini S，您可以馬上開始製作4K UHD 高畫質節目，傳送到您想要發布的任何平台。不僅如此，Vizrt 還特別針對TriCaster使用者，提供了優異的線上支援，
方便他們快速入門，輕鬆過渡到TriCaster Mini S。TriCaster Mini S具備數百種令人驚豔的專業影音功能，核心內建了全球最佳的NDI IP 視訊連線能力，只要擁有TriCaster Mini S訂閱制軟體，您可以馬上進行LIVE專業的現場製播。
聚焦 TriCaster Mini S 最新消息
優越的便利性
TriCaster Mini S 讓使用者可以根據基本軟體環境需求選擇自己的硬體。此外，Vizrt 認證平台能為我們合格產品授權的使用者，提供最佳支援體驗，是開啓 TriCaster 製作之旅的完美方式。
超值的訂閱授權
TriCaster Mini S 強大的支援是訂閱授權的重要部分，確保在產品發布更新後，立即進行系統升級。 Viz Flowics 支援的 TriCaster Graphics 是標準配置，為使用者提供的業界領先專業圖文字幕技術。

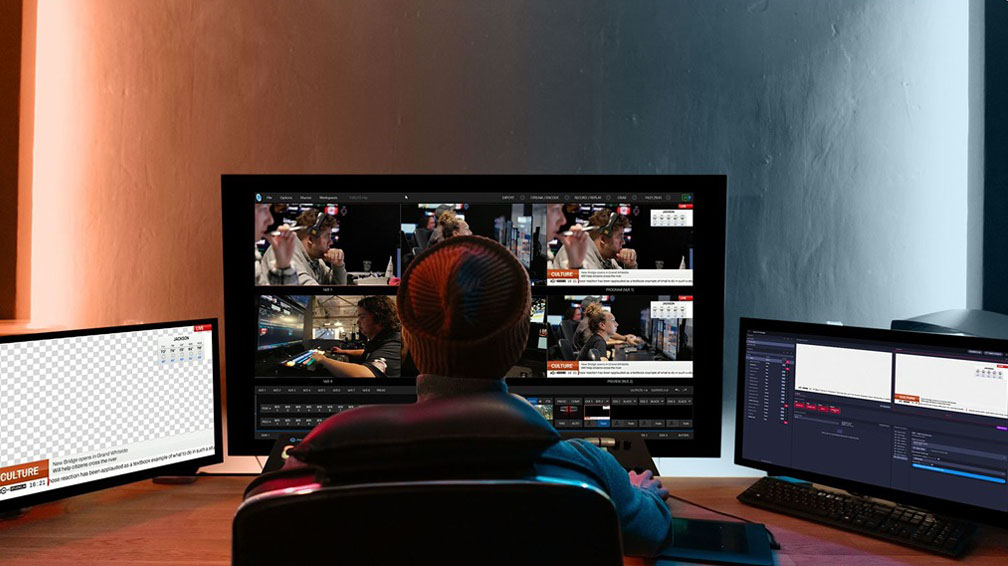

專業的製作功能
TriCaster Mini S 以 NDI 為核心，提供高品質的 4Kp60 ，非常適合媒體串流、直播主、小型公司行號、企業、政府機關、議會和現場活動。 內建 8 個即時輸入、2 個 DDR 播放器、4 個 ME 和垂直畫面製作。

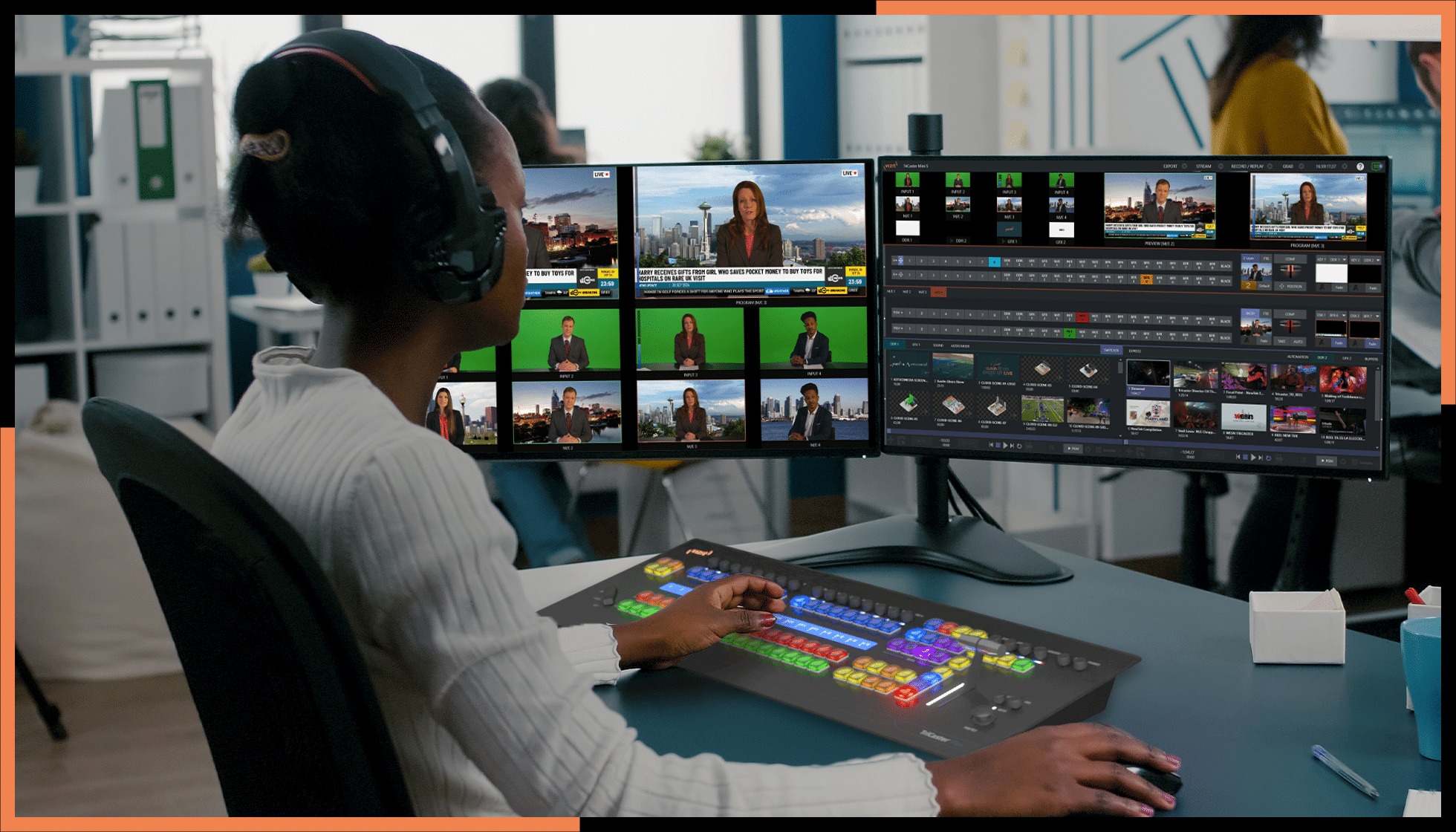

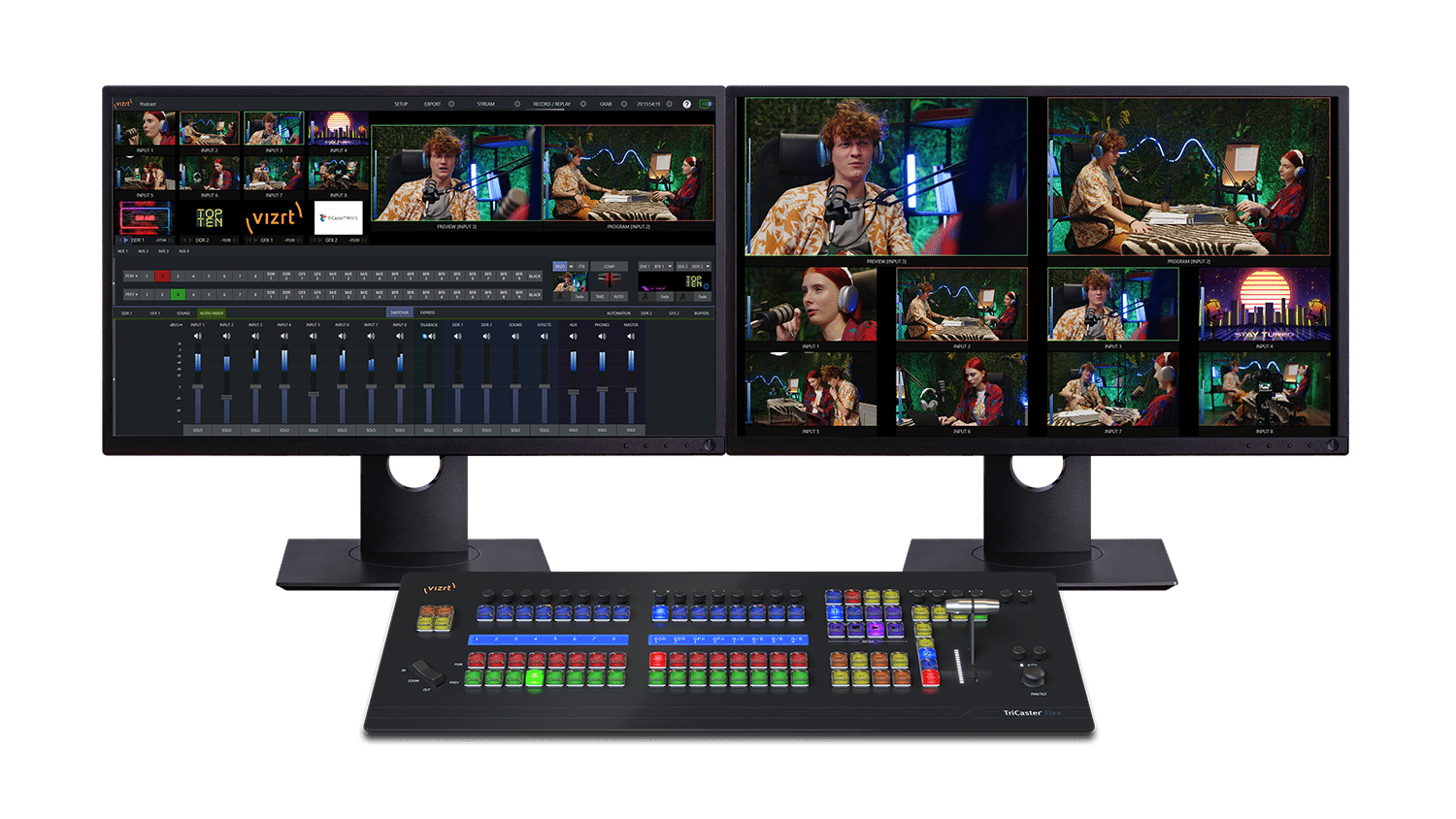

TriCaster Mini S 全媒體廣播級多ME製作導播系統
TriCaster Mini S訂閱制軟體方便使用者，依據製作需求自由訂閱軟體授權，並搭配使用者原有的硬體。您可以安裝在Vizrt認證合格的硬體設備，也可以使用原有的硬體，只要符合TriCaster Mini S軟體系統環境需求就可以開始製作旅程。
最低作業環境需求
- Microsoft Windows 11
- Intel i7-12代CPU（建議i7-12700或更高版本）
- 運行最新驅動程式的 NVIDIA Quadro T1000 8GB 或更高版本或 NVIDIA 3050 8GB 或更高版本
- 16 GB Ram
- 512GB SSD（建議M.2 NVMe）
- Vizrt 持續更新 TriCaster Mini S 的認證硬體清單
- 在Vizrt認證的硬體平台上運行 TriCaster Mini S 的客戶可取得最佳效能

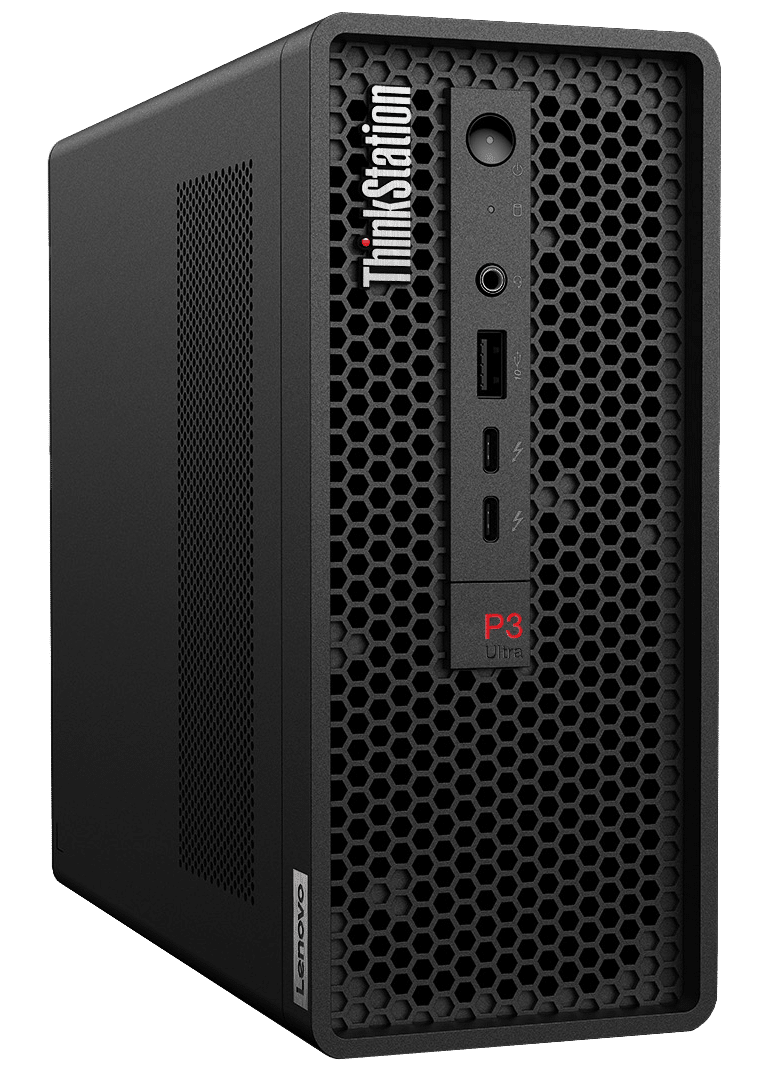

- Lenovo P3 Ultra SKU: 30HA002BUS

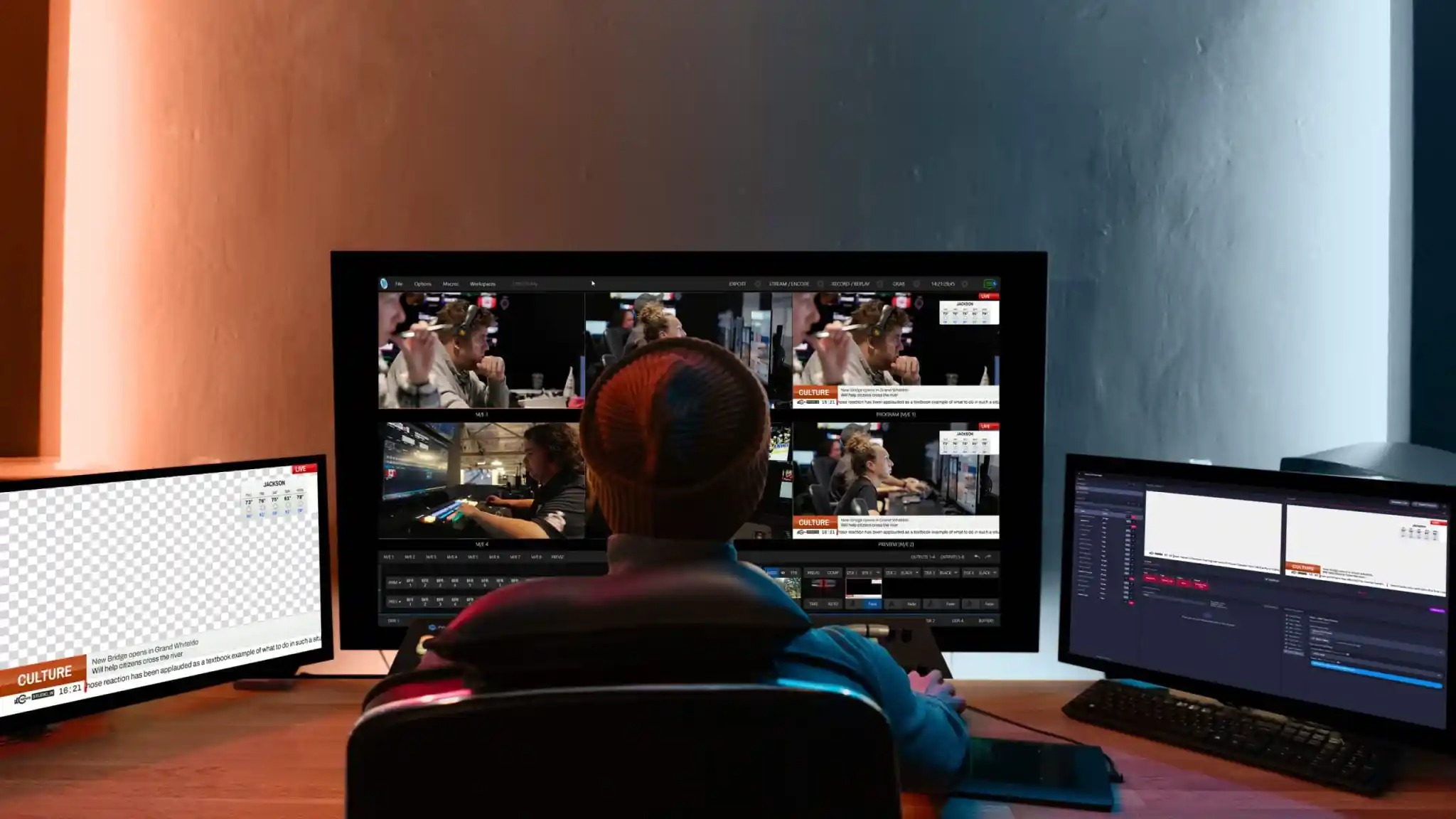

使用 Viz Flowics 支援的 TriCaster Graphics 專業圖文系統
TriCaster Mini S 具有強大的即時動態圖形功能，以 Viz Flowics 為建構核心。 Viz Flowics 原生雲製播動態圖文服務、使用網路 Web 平台技術，可在任何地方製作即時動畫 HTML5 圖形。 使用網頁瀏覽器建立、編輯、控制與播放。將即時數據與 Viz Flowics 創新的免程式編寫連接功能結合。開展您專業的製播能力。。具有以下特色:
- 提供2個使用者
- 提供2GB資源庫
- 提供1個輸出
- 提供1個團隊
- 具有圖文字幕編輯器
- 免編寫程式資料整合環境
- 提供專業支援
- 提供APIs
- 提供安全防護機制
- 提供觀眾參與機制

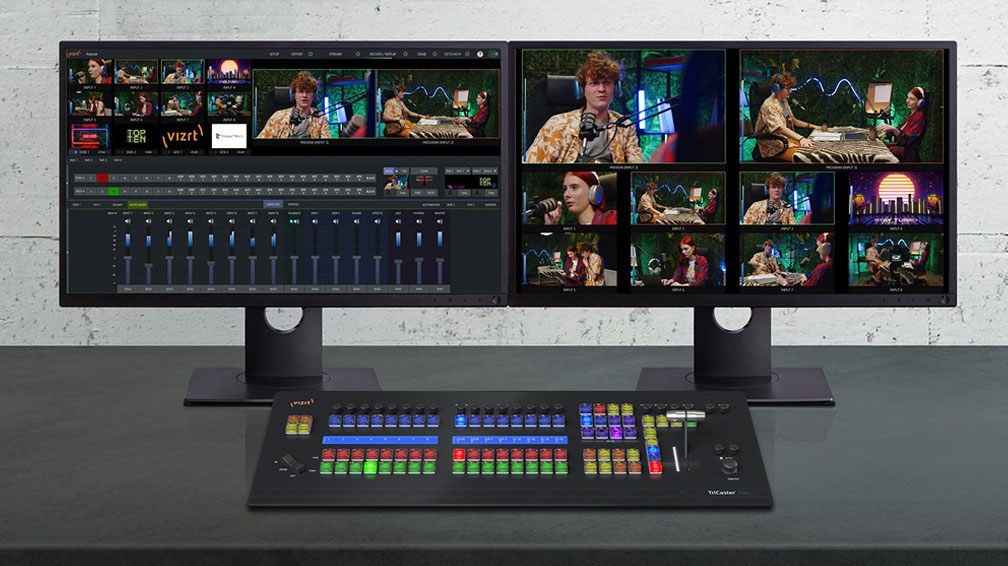

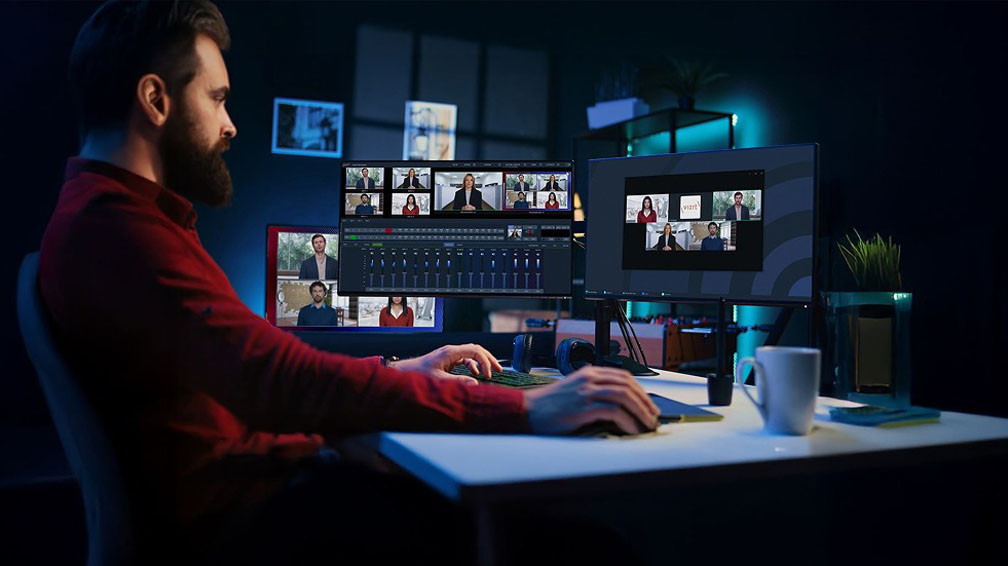

TriCaster Mini S 豐富的功能特色
TriCaster Mini S 是有史以來最方便使用的 TriCaster；非常適合媒體串流、直播主、網紅、小型公司行號、企業、市府機關、議會和現場活動。 千萬不要小看 TriCaster Mini S ，它具有豐富的專業影音製作功能，可以讓您的製作看起來與專業影音網路製作一樣出色：
- 具有4Kp60高質量
- 具有8個即時輸入
- 內建2個 DDR 播放器
- 提供4個M/E
- 支援垂直畫面製作能力
- 採用全訂閱制
- TriCaster 專業圖文字幕系統由 Viz Flowics 提供支援
- 含 LivePanel、Live Story Creator 和 AI 音訊功能
- 可安裝在Vizrt合格認證的硬體

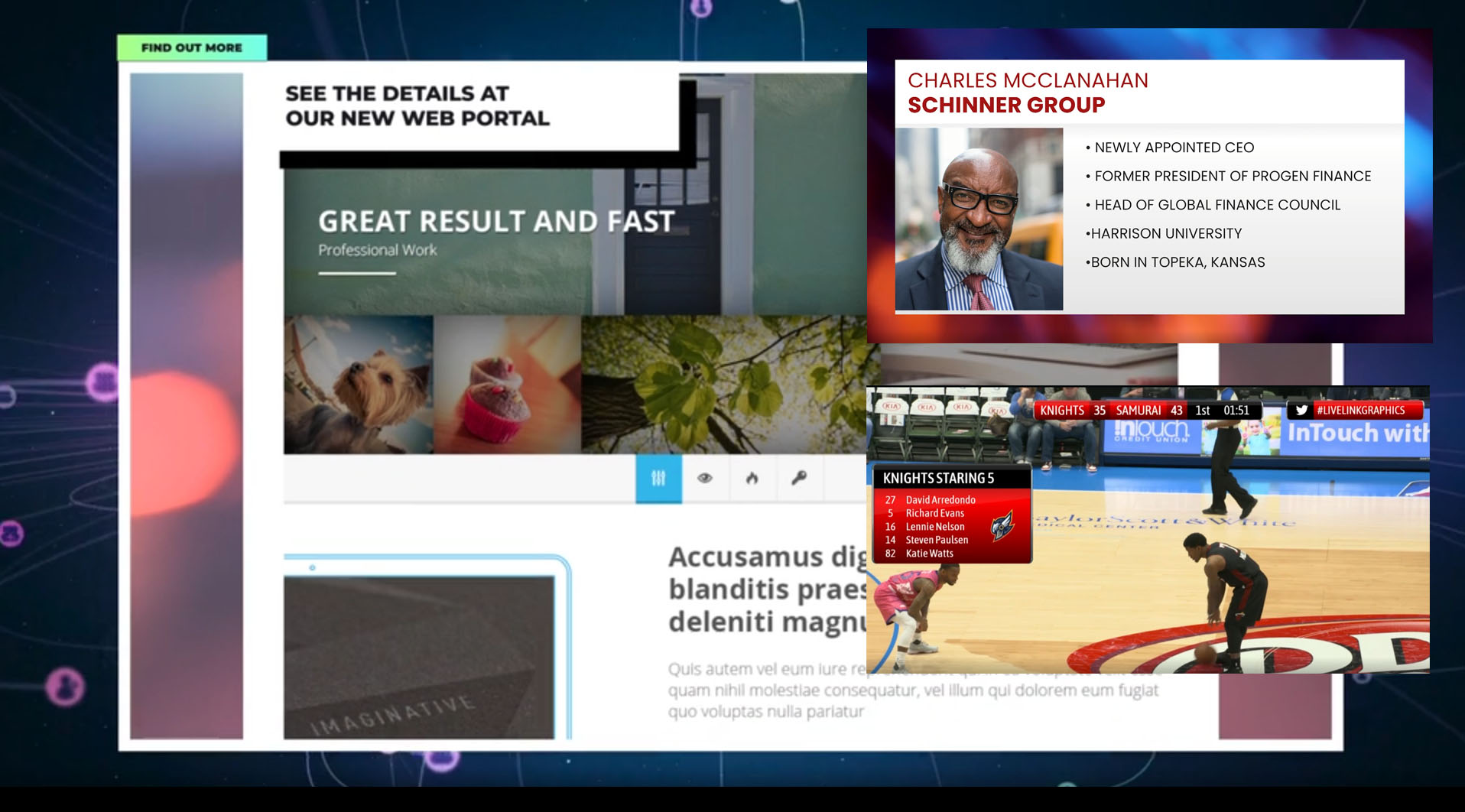

TriCaster Mini S 即時連結 Live Link 功能
TriCaster Mini S 便利的即時連結 Live Link 功能，能讓使用者將網頁直接導入 TriCaster 中， 在製作時取用任何網頁元素，無需第三方應用程式。 從網頁圖形、圖像到組織內部培訓平台的影片 - Live Link 提供了極致的製作靈活性和自由度。 只要系統已更新到最新版本，都能完美運行這個功能。

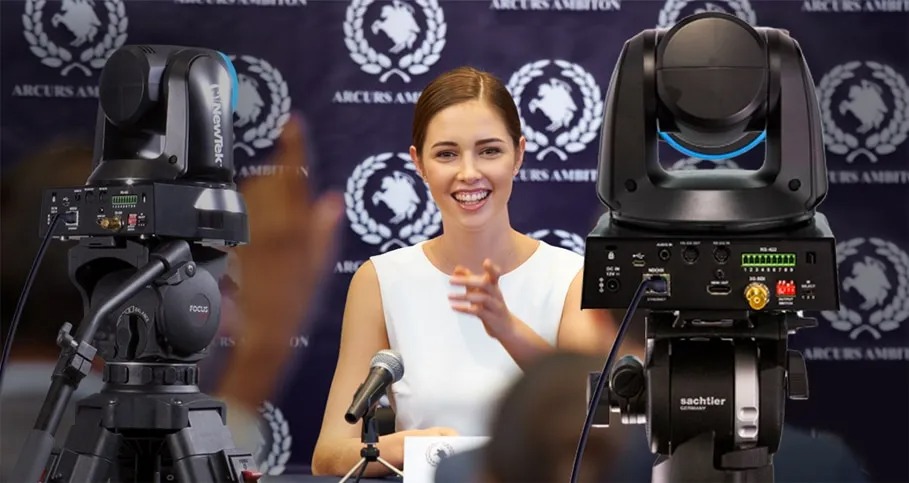

使用 NDI 簡化 IP 連接
TriCaster Mini S 使用 NDI 簡化 IP 連接，告別笨重的視訊線材，利用 NDI IP 標準的隨插即用簡單性。 使用一條網路線，連接各種支援 NDI 的產品以及全球最大的第三方 IP 視訊設備生態系統，可用於視訊、音訊、按鍵、控制、計時，與乙太網路供電。
卓越的社群媒體發布
TriCaster Mini S 可在您的社群媒體帳號中，分享即時更新與點播內容。 輕鬆將附上評論和主題標籤的圖片與影片直接上傳到 Facebook、Imgur、LinkedIn、Twitter、Vimeo、YouTube 等熱門的主流平台。

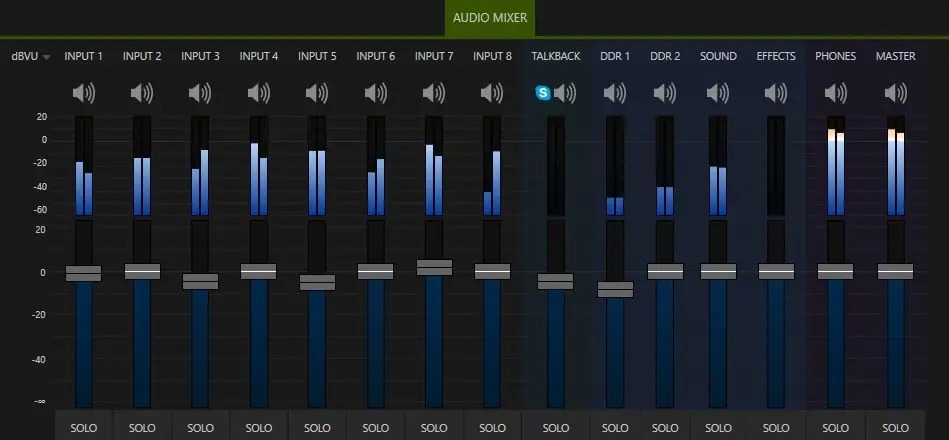

多通道音訊混合
透過全面的音訊整合，為您的製作加入精彩的音訊，包括基於軟體的音訊混音器、支援數位、類比和 USB 音訊設備、運用各種最先進的音訊技術: NDI、Dante 和 AES67 的 IP 音訊網路、專業 DSP、音量控制、 VU 音量表、Talk Back 通訊以及具有兩種音訊混合的 2 x 2 x 2 立體聲音訊。

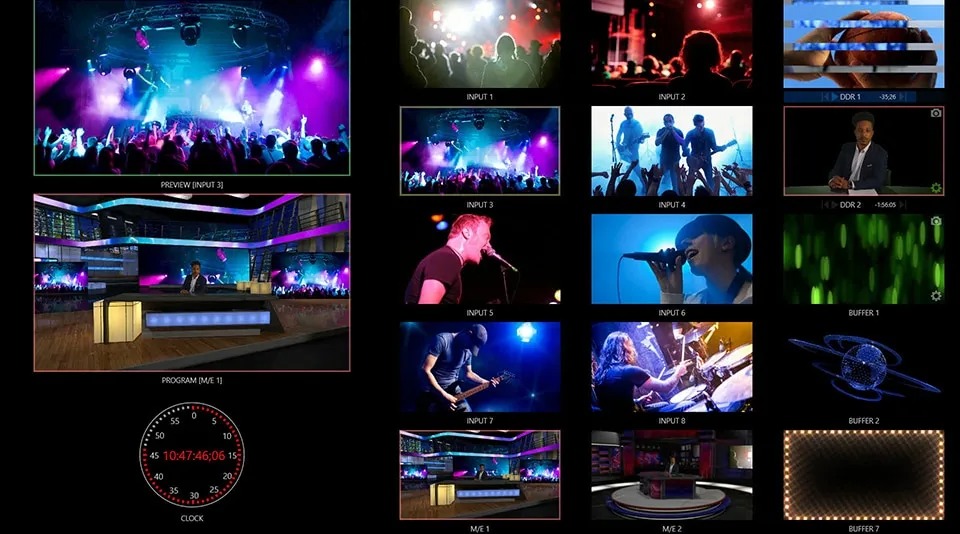

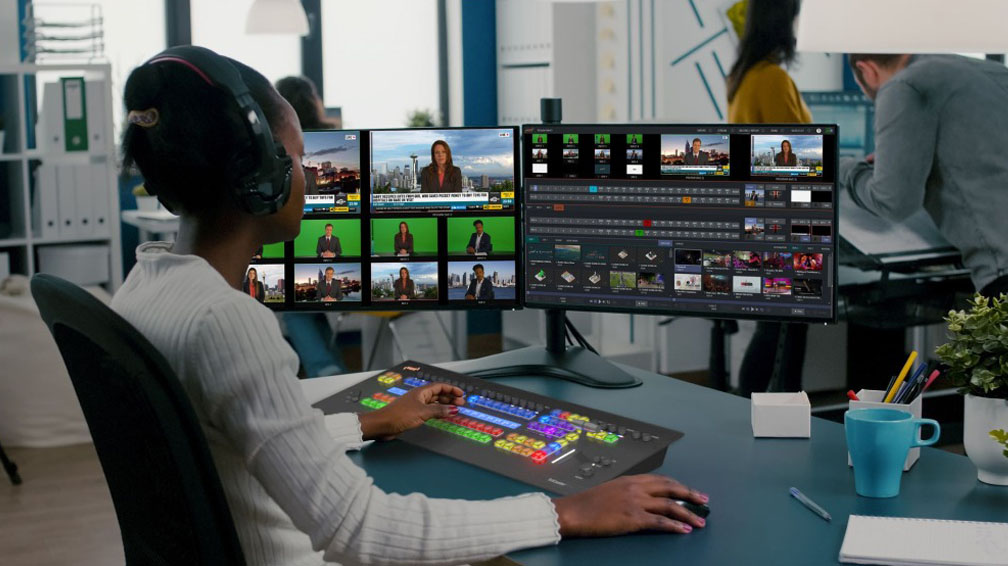

即時監控和多畫面顯示
透過可操控的單螢幕或多螢幕監看製作過程。經由三個可自定義的多畫面檢視器、可調整的視窗和工作畫面佈局、監看螢幕、視覺指示器、示波器等，您可以根據自己的喜好，自訂專屬操作環境。

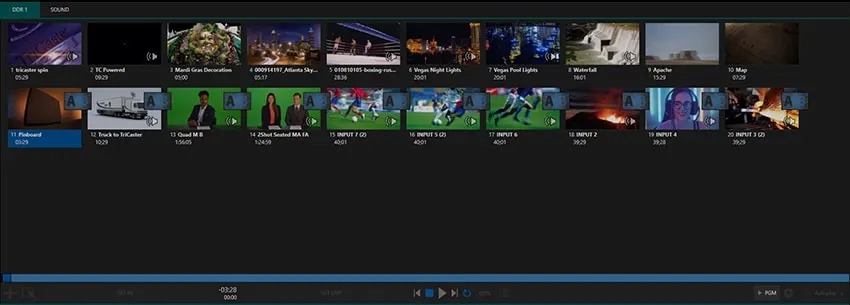

內建數位影音播放器
將您的檔案新增至內建視訊播放器，包括自動播放清單、即時可編輯的精彩片段等等，方便進行點播和自動播放。您即可擁有從儲存的媒體中創造魔法所需的一切，比如：透過響應式播放器控制、預設、即時編輯工具、可選擇的過場和播放清單效果。
值得信賴的服務
Support Contact Point
Webform
yes
Vizrt community portal
yes
Support Contact
24/7 Portal
yes*
24/7 Live Chat
yes*
Support Commitments
Response Time (Critical)
< 4 Hours*
Response Time (High)
< 8 Hours*
Response Time (Normal)
< 24 Hours*
Support & maintenance Licensing & Software Updates
yes
Viz University
Remote System Support
yes
Submit Feature Ideas
yes
Global Support knowledge
Self-Service Knowledge Base
yes
Vizrt Community Forums
yes
3rd Line Technical
Availability
8*5
Global Support knowledge
Proactive Support
Live System DevOps (Flowics subscription)
* Support case handling might be limited for software running on non-certified hardware
| Support Contact Point | |
| Webform | yes |
| Vizrt community portal | yes |
| Support Contact | |
| 24/7 Portal | yes* |
| 24/7 Live Chat | yes* |
| Support Commitments | |
| Response Time (Critical) | < 4 Hours* |
| Response Time (High) | < 8 Hours* |
| Response Time (Normal) | < 24 Hours* |
| Support & maintenance | |
| Licensing & Software Updates | yes |
| Viz University | |
| Remote System Support | yes |
| Submit Feature Ideas | yes |
| Global Support knowledge | |
| Self-Service Knowledge Base | yes |
| Vizrt Community Forums | yes |
| 3rd Line Technical | |
| Availability | 8*5 |
| Global Support knowledge | |
| Proactive Support | Live System DevOps (Flowics subscription) |
* Support case handling might be limited for software running on non-certified hardware
TriCaster Mini 系列比較表
| 型號 | Mini Go | Mini X | Mini 4K | Mini S |
|---|---|---|---|---|
| 輸入數量 | 4 | 8 | 8 | 8 |
| 輸入支援 | IP/USB | IP/HDMI/USB | IP/HDMI*/USB | IP |
| 混合輸出 | 2 | 4 | 4 | 4 |
| DSK | 2 | 2 | 2 | 2 |
| M/E 庫 | 2 | 4 | 4 | 4 |
| 每個M/E支援層數 | 2 | 2 | 2 | 2 |
| 每個M/E支援鍵數 | 2 | 2 | 2 | 2 |
| 錄製路數 | 2 | 4 | 4 | 4 |
| 最高解析度 | 1080p/60 | 2160p/30 | 2160p/60 | 2160p/60 |
| M/E Video Re-Entry | - | 是 | 是 | 是 |
| Macros巨集指令 | System Only | Full Macro Support | Full Macro Support | Full Macro Support |
| Live Link | 是 | 是 | 是 | 是 |
| LivePanel | 是 | 是 | 是 | 是 |
| TriCaster Camera App | 是 | 是 | 是 | 是 |
| Live Story Creator | - | 是 | 是 | 是 |
| NDI KVM | 是 | 是 | 是 | 是 |
| 音訊支援 | 是 | 是 | 是 | 是 |
| Vertical 9 x 16 Sessions 垂直畫面 | - | 是 | 是 | 是 |
| PSD格式整合 | 是 | 是 | 是 | 是 |
| 虛擬場景編輯工具 | - | 是 | 是 | 是 |
| 控盤支援 | Mini CP, Flex | Mini CP, Flex | Mini CP, Flex | Mini CP, Flex |
產品規格
Network Video Input
8 x IP video inputs via NDI, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
- 2160p 59.94, 50, 29.97, 25, 24, 23.976
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)

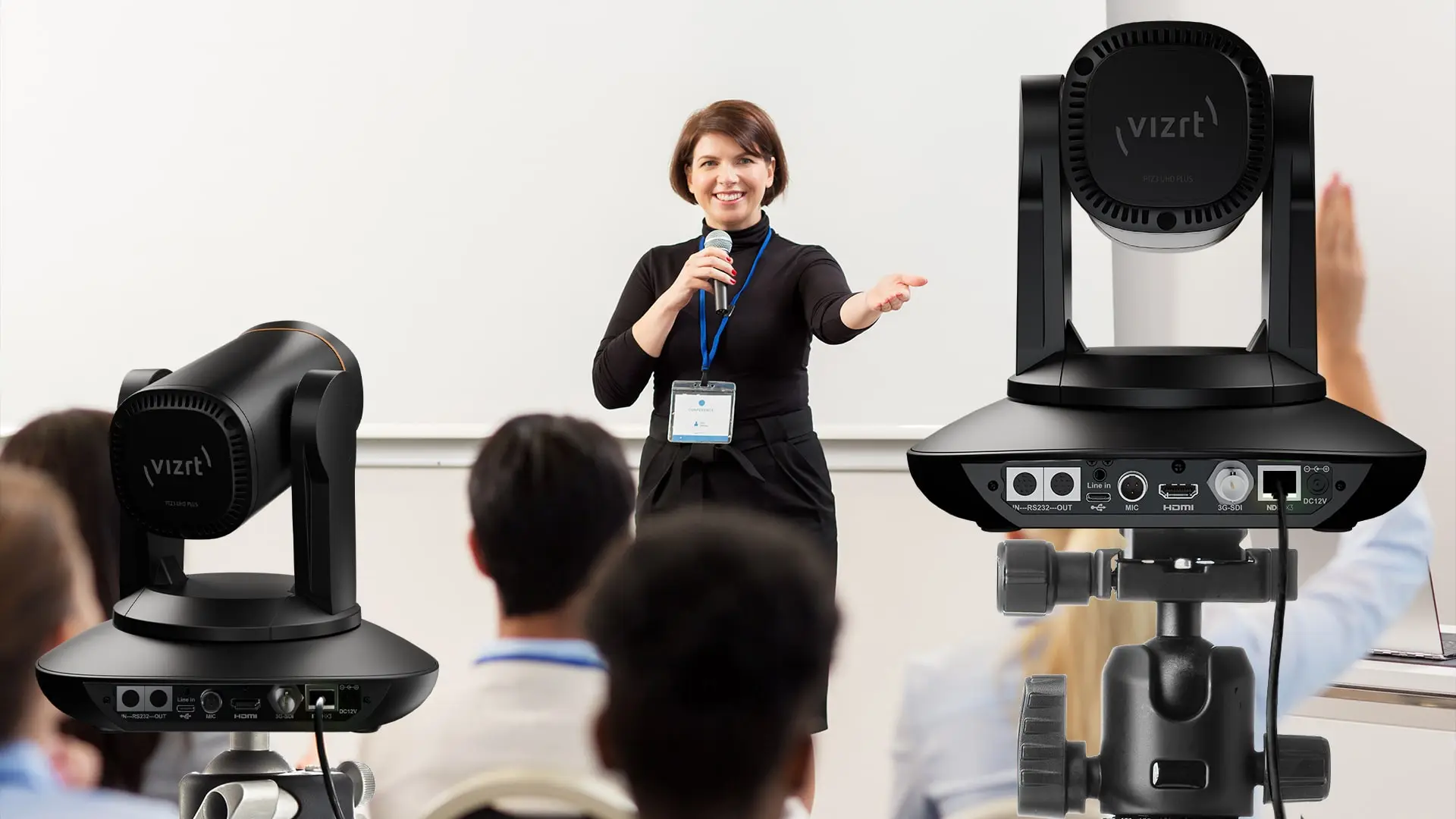

PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output
IP video output via NDI, optionally configurable for:
4 x independent video mix outputs
1 x UHD video mix output
Stream Output
2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs
UI and multiview outputs available via onboard GPU outputs
Mix/Effect Buses (M/E)
4 x M/E buses supporting video re-entry
- 1 x Mix/Effect channel per bus with support for up to 2 sources
- 4x channels NDI|HX 2 in HD H.264 or HEVC codec
DSK Channels
2 x DSK channels
Media
4 x media players
- 2 x DDR
- 1 x GFX
- 1 x Sound
15 x media buffers
- 5 x animation buffers
- 10 x graphic buffers
Keyers
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
- 8 x input keyers
- 2 x media player keyers
- 4 x M/E keyers
- 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Recording
4 x recording channels from either NDI inputs or Mix outputs (10 x with Premium Access)
- Records and retains alpha channel data
- 4 x QuickTime archival video recorders (Native NDI Codec for recording)2
2QuickTime Player not required for playback in common NLE applications
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer
Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Network Audio
- Native support for network audio input and output via NDI
- Embedded audio supported for all NDI input and output video signals
- Integrated support3 for Dante networking protocol from Audinate
3Requires Dante Virtual Soundcard license from Audinate (sold separately)
3Requires third-party virtual sound card license (sold separately)
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
Processing
Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
Tally
Support for network tally via NDI
MIDI
Support for standard MIDI protocol enabling third-party device control
HTML 5 Graphics
2 Users
2GB Asset Library
1 Output
1 Team
Graphics Editor
- Timeline-based Animations
- Text Crawler
- Assets Library
- 140 ready-to-use free graphics
Data Integrations
- Google Sheets Data Provider
- RSS / Atom Data Provider
- JSON REST Connector
- JSON WebSocket Connector
Security – MFA
Control API
Knowledge Base Support
Powered by Viz Flowics running in cloud, rendered locally via TriCaster Live Link
| Network Video Input |
8 x IP video inputs via NDI, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
|
| PTZ | Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system |
| Skype TX | Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication |
| Network Video Output |
IP video output via NDI, optionally configurable for: 4 x independent video mix outputs 1 x UHD video mix output |
| Stream Output | 2 x streaming video output, independently configurable, with simultaneous stream archive |
| Monitor Outputs | UI and multiview outputs available via onboard GPU outputs |
| Mix/Effect Buses (M/E) |
|
| DSK Channels | 2 x DSK channels |
| Media |
4 x media players
15 x media buffers
|
| Keyers |
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
|
| COMPs |
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus |
| Virtual Sets | Integrated LiveSet technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Recording |
4 x recording channels from either NDI inputs or Mix outputs (10 x with Premium Access)
|
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Audio Mixer | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
| Network Audio |
3Requires Dante Virtual Soundcard license from Audinate (sold separately) |
| Supported Media File Formats |
Import, store, and play back multimedia files, with optional transcoding, including:
|
| Processing |
Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
| Throughput Latency | ~1.0-1.5 frames |
| Tally | Support for network tally via NDI |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| HTML 5 Graphics |
2 Users 2GB Asset Library 1 Output 1 Team Graphics Editor
Data Integrations
Security – MFA Control API Knowledge Base Support Powered by Viz Flowics running in cloud, rendered locally via TriCaster Live Link |
