TriCaster Now
全媒體多 M/E 雲端製作導播系統
TriCaster NOW 雲端製播
專業雲端製播，輕鬆製作
TriCaster Now（虛擬 TriCaster 雲端工作站）是一個可靠、適應力強，能快速擴展的全媒體多 M/E 雲端製作導播解決方案，支援雲端製作，可依需求自由選購。 具有無縫接軌製作、可擴展和安全等特性，能讓專業製作人員從世界任何地方啟動製作，並傳輸高質量的視訊內容。 TriCaster Now 是開始雲端製播完美的方式。非常適合已具備雲端影音源的遠距團隊，進行快速製作。 TriCaster Now 提供各種標準的視訊輸入和輸出，支援FULL-HD高畫質，適合小型製作和入門級使用者。 10 分鐘內就能完成設置，並運行製作，超快部署能力，讓您在百花齊放，激烈競爭的媒體環境中脫穎而出。
TriCaster Now 雲端製播模式
基本模式 Basic：專為您的製作需求打造
TriCaster Now 經濟高效的解決方案，為雲端現場製作的使用者，提供堅實的基礎。
它提供專業的視訊輸入和輸出，支援 FULLHD 視訊品質。適合小規模製作、入門級使用者和獨立製作團隊來說是理想的選擇。
探索模式 Discovery Pass：針對探索的雲端新手準備
對雲端即時視訊製作感到好奇或猶豫？
Discovery Pass 為潛在使用者，提供了一個絕佳的機會，
讓他們探索該平台的功能、了解其優勢並取得雲端即時視訊製作的實作經驗。
（僅適用於首次訂閱者，限期 1 個月）
共同規格
● 2 使用者● 1 製作
● 1 區域
● 450GB 儲存空間
● 8 視訊來源
● 2 個視訊輸出
● 2 個解碼器，1 個編碼器
● 1920×1080 60p 解析度
● 4 個混音/效果
● 2 個 DSK 通道
● 2 層
● 4 個錄音頻道
● 4 個媒體播放器
● 8 個 PTZ 攝影機
差異規格
基本模式 Basic每月 11 Credits 授權 /4小時
Flowics 90 天試用版
探索模式 Discovery Pass
每月 28 Credits 授權/10小時
Flowics 30 天試用版
僅適用於首次訂閱者，限期 1 個月
TriCaster Now 是最佳的成本效益的解決方案，具有靈活的訂閱模式與價格選擇，能按使用量計費，讓製作人員選擇最適合自己的模式，建立堅實的製作基礎。 您可以通過 TriCaster 系統輕鬆地以高質量和高效率呈現，製作主題演講、網路廣播到線上培訓與體育賽事各種精彩的專業製播。 TriCaster 已將整個媒體製作功能整合於您的掌握之中，讓您輕鬆製作出精彩的專業內容。
產品特色
值得信賴
基於雲端製作中獲得，最新、最強大的 TriCaster 功能，而無需升級或更新。 不必預支前期費用，就能擁有 TriCaster 所帶來的專業體驗、可信度與功能。 馬上進行 TriCaster 製作，不必受限製作規模或類型如何。
適應性強
無需投資設備和額外的維護費用。 靈活的訂閱價格與模式。讓使用者可以選擇最適合他們的方法。 功能齊全的視訊切換器可在 10 分鐘內啟動並運行！ 無縫、快速的部署，讓您在百花齊放、競爭激烈的媒體環境中脫穎而出。
擴展性
TriCaster 現在提供兩種擴展方式，非常適合出現季節性製作需求高峰的製作單位： - 依據製作需求，選擇 TriCaster 工作站的類型以及輸入輸出的數量。 - 滿足任何選定時間與發送製作數，所需的訂閱模型。
TriCaster 雲端製播功能
強大的切換和合成

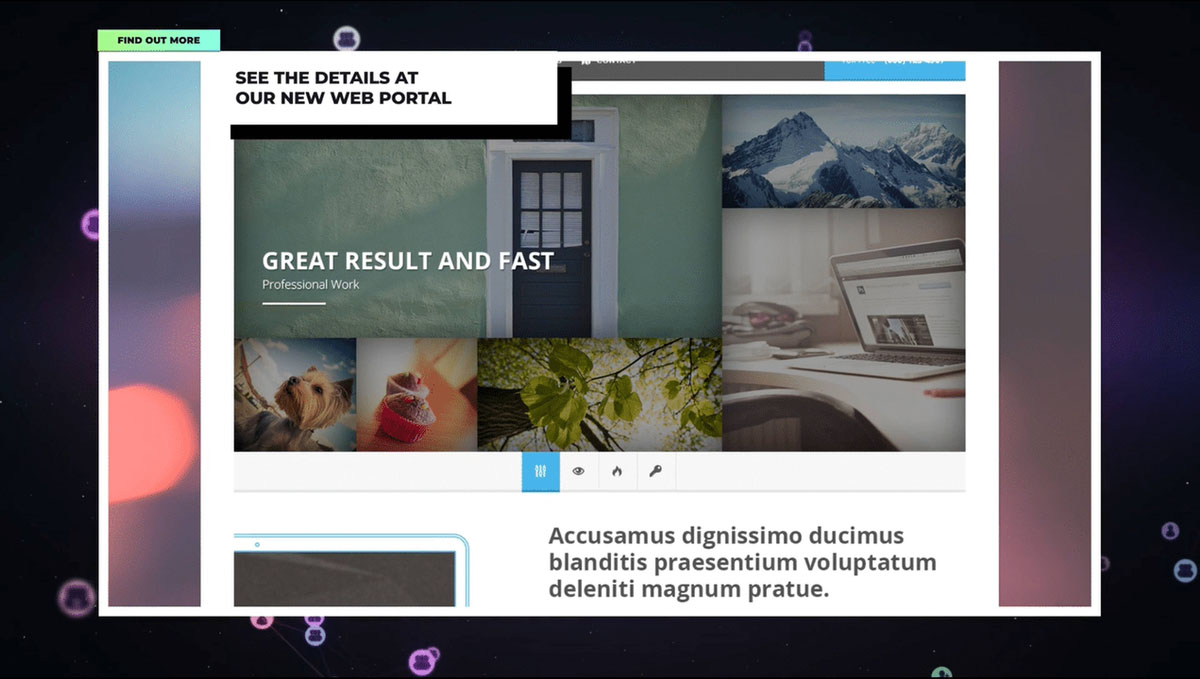

TriCaster Live Link
Live Link 讓使用者可以將網頁直接渲染到 TriCaster 中，並將任何網頁元素拉入作品中， 而無需第三方應用程式。從網頁上的圖形或圖像到組織內部培訓平台的影片 - Live Link 提供了終極的生產靈活性和自由度。現已在所有當前 TriCaster 上提供 - 確保您擁有最新更新以利用這項令人興奮的功能。

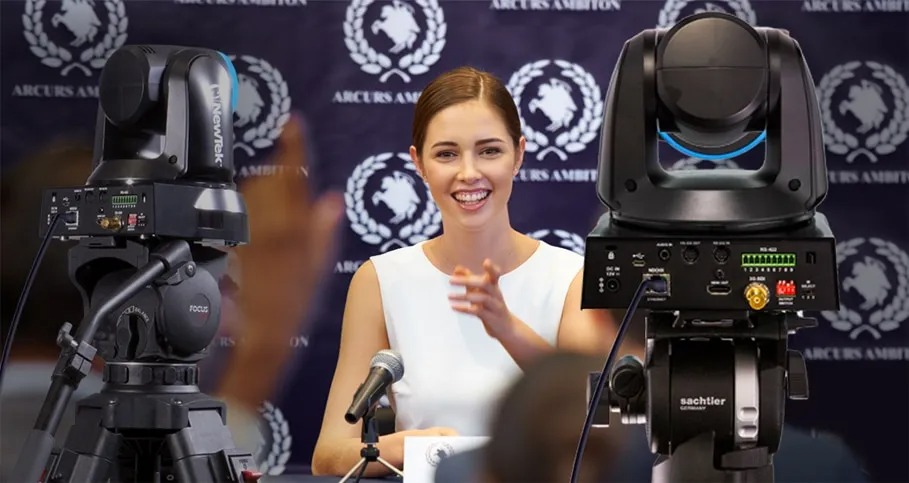

NDI 簡化 IP 連接
告別笨重的視訊電纜，並利用NDI IP 視訊協定的即插即用簡單性 。 使用一條網路電纜連接各種支援 NDI 的產品以及全球最大的第三方 IP 視訊產品生態系統， 用於視訊、音訊、按鍵、控制、計數，在某些情況下還可以透過乙太網路供電
| 方案 | Basic 基本模式 | Discovery Pass 探索模式 |
|---|---|---|
| 特色 |
每月 11 Credits 授權/4小時 Flowics 90 天試用版 |
每月 28 Credits 授權/10小時 Flowics 30 天試用版 僅適用於首次訂閱者，限期 1 個月 |
|
- 2 使用者 - 1 製作 - 1 區域 - 450GB 儲存空間 - 8 視訊來源 - 2 個視訊輸出 - 2 個解碼器，1 個編碼器 - 1920×1080 60p 解析度 - 4 個混音/效果 - 2 個 DSK 通道 - 2 層 - 4 個錄音頻道 - 4 個媒體播放器 - 8 個 PTZ 攝影機 |
- 2 使用者 - 1 製作 - 1 區域 - 450GB 儲存空間 - 8 視訊來源 - 2 個視訊輸出 - 2 個解碼器，1 個編碼器 - 1920×1080 60p 解析度 - 4 個混音/效果 - 2 個 DSK 通道 - 2 層 - 4 個錄音頻道 - 4 個媒體播放器 - 8 個 PTZ 攝影機 |
Video Input
Up to 8 utilizing IP connections via SRT, NDI, RTMP, RTSP, WebRTC.
Audio Input
Embedded audio supported for IP protocols
Network Video Output
IP video output via NDI
2 x independent video mix outputs
Max Session Output Resolution
1080/59.94p
Stream Output
1 streaming encoder with support for multiple simultaneous destinations as well as local archive
Multiviewer Output
Support for 3 multiviewer displays
Audio Mixing
Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Mix/Effect Buses (M/E)
4 x M/E buses
1 x Mix/Effect channel per bus with support for up to 2 sources
2 x Key Layers per bus
DSK Channels
2 x DSK channels
Media
- 4 x Media Players (2 x DDR, 2 x GFX, 1 x Sound)
- 15 x Media Buffers (5 x Live Link or Animation Buffers, 10 x Graphic Buffers)
Keyers
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
- 8 x input keyers
- 2 x media player keyers
- 4 x M/E keyers
- 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create,
store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per buss
Audio Mixing
Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Virtual Sets
Support for virtual sets and box effects downloadable from Vizrt.com
DataLink
Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
Pre-defined system Macros
Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers
Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
Supports control via web-based interface
Custom Macros
Record, write store and automate macros using the macro editor
Recording
- 4 x recording channels from either NDI inputs or Mix outputs Records and retains alpha channel data.
- 4 x QuickTime archival video recorders (Native NDI Codec for recording) *
* QuickTime Player not required for playback in common NLE applications
Storage
450GB Media Drive
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via NDI, with integrated controls and preset system
Local Audio Input
- 8 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
Latency
Internal Processing Latency: ~1.0-1.5 frames
Tally
Support for network tally via NDI
MIDI
Support for standard MIDI protocol enabling third-party device control
| Video Input | Up to 8 utilizing IP connections via SRT, NDI, RTMP, RTSP, WebRTC. |
| Audio Input | Embedded audio supported for IP protocols |
| Network Video Output |
IP video output via NDI 2 x independent video mix outputs |
| Max Session Output Resolution | 1080/59.94p |
| Stream Output |
1 streaming encoder with support for multiple simultaneous destinations as well as local archive |
| Multiviewer Output | Support for 3 multiviewer displays |
| Audio Mixing | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
| Mix/Effect Buses (M/E) |
4 x M/E buses 1 x Mix/Effect channel per bus with support for up to 2 sources 2 x Key Layers per bus |
| DSK Channels | 2 x DSK channels |
| Media |
- 4 x Media Players (2 x DDR, 2 x GFX, 1 x Sound) - 15 x Media Buffers (5 x Live Link or Animation Buffers, 10 x Graphic Buffers) |
| Keyers |
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses - 8 x input keyers - 2 x media player keyers - 4 x M/E keyers - 15 x buffer keyers |
| COMPs |
Integrated video composition engine on the switcher and each M/E bus to create,
store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per buss |
| Audio Mixing | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
| Virtual Sets | Support for virtual sets and box effects downloadable from Vizrt.com |
| DataLink | Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros |
Pre-defined system Macros Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface Custom Macros Record, write store and automate macros using the macro editor |
| Recording |
- 4 x recording channels from either NDI inputs or Mix outputs Records and retains alpha channel data. - 4 x QuickTime archival video recorders (Native NDI Codec for recording) * * QuickTime Player not required for playback in common NLE applications |
| Storage | 450GB Media Drive |
| Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| PTZ | Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via NDI, with integrated controls and preset system |
| Local Audio Input |
- 8 x SDI embedded - 1 x Balanced XLR stereo pair (Line) - 3 x Balanced 1/4” stereo pairs (Line) |
| Supported Media File Formats |
Import, store, and play back multimedia files, with optional transcoding, including: - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more - Audio: AIFF, MP3, WAV, and more |
| Latency | Internal Processing Latency: ~1.0-1.5 frames |
| Tally |
Support for network tally via NDI |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
Vizrt Flex Control Panel 專屬控播盤
尺寸: 63.5 x 23.1 x 9.6 cm
