Video Input	Up to 4 utilizing IP connections via SRT, NDI, RTMP, RTSP, WebRTC and Microsoft DirectShow compliant devices via USB
Audio Input	● Embedded audio supported for IP protocols ● Supplemental support for Dante™ networking protocol from Audinate 3 Requires ● Dante Virtual Soundcard license from Audinate (sold separately) ● Support for professional USB audio devices via compatible WDM audio drivers

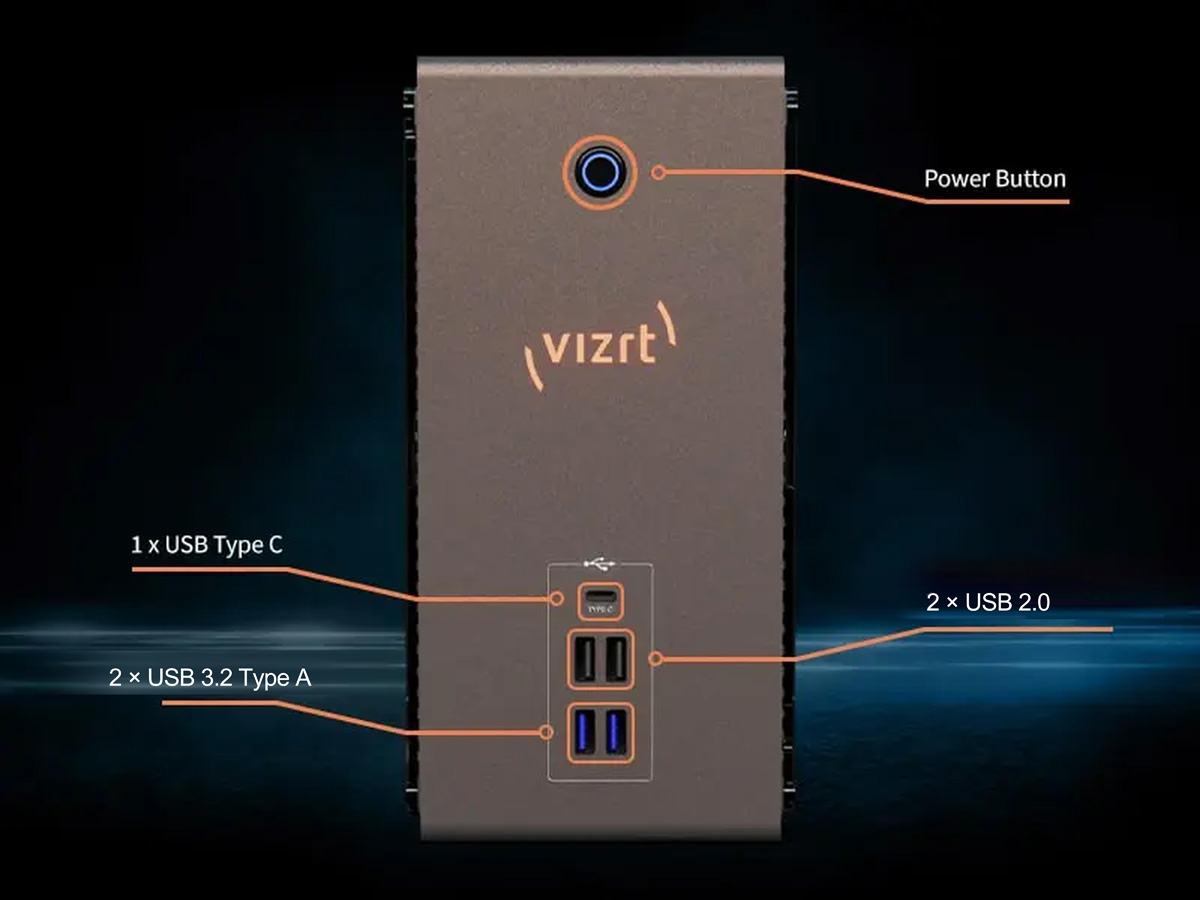

USB Connectivity	2 x USB 3.2 Type-C ports 6 x USB 3.2 Type-A ports 3 x USB 2.0 ports
Network Video Output	IP video output via NDI - 2 x independent video mix outputs
Stream Output	2 x streaming video output, independently configurable, with simultaneous stream archive

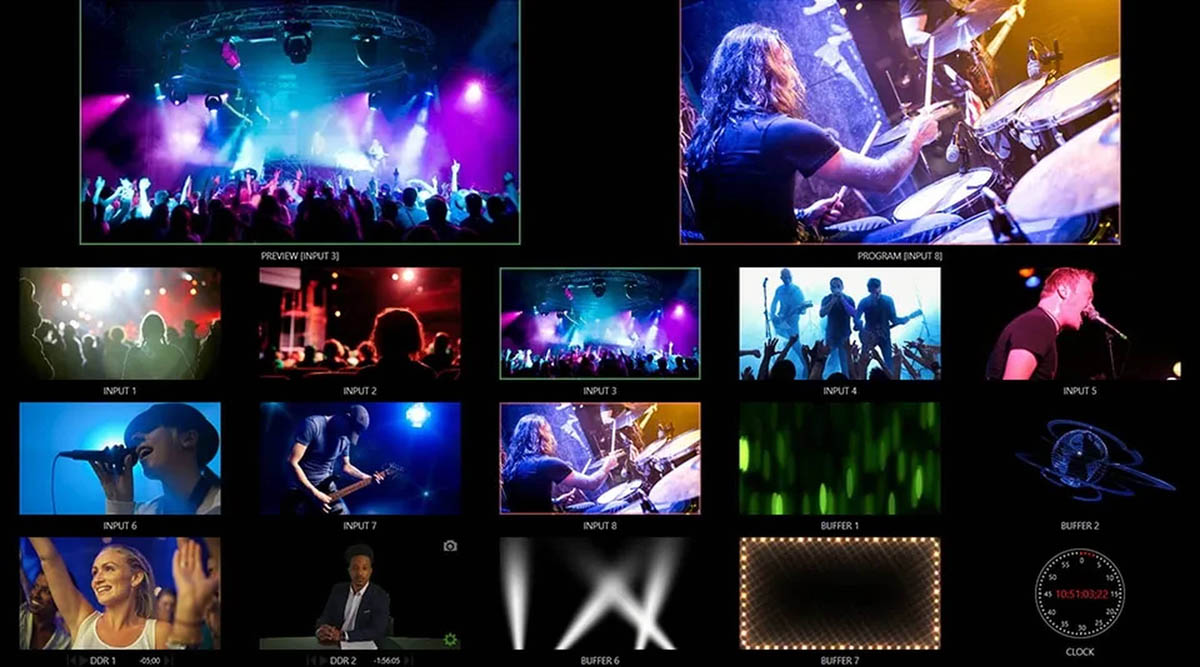

Monitor Outputs	2 x mini display port with output adapters Max monitor resolution 1080p/60
Max Session Output Resolution	1080p/60

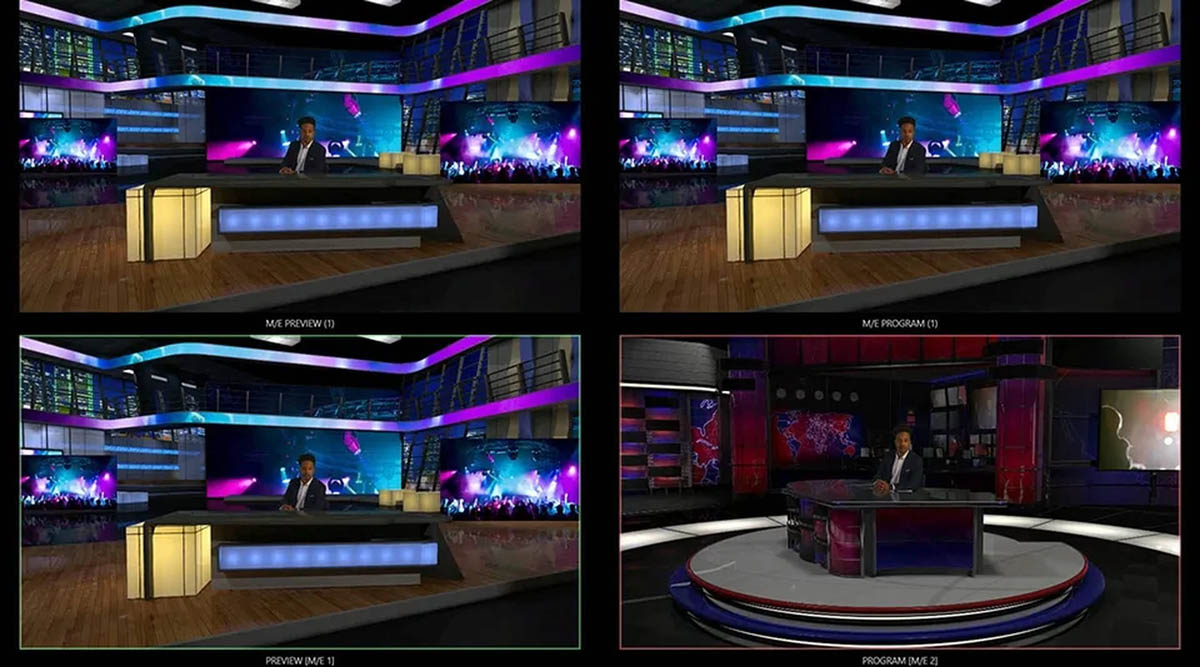

Mix/Effect Buses(M/E)	2 x M/E buses 2 x Keyers per bus 2 x Layers
DSK Channels	2 x DSK channels

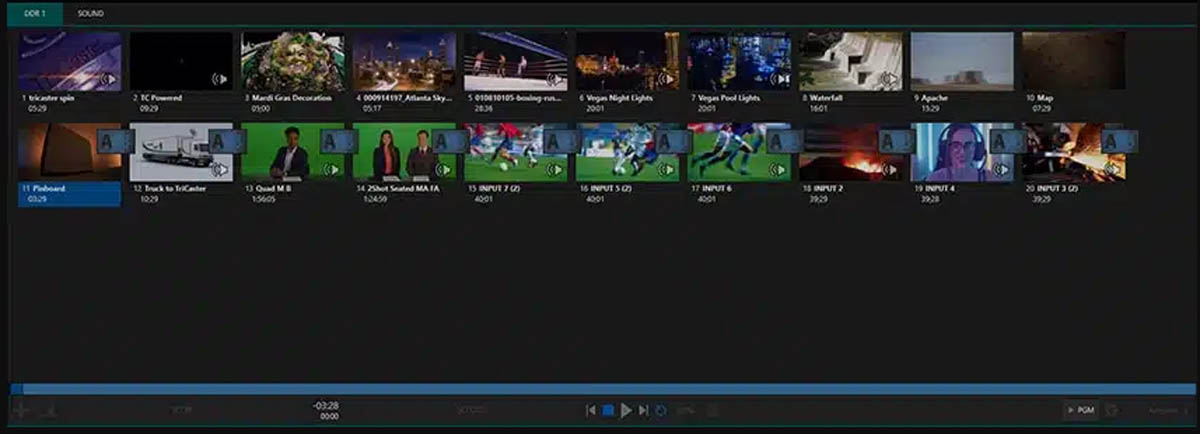

Media	5 x Media Players (2 x DDR, 2 x GFX, 1 x Sound) 15 x Media Buffers (5 x Live Link or Animation Buffers, 10 x Graphic Buffers)
Keyers	Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses - 4 x input keyers - 2 x media player keyers - 2 x M/E keyers - 15 x buffer keyers

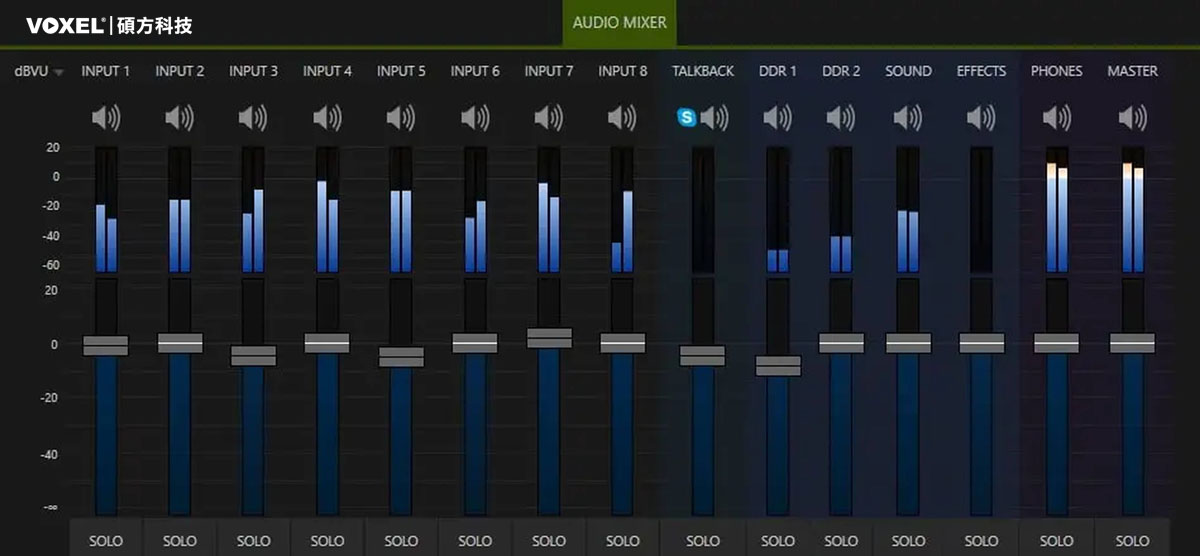

Audio Mixing	Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Virtual Sets	Integrated LiveSet technology with 30+ live virtual sets and box effects included

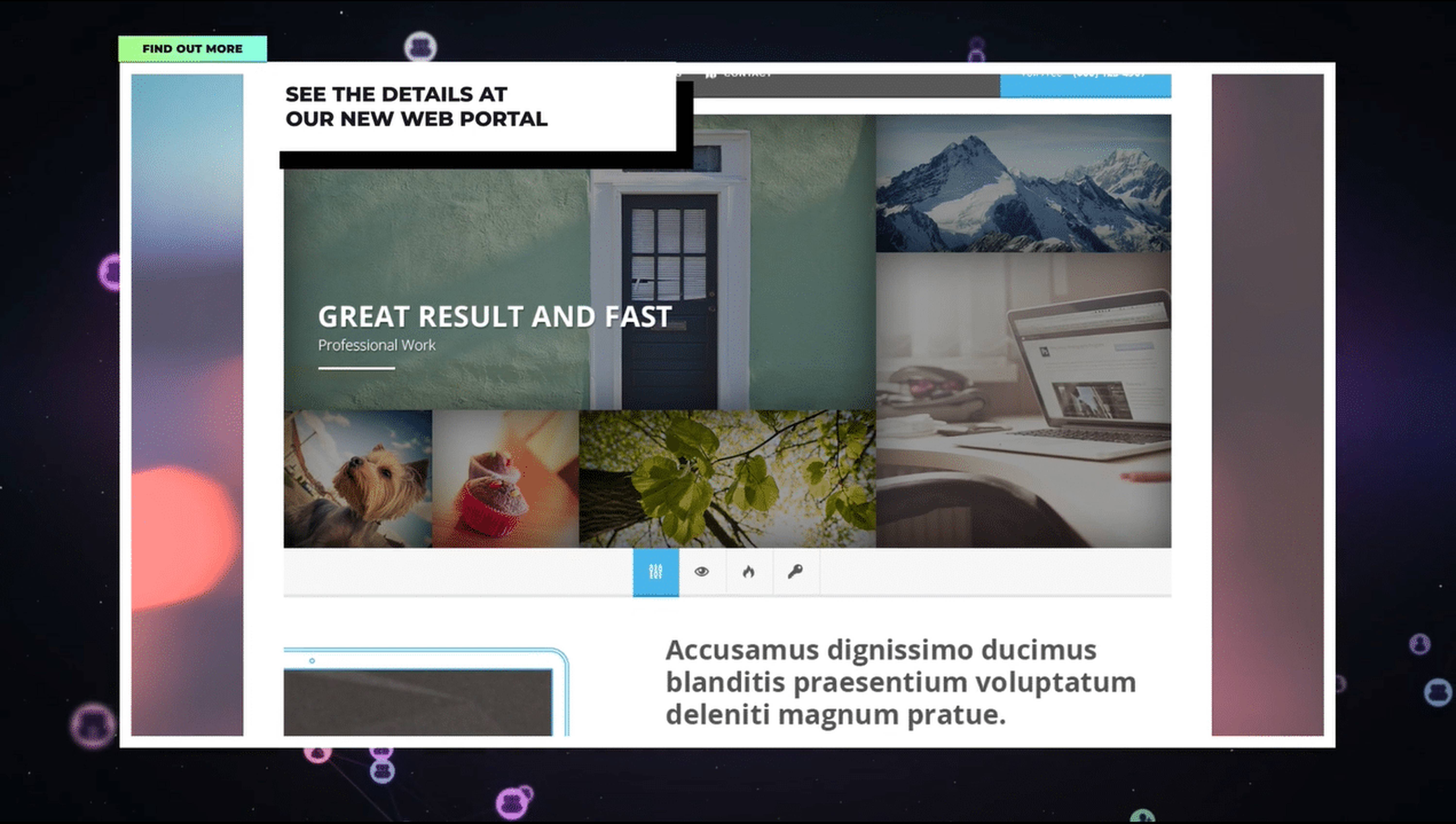

DataLink	Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Pre-defined system Macros - Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers - Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions - Supports control via web-based interface
Recording	2 x recording channels from either NDI inputs or Mix outputs - Records and retains alpha channel data
Storage	Capacity varies by format,resolution and file specification Supports recording to external storage via USB 3.0 Support for Network Attached Storage(NAS)
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

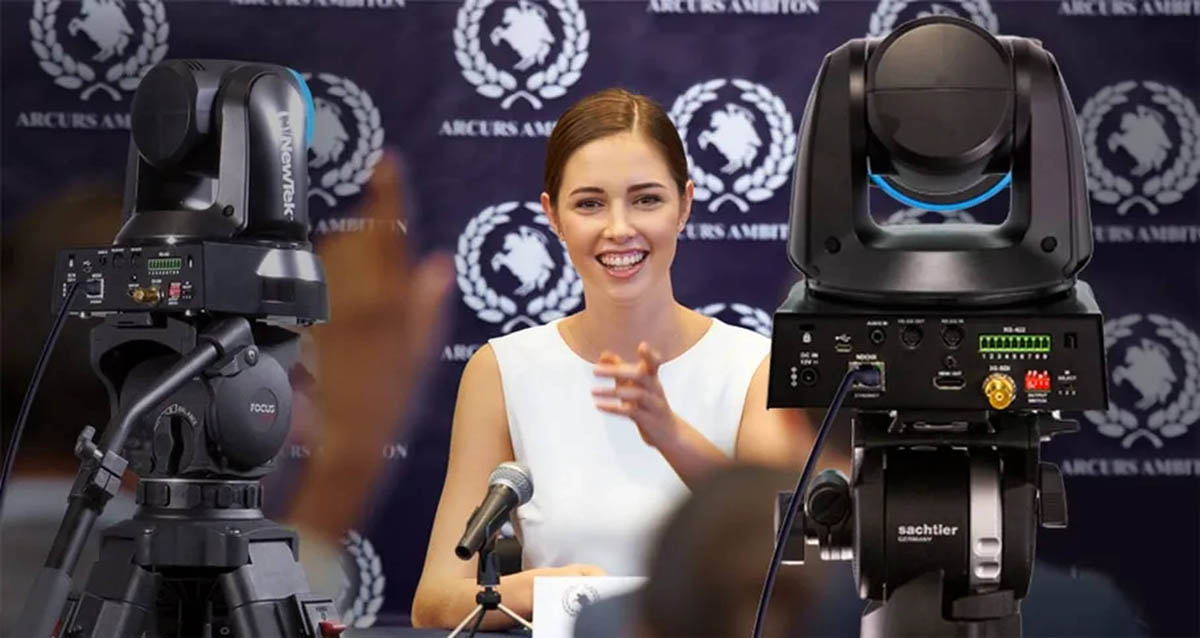

PTZ	Support for up to 4 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232*, RS422*, and IP, with integrated controls and preset system *Requires USB to serial adapter - sold separately
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: · Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more · Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more · Audio: AIFF, MP3, WAV, and more
Processing	Video: YCbCr + Alpha color space, using 4:2:2:4 Audio: 96 kHz
Latency	Processing Latency: ~1.0-1.5 frames
Tally	Support for network tally via NDI
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	2 x 2.5 Gigabit NIC

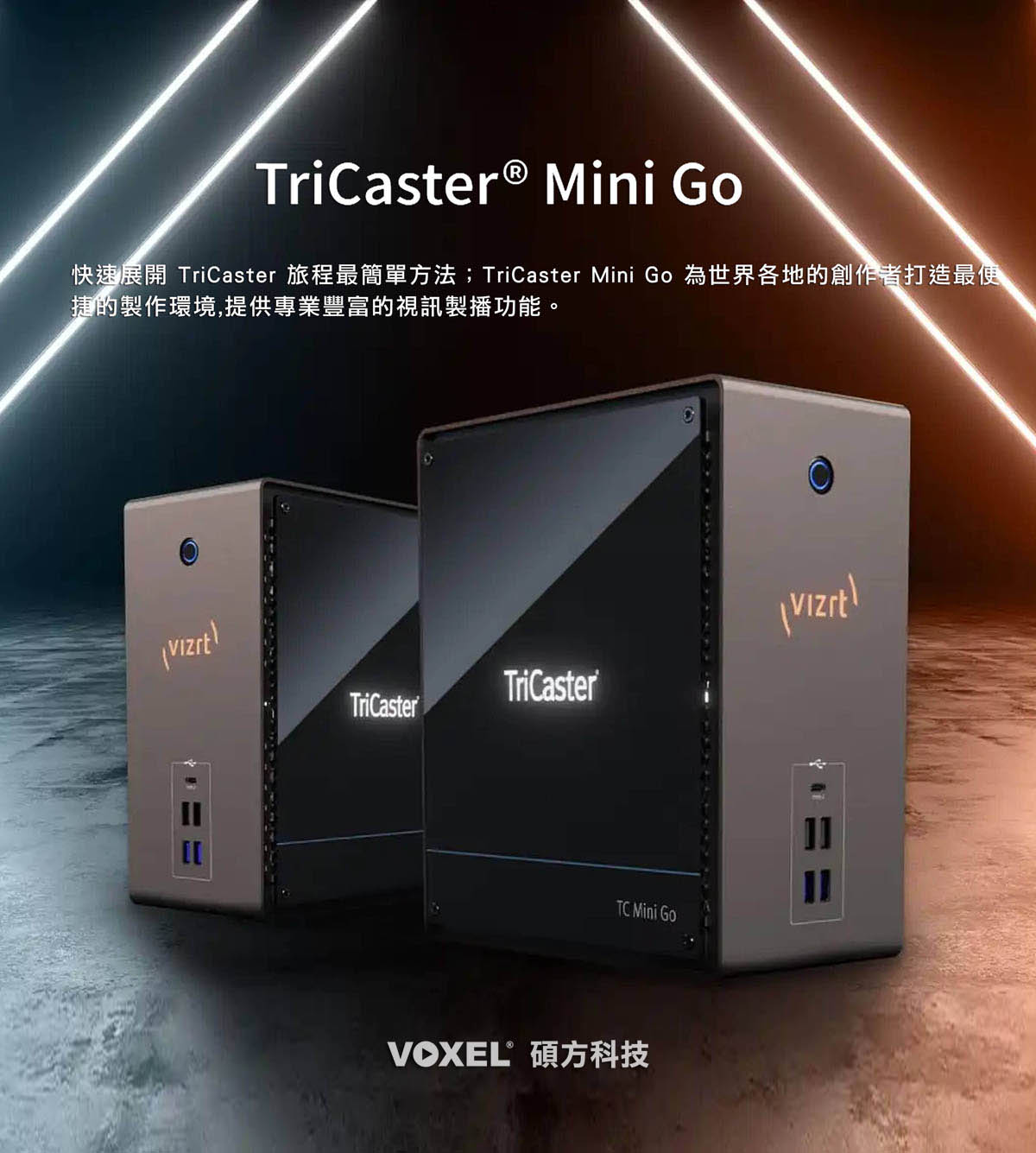

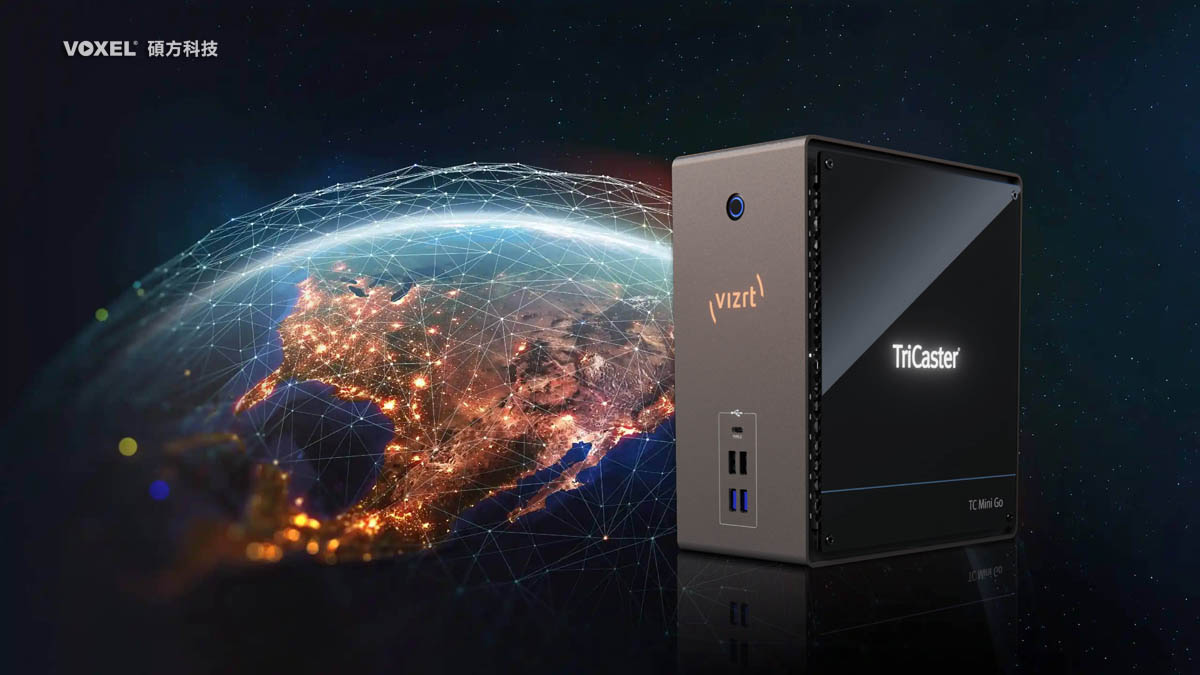

System Physical	TriCaster Mini Go system chassis, including adjustable handle and cable retention bracket - 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm) - 8.4 lbs (3.8 kg)

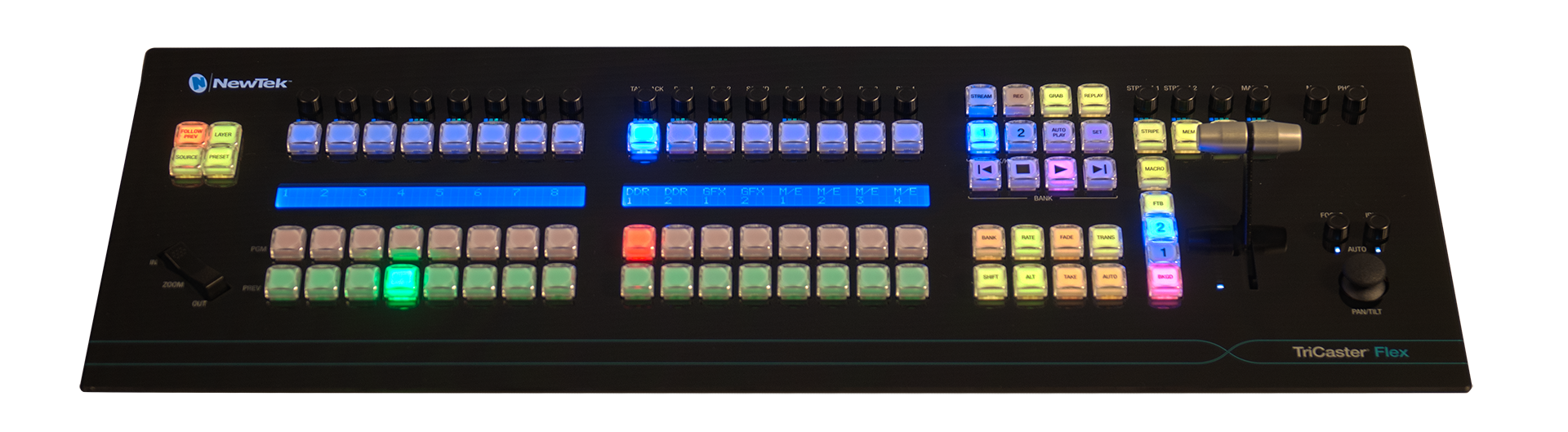

■ Vizrt Flex Control Panel 專屬控播盤

尺寸: 63.5 x 23.1 x 9.6 cm

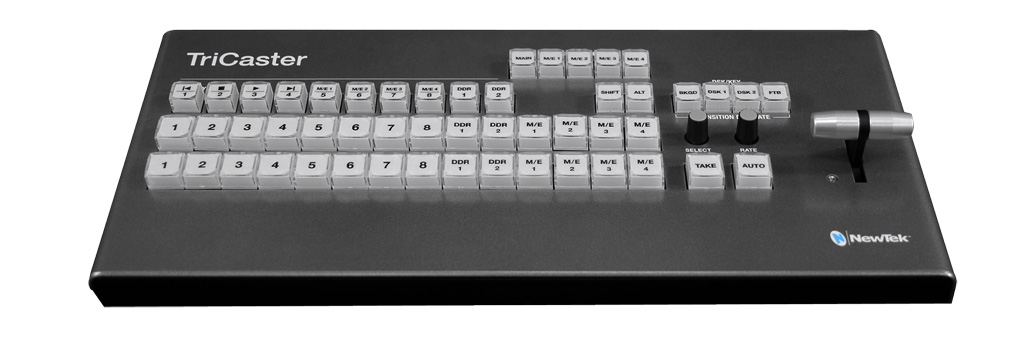

■ TriCaster Mini Control Panel 專屬控播盤

尺寸: 42.0624 x 20.32 x 5.715 cm

關鍵字 : #直錄播.#智慧直錄播.#直錄播系統.#攝錄播系統.#攝錄製系統

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
