專業攝影機

Panasonic
AG-UX180
4K 專業攝影機

Panasonic攝影機 Panasonic攝影機

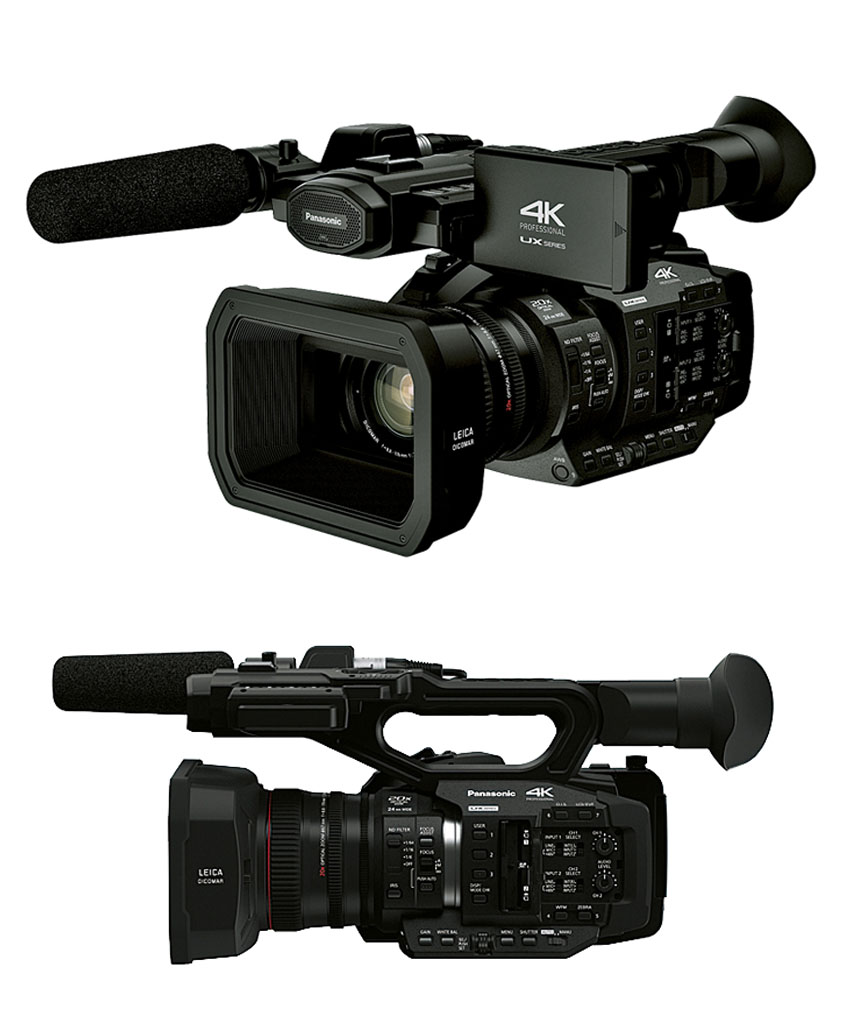

Panasonic AG-UX180 4K 專業攝影機,搭載1英寸高感光MOS感光元件和20x光學變焦LEICA DICOMAR鏡頭, 可錄製 4K、UHD 4K和FHD影像。採用先進的光學防手震(O.I.S.)和高速高精度智慧自動對焦, 並配備手動三環(變焦、對焦、光圈)等專業功能。AG-UX180支援多種格式錄製, 包括DCI 4K 24p、UHD 60p/50p/30p/25p/24p和FHD 120p,具有雙SD卡槽,可進行中繼錄製和同步錄製。提供16軸獨立色彩校正功能。

產品特色

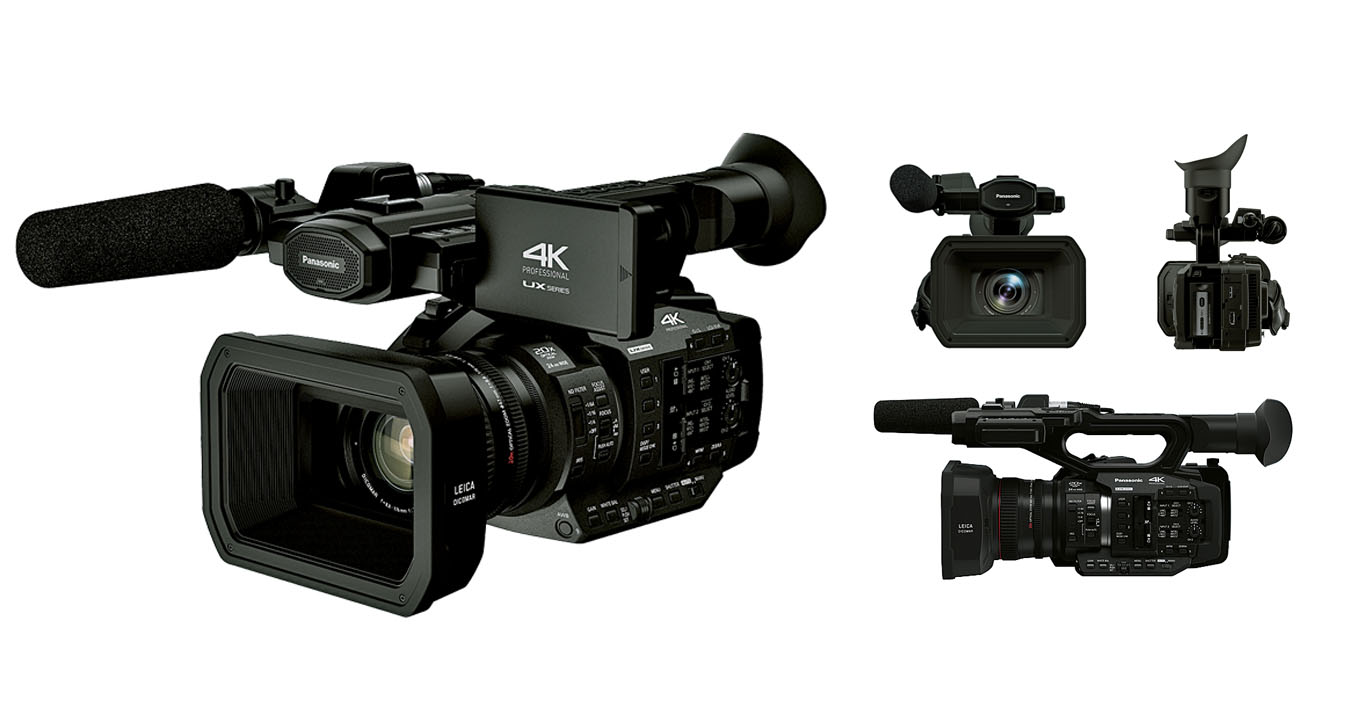

Panasonic AG-UX180 4K 專業攝影機 Panasonic AG-UX180 4K 專業攝影機

產品規格
Panasonic
AG-UX180 4K 專業攝影機

基本功能
Power DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used)
Power Consumption 19.7 W (when the LCD monitor is used)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 80 % (no condensation)
Weight Body: Approx. 2.0 kg (4.41 lb) (body only, excluding lens hood, battery, and accessories) Shooting: Approx. 2.4 kg (5.29 lb) (including lens hood, battery, and eye cup)
Dimensions 173 mm (W) x 195 mm (H) x 346 mm (D) (6-13/16 inches x 7-11/16 inches x 13-5/8 inches) (excluding protrusion and eye cup) 173 mm (W) x 195 mm (H) x 392 mm (D) (6-13/16 inches x 7-11/16 inches x 15-7/16 inches) (including eye cup, excluding protrusion)
Camera Unit
Pickup Devices 1.0-type (effective size) MOS solid state image sensor
Effective Pixels 8.79 megapixel: UHD/FHD 59.94p/29.97p/23.98p 9.46 megapixel: 4K 24p
Lens Optical image stabilizer lens, optical 20x motorized zoom F2.8 to F4.5 (f=8.8 mm to 176 mm) 35 mm equivalent: f=25.4 mm to 508.0 mm: UHD/FHD 59.94p/29.97p/23.98p f=24.0 mm to 480.0 mm: 4K24.00p Filter Diameter: 67 mm ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64) IR Filter: Incorporates the ON/OFF control function Shortest Shooting Distance (M.O.D.): Approx. 1.0 m from the front lens
Gain Setting L/M/H selector switch Standard mode: 0 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) Extended ON: -3 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) 30 dB and 36 dB switched (when assigning [S. GAIN] to the USER button)
Color Temperature Setting ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed When [SYSTEM MODE] = 59.94 Hz 60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. When [SYSTEM MODE] = 50.00 Hz 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec.,1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
Shutter Speed (Slow Shutter) When [SYSTEM MODE] = 59.94 Hz 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec., 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. When [SYSTEM MODE] = 50.00 Hz 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec. 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
Shutter Speed (Synchro Scan) When [SYSTEM MODE] = 59.94 Hz 59.94i/59.94p mode: 1/60.0 sec. to 1/249.7 sec. 29.97p mode: 1/30.0 sec. to 1/249.7 sec. 23.98p mode: 1/24.0 sec. to 1/249.6 sec. 24.00p mode: 1/24.0 sec. to 1/249.9 sec. When [SYSTEM MODE] = 50.00 Hz 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec.
VFR Recording Frame Rate When [SYSTEM MODE] = 59.94 Hz 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps) 24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps) SYSTEM MODE = 50.00, Hz 25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50 (fps)
Super-Slow Motion Recording When [SYSTEM MODE] = 59.94 Hz Shooting frame rate FHD 120 fps, Slow motion effect 1/4 speed (when 30p mode), 1/5 speed (when 24p mode) When [SYSTEM MODE] = 50.00 Hz Shooting frame rate FHD 100fps, Slow motion effect 1/5 speed (when 25p mode)
Sensitivity When [HIGH SENS.] mode F11 (2000 lx, 3200 K, 89.9 % reflect, 1080/59.94i) F12 (2000 lx, 3200 K, 89.9 % reflect, 1080/50i)
Minimum Subject Illumination 0.2 lx (F2.8, gain 18 dB, Manual slow shutter 1/2S, When [HIGH SENS.] mode)
Digital Zoom 2x/5x/10x, i.Zoom (max. 30x)
Lens Hood Hood with lens cover
Memory Card Recorder
Recording Media*1 SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB), UHS-I supported
Recording Slot Slot x 2
System Format 59.94 Hz/50 Hz
Motion Picture Recording Recording Format: MOV, MP4, AVCHD
Recording Mode Please see page 07 for the Recording Format table.
Recording Time Please see back cover for the Recording Time table.
2 Slot Functions Relay, Simultaneous, Background*2, Dual codec
Still Picture Recording Mode JPEG (DCF/Exif2.2)
Still Picture Recording Motion Picture Playback: 8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9), 0.9M: 1280 x 720 (16:9)
Digital Video
Video Signal for External Output 8bit 4:2:2*3
Recording Video Signal 8bit 4:2:0
Video Compression Format MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
Digital Audio
Recording Audio Signal 48 kHz/16 bit 2CH
Audio Signal Format LPCM (MOV/MP4), Dolby Digital (AVCHD)
Headroom 12 dB
Dual Codec
Recording Method MOV, MP4
Video Compression Format (Dual Codec) MPEG-4 AVC/H.264 High Profile
Audio Signal Format (Dual Codec) LPCM
Recording Format Please see page 08 for the Dual Codec Recording table.
Recording Time (Dual Codec) 32 GB: Approx. 1 hour 20 min.(FHD 50Mbps) Approx. 8 hours 30 min.(FHD 8Mbps) 64 GB: Approx. 2 hour 40 min.(FHD 50Mbps) Approx. 17 hours 10 min.(FHD 8Mbps) 128 GB: Approx. 5 hours 20 min.(FHD 50Mbps) Approx. 35 hours(FHD 8Mbps)
Video Input/Output
SDI Out BNC x 1, 0.8 V [p-p], 75 Ω, 3 G/1.5 G, HD SDI, SD SDI supported Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/24.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i
Video Output AV connector x 1
HDMI Type A connector x 1, VIERA Link not supported Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
Audio Input
Built-in Microphone Stereo microphone
XLR Input XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) LINE: +4 dBu/0 dBu (switchable menu) MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
Audio Output
SDI 2 ch (LPCM) switchable gain: 0 dB/-6 dB/-12 dB
HDMI (Audio Output) 2 ch (LPCM)
Audio Out AV connector x 1, Output level: 600 Ω, 316 mV
Headphone 3.5 mm diameter stereo mini jack x 1
Speaker 20 mm diameter, round x 1
Other Input/Output
Camera Remote 2.5 mm diameter super mini jack x1 (ZOOM, S/S) 3.5 mm diameter mini jack x1 (FOCUS, IRIS)
TC Preset In/Out BNC x 1, Used as the input and output terminals Input: 1.0 V to 4.0 V [p-p] 10 KΩ Output: 2.0 V ± 0.5 V [p-p] low impedance
USB 3.0 (Host) Standard-A connector, 9-pin, external media device connection*4, bus power supported
USB 3.0 (Device) Micro-B connector, 10-pin, Mass storage function (read only)
DC In 12V DC 12V (11.4V to 12.6V) EIAJ Type4
Monitor/Viewfinder
LCD Monitor 3.5 type LCD color monitor, Approx. 1,150,000 dots
View Finder 0.39 type OLED (organic EL display) Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots
Included Accessories Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, Microphone holder kit, AC cable, Eye cup, Lens hood, INPUT terminal cap, Operating instructions
Note *1: An SD memory card with a capacity of UHS Speed Class 3 (U3) is required to shoot videos with a bit rate of 100 Mbps or higher. An SDXC memory card with a capacity of 64 GB or more and UHS Speed Class 3 (U3) is required to shoot UHD 2160/59.94p/50.00p videos with a bit rate of 150 Mbps or higher. *2: It supports in record mode less than 50 Mbps. *3: Output of UHD/59.94p/50.00p becomes 8 bit 4:2:0. *4: External media devices with a capacity of below 32 GB or a capacity above 2 TB cannot be used.







關鍵字 : #4k.#fullhd.#ndi.#ip製作.

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
