專業攝影機
Panasonic
AW-UE160W/K
4K PTZ 專業攝影機

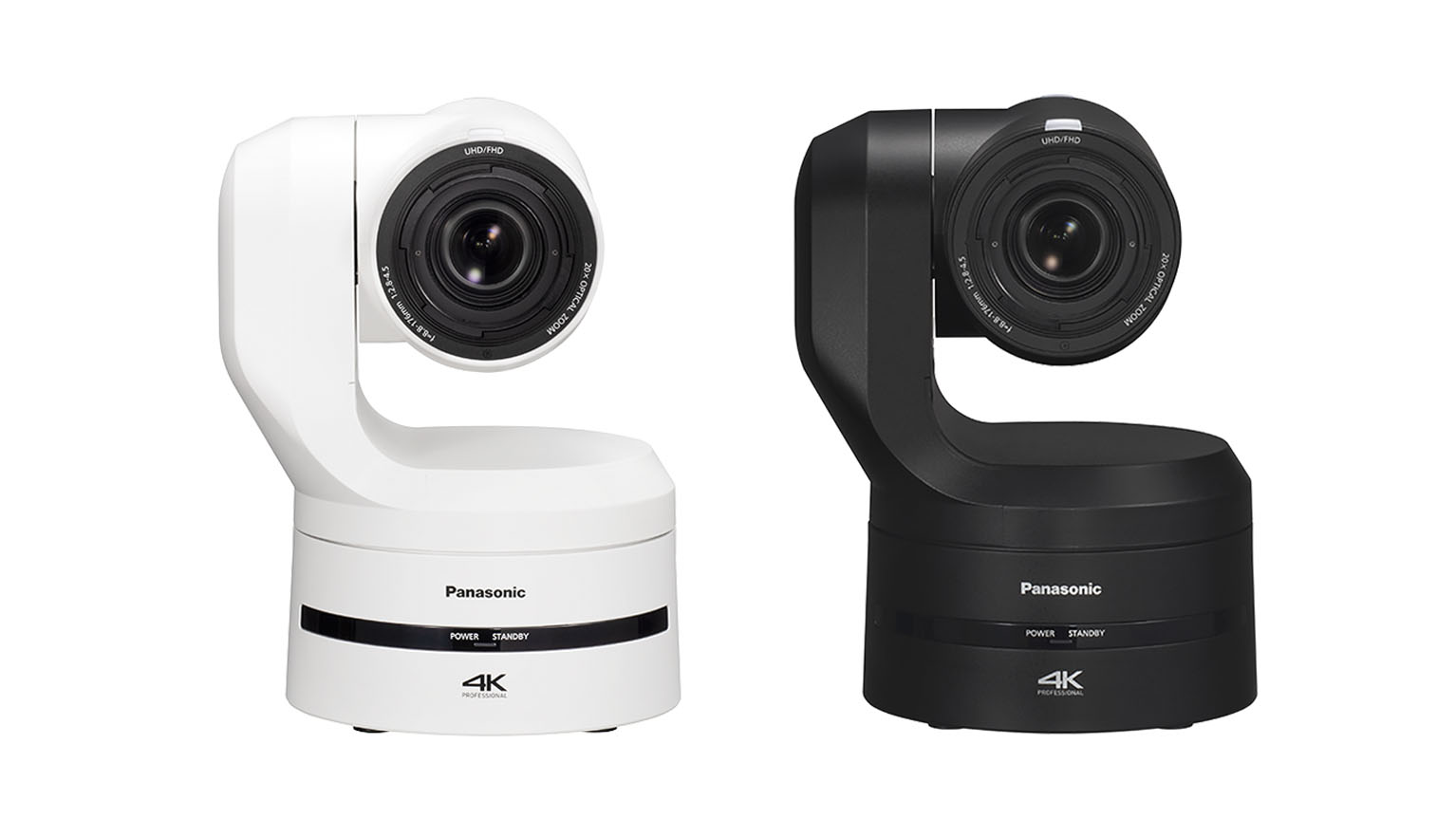

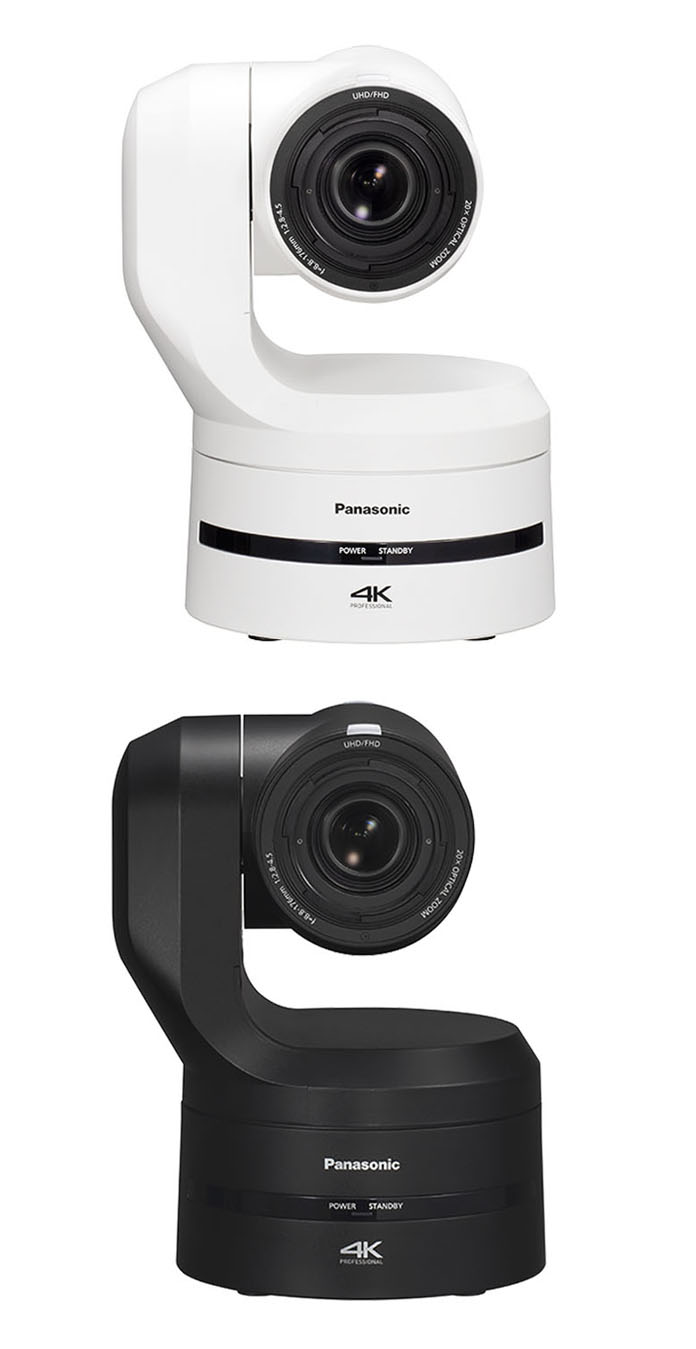

Panasonic AW-UE160 4K PTZ 專業攝影機，配備全新開發的 1 吋 MOS 靈敏高感光元件，適合在各種光源條件下使用。
Panasonic AW-UE160 4K PTZ 專業攝影機內建光學低通濾鏡，可以減少摩爾紋產生，並支援 SMPTE ST 2110 標準和 5G 連線能力，
適用於大型活動、專業影棚錄製與直播。還配備了自動對焦、光學和電子影像穩定功能，提供卓越的拍攝性能和操作性.
產品規格
Panasonic
AW-UE160 4K PTZ 專業攝影機
Panasonic AW-UE160 4K PTZ 專業攝影機
| 功能特色 | ||
|---|---|---|
| Power Requirements | 12 V DC ± 10% (10.8 V to 13.2 V) | |
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)*1 (Software authentication (LLDP) is supported). |
|
| Current Consumption | 5.0A (XLR IN connector), 1.5A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 4.6 kg (10.14 lbs) (excluding mount bracket) | |
| Dimensions (W x H x D) | 213 mm x 277 mm x 240 mm (8.39 inches x 10.91 inches x 9.45 inches) (excluding protrusions, ceiling mount bracket) |
|
| Finish | AW‑UE160W: Pearl white AW‑UE160K: Black |
|
| Controller Supported*2 | AW-RP150GJ*3, AW-RP60GJ*3, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ | |
| Camera Unit | ||
| Imaging Sensors | 1-type (1") (Effective size) 4K MOSx1 | |
| Effective Pixels | Approx. 9,620,000 pixels | |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches), 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
|
| Zoom | • Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • D.Extender zoom: 1.4x, 2x |
|
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
|
| Optical Filter | Through, 1/4, 1/16, 1/64*4, (Through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
|
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F14 / 2,000lx (Low Light), F11 / 2,000lx (Normal) (59.94Hz) F15 / 2,000lx (Low Light), F12 / 2,000lx (Normal) (50Hz) |
|
| Horizontal Resolution | 1,600 TV lines Typ (Center area) | |
| Gain Selection | Auto, -6 dB to 12 dB*5 | |
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*6 | |
| Electronic Shutter Speed | 60p | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| 59.94p/59.94i | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 50p/50i | 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 29.97p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 25p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 23.98p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 59.94p/120 fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 50p/100fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| Synchro Scan | 60p | 60.00 Hz to 7200 Hz |
| 59.94p/59.94i | 60.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| 23.98p | 24.00 Hz to 7200 Hz | |
| 59.94p/120 fps | 120.00 Hz to 7200 Hz | |
| 50p/100fps | 100.00 Hz to 7200 Hz | |
| Gamma | HD / NORMAL / CINEMA1 / CINEMA2*7 MASTER GAMMA (0.15～0.75) R GAMMA (-75～+75) B GAMMA (-75～+75) R BLACK GAMMA (-20～+20) B BLACK GAMMA (-20～+20) |
|
| White Balance | ATW*8 : 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
|
| Chroma Amount Variability | OFF, –100 % to 40 % | |
| Scene File | Scene1 to 8 | |
| Color Bar*9 | SMPTE Full Bar ARIB (FHD) : FSTD-B28 ARIB (UHD) : FSTD-B66 ARIB (BT.2020/HLG) |
|
| Output Format (UHD/FHD SDI) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/119.88p*10*11, 1080/100p*10*11, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Output Format (HDMI) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Output Format (Fiber (video only)) |
4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Output Format (ST 2110*12) |
HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p |
| Synchronization System | ||
| Internal/External synchronization (BBS/Tri-level sync) | ||
| Input | ||
| Input Connector | DC IN | DC 12 V IN |
| G/L IN | BBS (Black Burst Sync), tri-level sync supported | |
| AUDIO INPUT 1/2 | XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP) AAC compatibility (compatible with IP only) XLR 3-pin female balanced input: 2ch • During MIC input Input level: –50 dBu or -60 dBu/-40 dBu (0 dB=1 V/Pa, 1 kHz) Phantom power compatible, Supply voltage: 47 V±2 V Input impedance: Approx. 10kΩ • During LINE input Input level: 0 dBu (or +4 dBu/-20 dBu) Input impedance: Approx. 10kΩ • Input volume variable range: -40 dB to 0 dB to +20 dB (1 dB step) • Embedded audio output level: -12 dBFS/-18 dBFS/-20 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24 bit (SDI/HDMI), 16bit (IP) |
|
| Output | ||
| Video Output | HDMI | HDMI 2.0 standard 4:2:2/10bit*13*14 |
| 12G-SDI OUT | SMPTE2082_1, SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*15 | |
| 3G-SDI OUT1 | SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*15 | |
| 3G-SDI OUT2/PM | SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*15 | |
| SFP+ | SFP+ compliant (Single Fiber)*16 Please use MSA (INF-8074) standard compatible product. | |
| USB | USB3.0 HOST 5G mobile router (with USB tethering support)*17 | |
| Input/Output | ||
| Input/Output Connector | LAN | LAN connector for IP control (RJ‑45) 100BASE-TX/1000BASE-T |
| RS-422 | CONTROL IN RS-422A (RJ‑45) | |
| SFP+ (ST 2110*12) | Compatible protocol: • ST 2120-10/-20/-21/-22/-30 • PTP ST 2059-1/2 • NMOS IS-04/IS-05 Number of outputs: [Uncompressed] Video x3 (Main line, Crop, Monitor), Audio x2 [JPEG XS] Video x1 (Main line, Crop), Audio x2 Number of inputs: Video x1 (RETURN) Video format: FHD, UHD*18 Please refer to the operating instruction manual. |
|
| Pan-tilt Head Unit | ||
| Pan-tilt Head Control | IP connecting cable | • With PoE++ ethernet hub LAN cable*19 (category 5e or above, straight cable) up to 100 m • Without PoE++ ethernet hub LAN cable*19 (category 5e or above, straight cable) up to 100 m*20 |
| AW protocol connecting cable | LAN cable*19 (category 5e or above, straight cable) up to 1000 m | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*21 | |
| Pan/tilt Operation Speed | Speed range | 0.08 °/s to 180°/s (Normal mode)*22 |
| Maximum speed | Normal mode: 60°/s Fast1 mode: 90°/s Fast2 mode: 180°/s |
|
| Panning Range | ±175° | |
| Tilting range | –30° to 210°*22 | |
| Quietness | NC35 or less*23 | |
| Supported Operating Systems and Web Browsers | ||
| Supported Operating Systems and Web Browsers | Windows | Windows®10 Microsoft Edge Google Chrome |
| Mac | macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome |
|
| iPhone/iPad/ iPod touch | iOS Safari iPadOS |
|
| Android | Android OS Google Chrome |
|
| IP Streaming | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, NDI®|HX Ver.2, High Bandwidth NDI®*24*25 | |
| Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps*26*27 Image quality (Fine / Normal) |
|
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission mode | CBR, VBR | |
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
|
| Max Bit Rate | 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps | |
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission mode | CBR, VBR | |
| Frame Rate | [60Hz] 30fps / 60fps [50Hz] 25fps / 50fps |
|
| Max Bit Rate | 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | Network Protocol: | ICMP, ARP, GARP, MLD |
| Transmission Protocol | TCP/IP, UDP/IP | |
| Application Protocol | IPv4: HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X IPv6: HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X |
|
| Video Streaming Protocol | RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI®|HX ver.2, high bandwidth NDI® |
|
| External Device Cooperation Protocol | FreeD, TSL5.0, SNMP | |
| NDI® Support | ||
| NDI® Support | NDI®(High Bandwidth NDI®, NDI®|HX Ver.2)*24*25 | |
| Output Format (High bandwidth NDI) |
4K | 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p |
| HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p*28 | |
| Image Resolution (NDI®|HX Ver.2) |
1920x1080, 1280x720*29 | |
| Image Streaming Setting | High Bandwidth NDI® | Transmission Type: TCP/UDP Unicast/Multicast Bit rate: Max 250 Mbps |
| NDI®|HX Ver.2 | Transmission Type: TCP/UDP Unicast/Multicast Frame rate: [60Hz] 5fps / 15fps / 30fps / 60fps [50Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps /4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
|
| Audio Compression Type | High Bandwidth NDI® | AAC, 48 kHz, 2 ch |
| NDI®|HX Ver.2 | AAC-LC, 48 kHz,16 bit, 2 ch | |
| ST 2110*10 | ||
| Supported Format | ST 2110 | 10/20/21/30 |
| PTP | ST2059-2 | |
| NMOS | IS-04/IS-05 | |
| Number of Outputs (TX) | Video | 3 channels (Full x 1, MONI x 1, Crop x 1) |
| Audio | 2 channels | |
| Auxiliary data | No output | |
| Number of Inputs (RX) | Video | 1 channel (RETURN)*30 |
| Audio | No input | |
| Auxiliary data | No input | |
| Output Format | Video format | Full x1, MONI x1, Crop x1, all the same format 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p |
| Audio specifications MIC1/2 | PCM / 48kHz / 24bit / 1ch x2 | |
| Input Format | Video format | 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native),1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p |
| New Features | ||
| HDR/SDR | HLG/BT.2020 compatible，SDR/BT.709 compatible | |
| Cropping | Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available | |
| F Number Display | Displayed on the AW-RP15GJ and AW-RP60GJ | |
| NDI | High Bandwidth NDI®,NDI®|HX Ver.2 included as standard*31 | |
| IP Menu Display | Supported*32 | |
| VR (FreeD) (IP/RS422) |
Supported | |
| Power LED | ON/OFF control | |
| Tripod Screw Penetration Measures | Yes | |
| Image Stabilization | OIS 2-axis + Hybrid method of roll direction correction MENU switching: select between OFF/O.I.S. (Stable)/O.I.S. (Pan/Tilt)/Hybrid (Stable)/Hybrid (Pan/Tilt) |
|
| Privacy Mode | The lens surface faces downward when standing by (ON/OFF) | |
| Yellow Tally | Supported | |
| PTP | Supported | |
| 5G Mobile Router (with USB tethering support) |
Compatible with recommended products only | |
| WFM Display | Output with video superimposed from 3G/SDI OUTPUT2 | |
| Focus Assist | Display focus display using PDAF (Phase Detection Auto Focus) | |
| Return Video Output | Output return video input from ST 2110*12, NDI via SDI_OUT2 * All supported formats will be upgraded after the product is released. |
|
| Horizontal Level Gauge | ON/OFF control in OSD MENU or Web GUI | |
| Optional Accessories | ||
| Wireless Remote Controller | AW‑RM50AG (Size "AA" dry battery x2, obtained separately) | |
關鍵字 : #4k.#fullhd.#ndi.#ip製作.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
