專業影音製作應用解決方案

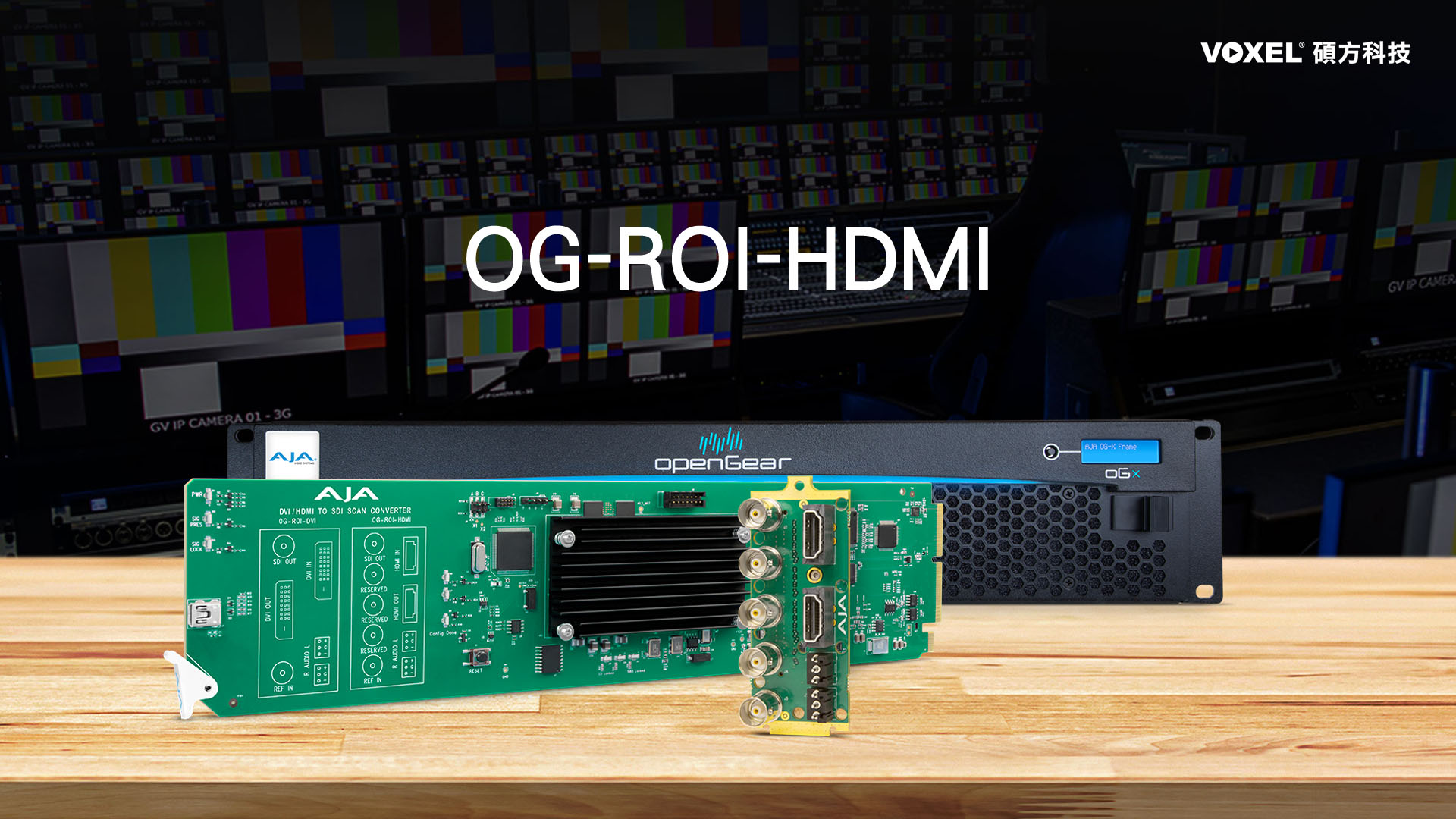

AJA OG-ROI-HDMI
I/O 影音介面卡
openGear HDMI to 3G-SDI Scan Converter
AJA OG-ROI-HDMI
AJA OG-ROI-HDMI I/O 影音介面卡屬於 openGear 系列支援電腦和 HDMI 訊號以極高的品質轉換為 3G-SDI 視訊。憑藉卓越的 ROI 影像縮放以及寬高比和格率轉換功能， AJA OG-ROI-HDMI 滿足了日益增長的需求，即在不犧牲預算或空間的情況下，能將 HDMI 來源和擷取的電腦訊號內容完美地整合到視訊世界中。
產品特色
- openGear compatible card
- Computer resolutions to video resolutions Scan Converter
- HDMI to 3G-SDI conversion with HDMI loop through
- EDID Emulation
- 3G-SDI output
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Conversion between Deinterlaced and Progressive signals
- Accepts input HDMI formats up to 1920 x 1200 60 Hz
- Loss of Input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- Audio input via 3-pin analog connectors or 8-channel HDMI embedded audio
- Genlock: Reference Input, HDMI Input, or Free Run
- Remote Ethernet configuration through Ross DashBoard software
- Power: 8 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
AJA 視訊製作
DashBoard Software
製作流程

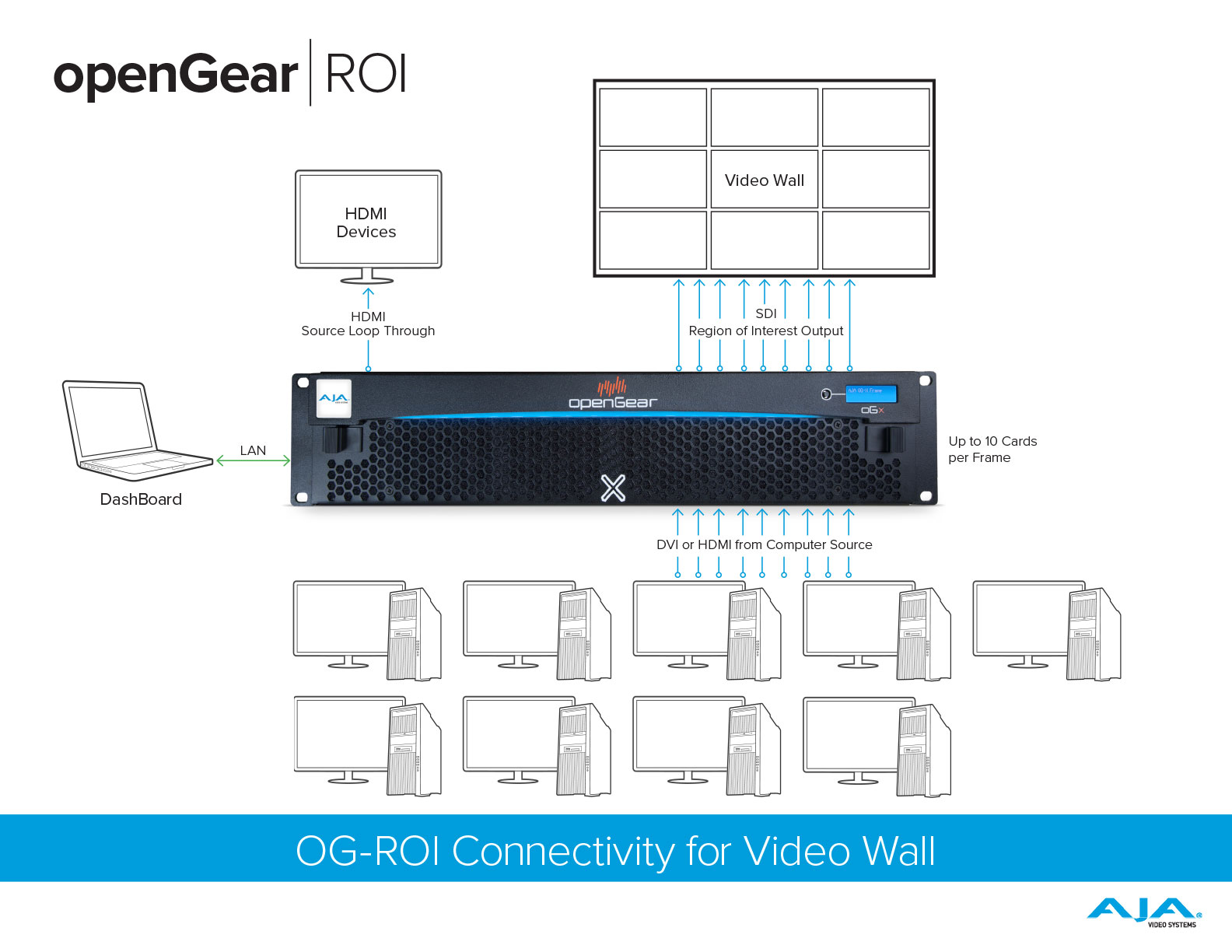

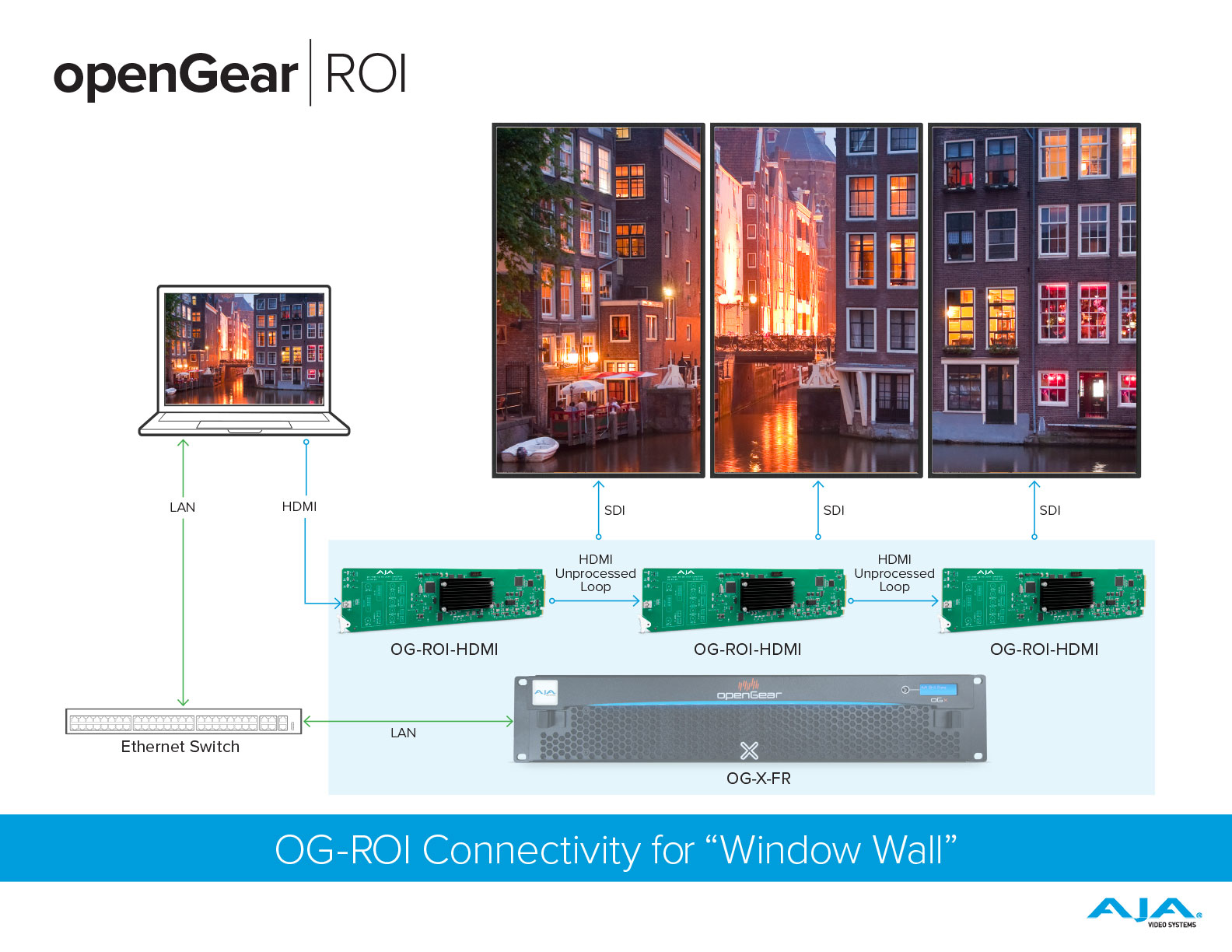

openGear ROI Video Wall Workflow
產品規格
📹AJA OG-ROI-HDMI I/O 影音介面卡
| AJA OG-ROI-HDMI | |
| Video Formats |
Note: Frame rates limited by the 166 mHz max pixel rate of the HDMI receiver. |
| Video Output Formats |
|
| Color Range |
|
| Reference Source |
|
| Reference Input |
|
| Video Input |
|
| Video Outputs |
|
| HDCP |
|
| Audio Inputs |
|
| Audio Output |
|
| User Interface | openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) | openGear standard form factor, front slot, and rear card. Two slots required for each card |
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 8.0 watts max per card |
| Environment |
|
關鍵字 : #tricaster.#aja.#NDI.#opengear.#developer.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
