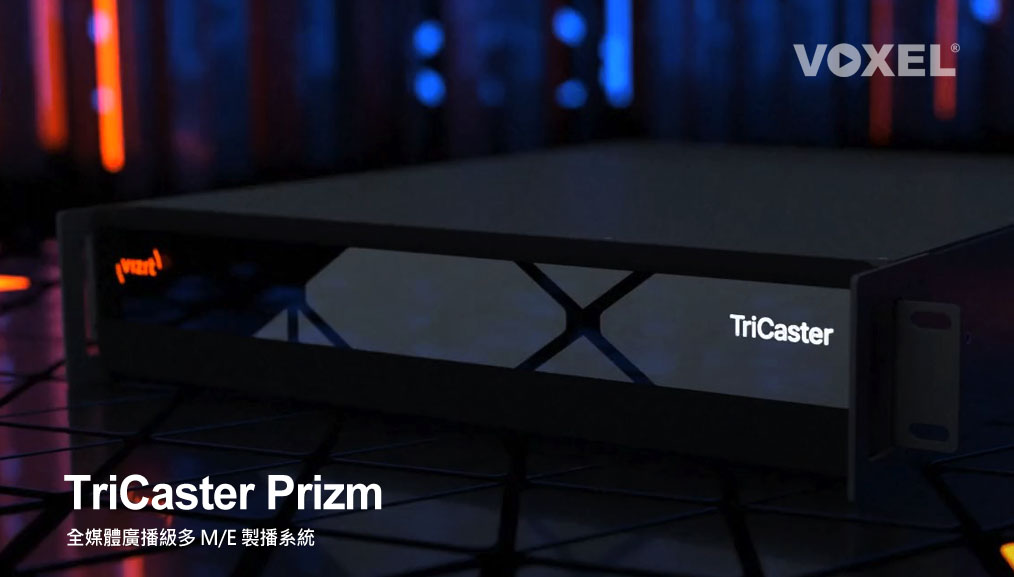

TriCaster Prizm
全媒體多 M/E 製作導播系統
完美的製作能量

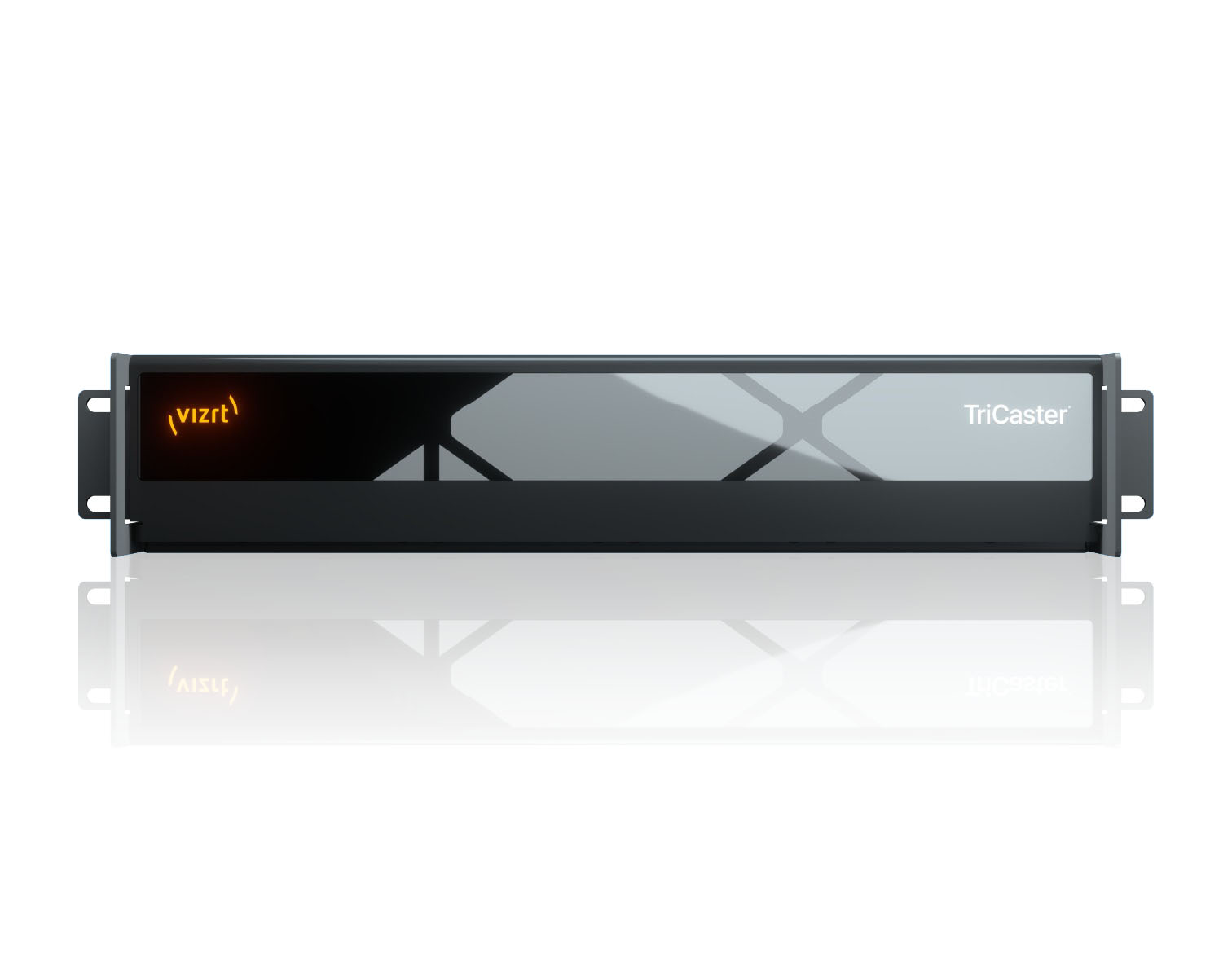

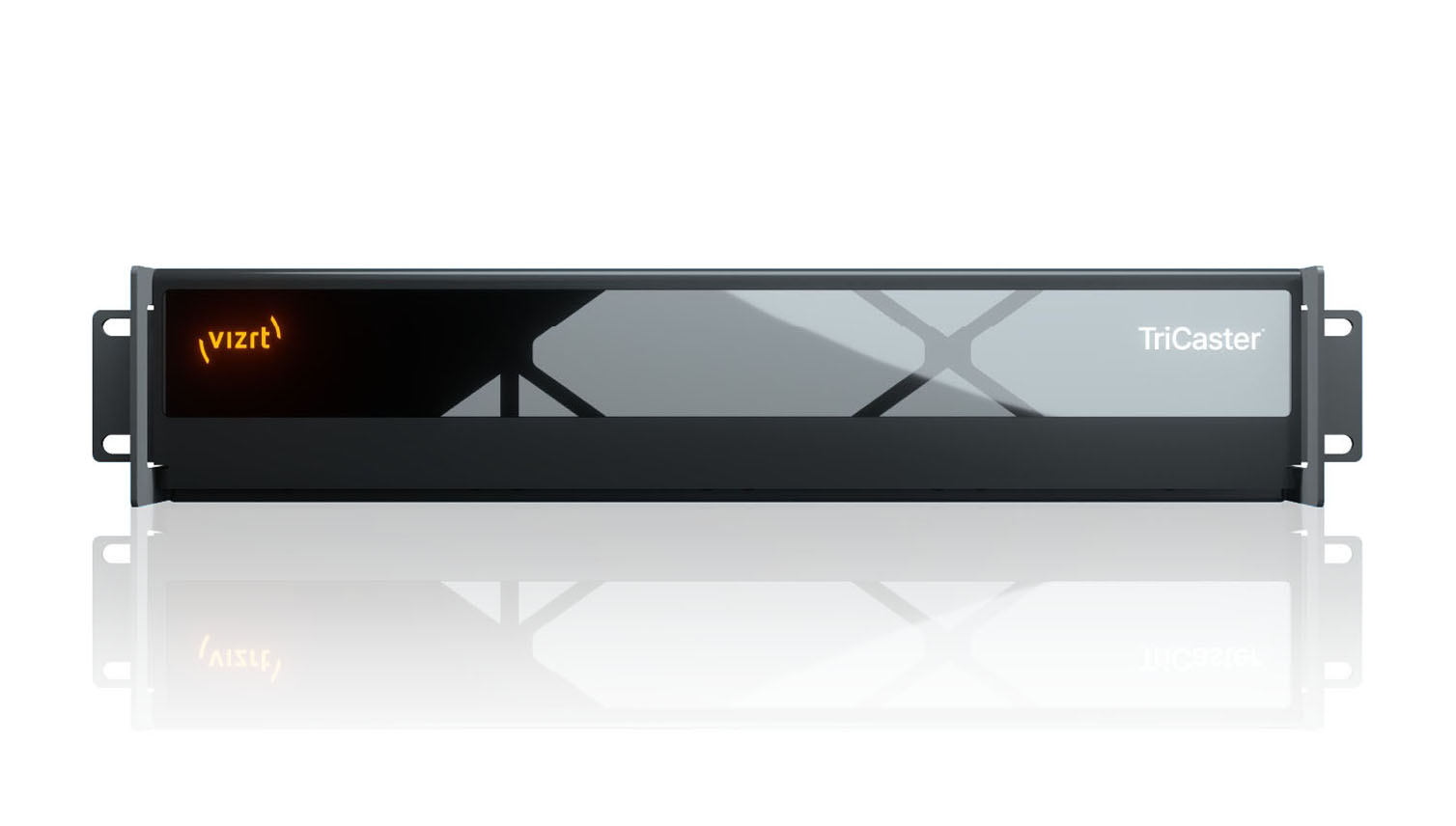

TriCaster Prizm 完美的製播系列核心機型
TriCaster Prizm ： The heart of the TriCaster portfolio
TriCaster 是線上最完整即時多ME製作整合應用，而全新定義的 TriCaster Prizm 具備全媒體製作導播系統核心功能，它是您在 NDI IP 製作時代必備的重要工具。
🎯 TriCaster Prizm 全媒體多M/E製作導播系統設備
TriCaster Prizm 重新定義了 TriCaster 產品系列核心，為需要擁有專業製播能力，卻不希望面對技術複雜性的組織，提供一套單一又可擴展的專業解決方案。 無論您的製作是校園廣播、教堂禮拜、現場活動，還是企業傳播內容，TriCaster Prizm 都能讓您從第一天起，就對在您的平台發展未來充滿信心。
👍 TriCaster Prizm 製作優勢
優勢 01.Vizrt全力打造
TriCaster Prizm 具有全新的硬體基礎架構、全新的引擎、專業的路線圖。Vizrt 不留餘力地，全力投入 TriCaster， 而 TriCaster Prizm 正是持續投入核心產品的具體表現。強大的 TriCaster Prizm 2RU 機架式機箱，提供 16 路輸入， 可選擇沒有 SDI I/O 或 8 組 SDI I/O 兩種模組，支援任何相容訊源的組合，解析度最高可達 4K UHD。
優勢 02.一場製作、使用任何來源、向所有平台發送
TriCaster Prizm 能將遠端參與者和混合製作完美整合，打造一場流暢的節目，無論您的製作將主持人、攝影機或場景置於何處。 TriCaster Prizm 會直接將直播內容串流，發佈至觀眾正在收看的平台，製作與發佈之間，無需任何額外步驟。 將現代混合製作所需的一切功能，整合於單一系統。
優勢 03.專為您的製作而打造
無論您是正在製作今天的直播，還是規劃明天的更大規模活動，TriCaster Prizm 都能隨著您的需求擴展、靈活調整。 這套靈活的架構，讓您能輕鬆地隨著時間加入擴充功能，為所有組織， 提供一個面向未來的製作平台，隨著需求變化，輕鬆適應進化。
優勢 04.支援全新的 LivePanel Pro

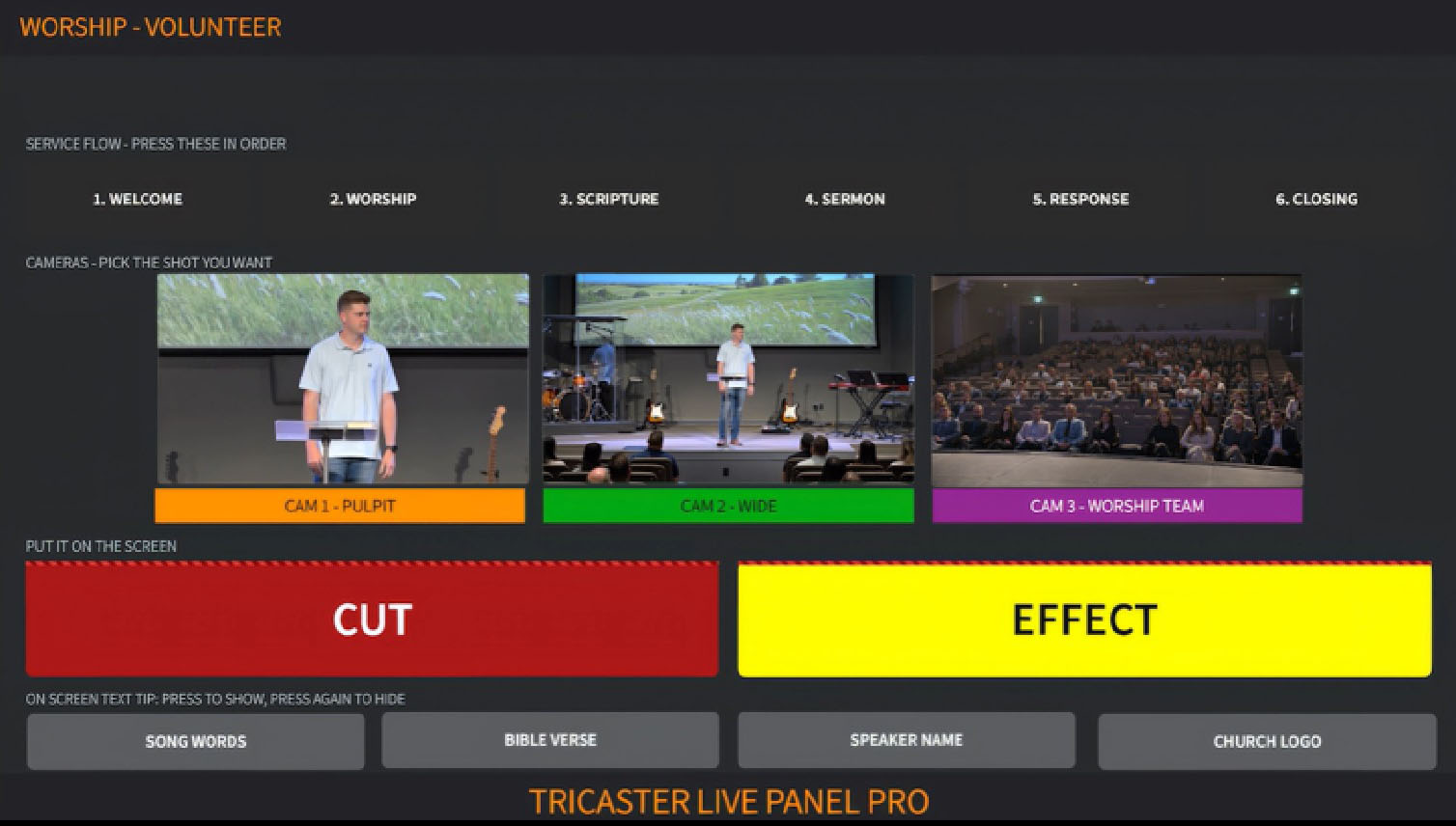

定義您的工作流程，打造理想的控制介面。使用角色的存取控制功能，在儀表板上，自訂預設專屬操作環境。 先進的 LivePanel Pro 可將遠端按鈕轉化為一個完全可自訂的製作平台，這項功能專為 TriCaster Prizm 和 Vizion 設計。
👍 使用 TriCaster Prizm 提前為未來的製作，做好準備
LivePanel Pro： TriCaster Prizm 和 Vizion 特有的新一代架基於瀏覽器的製作控制系統。 具有現代化的控制設計、低延遲、視訊預覽、AI 功能與即時系統回饋， 讓製作員無論身在何處，使用任何設備，都能完全掌控，隨時查看結果。
可信賴的多功能性： TriCaster Prizm 提供兩種不同的 I/O 製作選擇，可以滿足任何製作需求和預算。 TriCaster Prizm 提供優良的製作彈性，可選用配置 8 個 12G SDI I/O。
遠端會議製作： Live Call Connect 整合了所有最受歡迎的視訊通訊應用軟體，電話會議整合從未如此簡單。特別是 Zoom， Zoom 整合的改進功能包括：增強的工作流程、分組討論室支援、品質提升、每個通話者獨立的音訊以及更簡化的設定。
👍 TriCaster Prizm 週邊整合套件
PTZ 攝影機
Vizrt PTZ3 UHD Plus . Vizrt PTZ3 UHD Plus .
專屬控盤
TriCaster Flex Dual CP. TriCaster Flex CP.
NDI 設備
Viz Connect Solo . Viz Connect Tetra . Viz Connect Audio . Viz Connect Studio I/O . Viz Connect Pro .
| TriCaster Model | Vizion | Prizm | Mini |
| Input Count | 44 | 16 | 8 |
| Input Types | IP/SDI | IP/SDI | IP/HDMI*/USB* |
| Output Mixes | 8 | 4 | 4 |
| DSK | 4 | 4 | 2 |
| M/E Count / Layer / Keys | 8/4/4 | 4/4/4 | 4/2/2 |
| Record Count | Unlimited | Unlimited | 4 |
| Max Session Res. | 2160p/60 | 2160p/60 | 2160p/60 |
| Deployment | 2RU Rack Mounted Hardware / Cloud | 2RU Rack Mounted Hardware | Software Only / Desktop Hardware |
*Available in Hardware version only **Mini X max resolution is 2160p/30
TriCaster Prizm 全媒體多M/E製作導播系統設備
Video Input
16total simultaneous external video inputs,
supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input
Up to 16IP inputs via NDI, resolution-independent,
with support for key and fill Also supports SRT, RTMP, RTSP, and WebRTC.
SDI Video Input
12G/3G/HD SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates***
• 2160p 59.94, 50, 29.97, 25
• 1080p: 60, 59.94, 50, 30, 29.97, 25
• 1080i: 59.94, 50 • 720p: 59.94, 29.97, 25
Up to 8 configurable SDI ports. These ports can be configured for input or output. Up to 4 ports support 12G signals.
***Available frame rates determined by the session video standard (NTSC or PAL)
Video Output
Configurable for up to 4 independent HD or UHD Outputs with simultaneous delivery via IP and SDI
Network Video Output
36 x IP outputs via NDI® (HD sessions only)
• 4 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94)
• Up to 8 x direct IP source outputs via NDI® translation of local SDI inputs
• 4 x direct IP source outputs via NDI® translation of media players, with support for embedded alpha channel
• 15 x direct IP source outputs via NDI® translation of media buffers, with support for embedded alpha channel
• 3x Multiviewer outputs (if 3 monitors are connected). 4K support on 2x Multiviewer outputs while the 3 rd outputs in HD
• 1x User Interface with dedicated multiviewer
• 1x teleprompter output (LiveStory ™ Creator)
Audio
16channel integrated audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing.
Local Audio Input
• 1 x balanced stereo pair in via 1/4”
• 1 x Mic input via 1/4”
• Up to 8 x SDI embedded
Local Audio Output
• 1 x balanced stereo pair out via 1/4”
• Up to 8 x SDI Embedded
• 1 x Headphone out via 1/4"
Network Audio
• Native support for network audio input and output via NDI
• Embedded audio supported for all NDI® input and output video signals
• Integrated support for Dante™ networking protocol from Audinate
• Support for AES67 protocol via compatible WDM audio drivers
Requires Dante Virtual Soundcard license from Audinate (sold separately)
Requires third-party virtual sound card license (sold separately )
Media
5 x media players
• 2 x DDR
• 2 x GFX
• 1 x Sound
15 x media buffers
• 10 x animation buffers
• 5 x graphic buffers
Keyers
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
• 16 x input keyers
• 4 x media player keyers
• 4 x M/E keyers
• 1 x PREVIZ keyer
• 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create,
store, and apply layer configurations and DVE- style motion sequences
• 16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink™technology enabling real-time, automated data input from internal and external sources,
including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
Record, store, edit and automate commands and user-configured operation sequences
• Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers
• Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
• Supports control via web-based interface
Recording
No software limit
Storage
4 TB internal storage
PTZ
Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols,
including RS232, RS422 and IP, with integrated controls and preset system
Conference Calling
Support for Zoom, Teams NDI, and web browser.
Grab
Grab full resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
• Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
• Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Audio: AIFF, MP3, WAV, and more
Monitoring
Support for up to 4 multiviewer displays with configurable workspaces and viewports. 4 outputs are via Display port connection
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing
Video: YCbCr + Alpha color space, using 4:2:2:4 / Audio: Floating Point, 96 kHz
A/V Standards
• 12G-SDI video conforms to SMPTE ST 2082
• 3G-SDI video conforms to SMPTE 424M (Level A)
• HD-SDI video conforms to SMPTE 292M
Tally
Network tally via NDI®, TSL 5 support
Genlock
Genlock input I/O board supporting SD (Bi-level) or HD (Tri-level) reference signals
GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI
Support for standard MIDI protocol enabling third-party device control
System Drive
250 GB System Drive

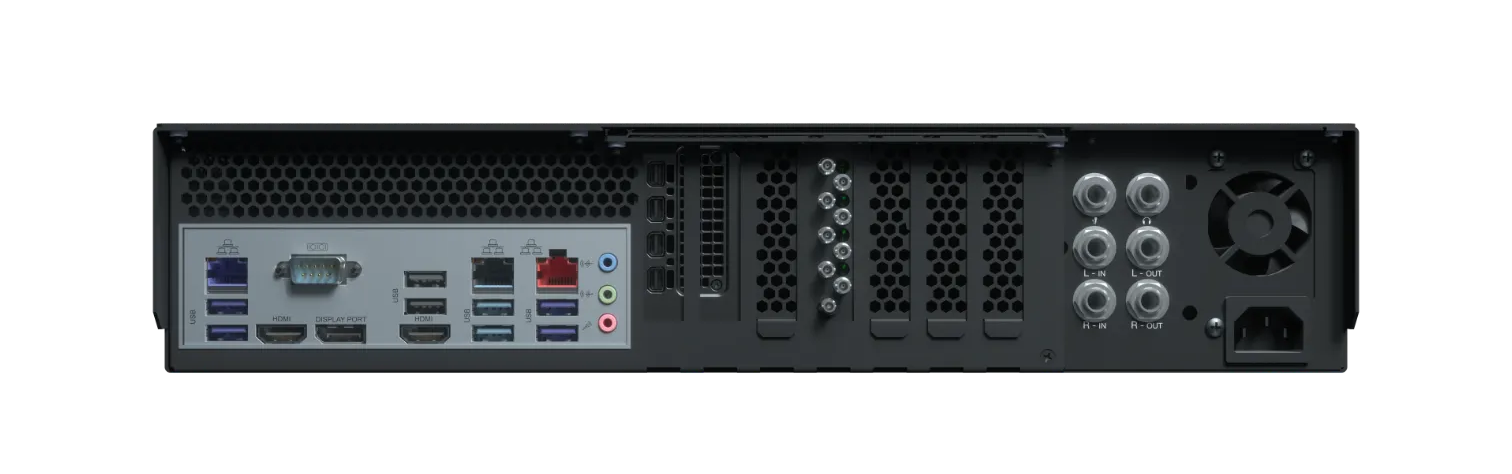

NIC
• 1 x 10 Gigabit LAN
• 1 x 2.5 Gigabit LAN
• 1 x 1 Gigabit LAN
USB
• 2 x USB 2.0
• 5 x USB 3.2 Gen2
• 1 x USB 3.2 Gen2x2 (Type C, 5V/3A)

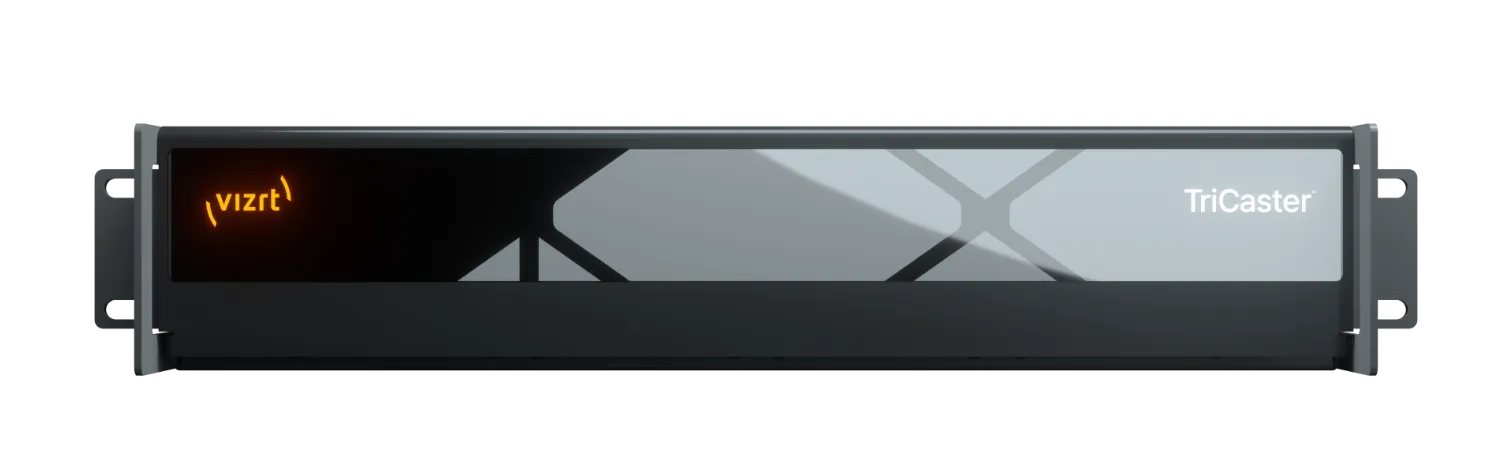

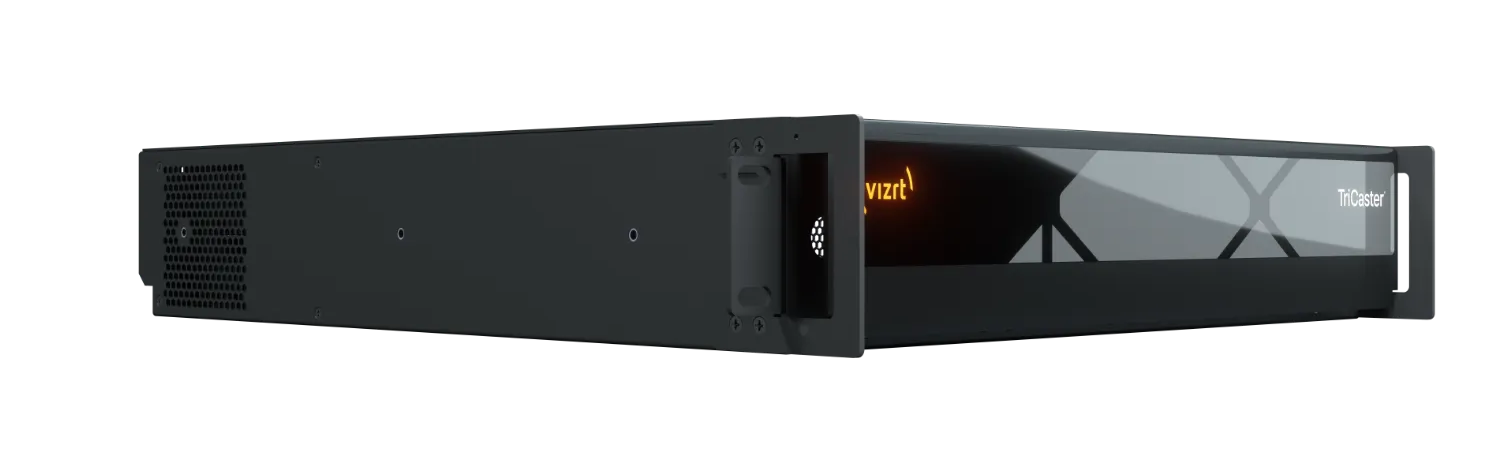

System Physical
2RU Chassis with 500W PSU
• 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm)
• 32 pounds/14.5 kg in packaging
更新 20260914
| Video Input | 16total simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94) |
| Network Video Input | Up to 16IP inputs via NDI, resolution-independent, with support for key and fill Also supports SRT, RTMP, RTSP, and WebRTC. |
| SDI Video Input |
12G/3G/HD SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates*** • 2160p 59.94, 50, 29.97, 25 • 1080p: 60, 59.94, 50, 30, 29.97, 25 • 1080i: 59.94, 50 • 720p: 59.94, 29.97, 25 Up to 8 configurable SDI ports. These ports can be configured for input or output. Up to 4 ports support 12G signals. ***Available frame rates determined by the session video standard (NTSC or PAL) |
| Video Output | Configurable for up to 4 independent HD or UHD Outputs with simultaneous delivery via IP and SDI |
| Network Video Output |
36 x IP outputs via NDI® (HD sessions only) • 4 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94) • Up to 8 x direct IP source outputs via NDI® translation of local SDI inputs • 4 x direct IP source outputs via NDI® translation of media players, with support for embedded alpha channel • 15 x direct IP source outputs via NDI® translation of media buffers, with support for embedded alpha channel • 3x Multiviewer outputs (if 3 monitors are connected). 4K support on 2x Multiviewer outputs while the 3 rd outputs in HD • 1x User Interface with dedicated multiviewer • 1x teleprompter output (LiveStory ™ Creator) |
| Audio | 16channel integrated audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing. |
| Local Audio Input |
• 1 x balanced stereo pair in via 1/4” • 1 x Mic input via 1/4” • Up to 8 x SDI embedded |
| Local Audio Output |
• 1 x balanced stereo pair out via 1/4” • Up to 8 x SDI Embedded • 1 x Headphone out via 1/4" |
| Network Audio |
• Native support for network audio input and output via NDI • Embedded audio supported for all NDI® input and output video signals • Integrated support for Dante™ networking protocol from Audinate • Support for AES67 protocol via compatible WDM audio drivers Requires Dante Virtual Soundcard license from Audinate (sold separately) Requires third-party virtual sound card license (sold separately ) |
| Media |
5 x media players • 2 x DDR • 2 x GFX • 1 x Sound 15 x media buffers • 10 x animation buffers • 5 x graphic buffers |
| Keyers |
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses • 16 x input keyers • 4 x media player keyers • 4 x M/E keyers • 1 x PREVIZ keyer • 15 x buffer keyers |
| COMPs |
Integrated video composition engine on the switcher and each M/E bus to create,
store, and apply layer configurations and DVE- style motion sequences • 16 x configurable COMP presets per bus |
| Virtual Sets | Integrated LiveSet technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink™technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros |
Record, store, edit and automate commands and user-configured operation sequences • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers • Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions • Supports control via web-based interface |
| Recording | No software limit |
| Storage | 4 TB internal storage |
| PTZ | Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system |
| Conference Calling | Support for Zoom, Teams NDI, and web browser. |
| Grab | Grab full resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Supported Media File Formats |
Import, store, and play back multimedia files, with optional transcoding, including: • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more • Audio: AIFF, MP3, WAV, and more |
| Monitoring | Support for up to 4 multiviewer displays with configurable workspaces and viewports. 4 outputs are via Display port connection |
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Processing | Video: YCbCr + Alpha color space, using 4:2:2:4 / Audio: Floating Point, 96 kHz |
| A/V Standards |
• 12G-SDI video conforms to SMPTE ST 2082 • 3G-SDI video conforms to SMPTE 424M (Level A) • HD-SDI video conforms to SMPTE 292M |
| Tally | Network tally via NDI®, TSL 5 support |
| Genlock | Genlock input I/O board supporting SD (Bi-level) or HD (Tri-level) reference signals |
| GPI | Supports GPI signals via JLCooper Electronics eBox GPI interface |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| System Drive | 250 GB System Drive |
| NIC |
• 1 x 10 Gigabit LAN • 1 x 2.5 Gigabit LAN • 1 x 1 Gigabit LAN |
| USB |
• 2 x USB 2.0 • 5 x USB 3.2 Gen2 • 1 x USB 3.2 Gen2x2 (Type C, 5V/3A) |
| System Physical |
2RU Chassis with 500W PSU • 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) • 32 pounds/14.5 kg in packaging |
更新 20260914
TriCaster Flex 專屬控盤（選購）
TriCaster Flex Dual Control Panel
TriCaster Flex Dual Control Panel
• 具有 24 個交叉點與 2 條獨立控制區域。控制燈鍵顏色與 UI 相同，能快速進行各種製播操作
• 提供 4 行 LCD 顯示匯流排與媒體播放器狀態，與 2 行 LCD 顯示 10 鍵動態選單狀態與操作資訊
• 每條控制區的具備使用者自定義功能，支援表列與通用控制
• 全尺寸三向操作搖桿具有定位和 PTZ 控制功能
• 音訊控制鍵，可用於聲音輸出 （1 與 2）、Talk Back 和耳機輸出
• 動態 10 鍵選單系統支援每條控制區
• 支援媒體播放器和巨集指令控制
• 具備串流、擷取與重播多工操作
• 內建 T 形桿漸變轉換控制
• 93.06 x 46.27 x 8.2 cm
TriCaster Flex 專屬控盤（選購）
TriCaster Flex Control Panel
• 透過 NDI 網路控制網路上的視訊交換器
• 直接在單一控播盤上，控制音訊和視訊、PTZ 控制和對講機
• 借助音訊 I/O，可立即擴展任何 TriCaster 內建的 I/O，讓更多外部源直接從面板進入 NDI 製作系統
• 實用的 RGB 全彩按鍵燈效、T 型搖桿與 LCD 智慧動態提示
• 精確控制專業現場即時視訊的操作處理
• 實現最佳性能、人體工學與獨具風格的完美工藝
• 63.5 x 23.1 x 9.6cm
碩方科技 TriCaster 歷史延革
碩方科技從 2006 的 大導演-eTV系列開始行銷 TriCaster 全媒體廣播級多M/E製作導播系統，從早期的SDI SD/HD eTV-9000HD、eTV-8000HD、eTV-7000HD、eTV-5000HD 大導演製作多M/E導播機開始，一直到 2014 中期的 TriCaste VMC1、TriCaster8000、TriCaster TC1、TriCaster410、TriCaster Mini 更完整的廣播級多M/E製作導播系統， 到 2024 最新的TriCaster 2 Elite、TriCaster 1 Pro、TriCaster TC1、、TriCaster TC410Plus、 TriCaster Mini 4k、TriCaster Mini X、TriCaster Mini Go、TriCaster Vectar、TriCaster Now 提供全系列 NDI IP 製作與更強大的雲端服務，人性化友善操作界面，快速上手，不但整合動畫字幕圖形、虛擬場景、AR/VR/MR虛擬製作、多路串流錄製、多平台發布 、數位混音器、多監看畫面、兼具SDI/NDI IP製作、視訊會議製播與 4K UHD P60等強大的規格功能可以滿足最專業的影音製作。 二十多年來，TriCaster 已帶給教育、政府、企業、宗教與各種廣播級專業影音製作，最好的製播選擇。 未來，在AI技術覺醒的年代，智慧神經音訊擷取、自動AI追蹤、自動巨集控制與更強大AR/VR的製播能力都將更強大， 並加入更多實用的未來功能。 馬上擁有 Vizrt TriCaster 全媒體廣播級多M/E製作導播系統是最快速掌握未來製播的捷徑。放大故事力，技術一歩到位輕鬆前進未來。
