專業攝影機

Panasonic
AG-CX350PX
4K 專業攝影機

Panasonic攝影機 Panasonic攝影機

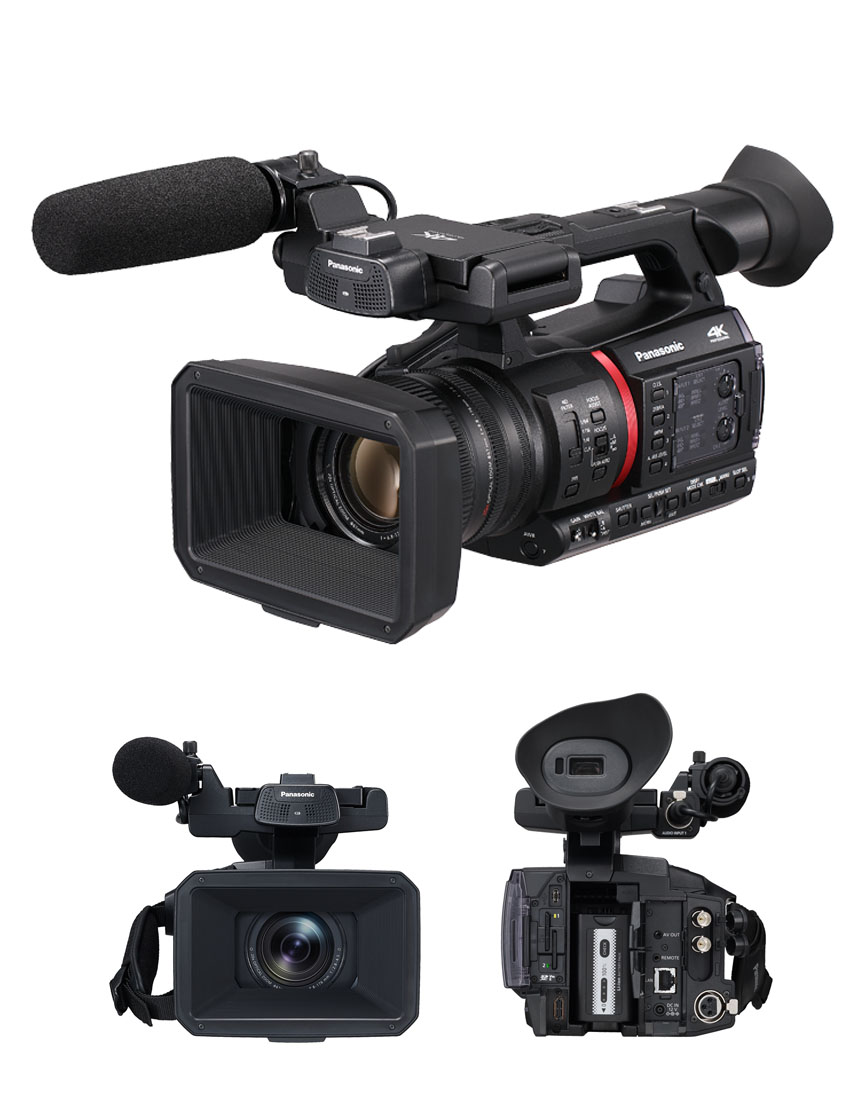

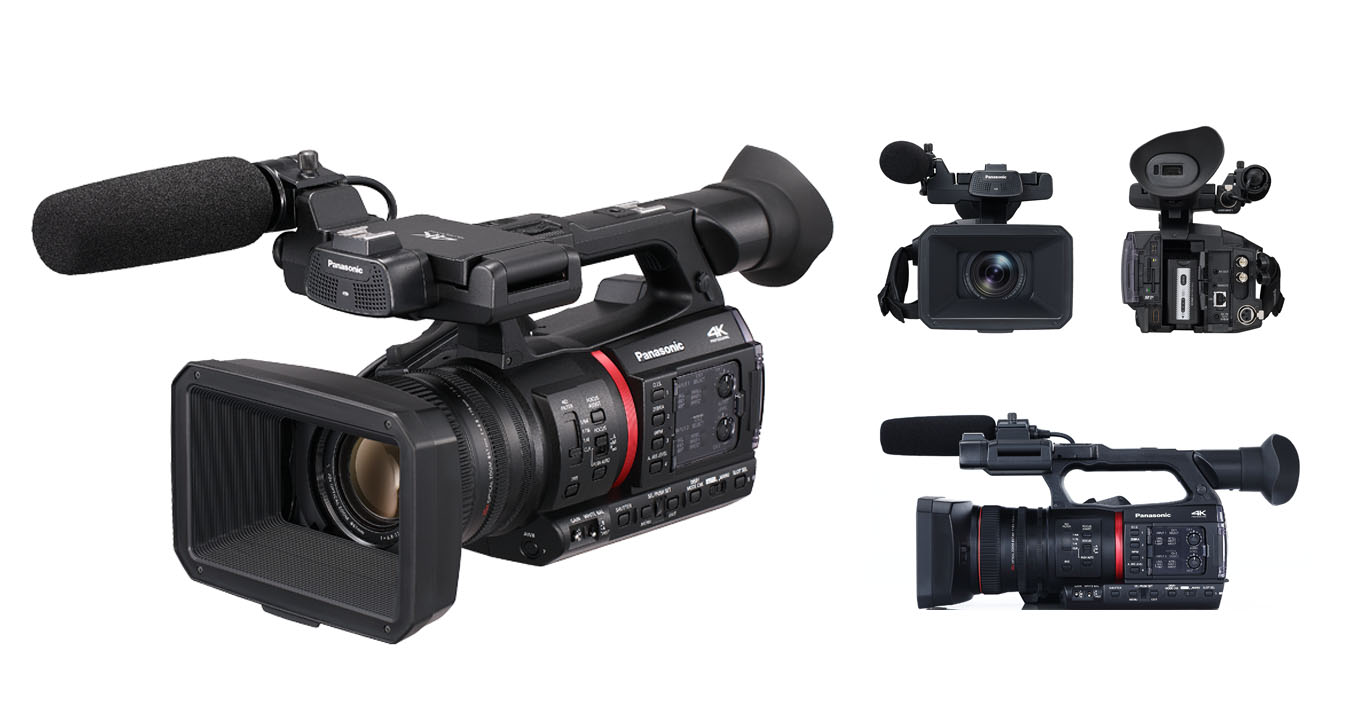

Panasonic AG-CX350PX 4K 專業攝影機具有以 4K UHD(3840 x 2160)1英寸 MOS 感光元件,使用 MOV 格式能製作多種記錄格式(包括 400 Mb/s)以及 HEVC(最高 200 Mb/s)。

Panasonic AG-CX350PX 4K 專業攝影機整合 20倍光學變焦鏡頭 和 32倍 AI變焦。主鏡頭具有 5軸防抖震功能。透過2.5毫米輸入端子支援 LANC 控制。還配置 OLED EVF 和 3.2"LCD 觸控顯示器,內建立體聲麥克風和兩個 XLR 音訊端子。其他接口包括 3G-SDI 和 HDMI(支持UHD) 輸出。

Panasonic AG-CX350 4K 專業攝影機 Panasonic AG-CX350 4K 專業攝影機

產品規格
Panasonic
AG-CX350PX 4K 專業攝影機

功能特色

Image Sensor

1" MOS Sensor

Sensor Resolution

5170 x 2908 (15.00 MP)

Lens

Focal Length 8.8 to 176mm

Lens

35mm Equivalent Focal Length 24.5 to 490mm

Optical Zoom Ratio

20x

Maximum Aperture

f/2.8 to 4.5

Minimum Focusing Distance

Wide: 3.9" / 10.0 cm

Shutter Speed

1/2 to 1/10,000 sec

ND Filter

Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone

Stereo

Recording Media

2 x SDXC/SDHC Card Slot

Recording

Recording Modes MOV 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97 fps (400 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 50/59.94 fps (200 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080i at 50/59.94 fps (100 Mb/s)
H.265 4:2:0 10-Bit:
3840 x 2160p at 50/59.94 fps (200 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (150 Mb/s)
MOV 4:2:0 8-Bit:
3840 x 2160p at 50/59.94 fps (150 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s) AVCHD 4:2:0 8-Bit:
1920 x 1080p at 50/59.94 fps (25 Mb/s)
1920 x 1080p at 23.98 fps (21 Mb/s)

Variable Frame Rates

4k UHD: 1 to 60 fps
1080p: 1 to 120 fps

Audio Recording

MOV: 2-Channel 24-Bit LPCM Audio
MOV: 2-Channel 16-Bit LPCM Audio

Video Connectors

1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output

Audio Connectors

2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Timecode Input/Output
1 x RJ45 LAN Control, Monitor, Video
1 x USB Type-A USB 2.0 Input/Output
1 x USB Type-C USB 3.1 Gen 1
1 x 2.5 mm LANC Control Input

Display

3.2" LCD Touchscreen 1,370,000 Dots
EVF OLED .39" 1,770,000 Dots

Batter

Panasonic AG-VBR Series

Power

Power Connectors 1 x Barrel (12 VDC) Input
Power Consumption 17 W

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 80%

Tripod Mount

1/4"-20 Female

Dimensions

7.09 x 6.81 x 12.24" / 180 x 173 x 311 mm (Without Protrusions)

Weight

4.19 lb / 1.9 kg

Package Weight

10.1 lb

Box Dimensions (LxWxH)

18.9 x 14 x 11.4"







關鍵字 : #4k.#fullhd.#ndi.#ip製作.

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
