Vion EX (SDI/HDMI/NDI) / Vion NX (NDI) 即時 IP 視訊轉換器

Matrox Vion 迷你型多通道 4K IP 視訊轉換器 Vion EX / Vion NX，專為媒體視訊處理與轉換而設計。 Matrox Vion 提供低延遲，可應用於 H.264、HEVC、JPEG XS 和 NDI 等 IP 視訊格式，靈活地進行多通道編碼、解碼、轉碼和交叉轉換。 Matrox Vion 支援 IPMX 開放標準，與 SMPTE ST 2110-22、SRT、RTSP、RTP 和 MPEG-2 TS 等協定，方便進行各種靈活的路由工作流程，例如使用 SRT 將 NDI 來源轉碼以透過網路傳輸。 Vion 支援 4:2:2 10 位元和 4:4:4 10 位元編解碼器，可選配 HDMI 2.0 和 12G-SDI 輸入，能夠同時保留桌面和廣播視訊內容的細節，管理色彩空間轉換、串流媒體協定和位元速率，並傳輸多個並發串流，使其成為現場製作、協同作業與本地/雲端工作流程的理想選擇。

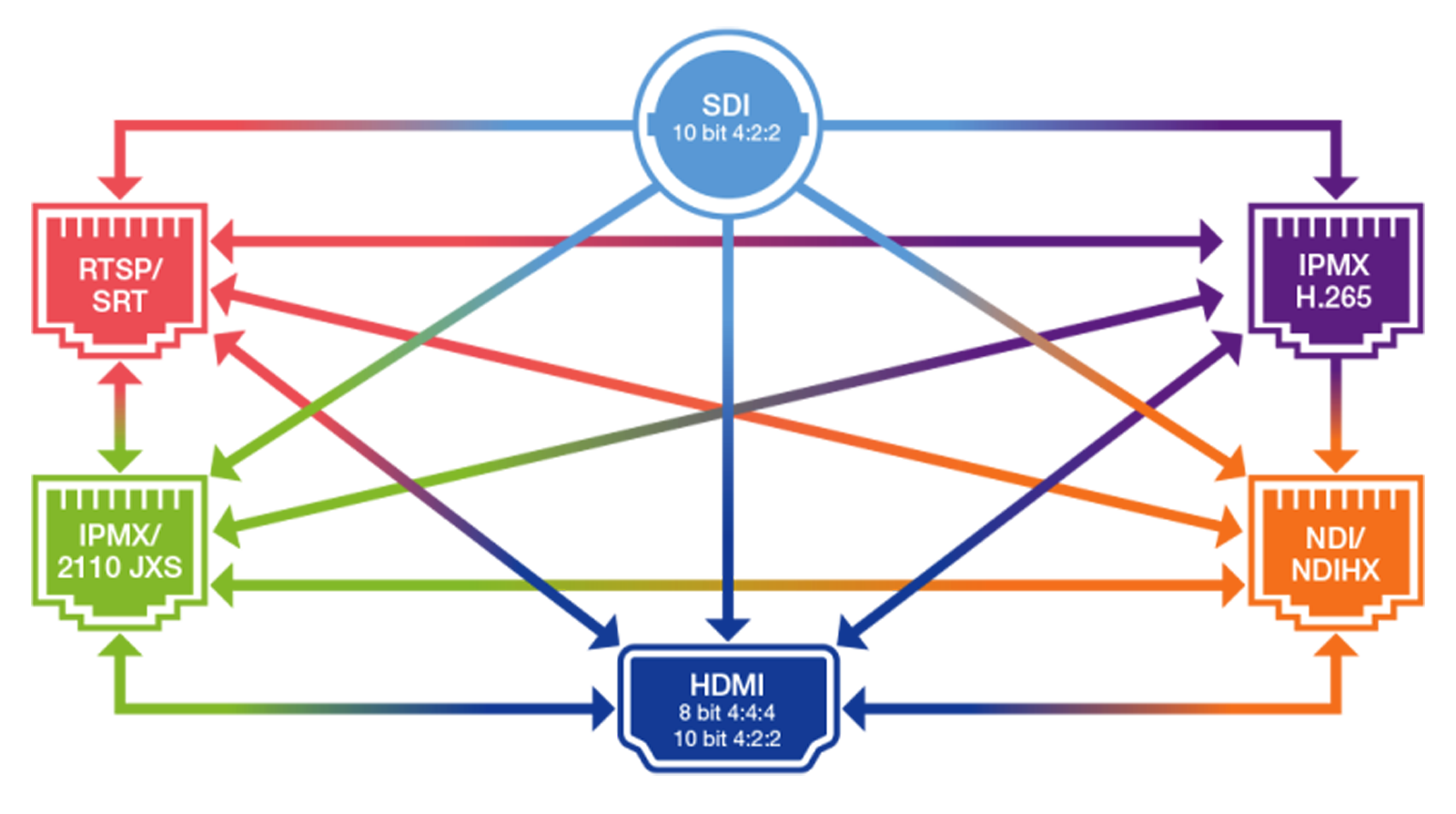

matrox vion 轉換流程

打造您專屬的轉換流程

IP 訊號和協定轉換

有效率地轉換、轉碼、轉碼多路複用與放大/壓縮 IP 訊號，確保媒體順暢發送。透過 Vion，您可以輕鬆進行 NDI 轉換，包括 NDI 和 SRT、 NDI 和 IPMX 之間的各種轉換。

多通道處理

利用先進的多通道編碼、解碼、轉碼和交叉轉換技術，提供多個雙向串流。

開放標準

透過支援 ST 2110-22、IPMX 和 JPEG XS，確保跨裝置的兼容性，讓您的基礎架構符合未來的需求。

4:4:4 色彩精度

Matrox Vion 系列支援 4:4:4 色彩格式（HEVC 和 JPEG XS），可提供卓越的影像品質和相容性。 HEVC 4:4:4 可確保透過 IP 網路以低位元率傳輸高品質的桌面內容，使其成為對色彩精度、壓縮效率和效能要求極高的應用的理想之選。

從輸入進行編碼

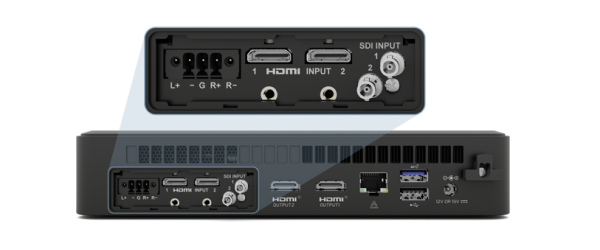

當需要處理除 IP 以外的訊號源時，Vion EX 機型可以從兩個 SDI、兩個 HDMI 和一個類比輸入中獲取視訊和音訊。

內容預覽 I/O 選項

使用 Vion NX HDMI I/O 和 Vion EX 的 SDI/HDMI I/O，即可在本機即時預覽內容。

轉換實例

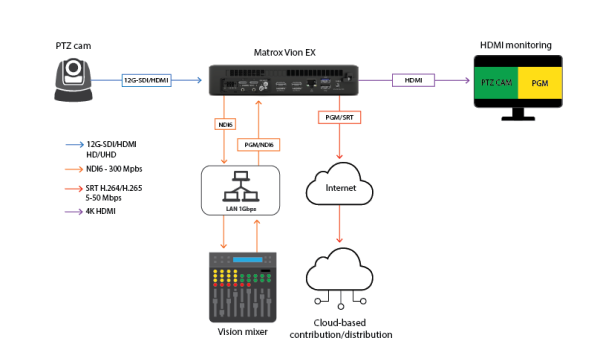

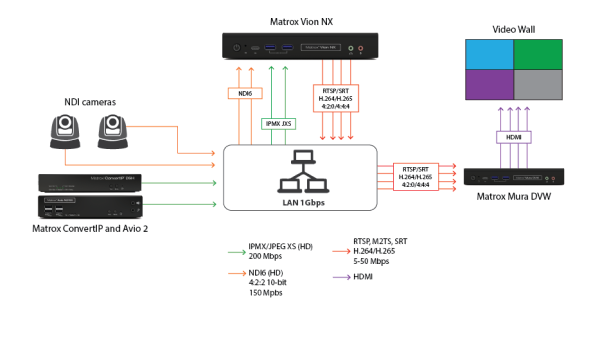

NDI轉換實例

產品規格

Matrox Vion 系列機型：

Matrox Vion EX / Vion NX

Matrox Vion EX / Vion NX 即時 IP 視訊轉換器

Product	Vion EX	Vion NX
Part Number	VION-EXY-NA VION-EXY-EU VION-EXY-UA	VION-NXY-NA VION-NXY-EU VION-NXY-UA
Connectivity
Input connections	HDMI 2 x mini-HDMI (Type C) with retention screw SDI 2 x HD BNC 12G-SDI per SMPTE ST 2082. Level A mapping only when 1080p60 input (2 x HD BNC to BNC adapter provided) 8 channels of embedded audio per input Max number of baseband inputs available at a time limited to two Audio 1 x balanced stereo input via Phoenix Connector 1 x unbalanced input via 3.5mm (1/8)” TRS connectors
Output connections	2 x full size HDMI (Type A) 8 channel of embedded audio per input 1 x unbalanced output via 3.5mm (1/8") TRS connectors
Network	Lan 1: 100/1000 Base-T RJ45 Lan 2: 1000/2500 Base-T RJ45	Lan 1: 1000/2500 Base-T RJ45 Lan 2: 100/1000 Base-T RJ45
Other	USB 3 x USB3 type A* 1 x USB2 type A* 1 x USB2 type B*	USB 5 x USB3 type A 1 x USB-C
Baseband Video Input Formats
SDI	Resolutions 4096x2160 progressive, 23.98, 24, 25, 29.97, 30, 50, 59.94, 59 fps 3840x2160 progressive, 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1920x1080 progressive, 23.98, 24, 25, 29.97, 30, 50, 59.94,60 fps 1920x1080 Interlaced, 25, 29.97,30 fps 1280x720 progressive, 50, 59.94, 60 fps Color sampling YCrCb 4:2:2 10-bit
HDMI	Resolutions 3840x2160 progressive, 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 2560x1440 progressive, 30, 60 fps 1920x1080 interlaced, 25, 29.97,30 fps 1920x1080 progressive, 23.98, 24*, 25, 29.97, 30, 50, 59.94,60 fps 1280x720 progressive, 25, 29.97,30 fps 1024x768, 30,60 fps 800x600, 30,60 fps 640x480, 30,60 fps A number of other non 16:9 resolution can be supported. Color sampling YCrCb 4:2:2 10-bit, sRGB 4:4:4 8/10-bit
Supported Codecs
Codecs	H264/MPEG-4 part 10 (AVC): 4:2:0 8-bit up to 100 Mbps H265 (HEVC), 4:2:0 8/10-bit: 4:2:2 8/10-bit, 4:4:4: 8/10-bit up to 100 Mbps JPEG XS: 4:2:2 8/10-bit, 4:4:4: 8/10-bit up to 2000 Mbps NDI6 - [SpeedHQ]: 4:2:2 8/10-bit up to 300 Mbps NDIHX3 [H264/H265]: 4:2:0 8/10-bit up to 100 Mbps Uncompressed audio: for IPMX/2110 and NDI streaming formats AAC - LC/HE: 32 to 256 Kbps per stereo pair
Supported Streaming Formats
Streaming formats	RTP/RTSP: Using H264 and H265 codec only SRT [caller, sender and rendez-vous]: Using H264 and H265 codec only MPEG-2 TS: Using H264 and H265 codec only NDI6: Using SpeedHQ NDIHX3: Using H264 or H265 IPMX: With JPEG XS codec SMPTE ST -2110 – 22: With JPEG XS codec
Performance
Encode/Decode	JPEG XS: 1x 4Kp60 encode or decode, 4x 1080p60 encode or decode NDI6[Full]: 1x 4Kp60 encode or decode, 4x 1080p60 encode or decode H.264: 2x 4Kp60 encode or decode, 8x 1080p60 encode or decode H.265 4:2:0 and 4:4:4 8/10-bit: 2x 4Kp60 encode or decode, 8x 1080p60 encode or decode H.265 4:2:2 10-bit: 2x HD encode and decode Note that there are only two HDMI outputs that are enabled, output of more than two decodes will need to be viewed in composition mode.
Transcode Combinations	JPEG XS <---->NDI , 1x 4Kp60 transcode, 3x 1080p60 transcodes JPEG XS <---->H264, 1x 4Kp60 transcode, 4x 1080p60 transcodes JPEG XS <----> H265 4:2:0, 4:4:4, 1x 4Kp60 transcode, 4x 1080p60 transcodes JPEG XS <----> H265 4:2:2 10 bit, 2x 1080p60 transcodes NDI6<---->H264(including NDIHX3), 2x 4Kp60 transcode, 4x 1080p60 transcodes* NDI6<---->H265 420 or 444(Including NDIHX3), 2x 4Kp60 transcode, 4x 1080p60 transcodes* NDI6<---->H265 4:2:2 10 bit, 2x 1080p60 transcodes H264<---->H265 , 1x 4Kp60 transcode, 4x 1080p60 transcodes Many simultaneous encodes and transcodes possible. The above combinations provide guidelines as to what the limits might be. When resolutions and frame rates are further reduced to 1080i/25/30 or 720p50/60, even more operations can be done. NDI and JPEG XS codecs have a hard limit of 4 simultaneous operations each. These limits are independent of each other. ie, 4x NDI<-->JPEG XS transcodes are possible however only 2x NDI6<-->NDIHX3 transcodes are possible.
Scaling and Color Space Conversion Operations
Color space conversion	Input video format YCrCb BT 709 (over SDI or HDMI): Convert from any baseband format to any codec format. YCrCb BT 2020 (over SDI or HDMI) sRGB (over HDMI) Codec formats YUV 4:2:0 8/10-bit: Convert from one codec format to the other YUV 4:2:2 8/10-bit RGB 4:4:4 8/10-bit	Codec formats YUV 4:2:0 8/10-bit: Convert from one codec format to the other YUV 4:2:2 8/10-bit RGB 4:4:4 8/10-bit
Scaling and frame rate conversion	Upscaling/downscaling, anamorphic scaling to HD<---->4K Deinterlacing, interlace to progressive conversion Frame rate conversion, skip and repeat of frames
General
Physical	Product Dimensions: L: 210mm ( 8.27in) x W:175 mm (6.89in) x H: 42mm (1.65in) Weight: Device only ~1.5 kg (3.3 lbs) Operating Conditions: 0 - 35Deg. C (32-95Deg. F) Power supply: 120-240V, 120W Power input: 19V - 5.5 amps max (4 amps typical)	Product Dimensions: L:190mm (7.48in) x W:148 mm (5.83in) x H:30mm (1.18in) Weight: Device only ~1.0 kg (2.2 lbs) Operating Conditions:0 - 35Deg. C (32-95Deg.F) Power supply: 120-240V, 90W Power input: 19V - 4.5 amps max
Regulatory	CE(EU), FCC(US), ICES-003(Canada), KC (Korea), RCM(Aud/Nz) REACH, EU ROHS, REACH UL 60950 & UL 62368-1, CSA c22.2 No. 60950-1 % 62368-1, TUV EN-60950-1 & EN-62368-1 GB9254-2008, GB4943-1-2011, GB17625.1-2012
Hardware and Software
Hardware included	Power supply: 120W power supply Power cords VION-EXY-NA NEMA 5-15 North Amercian power cord (North America) VION-EXY-EU CEE 7/7European Union power cord (European Union) VION-EXY-UA(UKand AUS/Nz power cord) Adapters 2 x 12" HDBNC to BNC cable adapters for SDI connectivity Other One mounting plate with screws	Power supply: 90W power supply Power cords VION-NXY-NA NEMA 5-15 North Amercian power cord (North America) VION-NXY-EU CEE 7/7European Union power cord (European Union) VION-NXY-UA(UKand AUS/Nz power cord) Other One mounting plate with screws
User Interfaces	Matrox Update Utility: Free application to findand update VION devices connected to network. Web UI: Principal GUI to configuration and monitoring NMOS IS-04 and IS-05 API: Discovery and routing of IPMX and ST-2110 signals
Accessories and Options	Rack Kit: Rack kit part number ConductIP Media Routing Appliance: CDTCIP-MRA HD BNC adapter cables: HDBNC/I	Rack Kit: Rack kit part number ConductIP Media Routing Appliance: CDTCIP-MRA
