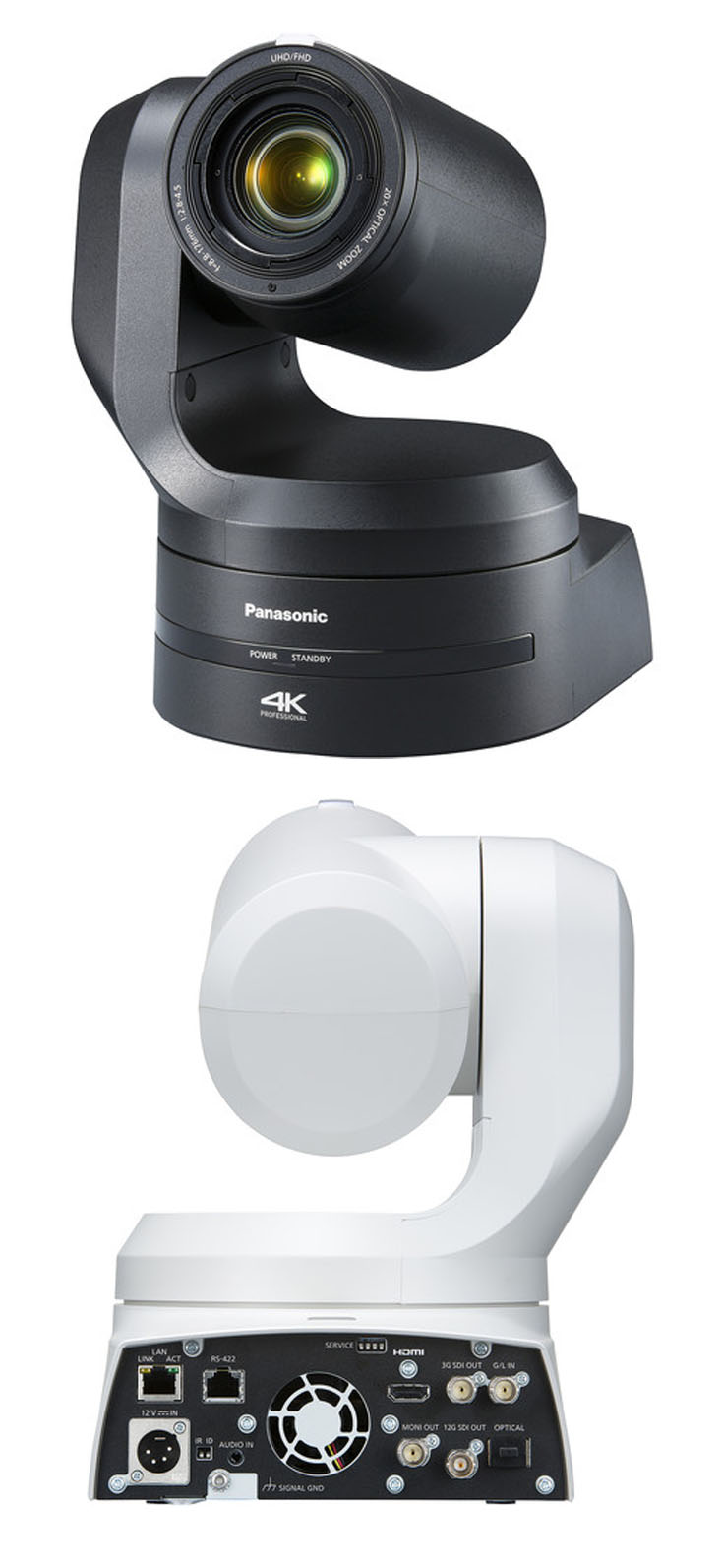

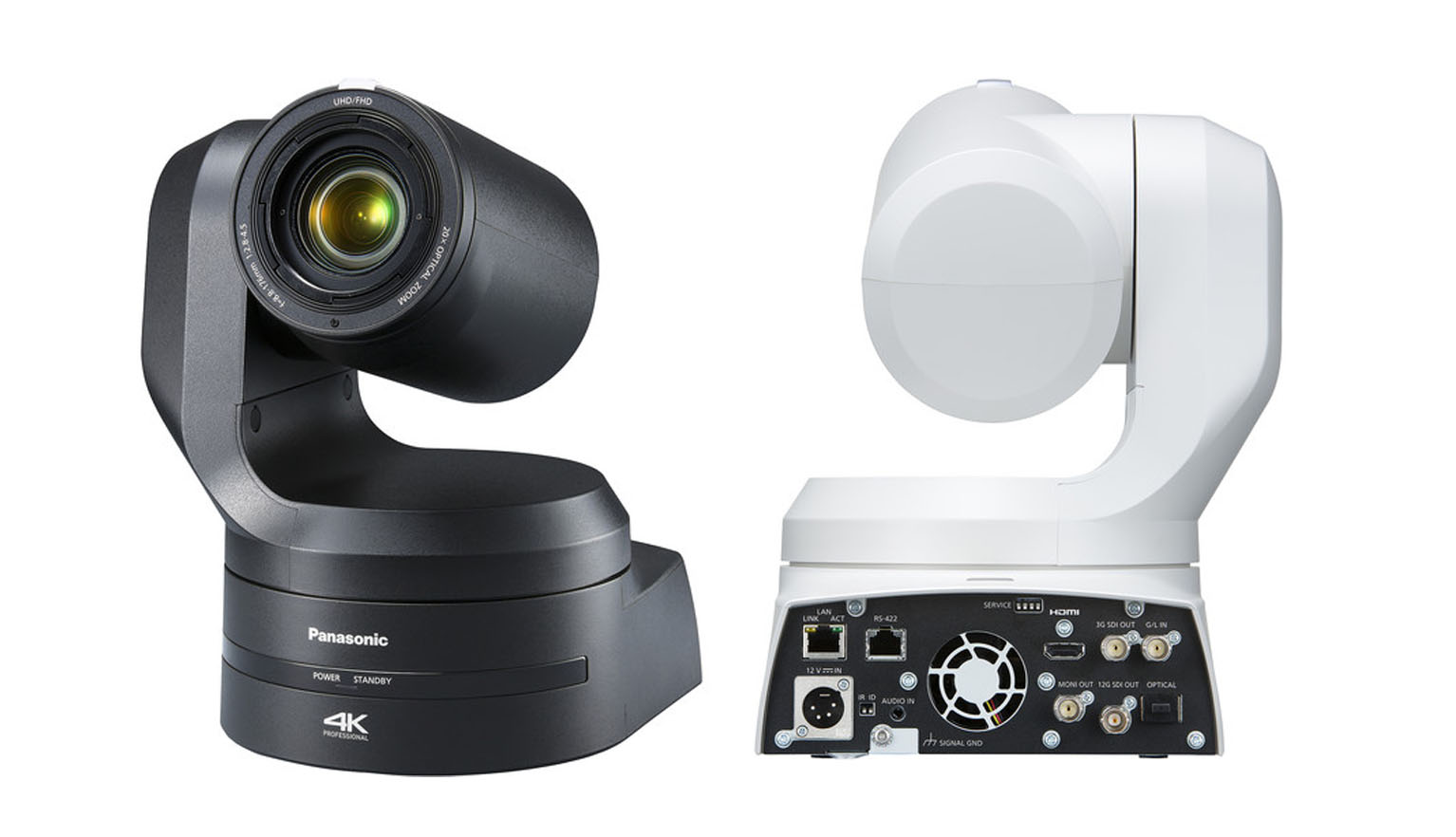

Power Requirements

Due to increased PRO PTZ camera installations utilizing existing PoE++ infrastructure, the AW-UE150 unit does not include a standard power supply. If the AW-UE150 will be installed in an area without PoE++, please utilize an IA-70a power supply. XLR 4-PIN: 12 V DC (10.8 V to 13.2 V) PoE++: IEEE 802.3bt (Type 4) Standard DC 42 V to 57 V (Camera Input)

PoE+

IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)

Current consumption

4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)

Ambient Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Ambient Operating Humidity

20 % to 90 % (no condensation)

Storage Temperature

-20 °C to 50 °C (-4 °F to 122 °F)

Mass

Approx. 4.2 kg (9.24 lb) (excluding mount bracket)

Dimensions (W x H x D)

213 mm x 267 mm x 219 mm
(excluding protrusions, direct ceiling mount bracket)

Dimensions (W x H x D)

8-3/8 inches x 10-1/2 inches x 8-5/8 inches
(excluding protrusions, direct ceiling mount bracket)

Controller

supported*1 AW-RP150GJ

Imaging Sensors

1-type 4K MOS×1

LENS *

Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches)
equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]

Zoom

・Optical zoom: 20x
・i.Zoom: UHD 24x, FHD 32x
・Digital zoom: 10x

Angle of View Range

Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)

Optical Filter

Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)

Focus

Switching between auto and manual

Focus Distance

Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)

Color separation optical system

1MOS

Standard Sensitivity

F9, 2000 lx (When normal mode is selected)

MINIMUM ILLUMINATION

2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)

Horizontal Resolution

1600 TV lines Typ (Center area)

Gain Selection

Auto, 0 dB to 36 dB*2
Super Gain function equipped: +37 dB to 42 dB

Frame mix*3

0 dB, 6 dB, 12 dB, 18 dB, 24 dB

Electronic Shutter Speed

59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000

23.98p/24p
1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000

50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000

25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000

Syncro Scan

59.94p/59.94i : 60.00 Hz to 7200 Hz
29.97p : 30.00 Hz to 7200 Hz
23.98p/24p : 24.00 Hz to 7200 Hz
50p/50i : 50.00 Hz to 7200 Hz
25p : 25.00 Hz to 7200 Hz

Gamma

HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG

WHITE BALANCE

ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)

Chroma Amount Variability

OFF, -99 % to 99 %

Scene File

Scene1, Scene2, Scene3, Scene4

Output Format

Horizontal Resolution

1600 TV lines Typ (Center area)

Input Connector

DC 12 V IN, G/L IN (BNC)
・BBS (Black Burst Sync), tri-level sync supported

VIDEO OUTPUT

HDMI
HDMI 2.0 standard
4:2:2/10bit
・HDCP is not supported.
・Viera Link is not supported.

12G-SDI OUT
SMPTE 2082-1 standard / 75 Ω (BNC x 1)

3G-SDI OUT
SMPTE292 / 75 Ω (BNC x 1)
・Level-A/Level-B supported

MONI OUT
SMPTE292 / 75 Ω (BNC x 1)

Optical Fiber
SFP+ standard
Single Fiber
・The signal sent is the same as 12G-SDI OUT.
・This unit does not support input by optical signals.

Input / Output Connector

LAN
LAN connector for IP control (RJ-45)

RS-422
CONTROL IN RS-422A (RJ-45)

MIC/LINE input
φ3.5 mm stereo mini jack
Input impedance: High impedance
・During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. -40 dBV ± 3 dBV
(0 dB=1 V/Pa, 1 kHz)
・During LINE input
Input level: Approx. -10 dBV ±3 dBV

Camera/pan-tilt head control

IP connecting cable
・LAN cable*6*7 : (category 5e or above, straight cable / crossover cable)
max. 100 m (328 ft)

AW protocol connecting cable
LAN cable*6 (category 5e or above, straight cable)
max. 1000 m (3280 ft)

Installation Method

Stand-alone (Desktop) or suspended (Hanging)*8

Pan/Tilt Operation Speed

Maximum speed 60°/s or higher*9
・Maximum speed is 180°/s in high-speed mode

Panning range

±175°

Tilting Range

-30° to 210°*10

Quietness

NC35 or less

Supported operating systems and web browsers

Windows
Microsoft(R) Windows(R) 7, 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome

Mac
Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome

iPhone / iPad iOS 11.4.1
Google Chrome

Image Streaming Mode

JPEG (MJPEG), H.264, H.265

Image Resolution

3840×2160, 1920×1080, 1280×720, 640×360, 320×180
