專業攝影機

Sony
PXW-Z280
4K 專業攝影機

Sony 攝影機

Sony PXW-Z280 採用全新 4K 3CMOS 1/2 吋感光元件可提供兼具高端影像品質的深景深效果,實現高解析度、F12 高感光度 (59.94p) 及寬廣的動態範圍。4K 4:2:2 10 位元增添了生動的影像和精細的色彩層次。 還內建 17X 變焦鏡頭,支援 30.3mm 變焦到 515mm(等效於 35mm)。 1/2 吋型鏡頭配備三個獨立控制環,可手動控制對焦、變焦及光圈,快速進行最佳調整。在 HD 模式下,影像放大時不會出現任何圖像品質下降的情形。

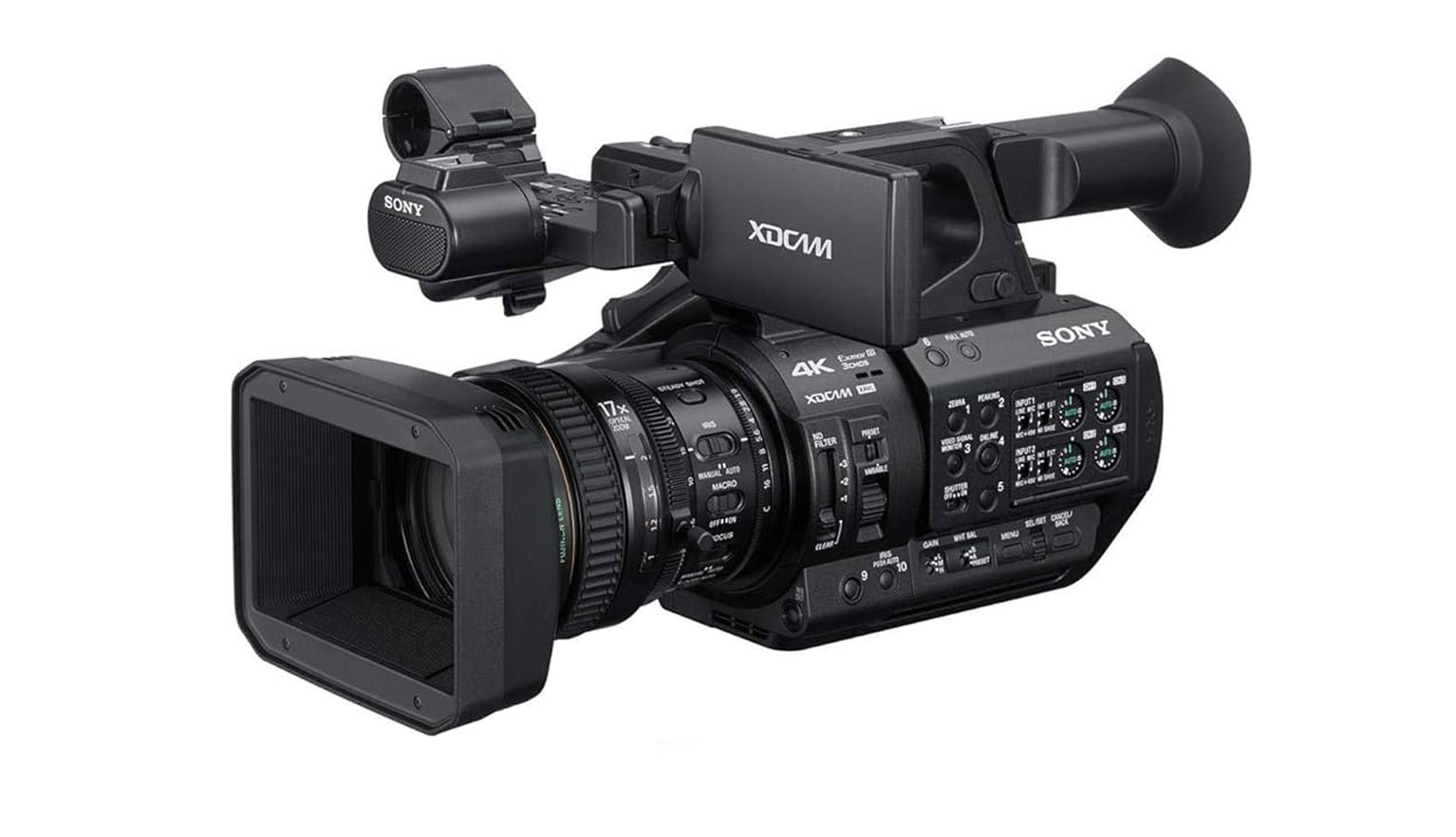

Sony PXW-Z280 4K 專業攝影機

產品規格
SONY
PXW-Z280 4K 專業攝影機

詳細規格
通用資訊 Approx 2.6 kg (body)
Approx. 5 lb 11.7 oz (body)
Approx. 3.0 kg (with lens hood, eyecup, BP-U30 battery, a SxS memory card)
Approx. 6 lb 9.8 oz (with lens hood, eyecup, BP-U30 battery, a SxS memory card)
尺寸 Dimensions (W x H x D) 178.4 202.0 426.3 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/8 x 8 x 16 7/8 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
電源 Power Requirements DC In: 12V,
Battery: 14.4 V
耗電 Power Consumption Approx. 24W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 31W
(while recording with LCD On, EVF On when the external device connector is used.)
操作溫度 Operating Temperature 0XC to 40XC
32XF to 104XF
工作環境 Storage Temperature -20XC to +60XC
-4XF to +140XF
電池 Battery Operating Time Approx. 1 hours, 5 minutes with BP-U30 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 2 hours, 10 minutes with BP-U60 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 3 hours, 15 minutes with BP-U90 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
視訊格式 Recording Format (Video) XAVC-I QFHD mode:
MPEG-4 AVC/H.264, CBG, Max.600 Mbps
XAVC-I HD mode:
MPEG-4 AVC/H.264, CBG, Max.222 Mbps

XAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
AVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

MPEG HD422 mode:
CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL
MPEG HD420 HQ mode:
VBR, maximum bit rate 35Mbps, MPEG-2 MP@HL

DVCAM mode:
CBR, 25Mbps, DVCAM
音訊規格 Recording Format (Audio) XAVC-I mode:
LPCM 24-bit, 48kHz, 4 channels:

XAVC-L mode:
LPCM 24-bit, 48kHz, 4 channels:
MPEG HD422 mode:
LPCM 24-bit, 48kHz, 4 channels:
MPEG HD420 HQ mode:
LPCM 16-bit, 48kHz, 4 channels:

DVCAM mode:
LPCM 16-bit, 48kHz, 4 channels
錄影幀率 Recording Frame Rate XAVC-I QFHD mode:
3840X2160/59,94p, 50p, 29.97p, 23.98p, 25p
XAVC-I HD mode:
1920X1080/59,94p, 59.94i, 50p, 50i, 29.97P, 23.98P, 25P 1280X720/59.94P, 50P

XAVC-L QFHD 150 mode:
3840X2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920X1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280X720/59.94P, 50P
XAVC-L HD 35 mode:
1920X1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
持續幀率 Recording Frame Rate Continued XAVC-L HD 25 mode:
1920X1080/59.94i, 50i

MPEG HD422 mode:
1920X1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280X720/59.94P, 50P, 29.97P, 23.98P, 25P
MPEG HD420 HQ mode:
1920X1080/59.94i, 50i, 29.97P, 23.98P, 25P
1440X1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280X720/59.94P,50P

DVCAM mode:
720X480/59.94i, 29.97PsF
720X576/50i, 25PsF
錄影時數 Recording/Playback Time XAVC-I QFHD mode
When using SBP-128B(128GB):
Approx. 22 minutes
XAVC-I HD mode
When using SBP-128B(128GB):
Approx. 57 minutes

XAVC-L QFHD 150 mode
When using SBP-128B(128GB):
Approx. 86 minutes
XAVC-L HD 50 mode
When using SBP-128B(128GB):
Approx. 230 minutes
XAVC-L HD 35 mode
When using SBP-128B(128GB):
Approx. 310 minutes
持續錄影 Recording/Playback Time Continued XAVC-L 25 mode
When using SBP-128B(128GB):
Approx. 420 minutes

MPEG HD422 mode
When using SBP-128B(128GB):
Approx. 215 minutes
MPEG HD420 HQ mode
When using SBP-128B(128GB):
Approx. 330 minutes

When using SBP-128B(128GB):
Approx. 405 minutes
Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920X1080, 9Mbps
1280X720, 9Mbps
1280X720, 6Mbps
640X360, 3Mbps
480X270, 1Mbps
480X270, 0.5Mbps
LENS
Lens Mount Fixed
縮放 Zoom Ratio 17x (optical), servo/manual
焦距 Focal Length f = 5.6 95.2 mm
(35mm equivalent: 30.3 515 mm)
光圈 Iris F1.9 F16 and close
auto/manual selectable
對焦 Focus 800 mm to ∞ (Macro Off),
50 mm to ∞ (Macro On, Wide),
800 mm to ∞ (Macro On, Tele)
AF/MF/Full MF selectable
影像穩定 Image Stabilizer On/Off selectable, shift lens
Filter Diameter M77 mm, pitch 0.75mm
CAMERA SECTION
Imaging Device (Type) 1/2 type back-illuminated Exmor 3CMOS sensor
Effective Picture Elements 3840 (H) x 2160 (V)
操作系統 Optical System F1.6 prism system
Built-in Optical Filters ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Linear variable ND (Approx. 1/4ND to 1/128ND)
Sensitivity (2000 lx, 89.9% reflectance) F12 (typical, 1920 x 1080/59.94p mode)
F13 (typical, 1920 x 1080/50p mode)
F12 (typical, 3840 x 2160/59.94p, High Sensitivity Mode)
F13 (typical, 3840 x 2160/50p, High Sensitivity Mode)
Minimum Illumination 0.0013lx (typical)
(1920 x 1080/59.94i mode, F1.9, +42 dB gain, High Sensitivity Mode, with 64 frame accumulation)
S/N Ratio 63 dB (Y) (typical)
Horizontal Resolution 2,000 TV lines or more (3840 x 2160p mode)
1,000 TV lines or more (1920 x 1080p mode)
快門速度 Shutter Speed 1/24 sec to 1/8,000 sec
快速快門 Slow Shutter (SLS) 2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation
Slow and Quick Motion Function 2160P: 1-60 fps
1080P: 1-60 fps
720P: 1-60 fps

1080P: 1-30 fps
720P: 1-60 fps

1080P: 1-30 fps
720P: 1-60 fps
MONITORING
Viewfinder 1.3 cm (0.5 type)
Approx 2.36M dots
LCD 8.8cm (3.5 type)
Approx. 1.56M dots
BUILT-IN MICROPHONE
Built-in Microphone Omni-directional stereo electret condenser microphone
MEDIA
Type ExpressCard/34 slot (x2)
WI-FI/NFC
電子規格 Supported Format IEEE 802.11 a/b/g/n/ac
頻宽 Frequency Band 2.4 GHz bandwidth
5.2/5.3/5.6 GHz bandwidth*
安全規範 Security WEP/WPA-PSK/WPA2-PSK
NFC格式 NFC Forum Type 3 Tag compliant







關鍵字 : #4k.#ndi.#ip製作.

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
