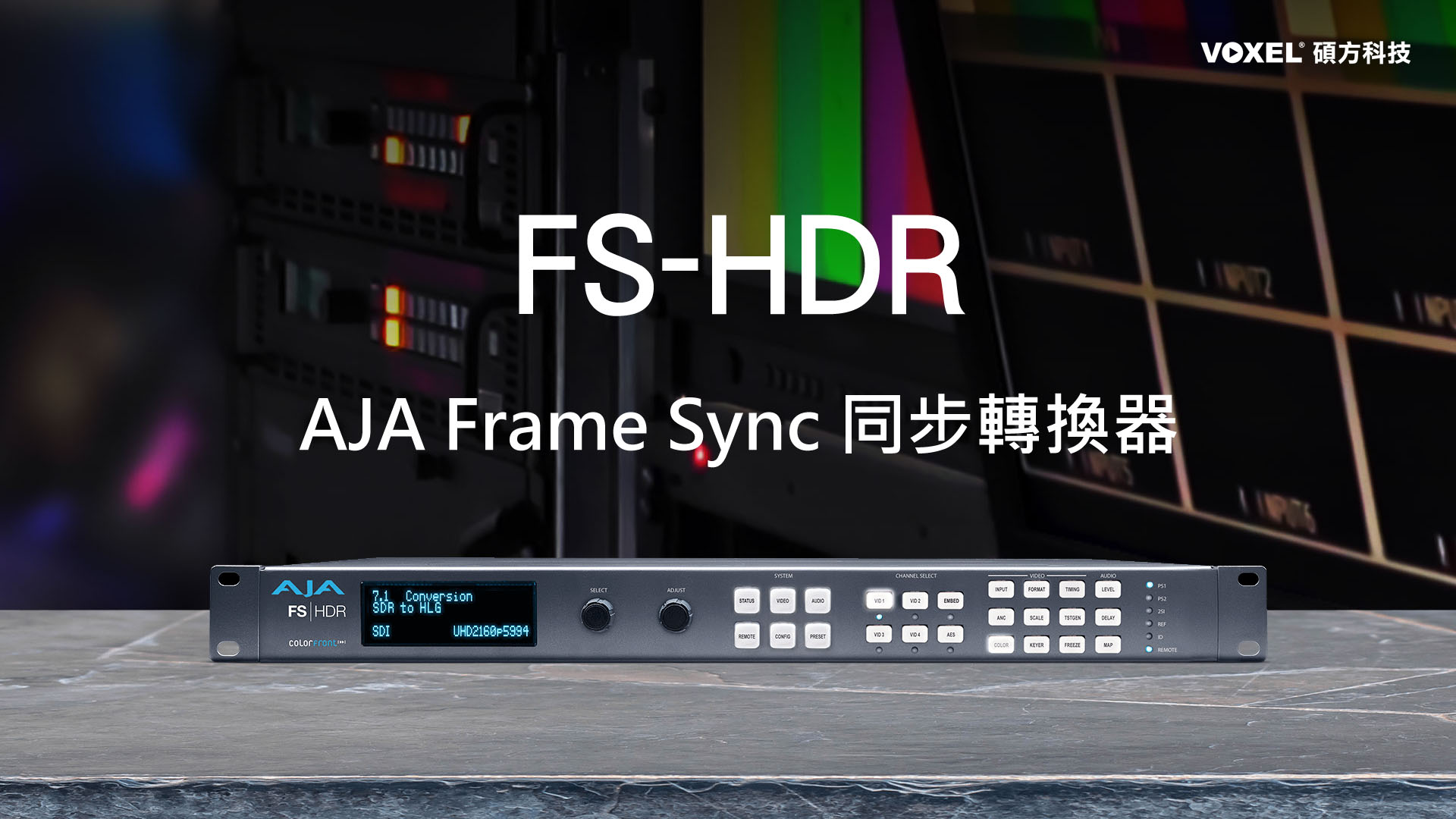

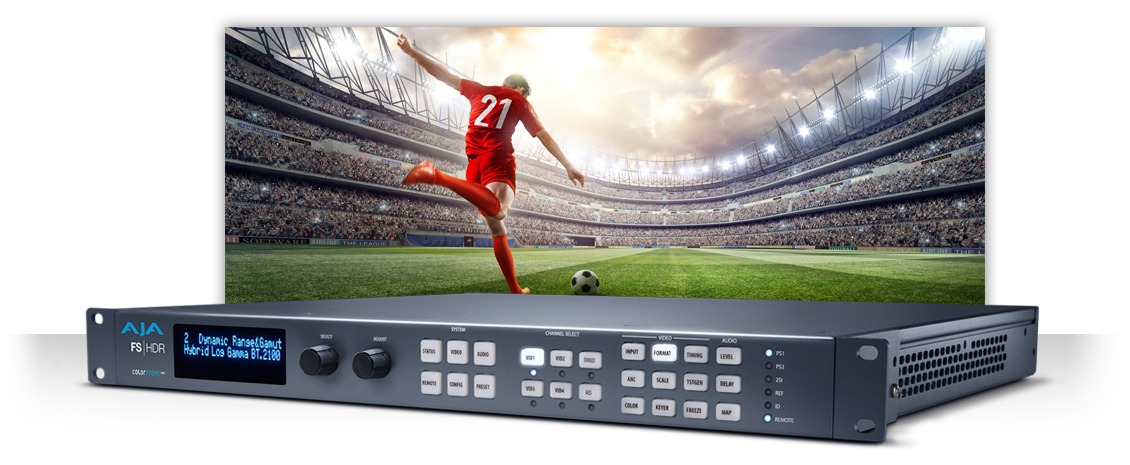

AJA FS-HDR 即時 HDR/WCG 同歩轉換器

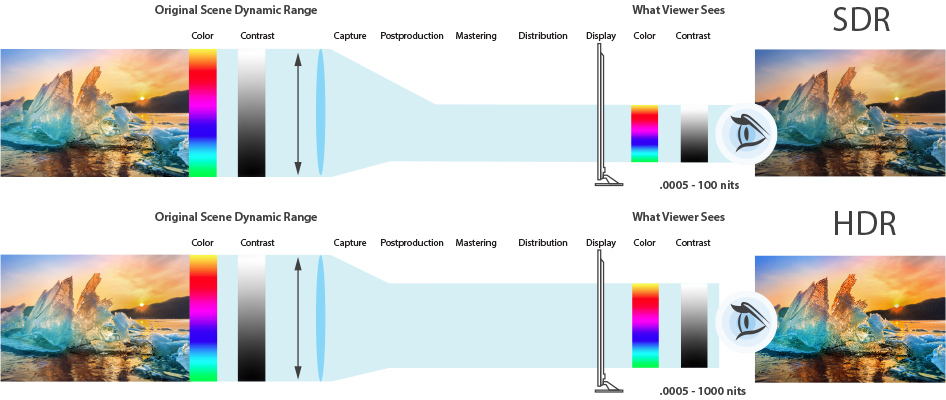

HDR/WCG Real Time Processor	• HDR Conversions - HDR to HDR - HDR to SDR - SDR to HDR • Colorimetry - BT.709 and BT.2020
Video Processing Transforms	• Each processing channel can independently select from: - Colorfront Engine - TV Mode - Colorfront Engine - Live Mode - Colorfront Engine - Film Mode - BBC HLG 3D LUTs - NBCU 3D LUTs - User 3D LUTs - Dynamic 3D LUTs

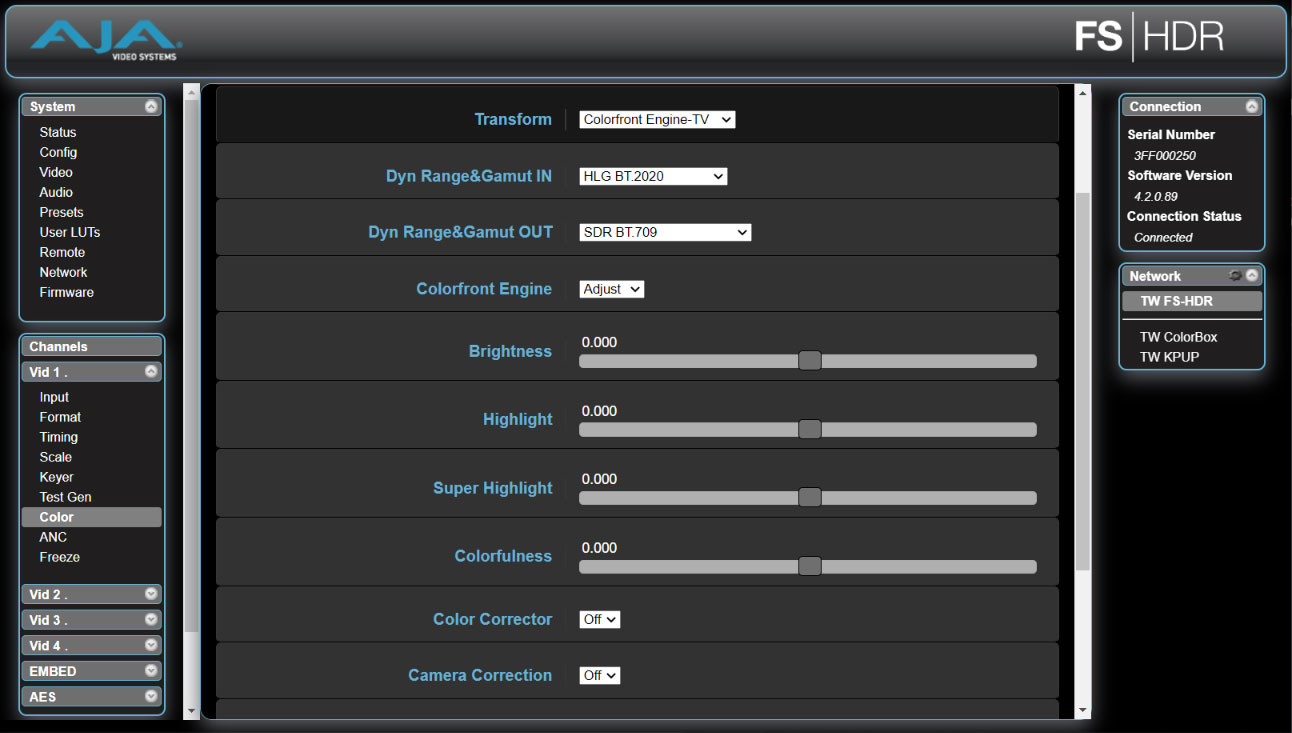

Colorfront Engine (CFE) Advanced HDR Conversions	■ Processing Based on Human Perception Model ■ Perceptually optimized color volume remapping ■ Preserves the original creative intent ■ Parametric controls including HDR functions and color corrector ■ TV Mode for applications such as television broadcast ■ Live Mode for applications such as broadcast, OTT, A/V ■ Film Mode for applications such as on-set camera preview and look creation ■ Input Video Dynamic Range/Color Gamut • SDR BT.709 100 Nits • SDR Extended BT.709 • PQ BT.2020 1000 Nits • PQ P3D65 1000 Nits • Hybrid Log Gamma BT.2100 • HLG Extended BT.709 • HLG Extended BT.2100 • Sony S-Log3 S-Gamut3 • Sony S-Log3 S-Gamut3 Cine • Sony S-Log3 BT.2020 • ARRI Log C Wide Gamut • ARRI LogC4 Wide Gamut 4 • Panasonic V-log • RED Log3G10 Wide Gamut • Canon Log 2 • Canon Log 3 • ACEScct (Film mode only) ■ Output Video Dynamic Range/Color Gamut • SDR BT.709 100 Nits • SDR Extended BT.709 • PQ BT.2020 1000 Nits • PQ BT.2020 ConstrainP3 • PQ P3D65 1000 Nits • Hybrid Log Gamma BT.2100 • HLG Extended BT.709 • HLG Extended BT.2100 • Sony S-Log3 S-Gamut3 • Sony S-Log3 BT.2020 • ARRI Log C Wide Gamut • ARRI LogC4 Wide Gamut 4 • ACEScct (Film mode only) ■ SDR Preview mode ■ Ambient Light Compensation control ■ PQ Output Nit level: 48-4000 Nit ■ PQ Output P3 Colorspace Clamp ■ Exposure, Color Temp, Tint controls ■ TV Mode controls • Highlight management: Brightness, Highlight, Super Highlight • Color Correction: Lift, Gamma, Gain, Saturation • Camera Correction: Exposure, Color Temp, Tint ■ Live Mode controls • Grading: Lift, Gamma, Gain, • SDR Softness control • ITU-R BT.2408 control ■ Film Mode controls • Grading space: LogC, ACEScct, or S-Log3 • ACES CDL: Offset, Power, Slope, Saturation • A/B Look Selection • A/B Look Mix - MasterLook - MasterBroadcast - MasterLookBright - MasterLookCool - MasterLookLowCon - MasterLookSoftColor - MasterLookVivid - MasterLookWarm - MasterPastelD60 - MasterPastelD65 - Agfa - ARRI K1S1 - Bleach - ClassicFilm - Ektachrome - FilmBlended - FilmBlendedLoCon - FujiDI - FujiXD - GenericFilm - Kodachrome - ReversalClassic

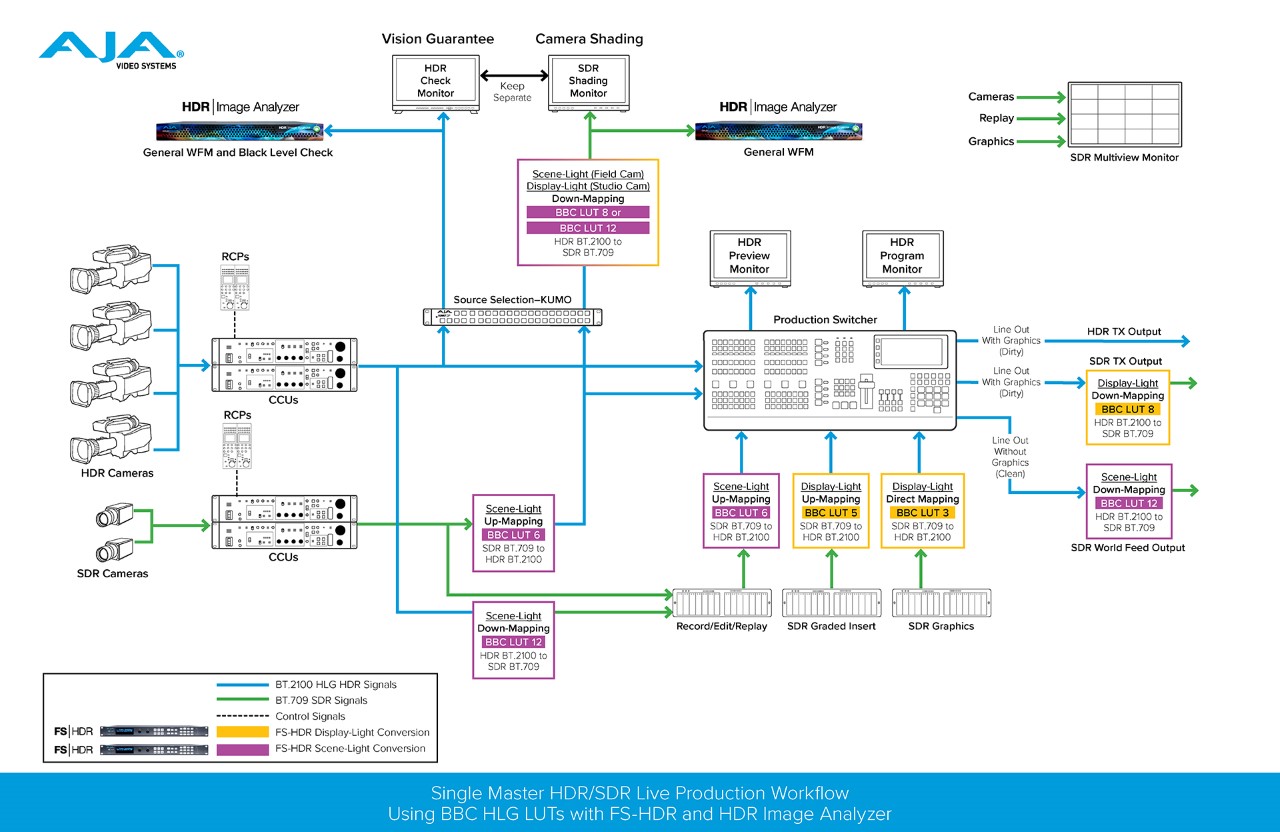

BBC HLG 3D LUT HDR Conversions	Mathematical dynamic range mapping per ITU-R BT.2408 SDR/BT.709 Scene Referred to HLG/BT.2100 v1.7 SDR/BT.709 Scene Referred to HLG/BT.2100 Strict v1.7 SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 v1.7 SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 Strict v1.7 SDR/BT.709 Display Referred to HLG/BT.2100 v.1.7 SDR/BT.709 Display Referred UpMap to HLG/BT.2100 v1.7 SDR/BT.2020 Display Referred to HLG/BT.2100 v1.7 SDR/BT.2020 Display Referred UpMap to HLG/BT.2100 v1.7 PQ 1000 Nits Display Referred to HLG/BT.2100 v1.7 PQ 4000 Nits Display Referred to HLG/BT.2100 v1.7 S-Log3/BT.2020 100% Scene Referred to HLG/BT.2100 v1.7 S-Log3/BT.2020 200% Scene Referred(SR-Live) to HLG/BT.2100 v1.7 HLG/BT.2100 to SDR/BT.709 Scene Referred v1.7 HLG/BT.2100 to SDR/BT.709 Scene Referred Strict v1.7 HLG/BT.2100 to SDR/BT.709 Display Referred Color Appearance Model v1.7 HLG/BT.2100 to SDR/BT.709 Display Referred Super White v1.7 HLG/BT.2100 to PQ 1000 Nits Display Referred v1.7 HLG/BT.2100 to SDR/BT.2020 Display Referred Super White v1.7 SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 to SDR/BT.709 Display Referred v1.7

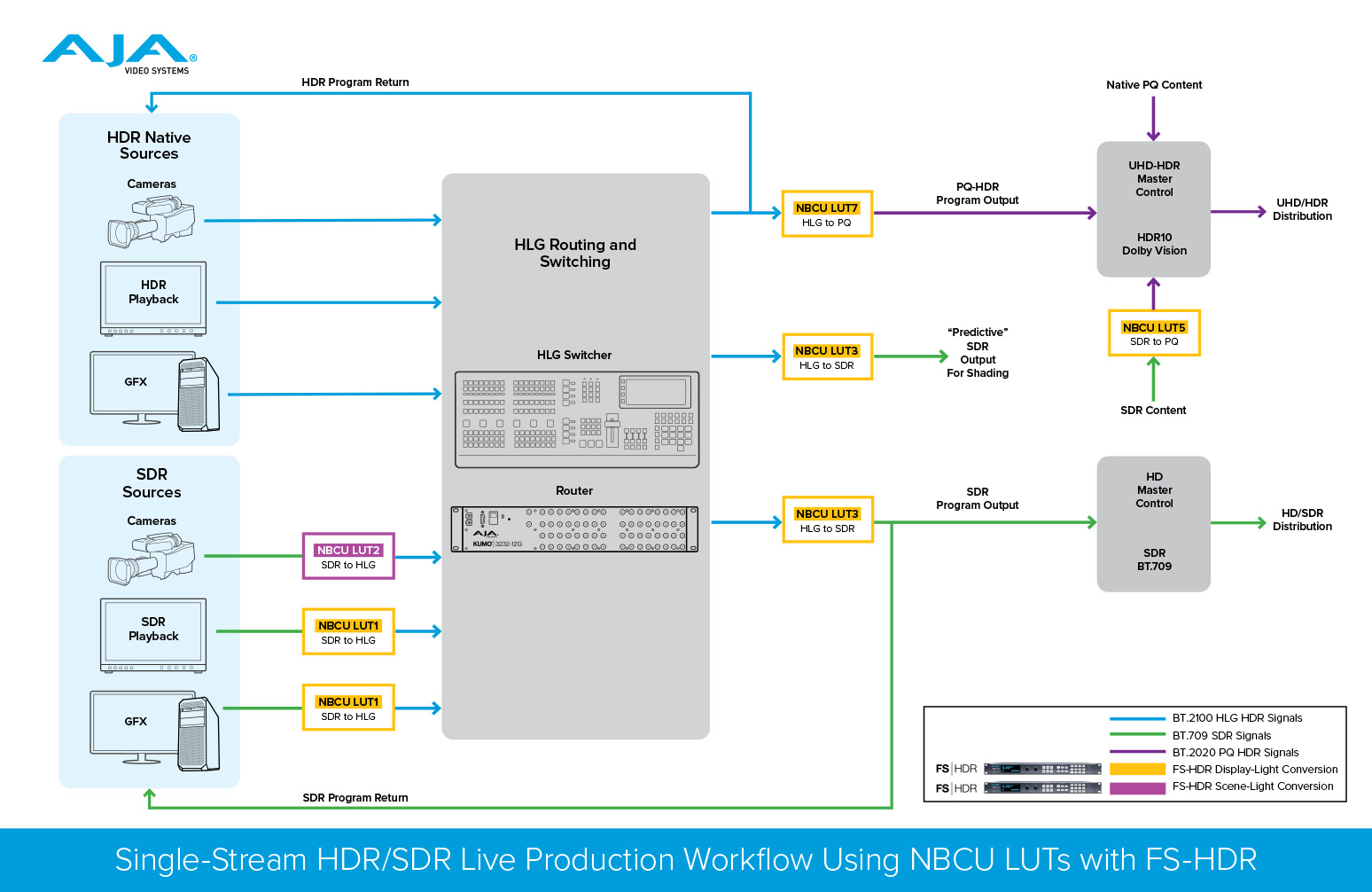

NBCU 3D LUT Processing	NBCU LUTs developed by NBCUniversal Media, LLC 1-NBCU_SDR2HLG_DL_v1.1, SDR UpMap to HLG using Display Light v1.1 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light v1.0 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light v1.1 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light v1.0 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light v1.0 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ v1.
User 3D LUT Processing	Supports custom 33 point .cube format 3D LUTs Tetrahedral LUT interpolation Configurable Colorspace, Scale, and HDR Transfer Characteristic  Nonvolatile storage of 10 fixed LUTs
Dynamic 3D LUT Processing	Supports third party apps for automatic loading and display of 3D LUTs  Reflects dynamic changes in real time from source software Supported by Pomfort Livegrade Pro Supported by TV Logic WonderLookPro

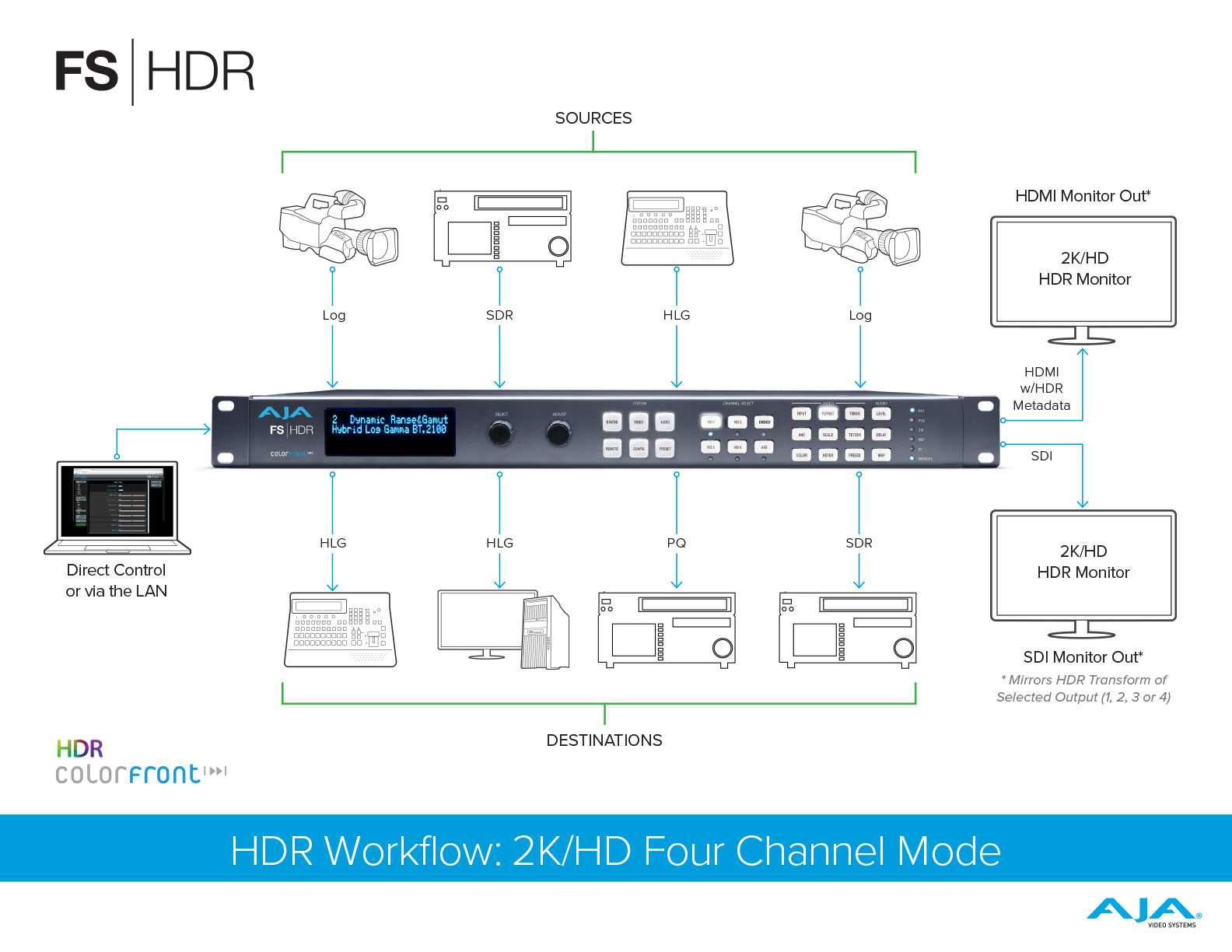

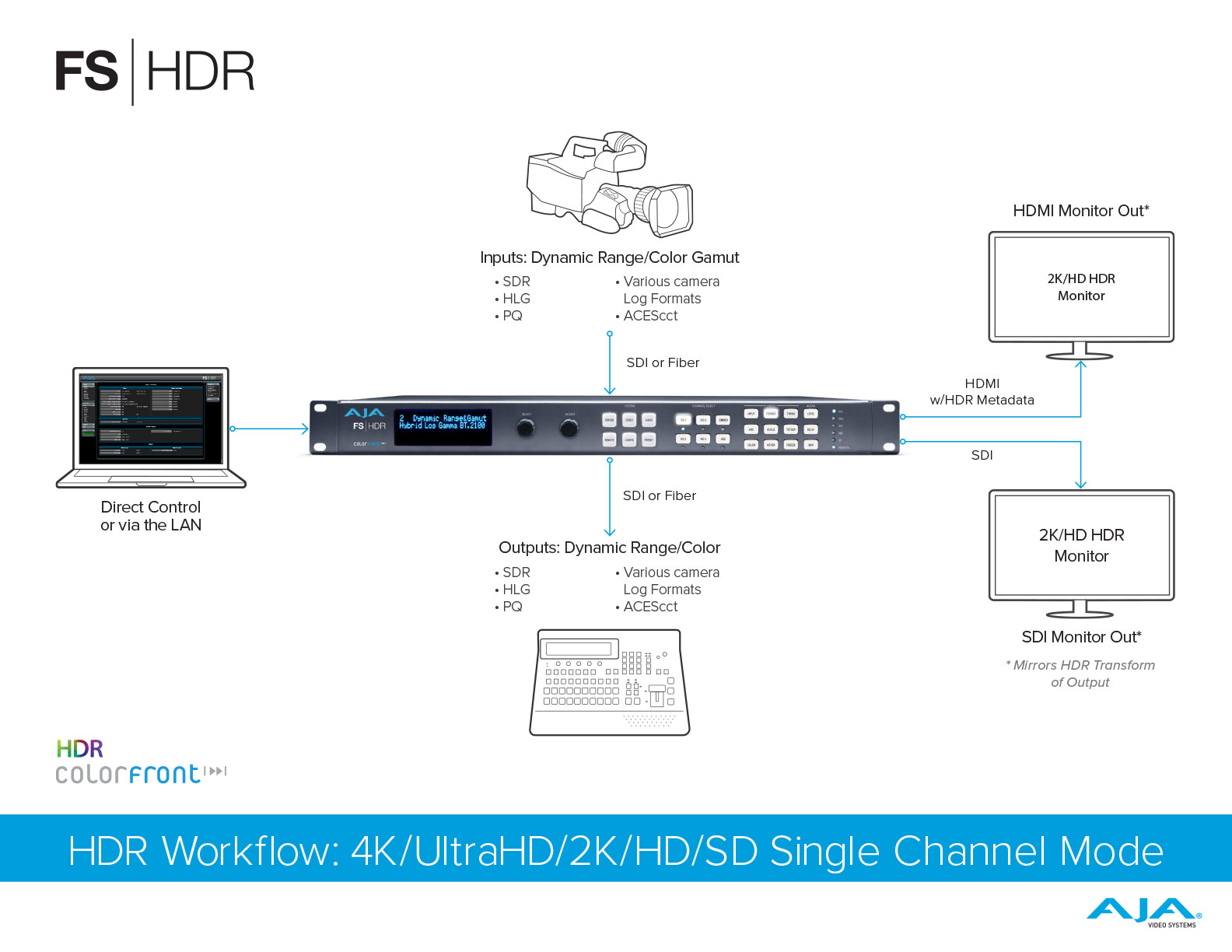

Modes of Operation	Four Channel Mode - Four Independent 2K, HD, or SD Video Processors Single Channel Mode - One 4K, UltraHD, 2K, HD, or SD Video Processor Enhanced Single Channel Mode - One 4K, UltraHD Video Processor with simultaneous 4K/UltraHD and 2K/HD/SD outputs
Video Formats	(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60  (SD) 625i 50 (SD) 525i 59.94 YCbCr, 4:2:2, 10-bit
Video Input Digital	4x 3G-SDI inputs, 4x BNC 4x 12G-SDI inputs, 4x Fiber or HD-BNC (optional SFP modules) SFP coax module, 12G/6G-SDI, dual HD-BNC SFP fiber module, 12G/6G-SDI, Single Mode, dual LC or single LC, SMPTE 297 SFP fiber module, 3G-SDI, Single Mode, dual LC, single LC, or single SC, SMPTE 297 SFP fiber module, 3G-SDI, Multi-Mode, dual LC or single LC, SMPTE 297 12G/6G/3G/HD/SD, SMPTE 259/292/424/2081/2082 Single Link 12G/6G-SDI (with optional SFP module) Quad Link 3G-SDI Level A or B DL (4x 3G), SMPTE 425-5 Dual Link 3G-SDI Level B DS (2x 3G), SMPTE 425-3 Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425 Quad Link HD-SDI (4x 1.5G) Dual Link HD-SDI (2x 1.5G), SMPTE 372 Single Link HD/SD Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD input pixel mapping 8x 1 selector feeds video processor(s)
Video Output Digital	4x 3G-SDI outputs, 4x BNC 4x 12G-SDI outputs, 4x fiber or HD-BNC (optional SFP modules) SFP coax module, 12G/6G-SDI, dual HD-BNC SFP fiber module, 12G/6G-SDI, Single Mode, dual LC or single LC, SMPTE 297 SFP fiber module, 3G-SDI, Single Mode, dual LC, single LC, or single SC, SMPTE 297 SFP fiber module, 3G-SDI, Single Mode, dual LC, SMPTE 297  SFP fiber module, 3G-SDI, Multi-Mode, dual LC or single LC, SMPTE 297 12G/6G/3G/HD/SD, SMPTE 259/292/424/2081/2082 Single Link 12G/6G-SDI (with optional SFP module) Quad Link 3G-SDI Level A or B DL (4x 3G), SMPTE 425-5 Dual Link 3G-SDI Level B DS (2x 3G), SMPTE 425-3 Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425 Quad Link HD-SDI (4x 1.5G) Dual Link HD-SDI (2x 1.5G), SMPTE 372 Single Link HD/SD Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD output pixel mapping
Monitor Output Digital	Monitor Output is a copy of the Main Output 1x BNC, 1x 3G-SDI output  3G-SDI/HD/SD, SMPTE 259/292/424, 10-bits 4K/UltraHD automatically down-converted to 2K/HD SDI Monitor Output is configurable when FS-HDR is operating in Enhanced Single Channel Mode Video Formats (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60  (SD) 625i 50 (SD) 525i 59.94 Transforms Colorfront Engine - TV Mode, select from 4/5 Dynamic Range & Gamut input/output settings Colorfront Engine - Live Mode, select from 16/11 Dynamic Range & Gamut input/output settings Colorfront Engine - Film Mode, select from 17/12 Dynamic Range & Gamut input/output settings BBC HLG LUTs, select from 19 LUTs NBCU LUTs, select from 6 LUTs USER LUTs, select from 10 LUTs 1x HDMI, 1x HD output 2K/HD/SD, HDMI v1.4a 4K/UltraHD automatically down-converted to 2K/HD HDR Infoframe generation to support HDR displays per HDMI v2.0b and CTA-861-G Crop control
Video Processing	Motion adaptive deinterlacer, controllable Proc amp controls Color corrector Legalizer Frame rate conversion/film cadence removal/insertion (3:2, 1:2, 2:1, 2:3) Adjustable delay 0-20 frames with H and V timing controls in lines and pixels Freeze (manual or on input signal loss) to black or last good frame Matte generator for background fill Video test generator with SDR and HDR patterns Nominal video delay HD/SD, 2 frames (LFR), 4 frames (HFR)
Ancillary Data	All embedded ANC packets pass-through when output format equals input format Ancillary Timecode (LTC, VITC1, VITC2) translation and pass-through for wide range of conversions SCTE-104 and Closed Captioning pass-through for wide range of conversions Closed Captioning conversion (CEA-608/CEA-708) AFD input detection, down-convert control, and output pass-through or overwrite Configurable SDI output VPID for Colorimetry and Transfer Characteristic
Format Conversion	Convert any supported input format to any supported output format, within the same frame rate family. These three families are: 59.94, 29.97, 23.98 50, 25 60, 30, 24
Supported in 2K/HD/SD formats	Zoom in and out Reposition Region of Interest (ROI)
Up-Conversion	Hardware 10-bit Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars Zoom Letterbox: results in image zoomed to fill fullscreen Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting will introduce a small aspect ratio change
Down-Conversion	Hardware 10-bit Anamorphic: fullscreen Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved Crop: image is cropped to fit video output format
Aspect Ratio Conversion for SD to SD	Letterbox: Transforms SD anamorphic material to a letterboxed image H Crop: Produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame SD Pillarbox: Produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center V Crop: Transforms SD letterbox material to an anamorphic image
Audio Input Digital	48 kHz sample rate 8x SDI embedded inputs (16-Channels each) 128-channels, 24-bit (20-bit SD), SMPTE 272/299 8x balanced AES inputs (16-Channels), 1x DB-25 16-channels, 24-bit, AES-3 2x MADI inputs, 1 BNC, 1x ST Fiber 128-channels, 24-bit, AES-10
Audio Output Digital	48 kHz sample rate 1x SDI embedded output per Video Processor (16-Channels each) 16-channels (in single Video Processor mode), 24-bit (20-bit SD), SMPTE 272/299 64-channels (in four Video Processor mode), 24-bit (20-bit SD), SMPTE 272/299 8x balanced AES outputs (16-Channels), 1x DB-25 16-channels, 24-bit, AES-3 2x MADI outputs, 1x BNC, 1x ST Fiber 128-channels, 24-bit, AES-10
Audio Processing	277x208 mono audio matrix, route 1 to 1, 1 to many Inputs:  128 embedded, 16 AES, 128 MADI, 2 stereo mixdowns, 3 tone generator Outputs (Four Channel Mode): 16 AES, 128 MADI, 64 embedded Outputs (Single Channel Mode): 16 AES, 128 MADI, 16 embedded Input adjustment controls for each channel Gain +18 to -18 dB in 0.5 dB steps Phase invert Input adjustment controls for each channel pair Delay -16ms to +1sec in 20.8 us steps Audio delay can automatically follow video timing delay adjustments Two independent 5.1 or 7.1 to stereo mixdown processors with gain adjust High quality Sample Rate Conversion supported on all audio inputs SRC bypass for non-PCM audio (e.g. Dolby E, AC-3, etc) Audio tone generator (mute, 400 Hz, 1 kHz)
Reference Input	External, 2x BNC Looping, nonterminating Blackburst or tri-level sync
Genlock	Lock to External Reference Lock to SDI input 1 thru 8 Free run based on Temperature Compensated Crystal Oscillator
Network Interface	1x RJ-45, 10/100/1000 Ethernet Embedded web server for remote control REST Interface SNMP

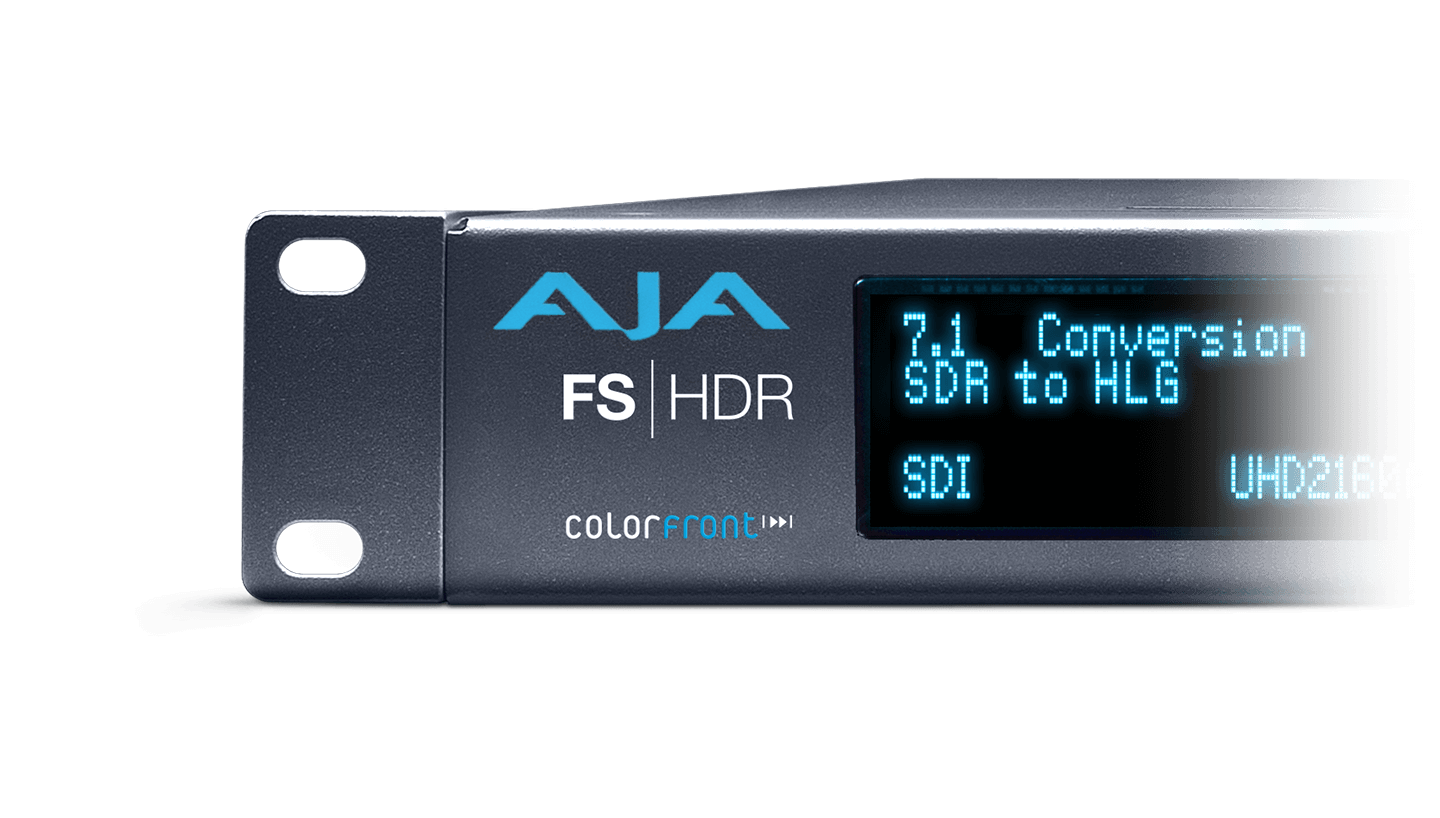

User Interface	Display Keypad with status LEDs Two rotary/push knobs Comprehensive alarm indicators
Presets	Four Channel and Single Channel Mode each support 40 system level Presets
GPI	1x 25-pin D-Connector Four optically isolated GPI inputs Four optically isolated GPO outputs
Size (w x d x h)	17.5” x 16.0” x 1.75” (1RU) (444.5 x 406.4 x 44.45 mm)
Weight	7.9 lb (3.6 kg)
Power	100-240 VAC 50/60 Hz (Dual, redundant power supplies), 55W typical; 70W max.
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
