FS2 檔案同歩器

Video Formats	Four Channel Mode - 4x Independent 2K, HD, or SD Video Processors Single Channel Mode - 1x 4K, UltraHD, 2K, HD, or SD Video Processor Enhanced Single Channel Mode - 1x 4K, UltraHD Video Processor with simultaneous 4K/UltraHD and 2K/HD/SD outputs
Video Formats	(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30  (HD) 1920 x 1080i 25, 29.97, 30 (HD) 1280 x 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 Input Possible Output Formats 525i59.94 525i59.94 720p59.94 1080i59.94 720p59.94 525i59.94 720p59.94 1080i59.94 1080i59.94 525i59.94 720p59.94 1080i59.94 1080pSF23.98 1080pSF23.98 1080i59.94 525i59.94 625i50 625i50 1080i50 720p50 720p50 625i50 1080i50 720p50 1080i50 625i50 1080i50 720p50 1080pSF24 1080pSF24 1080i60   1080i60 1080i60 720p60   720p60 720p60 1080i60     Notes:  In the case of 1080PsF 23.98 input - and when 1080i 59.94 (or 525i) is selected as an output format, the FS2 automatically does 3:2 pulldown to get the correct frame rate. Similarly, in the case of 1080pSF/24 input, FS2 automatically does 3:2 pulldown to get the correct frame rate.  When passing 24 or 60 frame rate video, output is high definition.

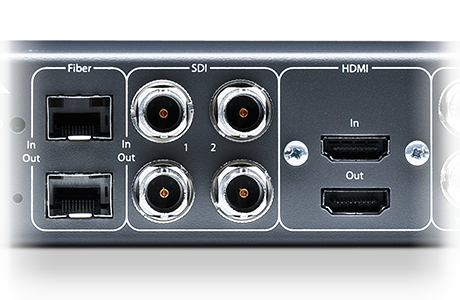

Video Input Digital	Dual 3G-SDI, SMPTE-259/292/424, 8 or 10-bits Dual Fiber 3G-SDI, SMPTE-297, 8 or 10-bits (optional) Dual Channel LC connector module Single Channel LC connector module Single Channel SC connector module Single Link 4:2:2 (1x BNC each) HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p 50/6060
Video Input Analog	HD component YPbPr, SMPTE-274 (3x BNC) 12-bit A/D, 2x oversampling SD Component (3x BNC) SMPTE/EBU N10, Betacam 525 line, Betacam 525J 12-bit A/D, 4 x oversampling +/- .25 dB to 5.5 MHz Y frequency response +/- .25 dB to 2.5 MHz C frequency response .5% 2T pulse response <2 ns Y/C delay inequity SD Composite 12-bit A/D, 4x oversampling
Video Output Digital	Dual SD/HD/3G SDI, SMPTE-259/292/424, 8 or 10-bits Dual Fiber 3G-SDI, SMPTE-297, 8 or 10-bits (optional) Dual Channel LC connector modules Single Channel LC connector module Single Channel SC connector module Single Link 4:2:2 (1x BNC each) HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p 50/60
Video Output Analog	HD component YPbPr, SMPTE-274 (3x BNC) 12-bit D/A, 2x oversampling SD Component (3x BNC) SMPTE/EBU N10, Betacam 525 line, Betacam 525J 12-bit D/A, 4x oversampling +/- .25 dB to 5.5 mHz Y frequency response +/- .25 dB to 2.5 mHz C frequency response .5% 2T pulse response <2 ns Y/C delay inequity SD Composite 12-bit D/A, 4x oversampling
Audio Input Digital	16-Channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample rate, synchronous 16-Channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (8x XLR via 25-pin breakout cable)
Audio Input Analog	8-Channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (8x XLR via 25-pin breakout cable) +12 dBu, +15 dBu, +18 dBu, +24 dBu (Full Scale Digital) +/- 0.2 dB 20 to 20 kHz frequency response
Audio Output Digital	16-Channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample rate, synchronous 16-Channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (8x XLR via 25-pin breakout cable)
Audio Output Analog	8-Channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (8x XLR via 25-pin breakout cable) +12 dBu, +15 dBu, +18 dBu, +24 dBu (Full Scale Digital) +/- 0.2 dB 20 to 20 kHz frequency response
Up-Conversion	Hardware: 10-bit Anamorphic: fullscreen Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars Zoom Letterbox: results in image zoomed to fill fullscreen Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
Down-Conversion	Hardware: 10-bit Anamorphic: fullscreen Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved Crop: image is cropped to fit new screen size
Cross-Conversion	Hardware 10-bit 1080i to 720p 720p to 1080i 720p to 1080PsF
SD to SD Aspect Ratio Conversio	Letterbox: This transforms SD anamorphic material to a letterboxed image H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center V Crop: Will transform SD letterbox material to an anamorphic image
Timecode	SDI RP188 via SDI BNC
Reference Input	External, 2x BNC Looping, nonterminating Blackburst or tri-level sync

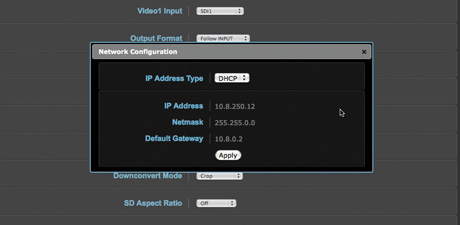

Network Interface	10/100 Ethernet (RJ-45) Embedded web server for remote control VTECS™ protocol for Remote Control Panel

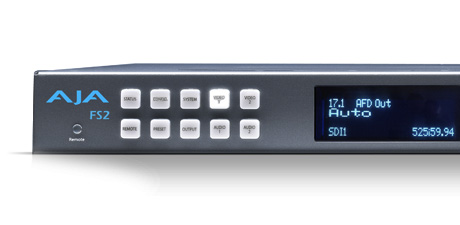

User Interface	Alphanumeric display, with dedicated buttons/knobs
Machine Control	GPI in/out, 15-pin D-connector Pinout is as follows: 1 GND 9 GPI OUT 2 2 GPI IN 1 10 GPI I/O GND 3 3 GPI IN 2 11 GPI I/O GND 4 4 GPI IN 3 12 GPI OUT 3 5 GPI I/O GND 1 13 GPI OUT 4 6 GPI I/O GND 2 14 NC 7 GPI IN 4 15 GND 8 GPI OUT 1

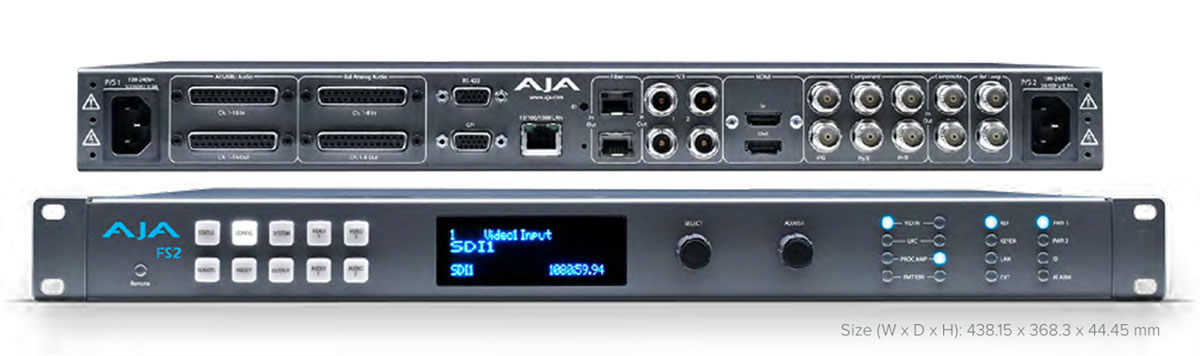

Size (w x d x h)	17.25" x 14.5" x 1.75" 1RU (438.15 x 368.3 x 44.45 mm)
Weight	7.9 lb (3.6 kg)
Power	100-240 VAC 50/60 Hz, (Dual, redundant power supplies), 55W typical; 80W max.
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
