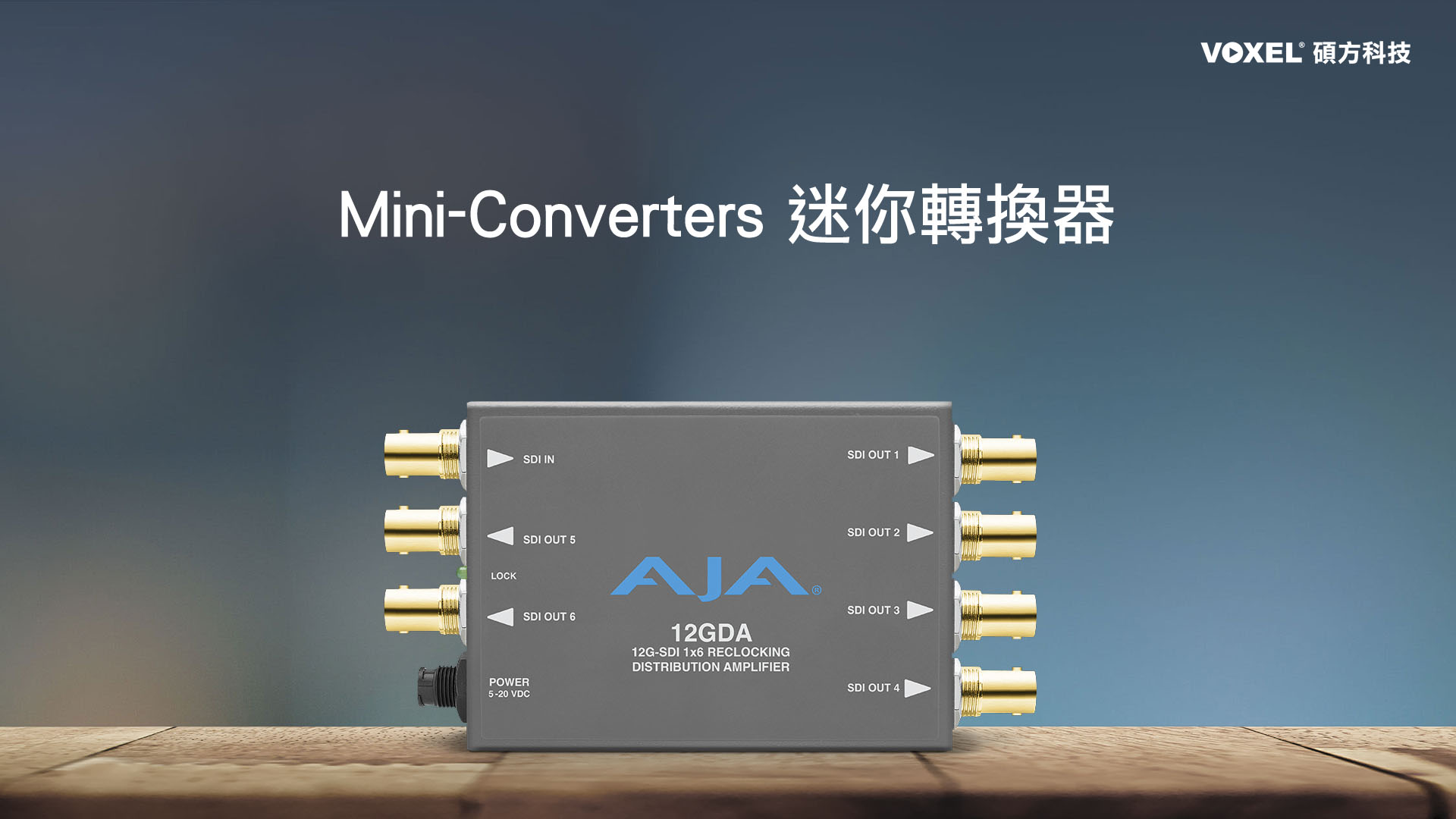

12GDA 迷你轉換器

Video Formats	• 100 Mbps - 12 Gbps, format agnostic
Video Input Formats	• 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital	• 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Cable Equalization	(Belden 1694A coax) • 12 Gbps, 70m • 6 Gbps, 120m • 3 Gbps, 190m • 1.5 Gbps, 195m • 270 Mbps, 405m
Reclocking	• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select • All other rates are passed through and not reclocked
Size (w x d x h)	• 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)
Weight	• 0.7 lb (0.3 kg)
Power	• +5-20VDC, regulated, 3 watts, power supply required, included with purchase • AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment	• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
