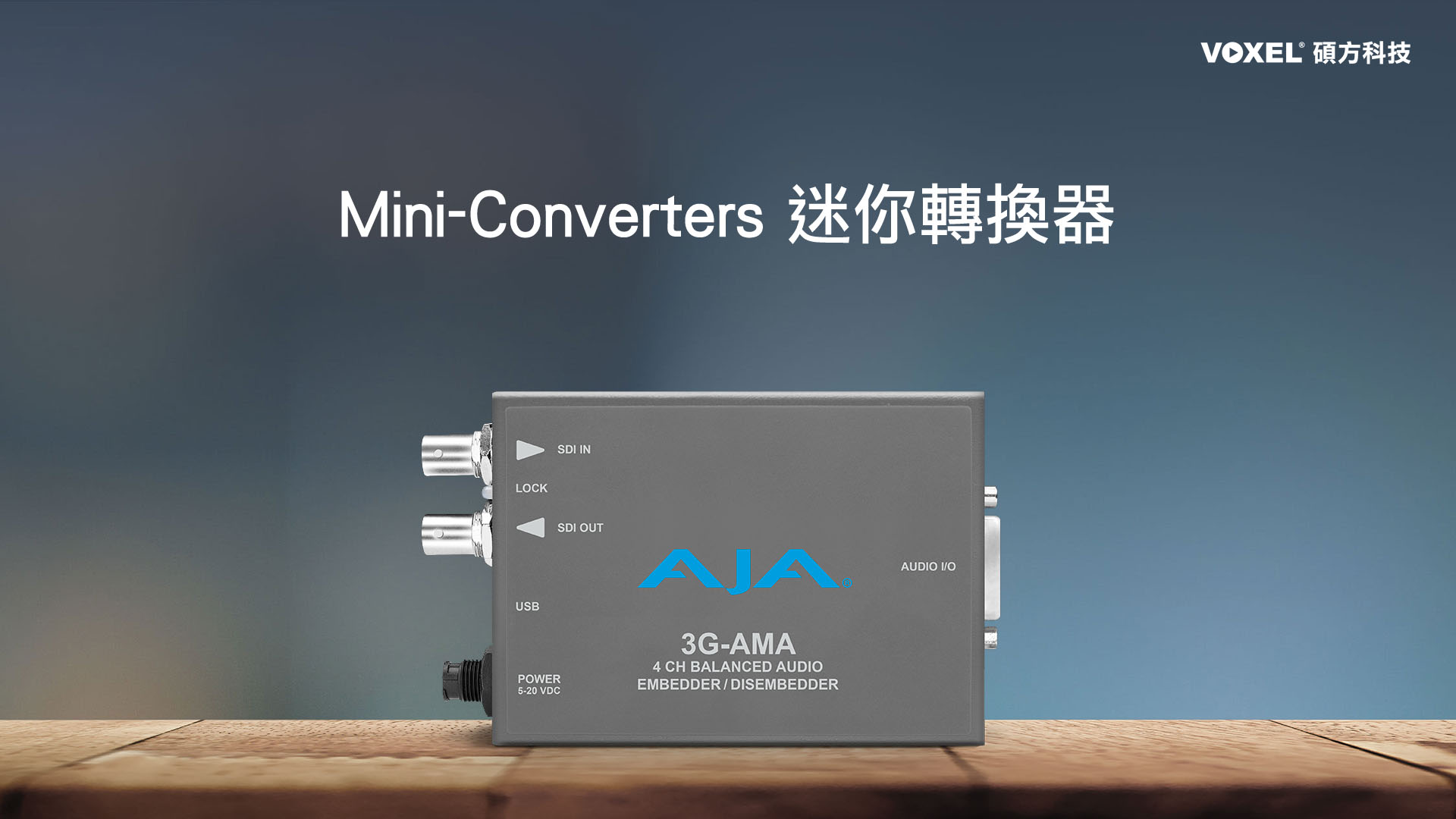

3G-AMA 迷你轉換器

Video Formats	(2K) 2048x1080p (2K) 2048x1080PsF (HD) 1920x1080p (HD) 1920x1080PsF (HD) 1920x1080i (HD) 1280x720p (SD) 720x576i (SD) 720x480i RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Formats	1x 3 Gb SDI (level A or B) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94
Video Output Formats	Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input Video Latency, time measured between video input and video output connector: 3G level A = 3.2 usec 3G level B = 6.1 usec HD (1.5 Gb) = 6.3 usec SD (270 Mb) = 17.2 usec
Video Input Digital	1x 3G-SDI BNC, SMPTE-259/292/372/424
Video Output Digital	1x 3G-SDI BNC, SMPTE-259/292/372/424

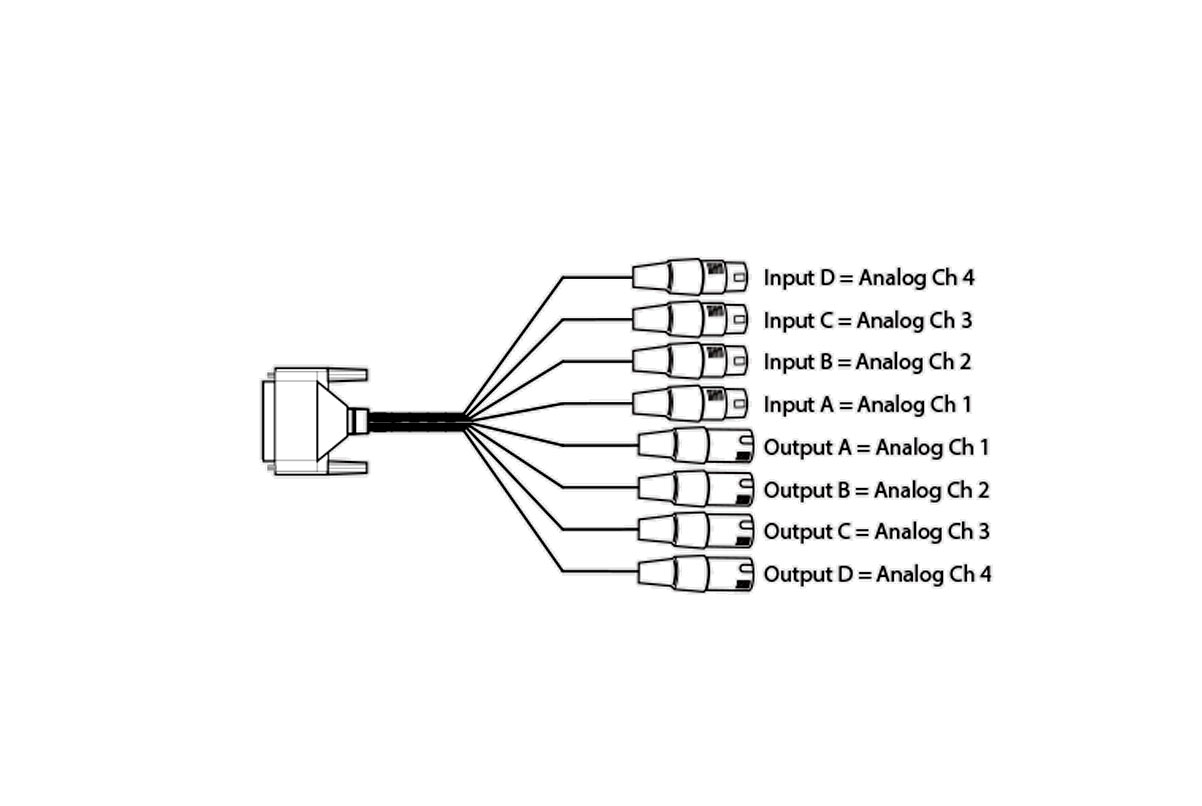

Audio Inputs and Outputs	Balanced Analog Audio, 1x 25 pin D female connector on converter, 4-channels in, 4-channels out Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors  4x XLR male output breakout connectors
Digital Audio Converters	24-bit
Embedded Audio	SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16-channels supported   Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio
Path Audio Latency	Embed Path 1100 µsec Disembed Path 1200 µsec
Analog Audio Levels	Configured via Mini-Config software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu
User Interface	External DIP switch USB port used with Mini-Config software application to configure device via PC/Mac
Size (w x d x h)	5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Weight	0.63 lb. (0.29 kg)
Power	+5-20VDC, 5 watts power supply required, included with purchase
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
