AJA Mini-Converters

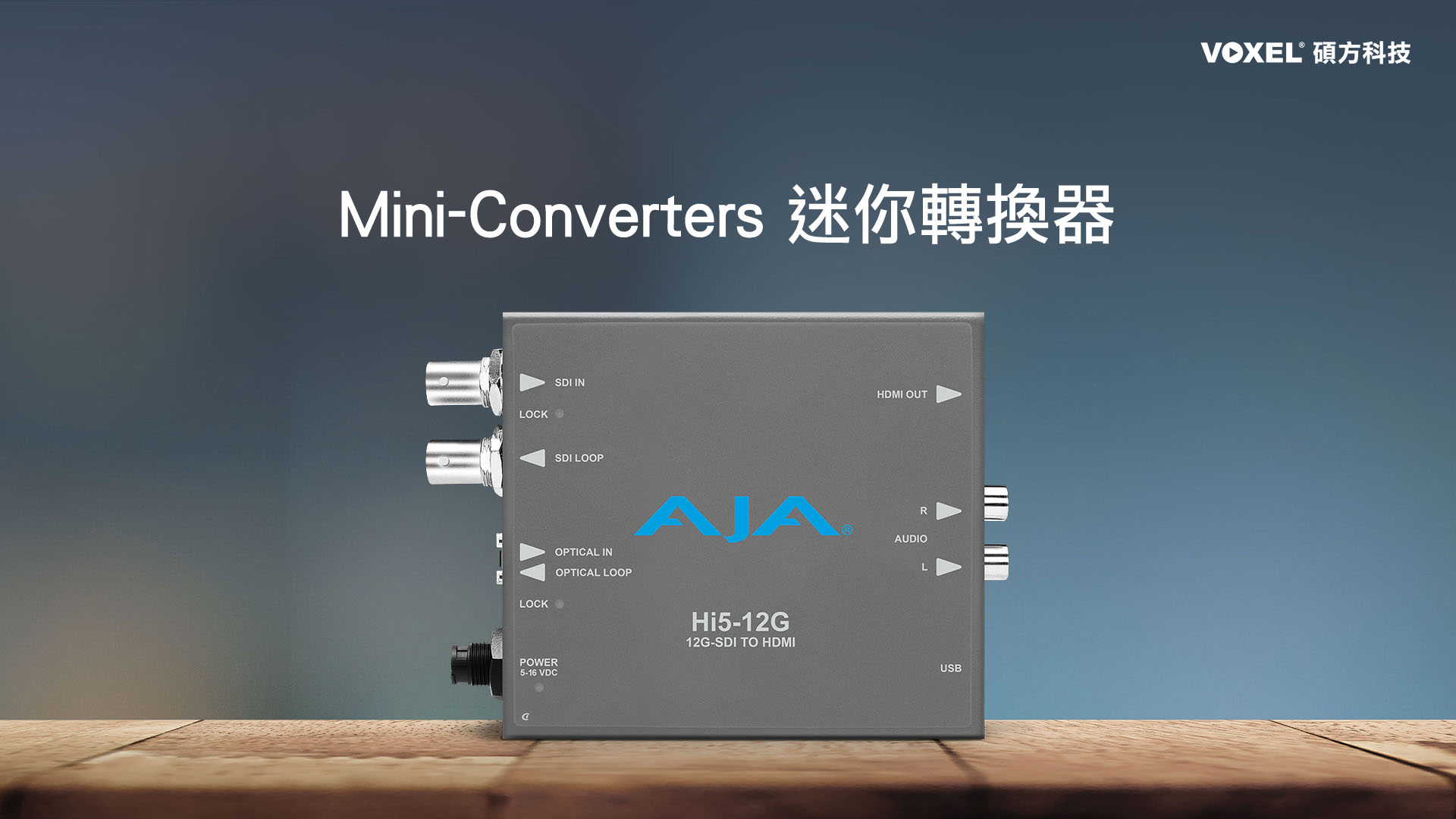

Hi5-12G
迷你轉換器
4K/UltraHD (12G-SDI) to HDMI 2.0 Converters



Hi5-12G 迷你轉換器

AJA Mini-Converter Hi5-12G 迷你轉換器可將 12G-SDI 轉換為 HDMI 2.0，提供純淨的逼真影像， 支援 4K/UltraHD 60p HFR。 Hi5-12G 提供從 4K 12G-SDI 專業裝置到 HDMI 2.0 輸入連接，可在專業工作流程中，加入經濟實用監看/顯示裝置。 並依據 HDMI v2.0、CTA-861-G 產生 HDR metadata。 Hi5-12G 的 12G-SDI 單輸入，具有 reclocked SDI 輸出，方便監看，並使用 SDI 傳送。 同系列可選購的 SFP 光纖H i5-12G 機型包含 Hi5-12G-R 接收器 ( 可接收長距離光纖來源的 4K 訊號 )， 與 Hi5-12G-TR 收發器 (可將 4K/UltraHD SDI 或光纖來源訊號傳送到 HDMI 目的地，並透過 SDI 或光纖將來源訊號傳送到第二目的地)。 Hi5-12G-R 與 Hi5-12G-TR ( SDI 與光纖輸入) 自動輸入切換功能，提供設定切換優先順序(最後有效輸入、SDI 優先順序與光纖優先順序)。

產品特色

■ 支援 4K 60p 12G-SDI 轉換為 HDMI 2.0b
■ 支援 4:4:4/4:2:2/4:2:0 HDMI 2.0b 輸出
■ 支援 12-bit 工作流程
■ 支援 HDR metadata
■ 支援 8 聲道 24 位元內嵌音訊
■ AC-3 (Dolby Digital) 和 E-AC-3 (Dolby Digital Plus) 壓縮音訊的嵌入式音訊傳遞，包括 DD+ Atmos (aka DD+ JOC)
■ 支援 100 幀音訊延遲
■ 12G-SDI loop 輸出
■ 提供光纖 SFP 機型
■ 支援 USB 連接 PC/MAC Mini-Config 軟體設定
■ 5-18 VDC 電源



Hi5-12G 製作流程 Workflows

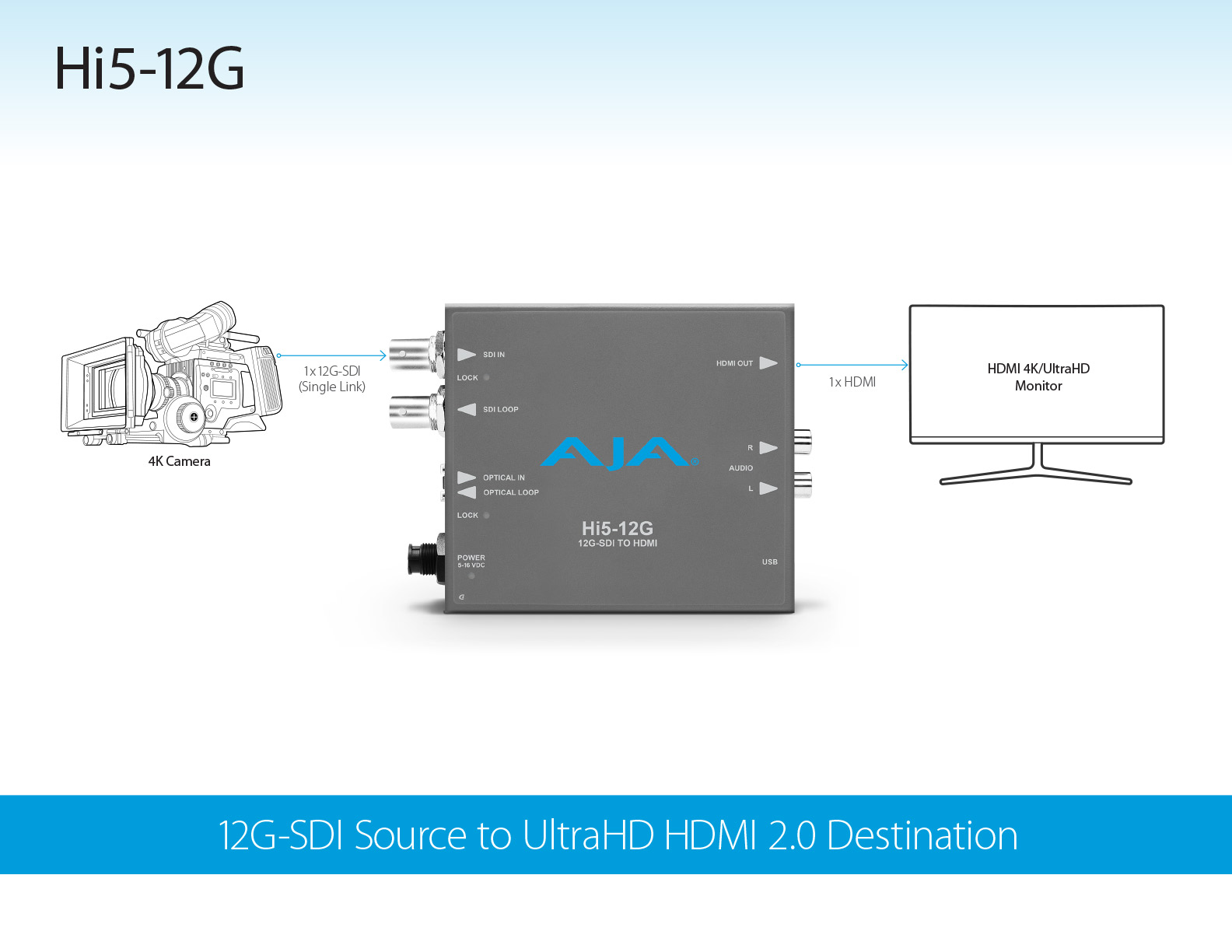

12G-SDI Source to UltraHD HDMI 2.0 Destination

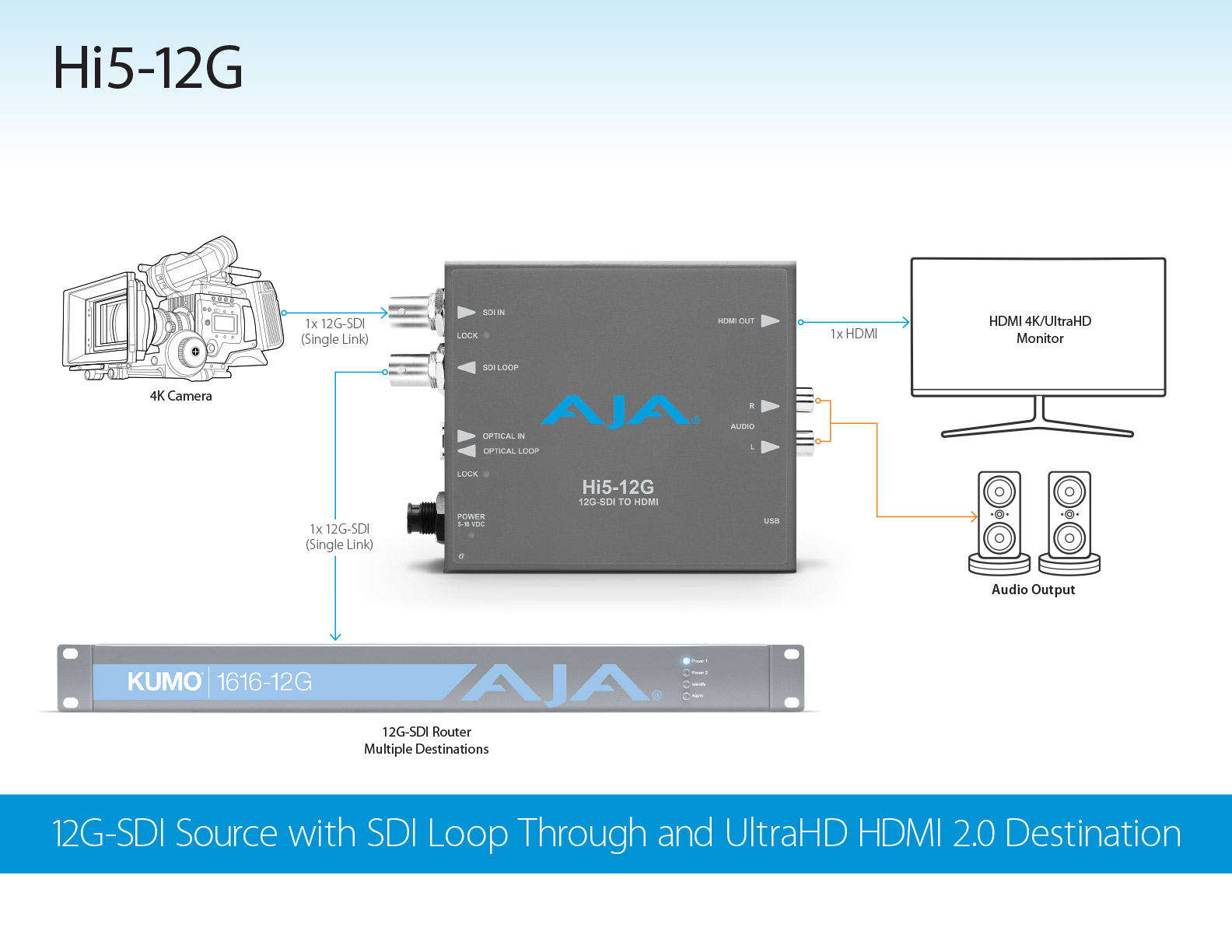

2G-SDI Source with SDI Loop Through and UltraHD HDMI 2.0 Destination

可選購系列光纖機型

Hi5-12G-R

12G-SDI to HDMI 2.0 Conversion with LC Fiber Receiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber LC outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
  • 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
  • Ships with a Fiber LC single channel SFP receiver for extending 4K signals over long distances
  • Uses 5-16 VDC power (Universal power supply included)
  • USB port used with Mini-Config software application to configure the device via PC/Mac

Hi5-12G-R-ST

12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
  • 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
  • Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
  • Uses 5-16 VDC power (Universal power supply included)
  • USB port used with Mini-Config software application to configure the device via PC/Mac

Hi5-12G-TR

12G-SDI to HDMI 2.0 Conversion with LC Fiber Transceiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Simple monitoring connection from professional 4K devices using 12G-SDI outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
  • Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination
  • Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
  • Uses 5-16 VDC power (Universal power supply included)
  • USB port used with Mini-Config software application to configure the device via PC/Mac

HDR

HDR 高動態範圍 (High Dynamic Range)，可提供比一般訊號更寬廣、更豐富的色彩範圍、更明亮的白色， 以及更深、更暗的黑色。這讓您的影像看起來更具「動感」，並讓您的觀眾感受到自然逼真的色彩。
Hi5-12G 能使用 HDMI v2.0b/CTA-861-G 生成 HDR metadata，以 4K/UltraHD/HD HDR 通道，傳送至 HDMI 相容的顯示器，同時支援 Hybrid Log Gamma (HLG) 與 HDR 顯示。

4K 和 UltraHD

4K 解析度是 4096 x 2160 ，而 UltraHD 解析度則是 3840 x 2160。這種差異會讓某些顯示器無法用於全 4K 工作流程或 UltraHD 工作流程。 Hi5-12G 可消彌這個差異，讓 UltraHD 監視器可同時於 4K 與 UltraHD 製作。 i5-12G 輸入支援高影格速率 (HFR)。4K/UltraHD 訊號 5 0/60 fps 可輸入 Hi5-12G 以 60p 的畫面，方便 HDMI 2.0 連接顯示器。

電源供應器

所有 AJA 迷你轉換器配備電源供應器，內含一般國際通用轉接配件，方便各地使用。

輕巧便攜

AJA Mini-Converter 非常小巧，可以安裝在監視器、機架後方或直接安裝在攝影機上。 鎖定式電源接頭不容易脫落，還提供可選購的 P-TAP 電源線，方便使用電池供電。

AJA Mini-Matrix 參考資訊

AJA Mini-Matrix 提供 AJA 迷你轉換器系列產品完整資訊。 AJA 產品種類繁多，無論您身在何處，協助您快速取得適合的轉換器資訊。





產品規格

Hi5-12G 迷你轉換器

Video Formats
  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i



Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in the Download / Documents section of the website product page.
Video Input Digital
  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, 12-bit
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*1280x720p is Level A Only
Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only
  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)
Input Signal Selection - Hi5-12G-R-ST Only
  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)
Video Output Digital
  • 1x HDMI Type A connector*, HDMI v2.0b
  • HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 24, 30, or 36 Bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 720x576i 50
  • (SD) 720x480i 59.94



*If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
Audio Pass-Through Formats
  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Video Output Digital - Additional for Hi5-12G-TR Only
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)
Audio Input Digital SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
Audio Output Digital HDMI embedded audio, 24-bit, 8-channel
Audio Output Analog 2x RCA style connector, 2-channel -10dBu (nominal)
User Interface USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
Size (w x d x h) 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)
Weight 0.5 lb (0.3 kg)
Power
  • 5-16VDC regulated, 11 watts, power supply required included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



*Hi5-12G devices use approximately 11 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack a Hi5-12G device with other Mini-Converters.



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
