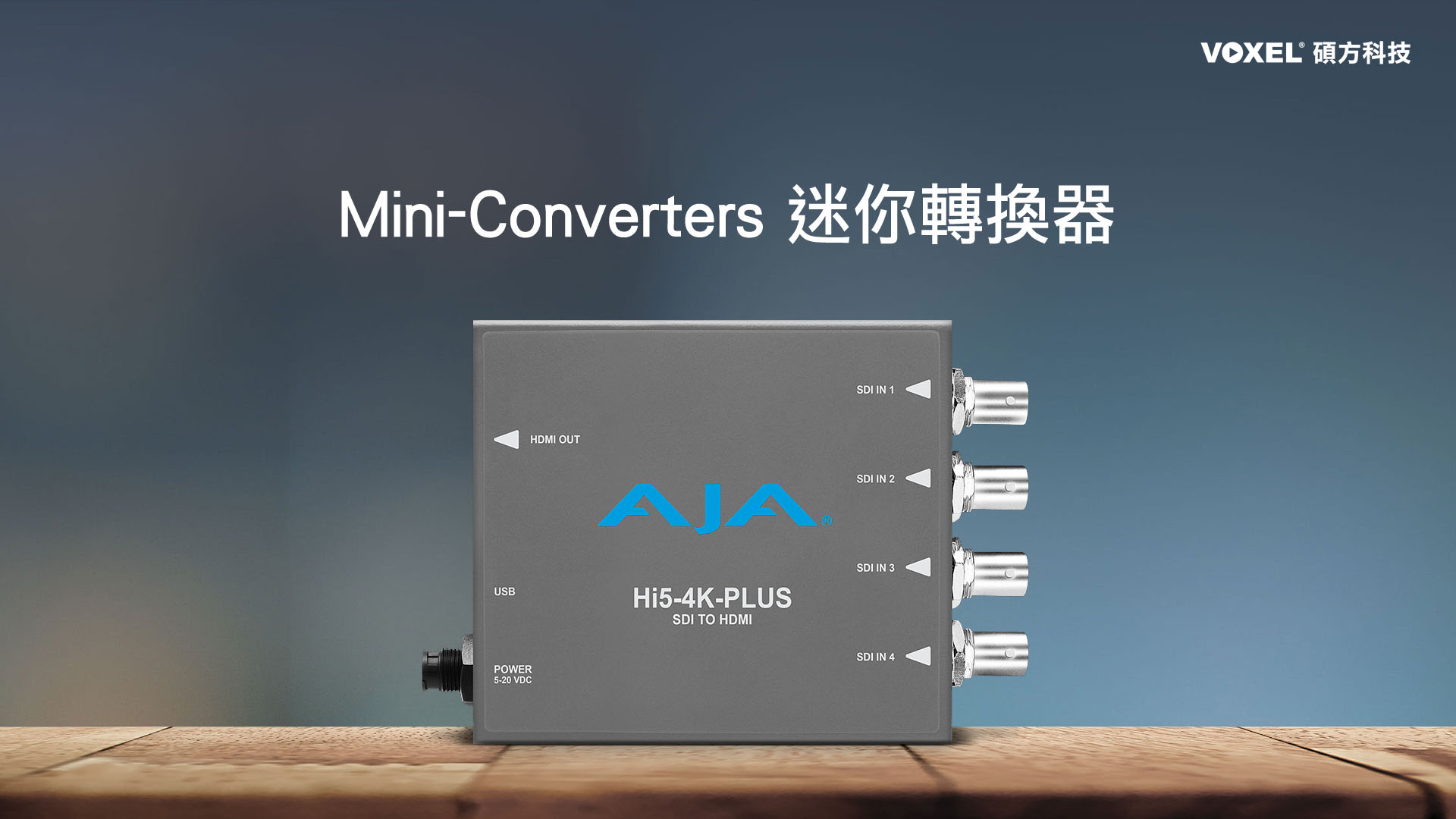

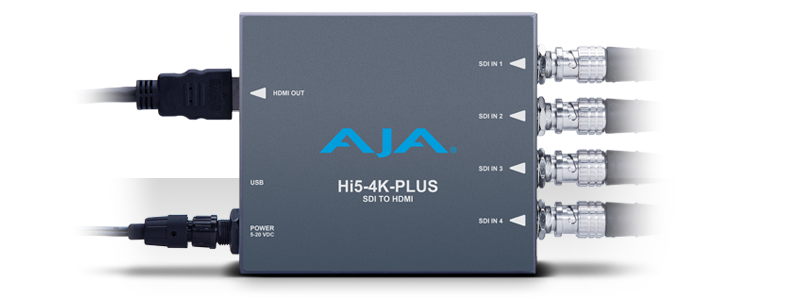

Hi5-4K-Plus 迷你轉換器

Video Formats	(4K) 4096x2160p (UltraHD) 3840x2160p (2K) 2048x1080p (HD) 1920x1080p (HD) 1920x1080i (HD) 1280x720p (SD) 720x576i (SD) 720x480i   Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in the Download / Documents section of the website product page.
Video Input Digital	4x 3G-SDI BNC, SMPTE-259/292/424 YCbCr 4:2:2/4:4:4 RGB 4:4:4, SMPTE or Full level 8, 10, 12-bit Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping 4x 3 Gb SDI (Level A or B Dual Link) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30 4x 1.5 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 2x 3 Gb SDI (Level B Dual Stream) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p** 50, 59.94, 60 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372 (HD) 1920x1080p 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94   *PsF is Level B Dual Link **1280x720p is Level A Only
Video Output Digital	1x HDMI Type A connector*, HDMI v2.0b HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic YCbCr 4:2:2/4:4:4/4:2:0  RGB 4:4:4, SMPTE or Full level 24, 30, or 36 Bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 (SD) 720x576i 50 (SD) 720x480i 59.94   *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
Audio Pass-Through Formats	PCM Dolby Digital (AC-3) Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital	SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
Audio Output Digital	HDMI embedded audio, 24-bit, 8-channel
User Interface	USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
Size (w x d x h)	5.76" x 4.02" x 0.90" (146.31 x 102.11 x 22.86 mm)
Weight	0.6 lb (0.3 kg)
Power	5-20VDC regulated, 12 watts, power supply required, included with purchase AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F)* Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)   *Hi5-4K-Plus uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the Hi5-4K-Plus with other Mini-Converters.



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
