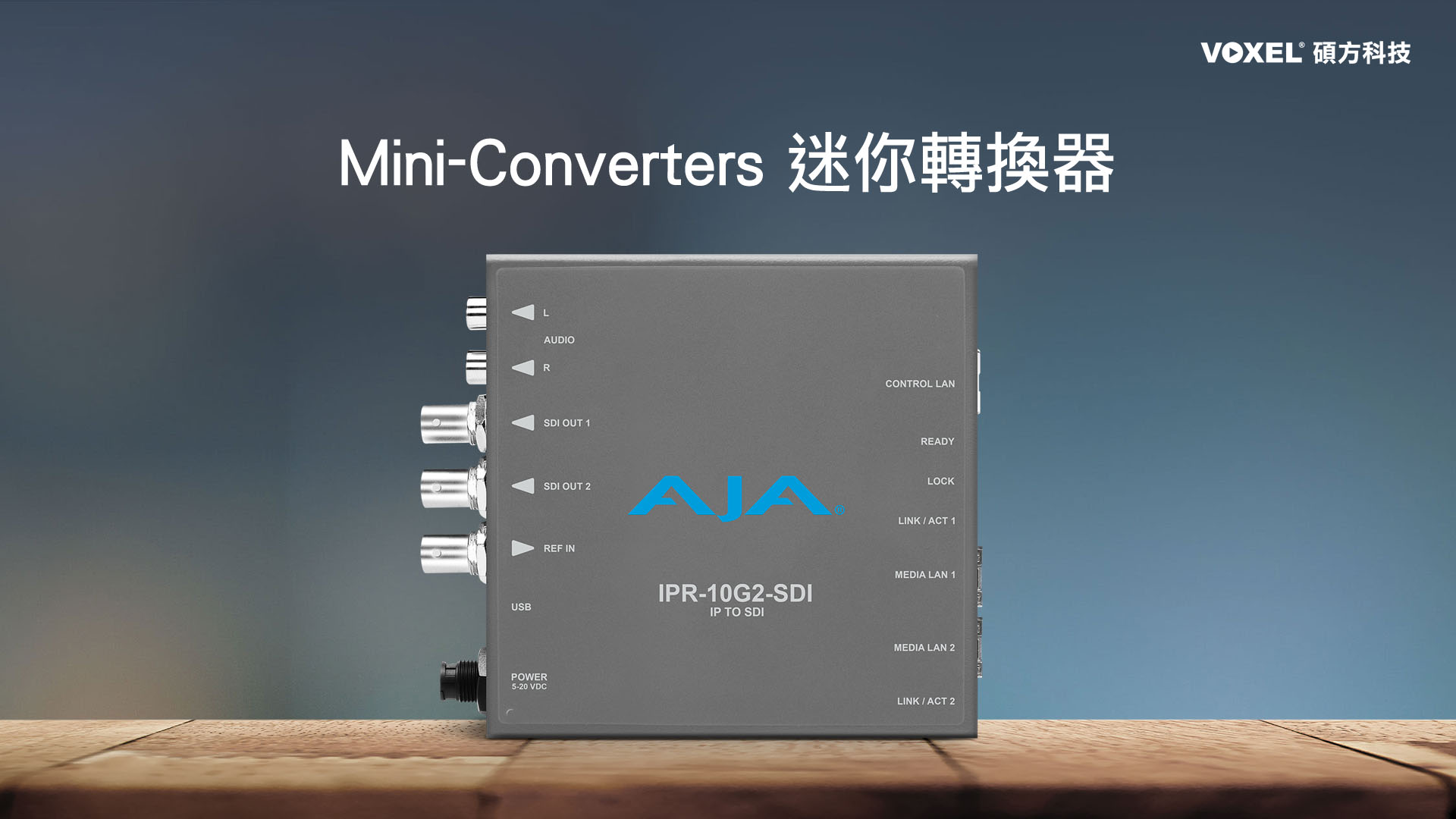

IPR-10G2-SDI 迷你轉換器

Video Input Formats	(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94 (HD) 1280x720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94
Video Quality	Up to 2K 60p, 4:2:2, 8-bit, YCbCr uncompressed 4:2:2, 10-bit, YCbCr uncompressed
Discovery, Registration and Control	NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1 Ember+ control (no discovery, control only) AJA REST API control (discovery via SSDP or MDNS) LLDP (Link Layer Discovery Protocol) Supported over dedicated management Ethernet port and in-band over media ports
Media Transport Interfaces	SMPTE ST 2110 (-10, -20, -21, -30) 2x SFP+ Cages - SFPs not included Recommended 10 GigE SFP+ modules: Arista Networks SFP-10G-SR Compatible 10GBASE-SR  Fiberstore SFP-10GSR-85 10G SFP+ 850nm Finisar FTLX1471D3BCL (for single mode 1310nm) Mellanox MFM1T02A-SR 850nm 10G   Note: Maximum supported SFP+ power is 500 mW per SFP+ cage
Video Input IP	SMPTE ST 2110 Single channel video input SMPTE ST 2022-7 dual stream input for hitless switching Rx support for Narrow/Wide, Gapped/Linear Modes
>Audio Input IP	SMPTE ST 2110 Up to 16-channels audio, 24-bit per channel, 48 kHz synchronous 1 ms or 125 µs packet interval
Video Output Digital	2x 3G SDI BNC (single source, mirrored output) Frame syncing to facility clock Concealment of errors due to packet loss
Audio Output Digital	Up to 16-channel, SDI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Analog	2x RCA analog audio  Levels at -10 dBu (nominal) Can only select audio channels 1-8
Reference	1x BNC Analog/tri-level reference input  Allows baseband output of IPR-10G2-SDI to be locked to the facility baseband clock
IP Clock	PTP support compliant with PTP PTPv2, PTPv3 / IEEE 1588-2008 SMPTE ST 2059-1 compliant
User Interface	1x RJ-45 for 10/100/1000 Base-T Ethernet Web and REST clients supported for remote network setup and configuration 1x USB 2.0 Mini-B connector AJA eMini-Setup supported for network setup and configuration via local desktop computer Web and REST configuration is also supported in-band over media ports
Size (w x d x h)	5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)
Weight	0.6 lb (0.3 kg)
Power	5-20 VDC Regulated, 13 Watts, universal power supply included
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
