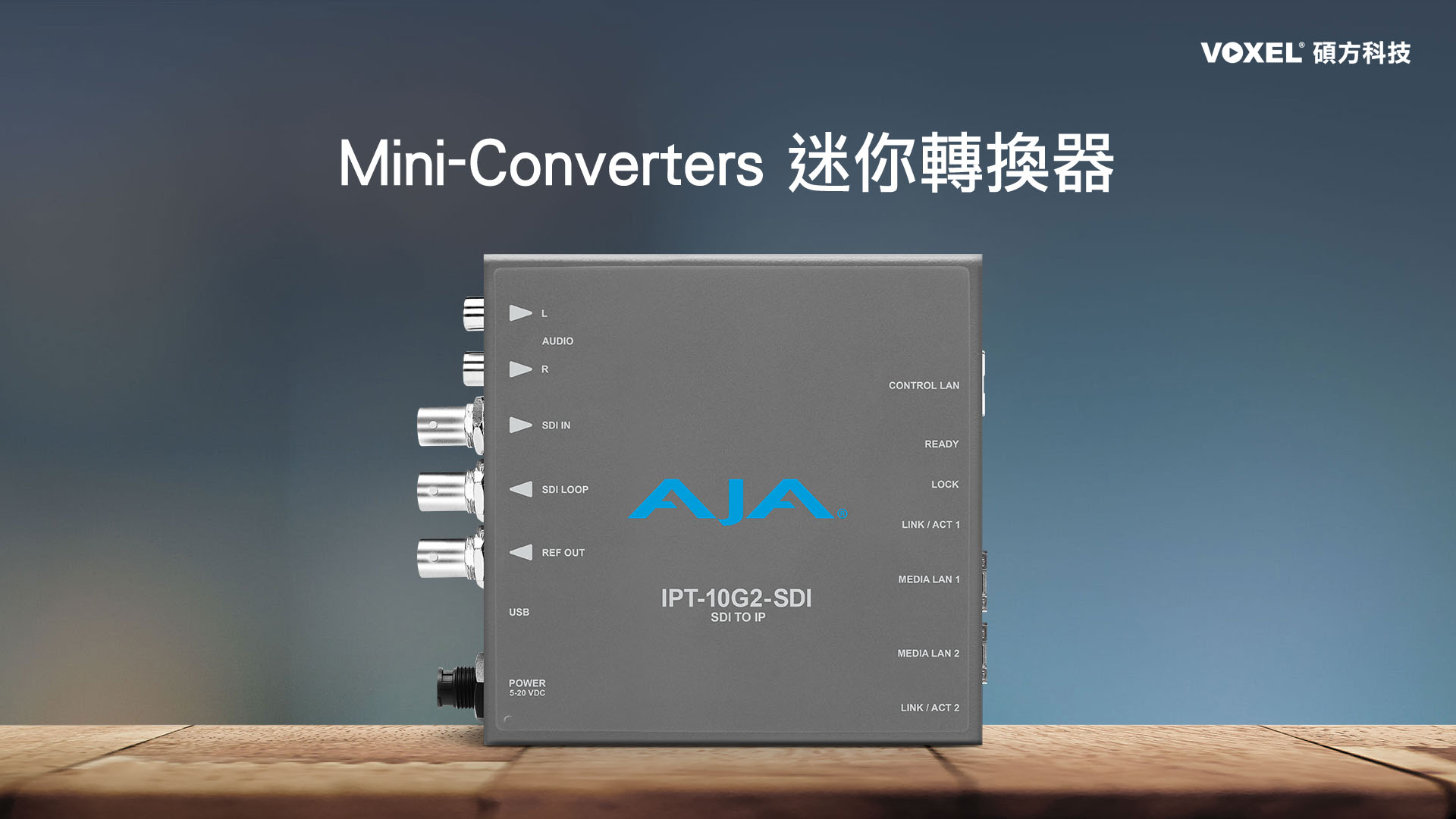

IPT-10G2-SDI 迷你轉換器

Video Input Formats	(2k) 2048x1080p 23.98, 24, 25, 29.97*, 30*, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94 (HD) 1280x720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94   *No audio support When Frame Sync is turned on. In bypass, video, and audio are supported
Video Output Formats	(HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr) (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 (SD) 625i 25 (SD) 525i 29.97
Video Quality	10-bit, 4:2:2, uncompressed
Discovery, Registration and Control	NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1 Ember+ control (no discovery, control only) AJA REST API control (discovery via SSDP or MDNS) LLDP (Link Layer Discovery Protocol) Supported over dedicated management Ethernet port and in-band over media ports
Media Transport Interfaces	SMPTE ST 2110 (-10, -20, -21, -30) 2x SFP+ Cages - SFPs not included  Recommended 10 GigE SFP+ modules: Arista Networks SFP-10G-SR Compatible 10GBASE-SR  Fiberstore SFP-10GSR-85 10G SFP+ 850nm Finisar FTLX1471D3BCL (for single mode 1310nm) Mellanox MFM1T02A-SR 850nm 10G   Note: Maximum supported SFP+ power is 500 mW per SFP+ cage
Video Input Digital	1x 3G SDI BNC (single source, with loop through) Up to 1080 60p, 4:2:2, 10-bits/pixel, YCbCr
Audio Input Digital	Up to 16-channel, SDI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Input Analog	2x RCA analog audio Levels at -10 dBu (nominal)  Can select audio channels 1-8
Video Output IP	SMPTE ST 2110 Single video channel output SMPTE ST 2022-7 dual stream output for hitless switching Tx support for Narrow, Gapped Mode
Audio Output IP	SMPTE ST 2110 Up to 8-channels audio, 24-bit per channel, 48 kHz synchronous 1 ms or 125 µs packet interval
Reference	1x BNC Reference Out connector generates an analog/tri-level reference output synchronized to the PTP clock Used to lock baseband sources/devices to PTP, so video arriving at the IP transmitter is properly timed
IP Clock	PTP support compliant with PTP PTPv2 / IEEE 1588-2008 SMPTE ST 2059-1 compliant
User Interface	1x RJ-45 for 10/100/1000 Base-T Ethernet Web and REST clients supported for remote network setup and configuration 1x USB 2.0 Mini-B connector AJA eMini-Setup supported for network setup and configuration via local desktop computer Web and REST configuration is also supported in-band over media ports
Size (w x d x h)	5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)
Weight	0.6 lb (0.3 kg)
Power	5-20 VDC Regulated, 13 Watts, universal power supply included
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
