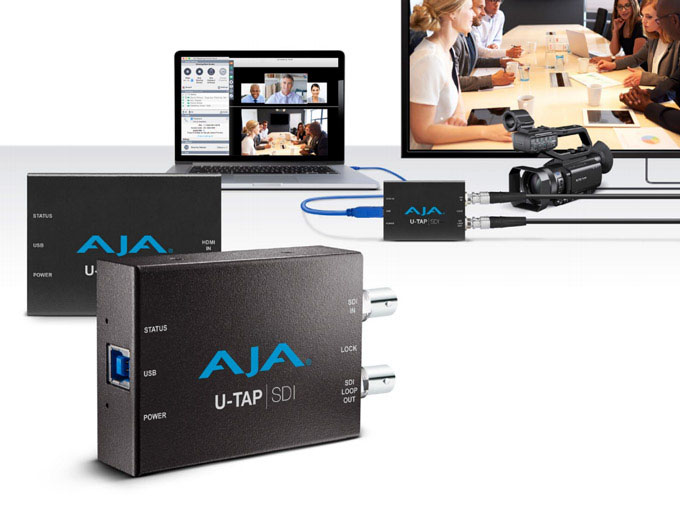

AJA U-TAP SDI/AJA U-TAP HDMI USB3.0 迷你收錄擷取器.VOXEL碩方科技

支援 U-TAP HDMI/SDI 應用軟體 - 各平台版本列表

應用軟體.平台標準\機型	U-TAP HDMI	U-TAP SDI
Streaming / Live Production 直播串流
Adobe Flash Media Live Encoder
Ecamm
Facebook Live
FMLE.Flash Media Live Encoder
Medialooks MFormats SDK
Medialooks MPlatform SDK
Medialooks Video Trasnsport
Microsoft Lync
OBS (Ubuntu Linux Only)
Renewed Vision ProPresenter
Streamlabs OBS
Telestream Wirecast
Twitch.tv
Ustream
VidBlasterX
vMix
XSplit Broadcaster
XSplit GameCaster
YouTube Live
Audio 音訊
Apple Logic Pro (up to v9)
Conferencing / Video Chat 視訊會議
Adobe Connect
FaceTime
Google Hangouts
GoToMeeting
Microsoft Lync
Microsoft Teams
Skype
Skype for Business
Webex
Zoom
Ingest / Playout 擷取錄制.播放
Drastic MediaNXS
Drastic SyncControl Pro
Medialooks MFormats SDK
Medialooks MPlatform SDK
Medialooks Video Trasnsport
Remote Desktop
TeamViewer
SDI / IP Bridging 製作流程
Drastic Net-X-Code
Drastic Net-X-SDI
Screen Capture 螢幕擷取
Camorama
Kamerka
Screenflow
Vokoscreen
Test / Measure 檢測
Drastic 4kScope HDR WFM
Drastic 4kScope WFM
Drastic sdiScope / hdmiScope
Qt V4L2 Test Utility
VJ / Live Video Performance 品質控管
Resolume Arena
Resolume Avenue
Video Assist 視訊輔助
QTAKE Video Assist
Video Capture 視訊錄製
AMCap
Camtasia
Hudl Sportscode
Photo Booth
QuickTime X
Synergy Editor
VLC

產品規格

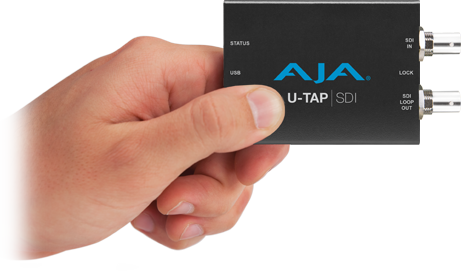

Model	U-TAP SDI
Video Formats	Video (SDI) (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60 1920 x 1080p 1440 x 1080p 1280 x 720p 1024 x 576p 960 x 540p 856 x 480p 800 x 600p 768 x 576p 720 x 576p 720 x 480p 640 x 480p 640 x 360p 432 x 240p 352 x 288p 320 x 240p 176 x 144p
Video Input Digital	3G-SDI, SMPTE-259/292/424, YCbCr 4:2:2 (1 x BNC)
Video Loop Output	1 x 3G-SDI (1 x BNC)
Audio Input Digital	2-Channel, 24-bit SDI embedded audio, 48 kHz sample rate
Capture Video	16-bits/pixel, YUV (input video will be truncated as required)
Host Interface	USB 3.0/USB 2.0 UVC compliant
Size (w x d x h)	4.1" x 2.4" x 1.0" (104.14 x 60.96 x 25.4 mm)
Weight	0.3 lb (0.2 kg)
Power	5V USB bus powered; 4W max
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing

Model	U-TAP HDMI
Video Formats	Video (HDMI) (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 (SD) 625p 25 (SD) 625i 50 (SD) 525p 29.97 (SD) 525i 59.94 Computer (HDMI), up to 60 Hz max for all formats 1920 x 1080p 1680 x 1050p 1600 x 1200p 1600 x 1024p 1280 x 1024p 1280 x 960p 1280 x 768p 1024 x 768p 800 x 600p 640 x 480p Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60 1920 x 1080p 1440 x 1080p 1280 x 720p 1024 x 576p 960 x 540p 856 x 480p 800 x 600p 768 x 576p 720 x 576p 720 x 480p 640 x 480p 640 x 360p 432 x 240p 352 x 288p 320 x 240p 176 x 144p

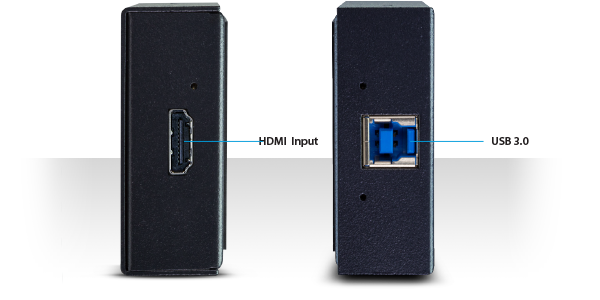

Video Input Digital	HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV
Audio Input Digital	2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate
Protocols	RTMP, RTSP/RTP, Unicast and Multi Unicast (10 Clients)
Capture Video	2-Channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
Host Interface	USB 3.0/USB 2.0 UVC compliant
Size (w x d x h)	3.3" x 2.4" x 1.0" (83.82 x 60.96 x 25.4 mm)
Weight	0.3 lb (0.2 kg)
Power	5V USB bus powered; 3.5W max
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing
