Model	3Play Vivid
Network Video Input	8 x resolution-independent IP video inputs via NDI® at rates up to 4k60p
Video Output	8 x SDI connections available in one of the following three configurations determined by session: • 8 input - 0 Output (4 x 12G – 4 x 3G/HD) • 6 Input – 2 Output (3 inputs and 1 output in 12 G) • 4 input 4 Output (2 inputs and 2 outputs in 12G) 12G/3G/HD SDI supporting video input in any combination of standard formats, resolutions, and frame rates* • 2160p 59.94, 50, 29.97,25 • 1080p: 59.94, 50, 29.97, 25 • 1080i: 59.94, 50 • 720p: 59.94, 29.97, 25 *Available frame rates determined by session video standard (NTSC or PAL)
Video Output	2 x session-format video outputs (Output A and Output B), with simultaneous delivery via IP and SDI
Network Video Output	2 x session-format IP video outputs via NDI
Multiviewer Output	3 x multiviewer outputs supporting standard display resolutions 3 x DisplayPort
Recording	8 x simultaneous recording channels
Recording Format	QuickTime® SpeedHQ (4:2:2 encoding, 32-bit audio)
Storage	8 TB of internal storage expandable via USB and network storage devices
Grab	Grab full-resolution, deinterlaced still images from inputs and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK	1 x DSK channel per output, with independent source selection and transition
Transitions	Supports custom transitions between output channels and playlist clips

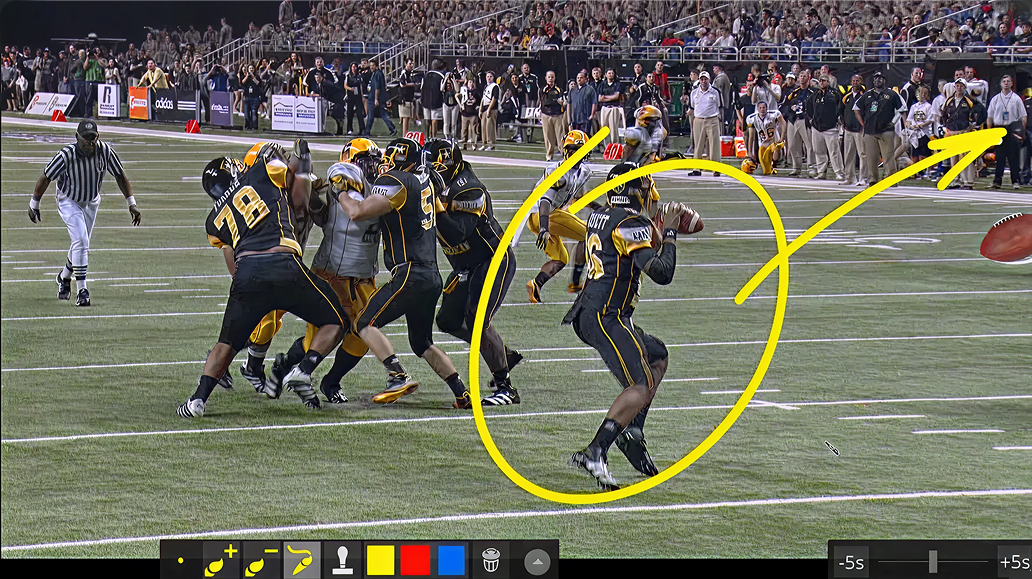

Telestration	Integrated NDI Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network

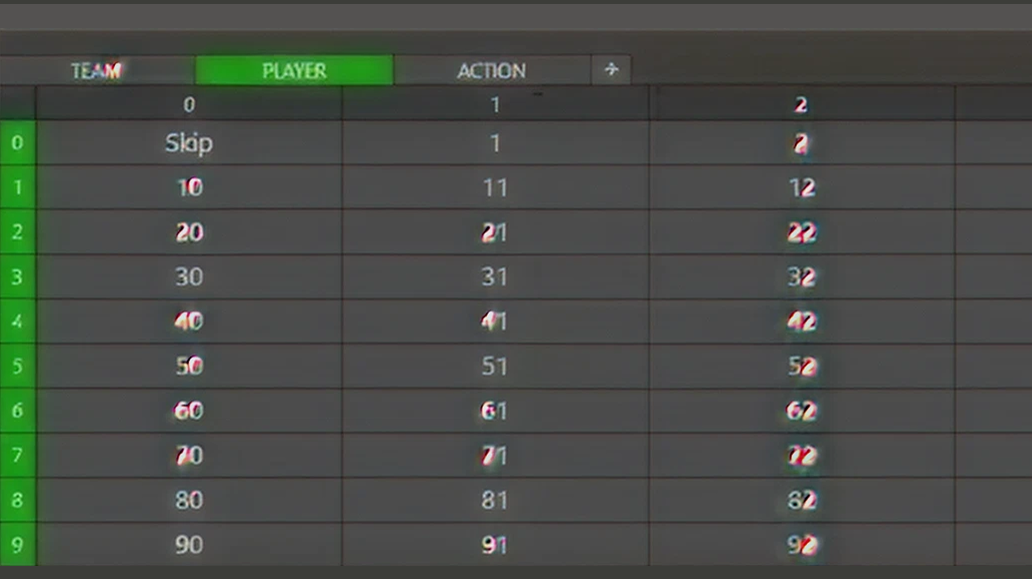

Asset Management Asset	management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input	• SDI embedded per configuration input channel count • 1 x balanced stereo pair in via 1/4” • 1 x Mic input via 1/4”
Local Audio Output	• SDI embedded per configuration output channel count (A and B out only) • 1 x balanced stereo pair out via 1/4” • 1 x Headphone out via 1/4"
Network Audio	Native support for network audio input and output via NDI®
Processing	Video: Floating Point YCbCr + Alpha Color Space, using 4:2:2:4 Audio: Floating Point, 96 kHz
A/V Standard	• 3G-SDI video conforms to SMPTE 424M (Level A) • HD-SDI video conforms to SMPTE 292M • Analog audio levels conform to SMPTE RP-155
Genlock	Genlock input I/O board supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros	Record, store, edit, and automate commands and user-configured operation sequences including support for cross-platform automation between supported systems
AMP	Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI	Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	• 1 x 10 GbE via RJ-45 • 1 x 2.5 GbE LAN via RJ-45 • 1 x 1 GbE LAN via RJ-45
USB	• 2 x USB 2.0 • 5 x USB 3.2 Gen2 • 1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
System Physical	2RU chassis with 500W PSU • 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) • 32 lbs (14.5 kg) in packaging



Viz 3Play 多機收錄與快慢動作製播系統專屬控播盤

Surface ~ 12.7 x 1.0 x 11.64 in (32.3 x 2.6 x 29.6 cm)
Base ~ 12.7 x 2.0 x 10.64 in (32.3 x 5.1 x 27.0 cm)

關鍵字 : #雲製播.#慢動作重播.#直錄播系統.#攝錄播系統.#攝錄製系統.#3PV.#3PLAY.#Vizrt.#Cloud.

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
