專業攝影機

Panasonic
AG-DVX200PX
4K 專業攝影機

Panasonic攝影機 Panasonic攝影機

Panasonic AG-DVX200PX 4K 專業攝影機,搭載4/3“感光元件和4K鏡頭,提供4K解析度。它採用新開發的光學13倍變焦鏡頭,並搭載新LSI高速處理4K系統。Panasonic AG-DVX200PX 使用VW-VBD58電池,可在電池上,方便查看剩餘電量。

產品特點:
■ 搭載4/3”感光元件和LEICA DICOMAR 4K鏡頭,提供美麗的景深感和4K解析度
■ 採用新開發的光學13倍變焦鏡頭,並搭載新LSI高速處理4K引擎系統
■ 使用VW-VBD58電池,可在電池上方查看剩餘電量
■ 支援MP4/MOV編碼,可錄製4K(4096×2160)/24p、UHD(3840×2160)/60p、FHD(1920×1080)
■ 配備2個SD卡槽,支援雙編碼錄製和多種高可靠性錄製模式,如背景錄影、中繼錄影、同步錄影等
■ 內置ND濾鏡、增益和AWB選項,提供靈活的手動控制
■ 搭載高速、高精度的智慧自動對焦系統,具有優越的快速聚焦、追蹤性和穩定性

Panasonic AG-DVX200PX 4K 專業攝影機,在畫質、操控性、錄製功能和可靠性等方面都有出色的表現,適合從事電影、廣播電視等領域的專業攝影工作。

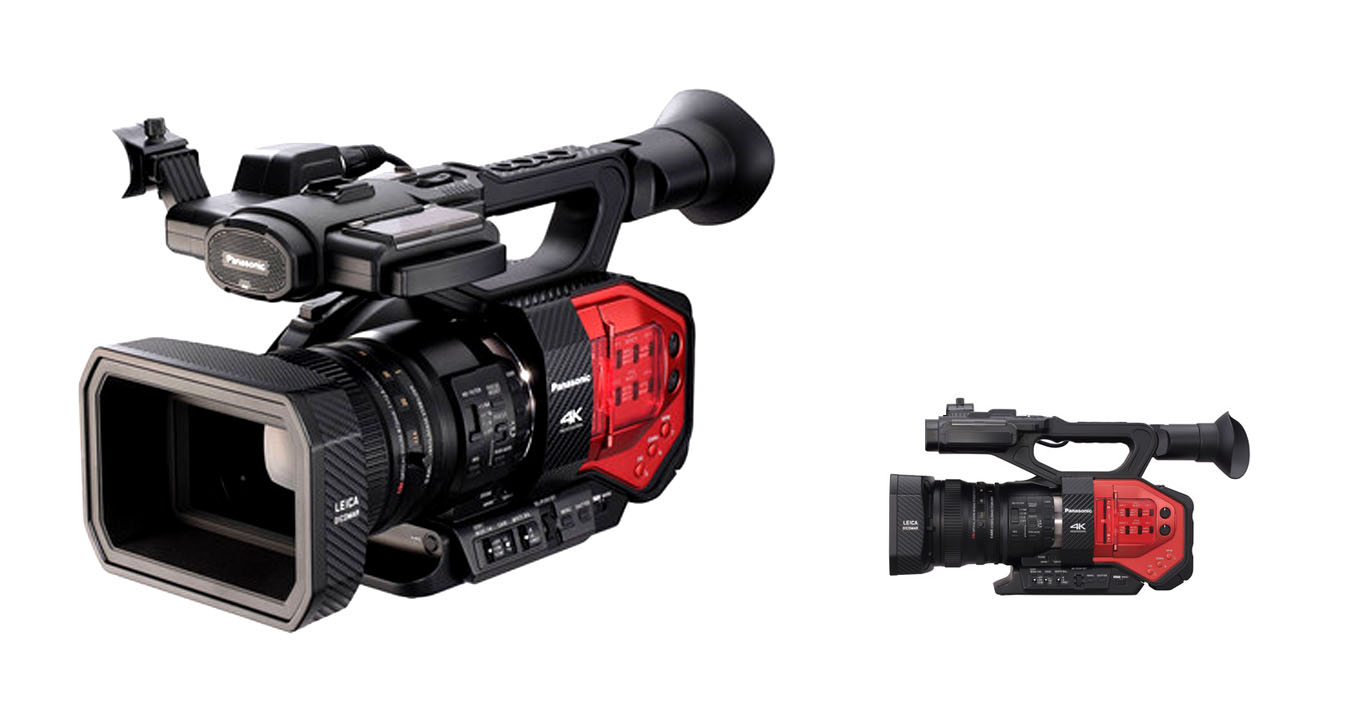

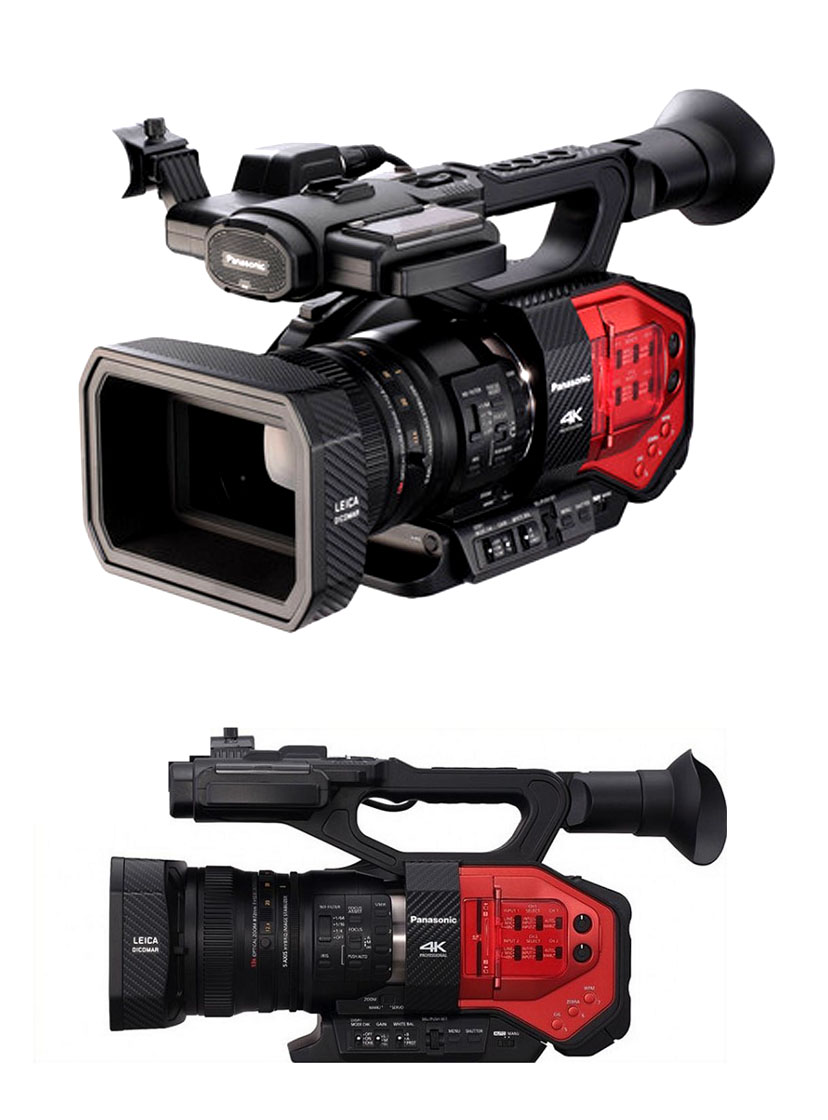

Panasonic AG-DVX200PX 4K 專業攝影機 Panasonic AG-DVX200PX 4K 專業攝影機

產品規格
Panasonic
AG-DVX200PX 4K 專業攝影機

基本功能
Power DC 7.2 V (the battery) DC 12 V (AC adaptor)
Power Consumption 21.7 W
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % RH to 80 % RH (no condensation)
Weight Approx. 2.7 kg (5.95 lb) (body only, excluding lens hood, battery, and accessories) Approx. 3.1 kg (6.84 lb) (including lens hood, battery, and eye cup)
Dimensions 181 mm (W) x 216 mm (H) x 374 mm (D) (excluding protrusion and eye cup) (7-1/8 inches x 8-1/2 inches x 14-23/32 inches)
Camera Unit
Pickup Devices 4/3-type MOS solid state image sensor
Effective Pixels FHD (1920 x 1080): 15.49 megapixel UHD (3840 x 2160) 59.94p/50.00p: 8.71 megapixel UHD (3840 x 2160) 29.97p/25p.00: 12.89 megapixel 4K (4096 x 2160) 24p: 13.35 megapixel
Lens Optical image stabilizer lens, optical 13x motorized zoom F2.8 to F4.5 (f=12.8 mm to 167 mm) 35 mm equivalent: FHD: 28.0 mm to 365.3 mm UHD 59.94p/50.00p: 37.2 mm to 485.1 mm UHD 29.97p/25.00p: 30.6 mm to 398.7 mm 4K 24p: 29.5 mm to 384.9 mm
Filter Diameter 72 mm
ND Filter OFF, 1/4, 1/16, 1/64
IR Filter Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.) Approx. 1.0 m from the front lens
Gain Setting L/M/H selector switch –6 dB to 24 dB (Adjustable in 1dB steps. Negative gain values are available only when [EXPAND] is enabled, and the automatic setting can be assigned to L/M/H.)
Super Gain 30 dB and 36 dB switched (when assigning [S.GAIN] to the USER button)
Color Temperature Setting ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec.,1/2000 sec.,1/3000 sec., 1/4000 sec.,1/8000 sec. • 30p mode: 1/30 sec.,1/50 sec.,1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,1/4000 sec., 1/8000 sec. • 24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. When [SYSTEM MODE] = 50.00 Hz • 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. • 25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
Slow Shutter Speed When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec. • 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. • 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. When [SYSTEM MODE] = 50.00 Hz • 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec. • 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
Synchro Scan Shutter When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/60.0 sec. to 1/249.8 sec. • 30p mode: 1/30.0 sec. to 1/249.8 sec. • 24p mode: 1/24.0 sec. to 1/249.6 sec. When [SYSTEM MODE] = 50.00 Hz • 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. • 25p mode: 1/25.0 sec. to 1/250.0 sec.
Shutter Open Angle 5.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps, angle display)
VFR Recording Frame Rate When [SYSTEM MODE] = 59.94 Hz • 60p mode: 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 fps • 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 fps • 24p mode: 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 fps When [SYSTEM MODE] = 50 Hz • 50p mode: 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 fps • 25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 100, and 120 fps
Sensitivity When [HIGH SENS.] mode F11 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i) F12 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i)
Minimum Subject Illumination 0.2 lx (F2.8, gain 18 dB, [1/2 sec.], [HIGH SENS.] mode)
Digital Zoom 2x/5x/10x, i.Zoom (1.0x to 1.54x, variable zoom)
Lens Hood Hood with lens cover
Memory Card Recorder
Recording Media SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB), UHS-I supported *An SD memory card with a capacity of UHS Speed Class 3 (U3) is required to shoot videos with a bit rate of 100 Mbps or higher. An SDXC memory card with a capacity of 64 GB or more and UHS Speed Class 3 (U3) is required to shoot UHD 2160/59.94p/ 50.00p videos with a bit rate of 150 Mbps or higher.
Recording Slot Slot x 2
System Format 59.94 Hz / 50 Hz
Motion Picture Recording Recording Format: MOV, MP4, AVCHD Recording Mode: *Please see the Video record mode table.
Still Picture Recording JPEG (DCF/Exif2.2) supported 8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9), 0.2M: 640 x 360 (16:9), 0.3M: 640 x 480 (4:3)
Digital Video
Video Signal for External Output 8 bit 4:2:2/10 bit 4:2:2 (switchable menu) *Output of UHD/59.94p/50.00p becomes 8 bit 4:2:0. When 10 bit 4:2:2 is selected, recording is not possible with the main unit.
Recording Video Signal 8 bit 4:2:0
Digital Audio
Recording Audio Signal 48 kHz/16 bit, 2 CH
Audio Compression Format LPCM (MOV/MP4) Dolby Digital (AVCHD)
Headroom 12 dB
Dual Codec
Recording Method MOV, MP4
Video Compression Format (Dual Codec) MPEG-4 AVC/H.264 High Profile
Audio Compression Format (Dual Codec) LPCM
Recording Format When [Dual Codec] = FHD 50 Mbps [Main Recorder] Recording mode = MOV/MP4 •UHD/29.97p/25.00p/23.98p 100 Mbps [Sub Recorder] Recording mode = Same as the recording mode and the frame rate of the main recorder •FHD/29.97p/25.00p/23.98p 50Mbps When [Dual Codec] = FHD 8 Mbps [Main Recorder] Recording mode = MOV/MP4 •UHD/29.97p/25.00p/23.98p 100 Mbps •FHD/59.94p/50.00p/29.97p/25.00p/23.98p 200 Mbps •FHD/59.94p/50.00p 100 Mbps [Sub Recorder] Recording mode = MOV •FHD/59.94p/50.00p/29.97p/25.00p/23.98p 8 Mbps
Video Input/Output
Video Output BNC x 1, Composite 1.0 V [p-p], 75 Ω
HDMI Out HDMI x 1 (HDMI type A terminal, not compatible with VIERA Link) Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
Audio Input
Built-in Microphone Supports stereo microphone
Audio Input1/Audio Input2 XLR x 2, 3-pin Input high impedance, LINE/MIC/MIC+48 V (switchable SW) LINE: 4 dBu/0 dBu (switchable menu) MIC: –40 dBu/–50 dBu/–60 dBu (menu)
Audio Output
SDI Out (Audio Output) 2 CH (LPCM) switchable gain: 0 dB/–6 dB/–12 dB
HDMI Out (Audio Output) 2 CH (LPCM)
Audio Out 3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
Headphone 3.5 mm diameter stereo mini jack x 1
Speaker 20 mm diameter, round x 1
Other Input/Output
Cam Remote 2.5 mm diameter super mini jack x1 (ZOOM, S/S) 3.5 mm diameter mini jack x1 (FOCUS, IRIS)
TC Preset In/Out BNC x 1, Used as the input and output terminals Input: 1.0 V to 4.0 V [p-p], 10 kΩ Output: 2.0 V ±0.5 V [p-p], low impedance
USB (Host) Type A connector, 9-pin, bus power supported In Recording mode; USB2.0 compatible (5 V, 0.5 A) In Playback mode; USB 3.0 compatible (5 V, 0.9 A), used for external media device connection *External media device with a capacity of 32 GB or below or a capacity above 2 TB cannot be used
USB (Device) Micro-B connector, 10-pin, USB 3.0, Mass storage function (read only)
DC In DC 12 V (11.4 V to 12.6 V), EIAJ type 4
Monitor/Viewfinder
LCD Monitor 4.3 type HD monitor
View Finder 0.39 type OLE







關鍵字 : #4k.#fullhd.#ndi.#ip製作.

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
