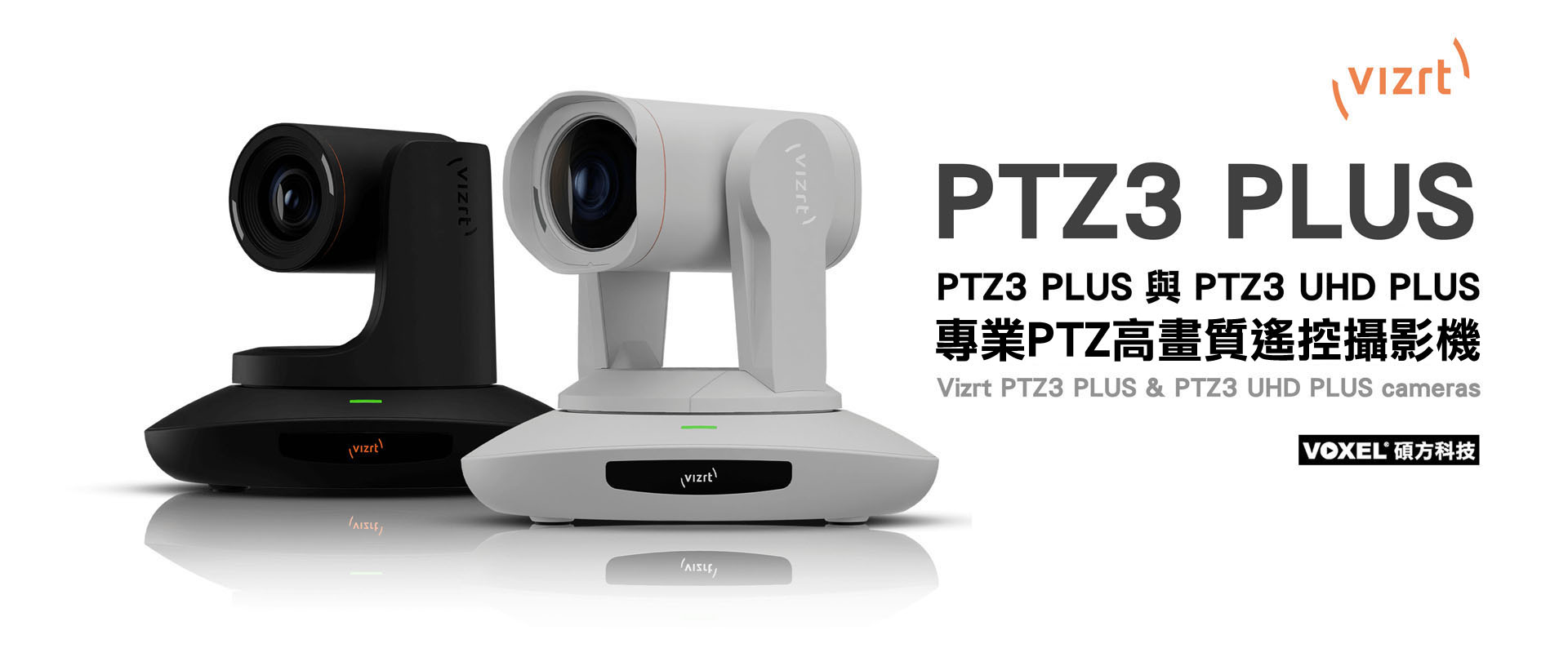

Vizrt PTZ3 PLUS
PTZ3 UHD PLUS
專業PTZ超高畫質遙控攝影機
Vizrt PTZ3 UHD PLUS cameras

Vizrt PTZ3 UHD PLUS 專業PTZ超高畫質遙控攝影機

連結．轉換．創建

【Vizrt 維斯】Vizrt PTZ3 PLUS 與 PTZ3 UHD PLUS 專業PTZ超高畫質遙控攝影機提供 4K-UHD/FULLHD 高畫質、20-30倍光學變焦、低光源錄製、專業音訊幻像電源Phantom Power，與最先進的AI功能 - AI 自動跟蹤被拍攝人員，支援 NDI|HX 嵌入的 FreeD 追蹤資料。無論進行直播、政府企業即時製播、現場活動錄製，還是提供高品質影音訊號，PTZ3 PLUS 專業攝影機都能滿足您的需求。只要連接NDI IP製作網路，您就能靈活地自由操控它。再藉助NDI|HX，就可將FreeD追蹤資料嵌入到每個影格圖框影格中，整合 Viz Virtual Studio Go 快速簡易的AR/VR製播解決方案，產出廣播級製作品質，比過去的任何時候都更加容易！ Vizrt PTZ3 PLUS 與 PTZ3 UHD PLUS 能與 TriCaster 2 Elite / 1 Pro / TC1 / TC410 Plus / Mini X / Mini 4K / Mini Go 等, Vizrt TriCaster 系列全媒體製作導播設備即時啓動各種大型現場製作與直播，以全媒體廣播級的高畫質進行媒體串流、虛擬影棚與網路遠程製作。輕鬆實現最好的影音超能力，述說最棒的品牌、產品與精彩活動。

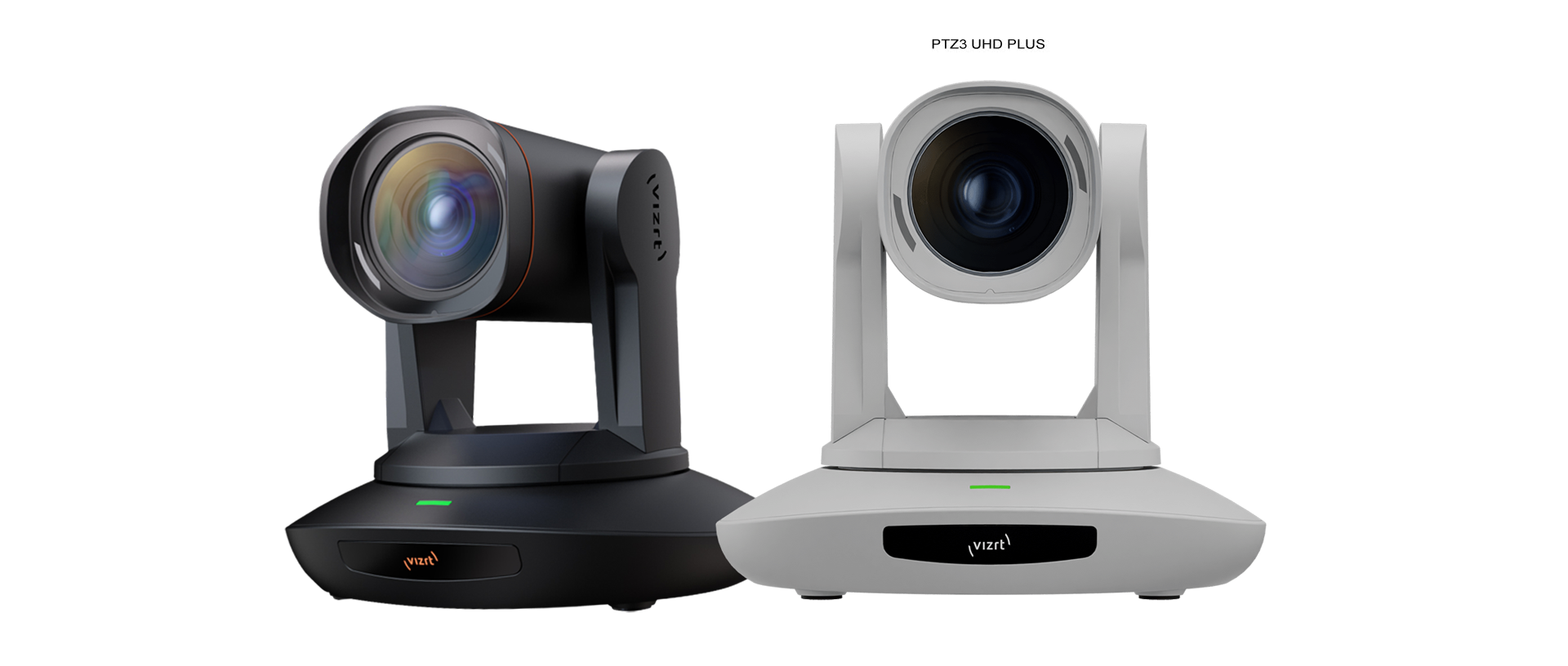

PTZ3 PLUS & PTZ3 UHD PLUS 專業PTZ超高畫質或高畫質遙控攝影機任您選擇

PTZ3 PLUS 系列攝影機提供4K UHD/FULLHD兩種不同的高畫質規格，具有黑白兩種顏色可供選擇。

機型 PTZ3 Plus PTZ3 UHD Plus

光學變焦 20x 30x

數位變焦 2x 2x

感光元件 Panasonic 1/2.86″ CMOS Sony 1/1.8″ 12MP sensor

快門速度/曝光時間 1/30 to 1/10,000 sec 1/30 to 1/10,000 sec

光圈 F1 ~ F14 F1.8 ~ F14

低光源錄製有有

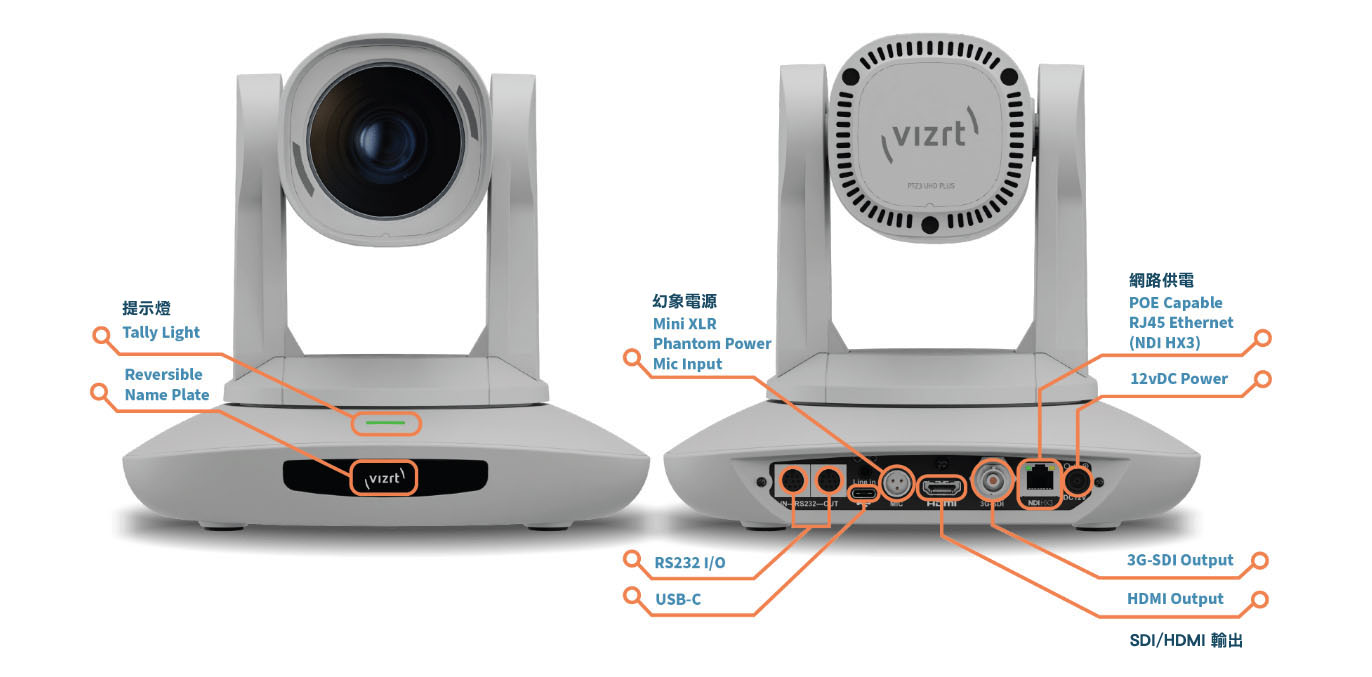

Vizrt PTZ3 PLUS/PTZ3 UHD PLUS 強大的 IO

機型	PTZ3 Plus	PTZ3 UHD Plus
光學變焦	20x	30x
數位變焦	2x	2x
感光元件	Panasonic 1/2.86″ CMOS	Sony 1/1.8″ 12MP sensor
快門速度/曝光時間	1/30 to 1/10,000 sec	1/30 to 1/10,000 sec
光圈	F1 ~ F14	F1.8 ~ F14
低光源錄製	有	有

Vizrt PTZ3 PLUS/PTZ3 UHD PLUS 功能特色

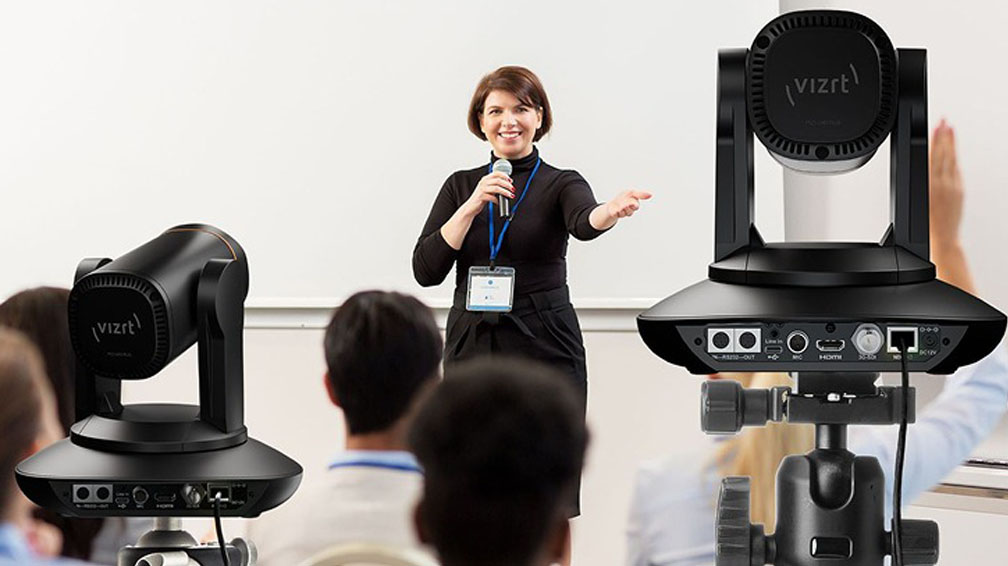

AI智慧追蹤功能

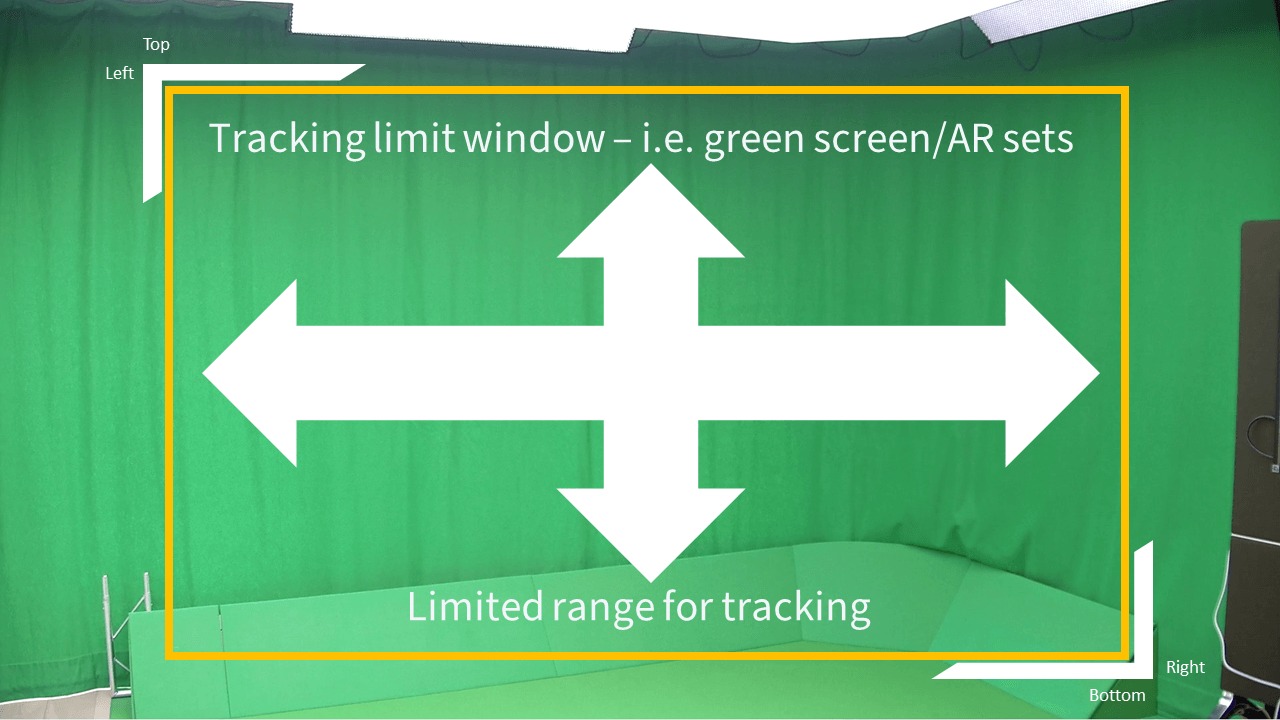

透過AI智慧追蹤功能，讓被拍攝人員保持在自動跟拍狀態，操作人員無需手動調整攝影機，您可以專注於提供即時、動態展示和現場製作。受益於臉部偵測功能可以智慧地追蹤被拍攝人員。即使他們背對攝影機，拍攝錄製依可以正常運行。而黑板偵測可以在攝影過程中，將攝影機錄製方位限定，提供更好的觀眾體驗。系統內更有記憶被拍攝人員功能，確保即使其他人進入畫面，攝影機也不會切換（除非您手動變更設定），還有追蹤切換讓您輕鬆在演被拍攝人員間快速切換。

自動化的 PTZ 攝影機越來越受歡迎，但操作人員通常沒有專門的操作訓練或缺乏經驗。整合的AI智慧追蹤，消除了攝影機設定和手動操作的麻煩，也確保拍攝執行。透過軟體 UI 設定，即可輕鬆微調您的追蹤選項。

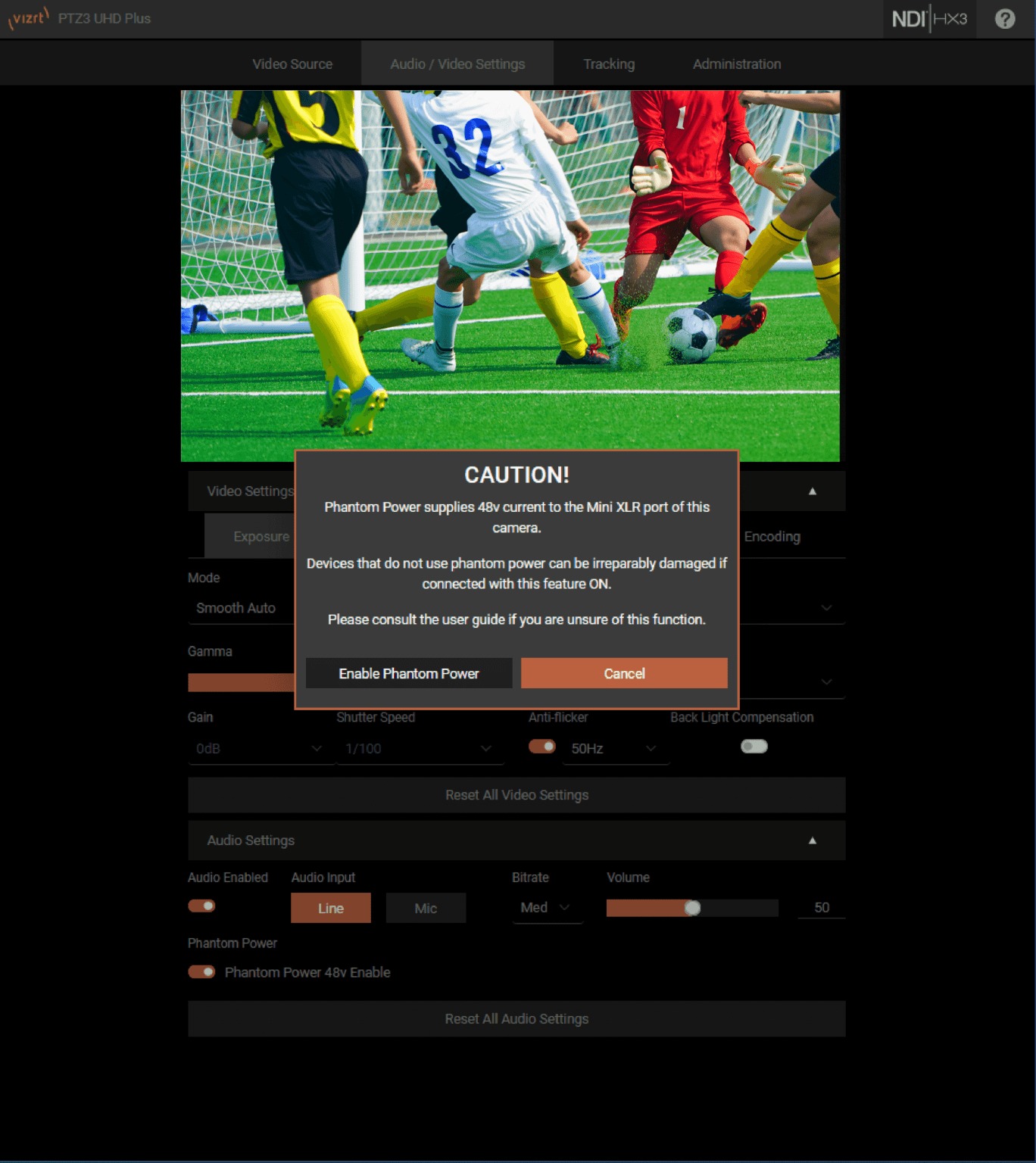

專業音訊 Mini XLR 幻象電源

專業音訊 Mini XLR 幻象電源功能，可以輕鬆連接麥克風、音訊來源或混音器，在相同 NDI|HX 串流中擷取音訊，讓製作聽起來和真實的現場一樣好。只要選用 +48v 供電麥克風，就能省去擴大器或額外佈線，輕鬆擁有更好控制與更少的設定。只需兩步驟開啟幻象電源，不必再為取得被動式麥克風電源費心。

NDI|HX 嵌入式 FreeD 追蹤

Vizrt PTZ3 PLUS 專業PTZ超高畫質遙控攝影機/PTZ3 UHD PLUS 專業PTZ超高畫質遙控攝影機內建 FreeD-over-NDI 首創技術，提供更多創新可能與更好的沉浸式體驗吸引觀眾。透過 NDI|HX 以 FreeD 精確的攝影機追蹤資訊（包含位置、旋轉和鏡頭資料）嵌入到每個影格資料，進一步簡化 Viz Virtual Studio Go AR/VR 系統的設定。與AI智慧追蹤與預配置鏡頭檔案相結合，只要透過一修標準網路線，就能讓每個製作人員，輕鬆實現廣播級 AR/VR 虛擬影棚製作。

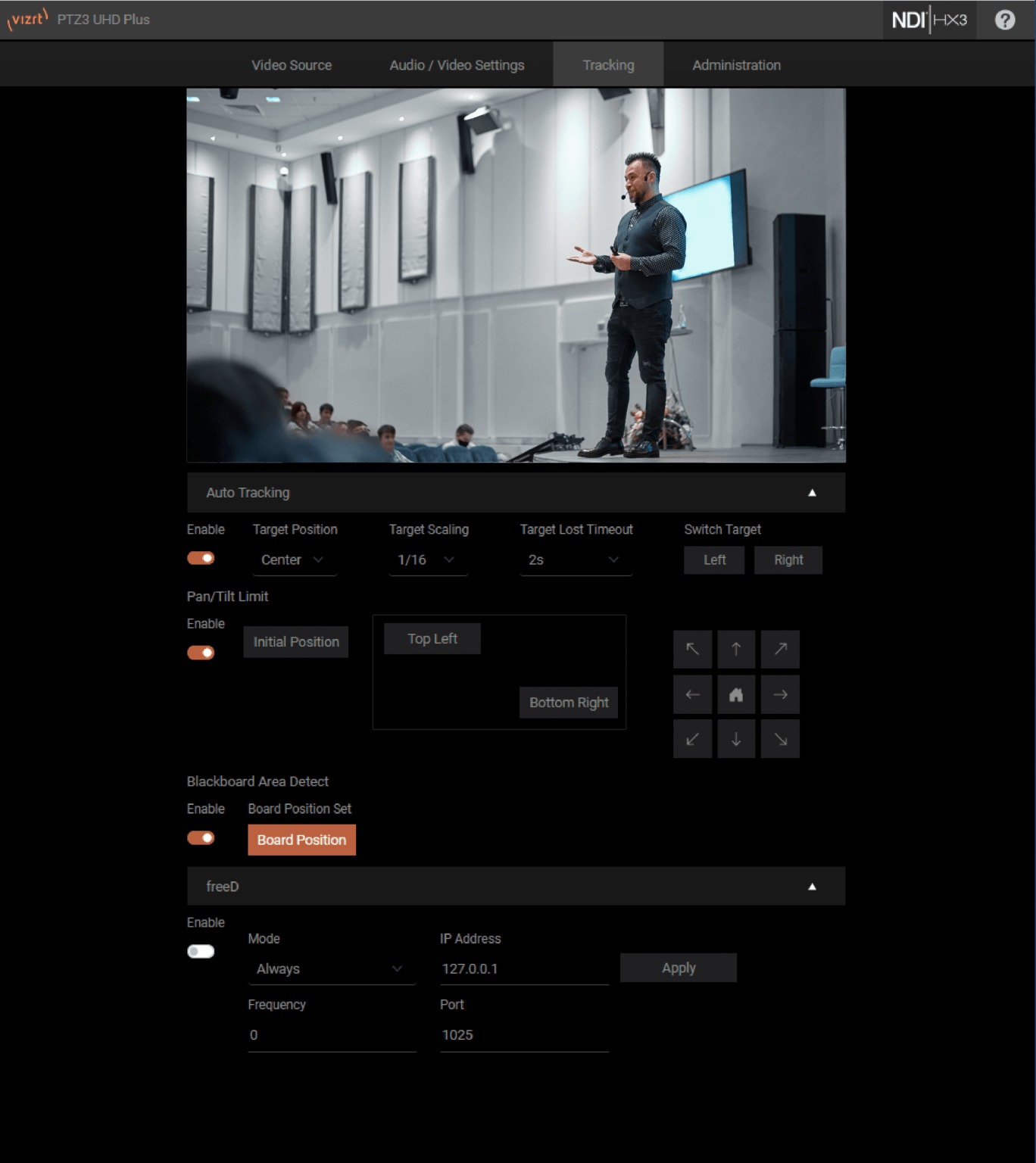

友善的直覺操作

Vizrt PTZ3 PLUS 專業PTZ超高畫質遙控攝影機/PTZ3 UHD PLUS 專業PTZ超高畫質遙控攝影機可透過簡潔直覺的軟體控制界面設定、控制與調整。以單一界面管理視訊來源、音訊設定（包括幻象電源、AI 追蹤和裝置管理）。

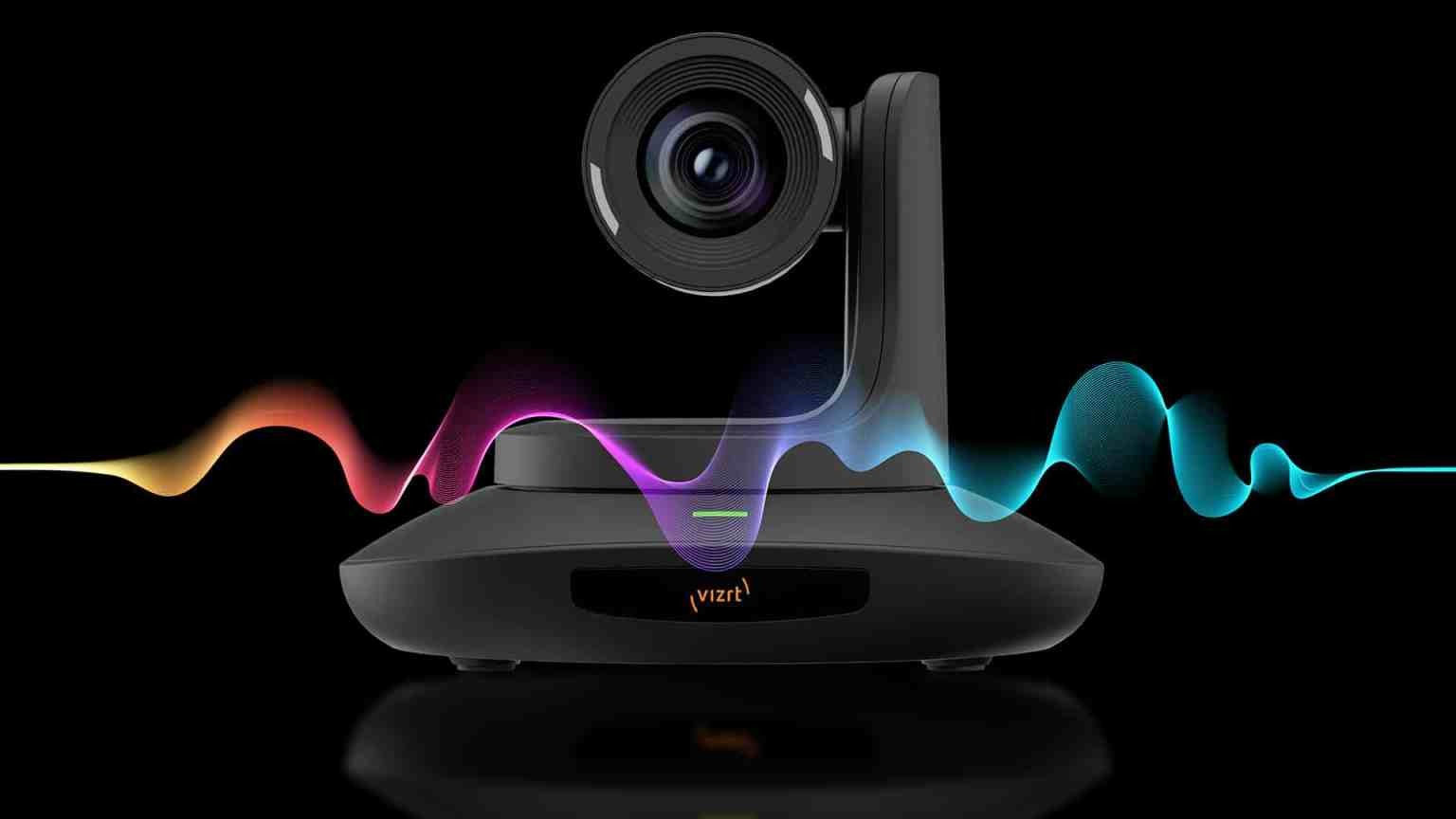

流暢的運作

Vizrt PTZ3 PLUS 專業PTZ超高畫質遙控攝影機/PTZ3 UHD PLUS 專業PTZ超高畫質遙控攝影機預設精準流暢運作功能，可進行順暢的緩入和緩出移動，內建的超靜音馬達，能輕鬆應對安靜與喧鬧的製作環境。

支援 NDI|HX3 技術

NDI|HX3 讓您掌控一切，以零妥協實現品質和效率的完美平衡。無需配備超大頻寬，NDI|HX3 提供也能提供完整 NDI 品質和低延遲。

Vizrt PTZ3 PLUS NDI製作流程

透過 NDI 製作流程，Vizrt PTZ3 PLUS 攝影機系列，能與 TriCaster、CaptureCast 、Viz Virtual Studio Go、Viz Connect Tetra 全媒體現場製播系統緊密結合 – 提供專業音訊、1080p60/4Kp60 以及無限的製作可能。

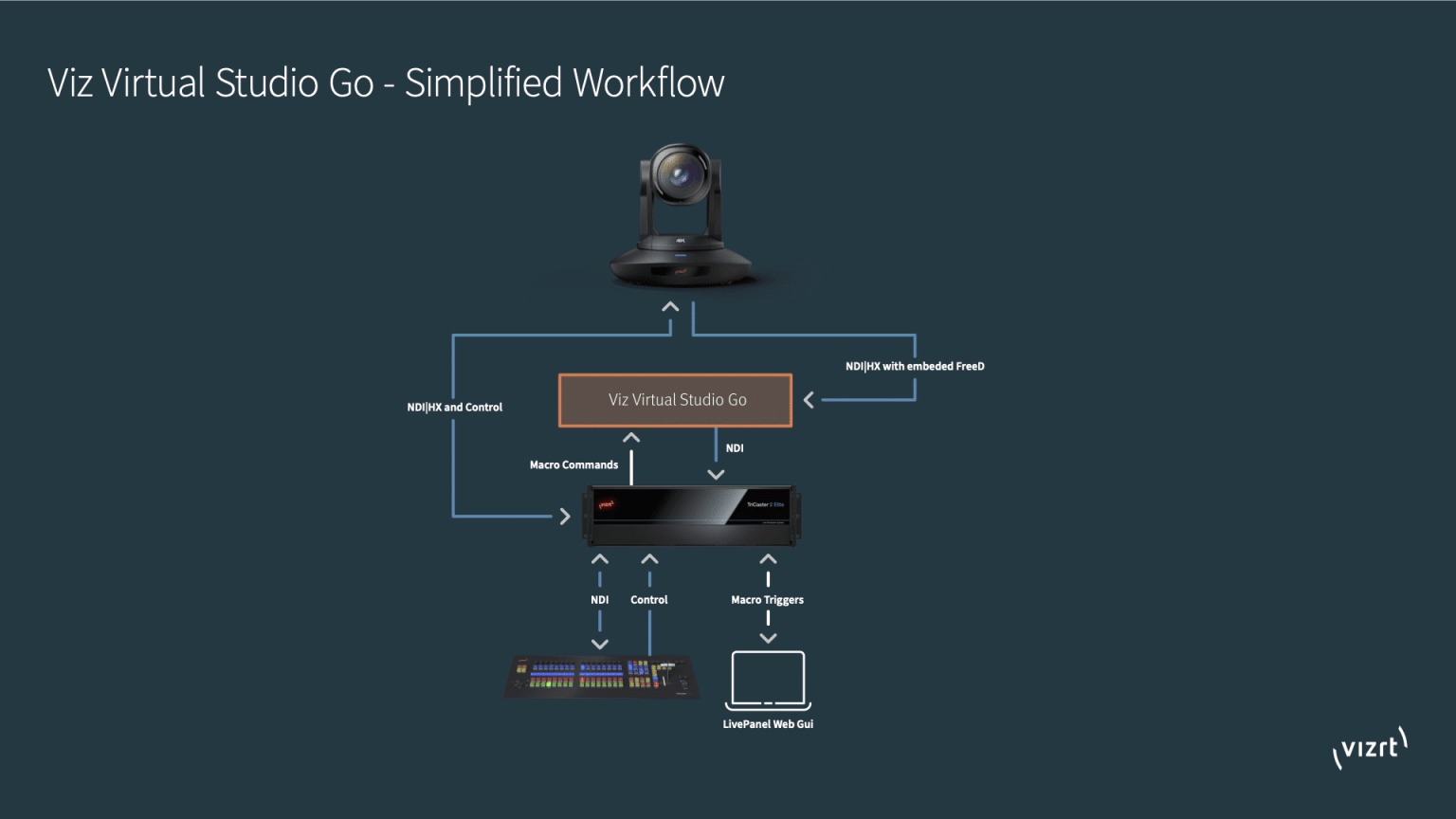

製作實例 FreeD 整合 Vizrt Virtual Studio Go 實現 AR/VR 虛擬製作

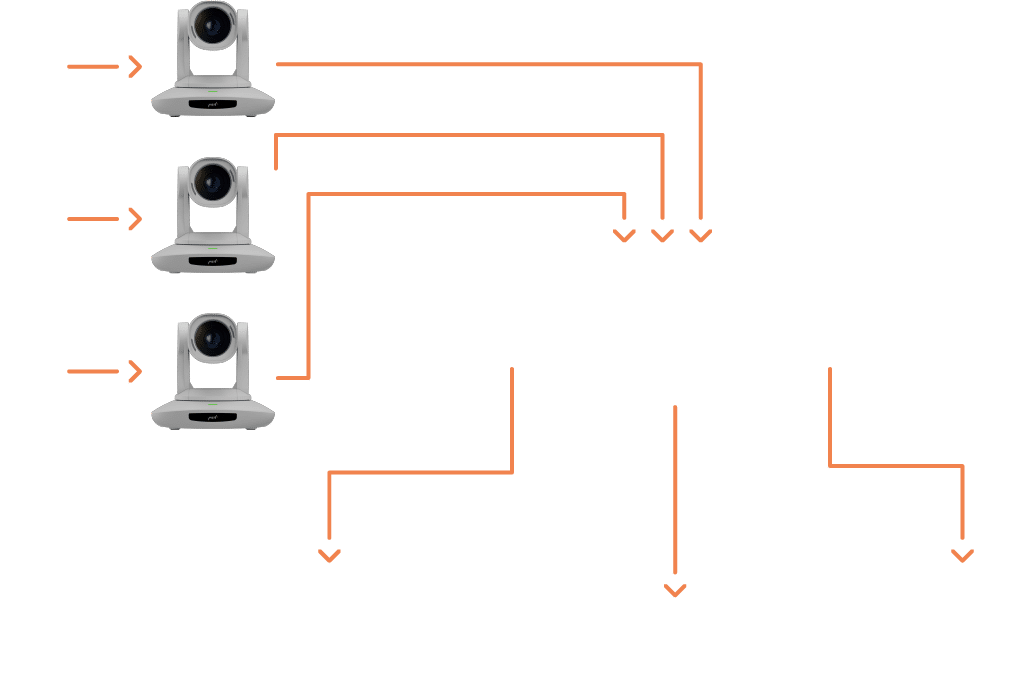

製作實例 PTZ3 PLUS 與 NDI 網路連線

關於 NDI

NDI 被運用於無數設備，能讓多視訊系統能透過 IP 與其他系統溝通。除此以外，它還能即時對眾多高品質、低延遲和影格圖框精度準確的視頻和音訊進行編碼、傳輸和接收。這將有利於任何連接網路的視頻設備，包括視頻混合器、圖形系統、擷取卡以及大量其他製作設備。另外，它還能大幅增加用於即時製作切換的信號源數量，無需將其直接連接到設備，更換位置，或投資于昂貴的高頻寬網路，而以基於 SDI 的工作流簡單地取而代之。

系列比較表

Vizrt PTZ3 Plus 對比 NewTek PTZ3 攝影機, 有感升級。

NewTek PTZ3 攝影機到 Vizrt PTZ3 PLUS 攝影機升級亮點：
■ 自動 AI 智慧追蹤讓您的製作更便利
■ Mini XLR 幻象電源技術，精簡佈線，支援更多主動式和被動式麥克風
■ 機體黑白原色設計，讓攝影機更易與環境融合，適用於更多環境
■ FreeD over NDI|HX 升級（NewTek PTZ3 機型需更新韌體才能升級）

Vizrt PTZ3 Plus vs NewTek PTZ3

Model	PTZ3	NEWTEK PTZ3 UHD	VIZRT PTZ3 PLUS	VIZRT PTZ UHD PLUS
FREE-D SUPPORT
Tracking Data FreeD-over-NDI\|HX	FreeD-over-NDI\|HX, FreeD via UDP（需更新韌體）	FreeD-over-NDI\|HX, FreeD via UDP（需更新韌體）	FreeD-over-NDI\|HX, FreeD via UDP	FreeD-over-NDI\|HX, FreeD via UDP
AI智彗追蹤功能 PRESENTER TRACKING AI
被拍攝人員臉部與動作AI追蹤 Face and Posture Presenter Tracking AI	No	No	Yes	Yes
被拍攝人員AI追蹤鏡頭平移俯仰限制 Presenter Tracking Pan/Tilt Limit	No	No	Yes tracking area is limited within top-left and bottom-right boundary	Yes tracking area is limited within top-left and bottom-right boundary
目標過時失效反應 Target Timeout (Return to Home)	No	No	0.5s to 10s selectable	0.5s to 10s selectable
被拍攝目標縮放比例支援 Presenter Target Scaling	No	No	1/6, 1/8, 1/10, 1/12, 1/16, 1/20	1/6, 1/8, 1/10, 1/12, 1/16, 1/20
拍攝目標切換 Presenter Target Switching	No	No	Yes limited within left to right selectable	Yes limited within left to right selectable
黑板區域偵測 Blackboard Detect	No	No	Yes 減少追踪畫面損失 reduces tracking in front of presentation area to minimize distractions	Yes 減少追踪畫面損失 reduces tracking in front of presentation area to minimize distractions
幻象電源 CONNECTION (MINI XLR)
Phantom Power to Mini XLR	No	No	Yes Enabled through Web GUI with double confirm	Yes Enabled through Web GUI with double confirm

產品規格

Model PTZ3 PLUS PTZ UHD PLUS

TRACKING & AI

Tracking Data

FreeD-over-NDI|HX, FreeD via UDP

FreeD-over-NDI|HX, FreeD via UDP

Face and Posture Presenter Tracking AI

Yes

Yes

Presenter Tracking Pan/Tilt Limit

Yes – tracking area limited within top-left and bottom-right boundary

Yes – tracking area limited within top-left and bottom-right boundary

Target Timeout (Return to Home)

0.5s to 10s selectable

0.5s to 10s selectable

Presenter Target Scaling

1/6, 1/8, 1/10, 1/12, 1/16, 1/20

1/6, 1/8, 1/10, 1/12, 1/16, 1/20

Presenter Target Switching

Yes – left to right selectable

Yes – left to right selectable

Blackboard Detection

Yes – reduces tracking in front of the presentation area to minimize distractions

Yes – reduces tracking in front of the presentation area to minimize distractions

VIDEO ENCODING

Video Output

NDI|HX 3, NDI|HX 2, 3G-SDI, HDMI

NDI|HX 3, NDI|HX 2, 3G-SDI, HDMI

NDI Codecs

H.264 or HEVC

H.264 or HEVC

Bit Rate

CBR/VBR

CBR/VBR

Datarates

Low, Med, High, HX 3 Ultra

Low, Med, High, HX 3 UltraC

NDI Multicast

Yes

Yes

NDI Discovery Server

Yes

Yes

Video Formats
1080p: 60, 59.94, 50, 30, 29.97, 25, 24
1080i: 59.94, 50
720p: 60, 59.94, 50, 30, 29.97, 25
2160p: 60, 59.94, 50, 30, 29.97, 25
1080p: 60, 59.94, 50, 30, 29.97, 25, 24
720p: 60, 59.94, 50, 30, 29.97, 25

OPTICS

Lens

20x Optical & 2x Digital Zoom

30 x Optical & 2x Digital Zoom

NDI Codecs

H.264 or HEVC

H.264 or HEVC

Sensor

Panasonic 1/2.86″ CMOS

Sony 1/1.8″ 12MP sensor

Shutter Speed

1/30 to 1/10,000 sec

1/30 to 1/10,000 sec

Horizontal Viewing Angle

60°(Far) – 3,2°(Near)

60°(Far) – 2°(Near)

Focal Length

4.9~98mm

6.91mm~214.64mm

Aperture

F1 ~ F14

F1.8 ~ F14

Min. Object Distance

(Tele) 1.5M

(Tele) 1.5M

Min. Illumination

0.7lux (50 IRE Max AGC, 1/30, F1.8)

0.5lux (50 IRE Max AGC, 1/30, F1.8)

Optical low pass filter

Yes

Yes

EXPOSURE CONTROL

Focus Control

Auto or Manual

Auto or Manual

Iris Control

Auto or Manual

Auto or Manual

Shutter Control

Auto or Manual

Auto or Manual

PICTURE CONTROL

Picture Control

Brightness, Contrast, Saturation, Sharpness

Brightness, Contrast, Saturation, Sharpness

Noise Reductionl

2D/3D

2D/3D

Mirror

On/Off

On/Off

Flip

On/Off

On/Off

White Balance Modes

Auto/Indoor/Outdoor/One-Push/Auto-tracking/Manual

Auto/Indoor/Outdoor/One-Push/Auto-tracking/Manual

PAN & TILT RANGE

Panning Angle

-170° to +170°

-170° to +170°

Tilting Angle

30° to +90°

30° to +90°

AUDIO

Audio Input

On/Off

On/Off

Mic Gain/Volume Control

Yes

Yes

Phantom Power to Mini XLR

Enabled through Web GUI with double confirm

Enabled through Web GUI with double confirm

USER OPERATION

Tally

Web-based or NDI Studio Monitor applications for remote configuration, control, and monitoring.

Web-based or NDI Studio Monitor applications for remote configuration, control, and monitoring.

User Interface

HDMI/SDI OSD operated through IR Remote

HDMI/SDI OSD operated through IR Remote

ACCESSORIES

Mini XLR to XLR adapter

Included

Included

Wall Mount

Included

Included

Ceiling Mount

Included

Included

Mount Fixings

Included

Included

Remote Control

Included: IR remote for up to 4x cameras

Included: IR remote for up to 4x cameras

Model	PTZ3 PLUS	PTZ UHD PLUS
TRACKING & AI
Tracking Data	FreeD-over-NDI\|HX, FreeD via UDP	FreeD-over-NDI\|HX, FreeD via UDP
Face and Posture Presenter Tracking AI	Yes	Yes
Presenter Tracking Pan/Tilt Limit	Yes – tracking area limited within top-left and bottom-right boundary	Yes – tracking area limited within top-left and bottom-right boundary
Target Timeout (Return to Home)	0.5s to 10s selectable	0.5s to 10s selectable
Presenter Target Scaling	1/6, 1/8, 1/10, 1/12, 1/16, 1/20	1/6, 1/8, 1/10, 1/12, 1/16, 1/20
Presenter Target Switching	Yes – left to right selectable	Yes – left to right selectable
Blackboard Detection	Yes – reduces tracking in front of the presentation area to minimize distractions	Yes – reduces tracking in front of the presentation area to minimize distractions
VIDEO ENCODING
Video Output	NDI\|HX 3, NDI\|HX 2, 3G-SDI*, HDMI	NDI\|HX 3, NDI\|HX 2, 3G-SDI*, HDMI
NDI Codecs	H.264 or HEVC	H.264 or HEVC
Bit Rate	CBR/VBR	CBR/VBR
Datarates	Low, Med, High, HX 3 Ultra	Low, Med, High, HX 3 UltraC
NDI Multicast	Yes	Yes
NDI Discovery Server	Yes	Yes
Video Formats	1080p: 60, 59.94, 50, 30, 29.97, 25, 24 1080i: 59.94, 50 720p: 60, 59.94, 50, 30, 29.97, 25	2160p: 60, 59.94, 50, 30, 29.97, 25 1080p: 60, 59.94, 50, 30, 29.97, 25, 24 720p: 60, 59.94, 50, 30, 29.97, 25
OPTICS
Lens	20x Optical & 2x Digital Zoom	30 x Optical & 2x Digital Zoom
NDI Codecs	H.264 or HEVC	H.264 or HEVC
Sensor	Panasonic 1/2.86″ CMOS	Sony 1/1.8″ 12MP sensor
Shutter Speed	1/30 to 1/10,000 sec	1/30 to 1/10,000 sec
Horizontal Viewing Angle	60°(Far) – 3,2°(Near)	60°(Far) – 2°(Near)
Focal Length	4.9~98mm	6.91mm~214.64mm
Aperture	F1 ~ F14	F1.8 ~ F14
Min. Object Distance	(Tele) 1.5M	(Tele) 1.5M
Min. Illumination	0.7lux (50 IRE Max AGC, 1/30, F1.8)	0.5lux (50 IRE Max AGC, 1/30, F1.8)
Optical low pass filter	Yes	Yes
EXPOSURE CONTROL
Focus Control	Auto or Manual	Auto or Manual
Iris Control	Auto or Manual	Auto or Manual
Shutter Control	Auto or Manual	Auto or Manual
PICTURE CONTROL
Picture Control	Brightness, Contrast, Saturation, Sharpness	Brightness, Contrast, Saturation, Sharpness
Noise Reductionl	2D/3D	2D/3D
Mirror	On/Off	On/Off
Flip	On/Off	On/Off
White Balance Modes	Auto/Indoor/Outdoor/One-Push/Auto-tracking/Manual	Auto/Indoor/Outdoor/One-Push/Auto-tracking/Manual
PAN & TILT RANGE
Panning Angle	-170° to +170°	-170° to +170°
Tilting Angle	30° to +90°	30° to +90°
AUDIO
Audio Input	On/Off	On/Off
Mic Gain/Volume Control	Yes	Yes
Phantom Power to Mini XLR	Enabled through Web GUI with double confirm	Enabled through Web GUI with double confirm
USER OPERATION
Tally	Web-based or NDI Studio Monitor applications for remote configuration, control, and monitoring.	Web-based or NDI Studio Monitor applications for remote configuration, control, and monitoring.
User Interface	HDMI/SDI OSD operated through IR Remote	HDMI/SDI OSD operated through IR Remote
ACCESSORIES
Mini XLR to XLR adapter	Included	Included
Wall Mount	Included	Included
Ceiling Mount	Included	Included
Mount Fixings	Included	Included
Remote Control	Included: IR remote for up to 4x cameras	Included: IR remote for up to 4x cameras
