AJA ColorBox 色彩轉換器

HDR/WCG Real Time Processor	• HDR Conversions - HDR to HDR - HDR to SDR - SDR to HDR • Colorimetry - BT.709 and BT.2020
Video Formats	• (4K) 4096x2160p • (UltraHD) 3840x2160p • (2K) 2048x1080p • (HD) 1920x1080p • (HD) 1920x1080i • (HD) 1280x720p
Color Processing Pipeline	• Processes in 12-bit RGB • 5x pipelines; AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs • 7x processing nodes plus Overlay in AJA Color; 4x 1-D LUTs, 2x 3x3 Matrices, 1x 3-D LUT

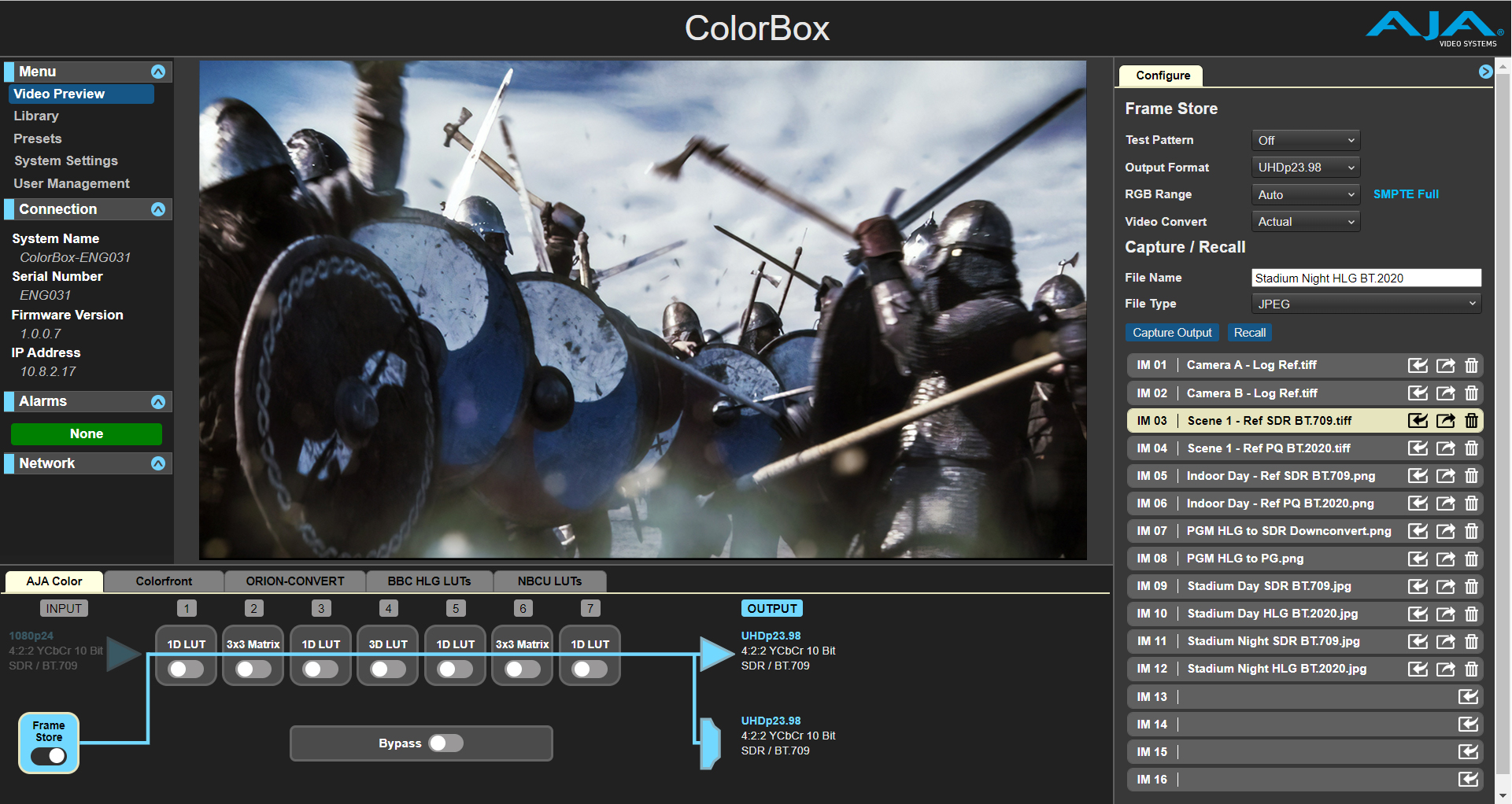

AJA Color Pipeline (ACP)	• 7x nodes in order of processing: 1D LUT, 3x3 Matrix, 1-D LUT, 3-D LUT, 1-D LUT, 3x3 Matrix, 1-D LUT, Overlay • Supports 10 and 12-bit 1-D LUTs • Supports custom 33 point .LUT and .CUBE format 3-D LUTs* • Supports custom .LUT format 1-D LUTs • Supports custom .SPIMTX format matrices • Tetrahedral 3-D LUT interpolation • 3-D LUT configurable as LUT or Dynamic • 1-D LUTs configurable as LUT, Dynamic, or Color Corrector • 3x3 Matrix configurable as Matrix, Dynamic, or Proc Amp • Configurable Color Space, Range, and Transfer Characteristic • Nonvolatile storage of 16x 3-D LUTs, 16x 1-D LUTs, and 16x 3x3 Matrices *Various 3-D LUT sizes are supported, but will be converted to 33 point for processing

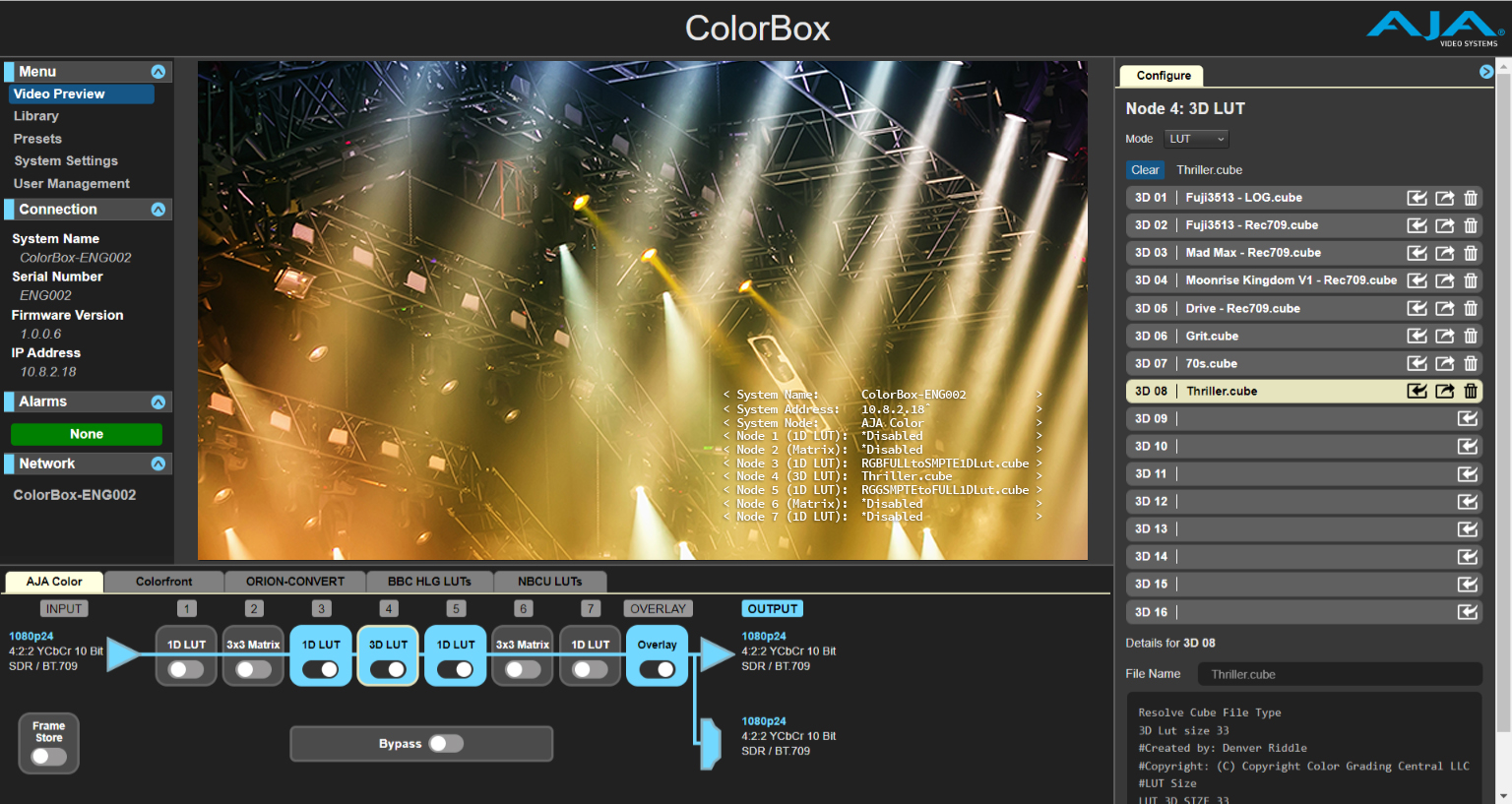

Dynamic LUT Processing	• Supports third party apps for automatic loading and display of 3-D LUTs • Reflects dynamic changes in real time from source software • Full frame LUT processing • Supported by：Pomfort Livegrade Pro and Studio, Assimilate Live Looks and Live Assist
Colorfront Pipeline	• Processing Based on Human Perception Model • Perceptually optimized color volume remapping • Preserves the original creative intent • Input Video Dynamic Range/Color Gamut：SDR BT.709,PQ BT.2020,HLG BT.2100 • Output Video Dynamic Range/Color Gamut : SDR BT.709,PQ BT.2020,HLG BT.2100

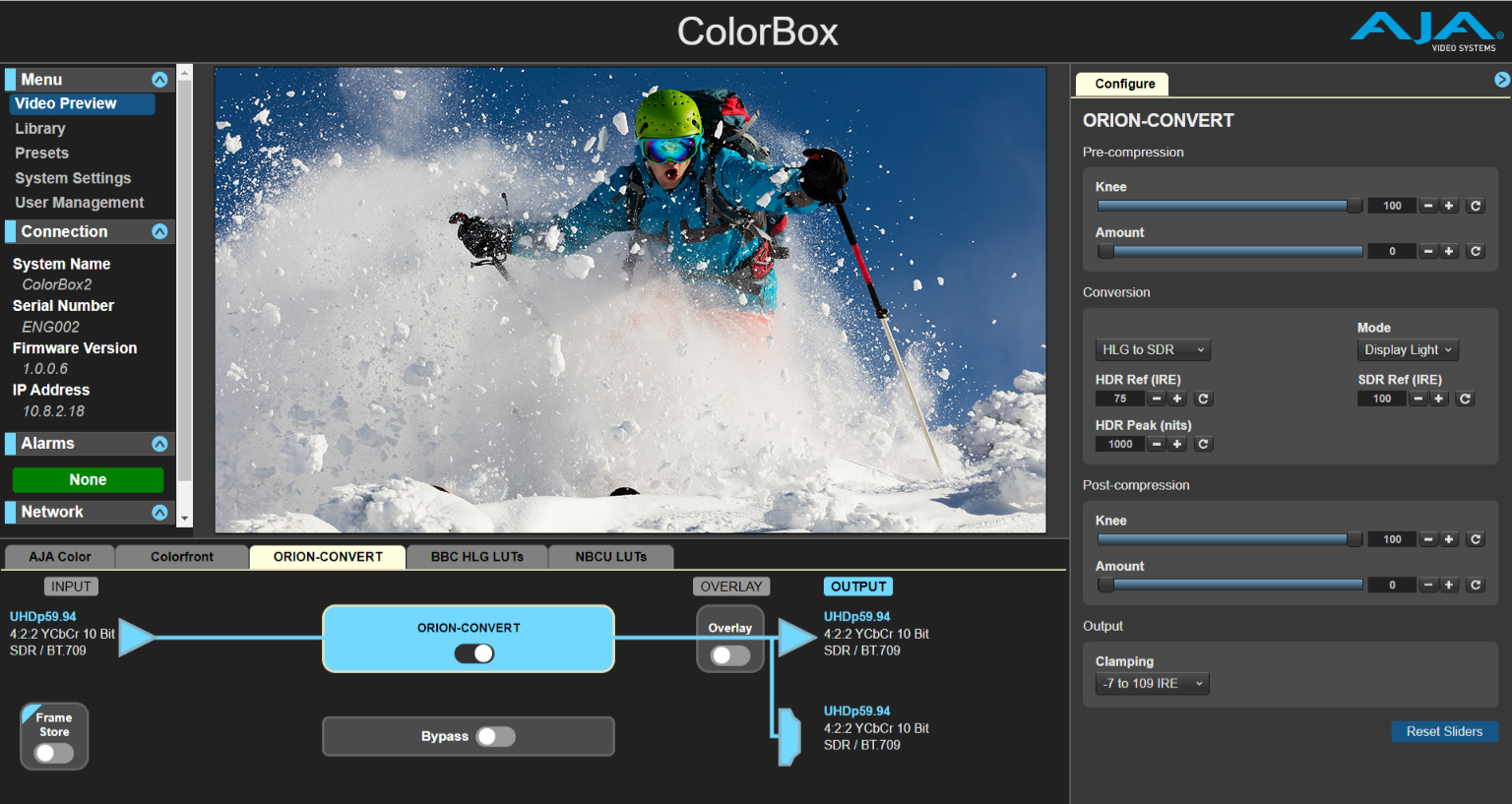

ORION-CONVERT Pipeline	• Conversion algorithm that uses floating point math • Pre and post transform Knee and Amount controls • Display-Light and Scene-Light Modes • Configurable HDR and SDR IRE Reference anchor points • Configurable HDR Peak Nits sets system gamma for display light conversions • Configurable Output Clamping • Input Video Dynamic Range/Color Gamut : SDR BT.709, PQ BT.2020, HLG BT.2100 • Output Video Dynamic Range/Color Gamut : SDR BT.709, PQ BT.2020, HLG BT.2100

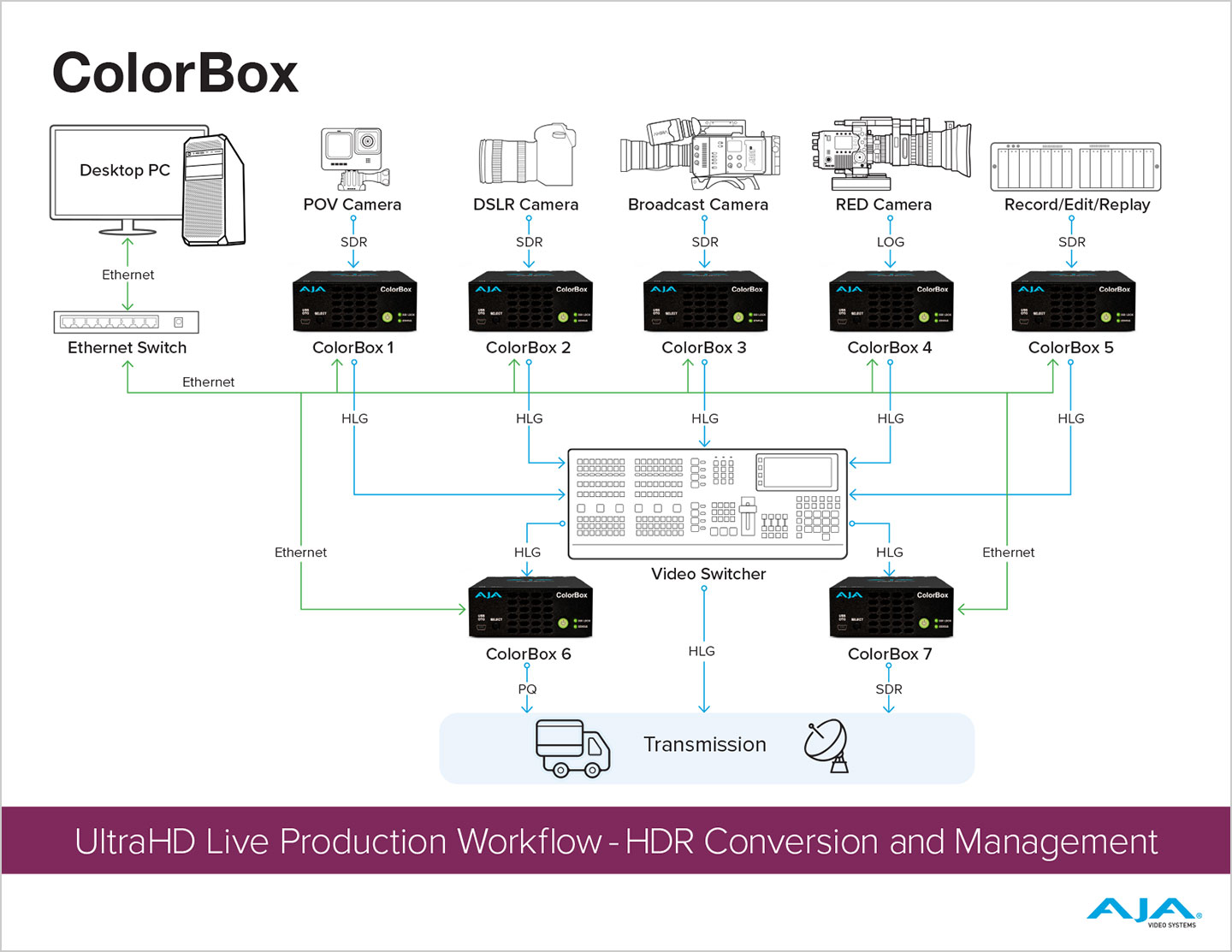

BBC HLG LUTs Pipeline	• Mathematical dynamic range mapping per ITU-R BT.2408 - SDR/BT.709 Scene Referred to HLG/BT.2100 v1.5 - SDR/BT.709 Scene Referred to HLG/BT.2100 Strict v1.5 - SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 v1.5 - SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 Strict v1.5 - SDR/BT.709 Display Referred to HLG/BT.2100 v.1.5 - SDR/BT.709 Display Referred UpMap to HLG/BT.2100 v1.5 - SDR/BT.2020 Display Referred to HLG/BT.2100 v1.5 - SDR/BT.2020 Display Referred UpMap to HLG/BT.2100 v1.5 - PQ 1000 Nits Display Referred to HLG/BT.2100 v1.5 - PQ 4000 Nits Display Referred to HLG/BT.2100 v1.5 - S-Log3/BT.2020 100% Scene Referred to HLG/BT.2100 v1.5 - S-Log3/BT.2020 200% Scene Referred(SR-Live) to HLG/BT.2100 v1.5 - HLG/BT.2100 to SDR/BT.709 Scene Referred v1.5 - HLG/BT.2100 to SDR/BT.709 Scene Referred Strict v1.5 - HLG/BT.2100 to SDR/BT.709 Display Referred v1.5 - HLG/BT.2100 to SDR/BT.709 Display Referred Super White v1.5 - HLG/BT.2100 to PQ 1000 Nits Display Referred v1.5 • RGB Color Corrector and ProcAmp
NBCU LUTs Pipeline	• NBCU LUTs developed by NBCUniversal Media, LLC - 1-NBCU_SDR2HLG_DL_v1, SDR UpMap to HLG using Display Light v1.0 - 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light v1.0 - 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light v1.1 - 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light v1.0 - 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light v1.0 - 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ v1.0 • RGB Color Corrector and ProcAmp

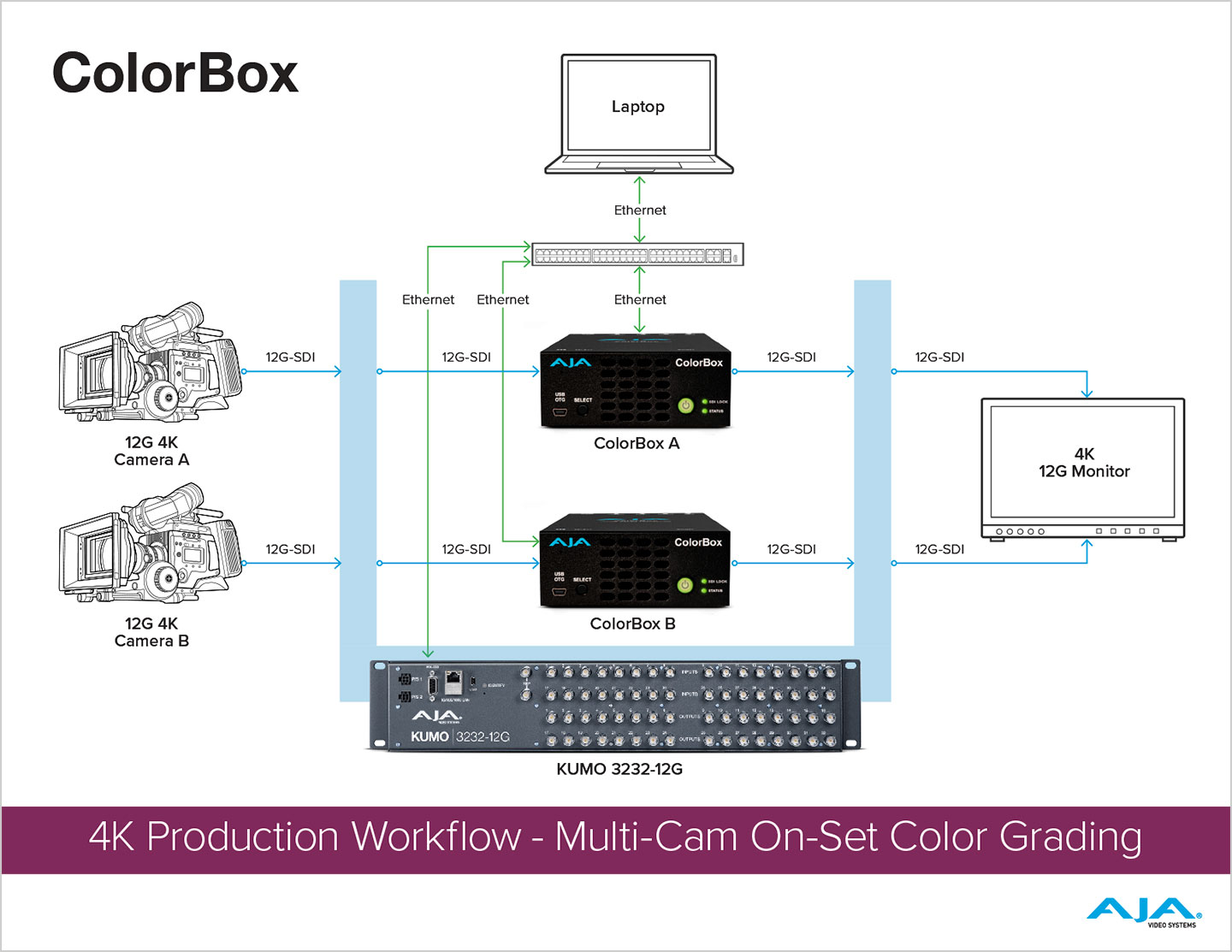

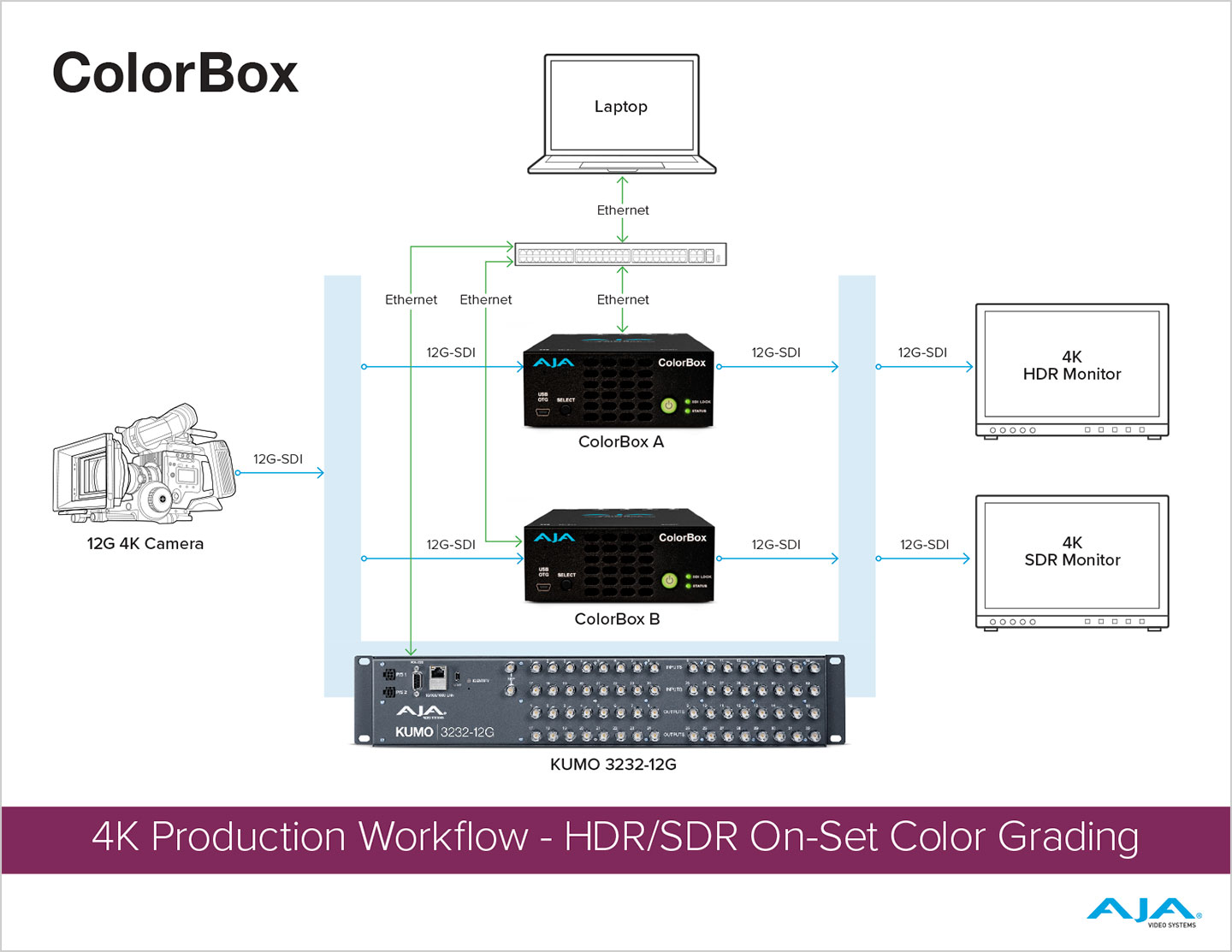

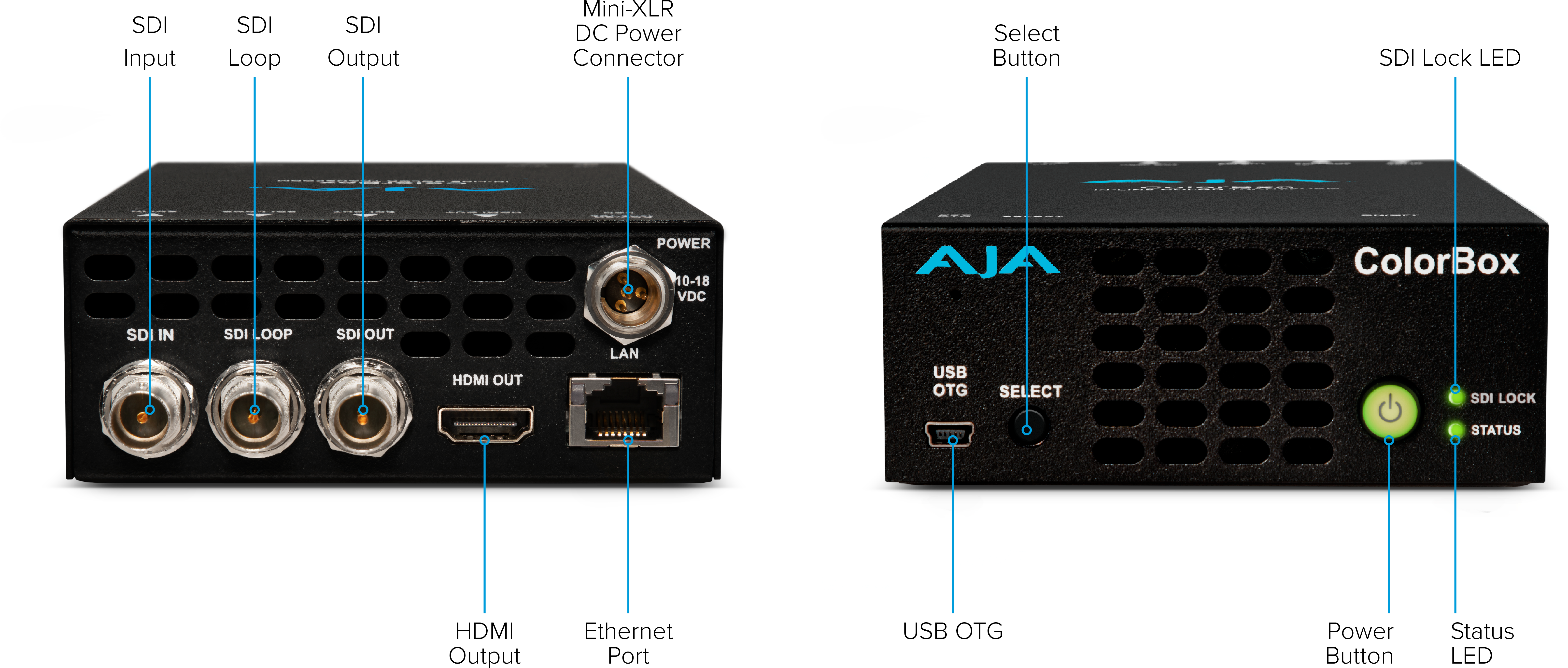

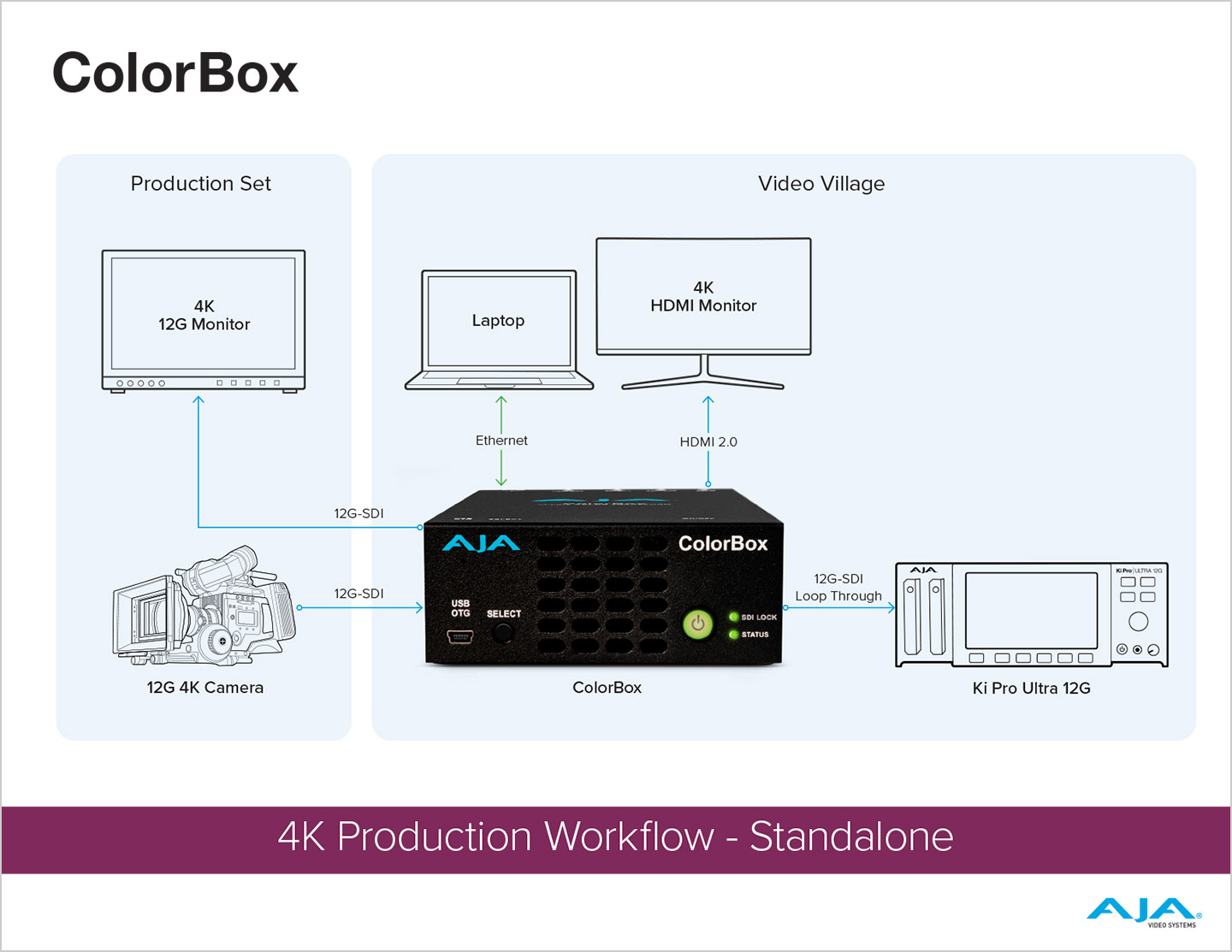

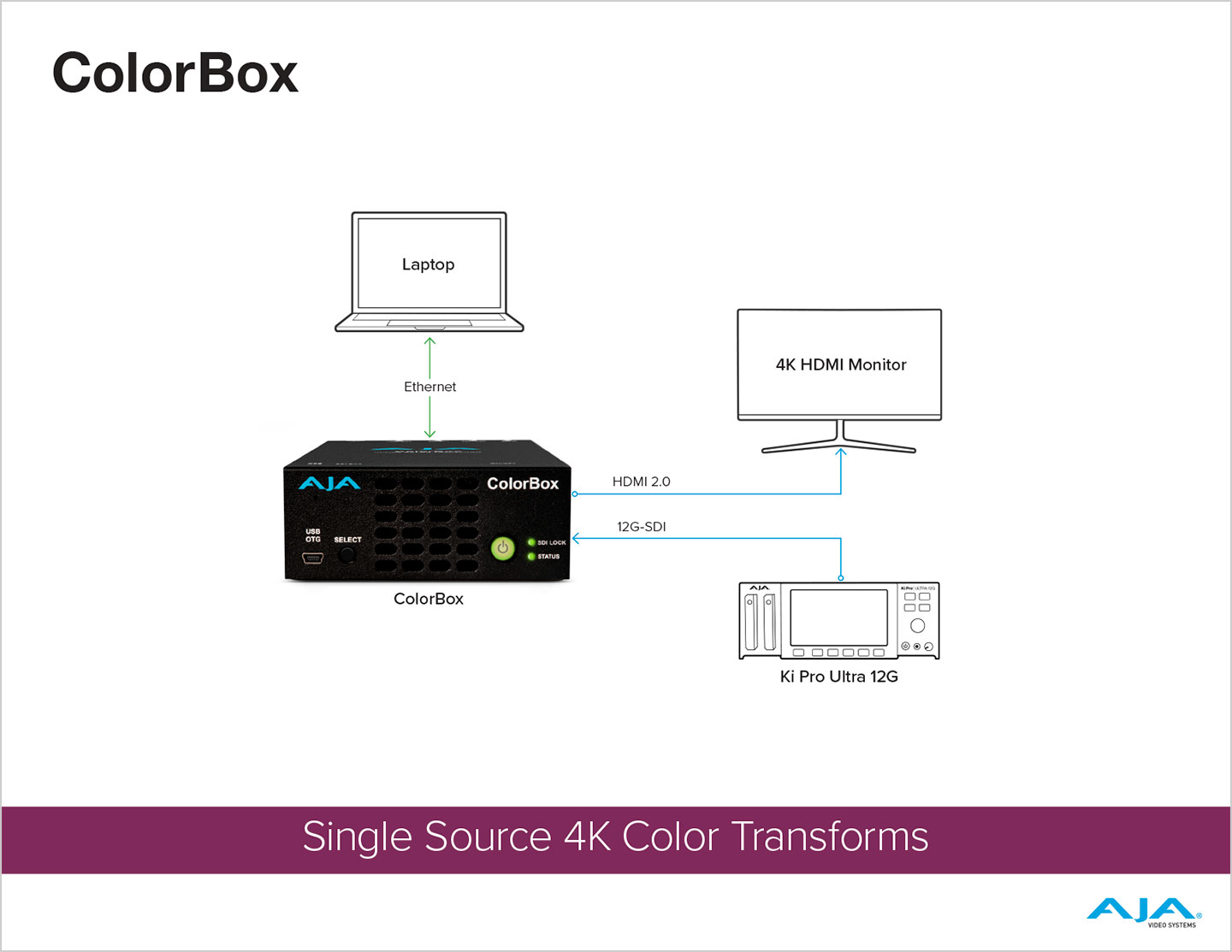

Video Input and Output SDIe	• 1x 12G-SDI Input BNC, SMPTE-292/424/2081/2082 • 2x 12G-SDI Output BNCs, SMPTE-292/424/2081/2082 • YCbCr 4:2:2/4:4:4 • RGB 4:4:4, SMPTE or Full level • 10 or 12-bit • 1x 12G-SDI - (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 - (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • 1x 6G-SDI - (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 - (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 • 1x 3G-SDI (Level A or B-Dual Link) - (2K) 2048x1080p 23.98, 24, 25, 47.95, 48, 50 - (2K) 2048x1080PsF 23.98, 24, 25v - (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 - (HD) 1920x1080i 50, 59.94, 60 - (HD) 1280x720p 50, 59.94, 60 • 1x 1.5G-SDI - (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 - (2K) 2048x1080PsF 23.98, 24, 25 - (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 - (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 - (HD) 1920x1080i 50, 59.94, 60 - (HD) 1280x720p 50, 59.94, 60 Note: Raster and Frame Rate Dependent, please see ColorBox Video Formats in Documents and Manual

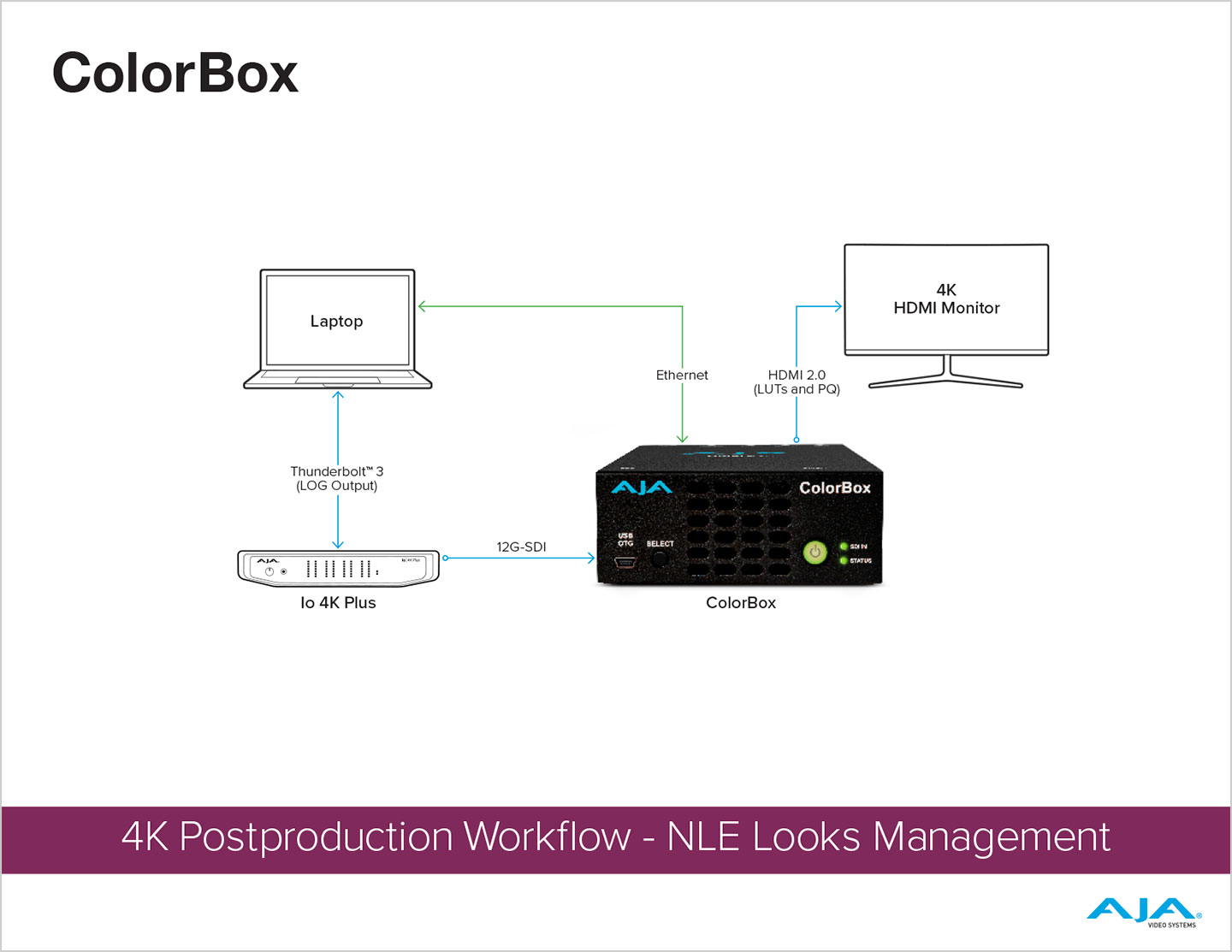

Video Output HDMI	• 1x HDMI Type A connector*, HDMI v2.0b • HDR infoframe generation with pass-through for Colorimetry and Transfer Characteristic • YCbCr 4:2:2 • RGB 4:4:4, SMPTE or Full level • 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit) • 4K/UltraHD/2K/HD *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio) Note: Raster and Frame Rate Dependent, please see ColorBox Video Formats in Documents and Manual
Video Processing	• Nominal video delay is less than 1/2 video line • Motion adaptive deinterlacer • Proc Amp controls • Color corrector • Legalizer

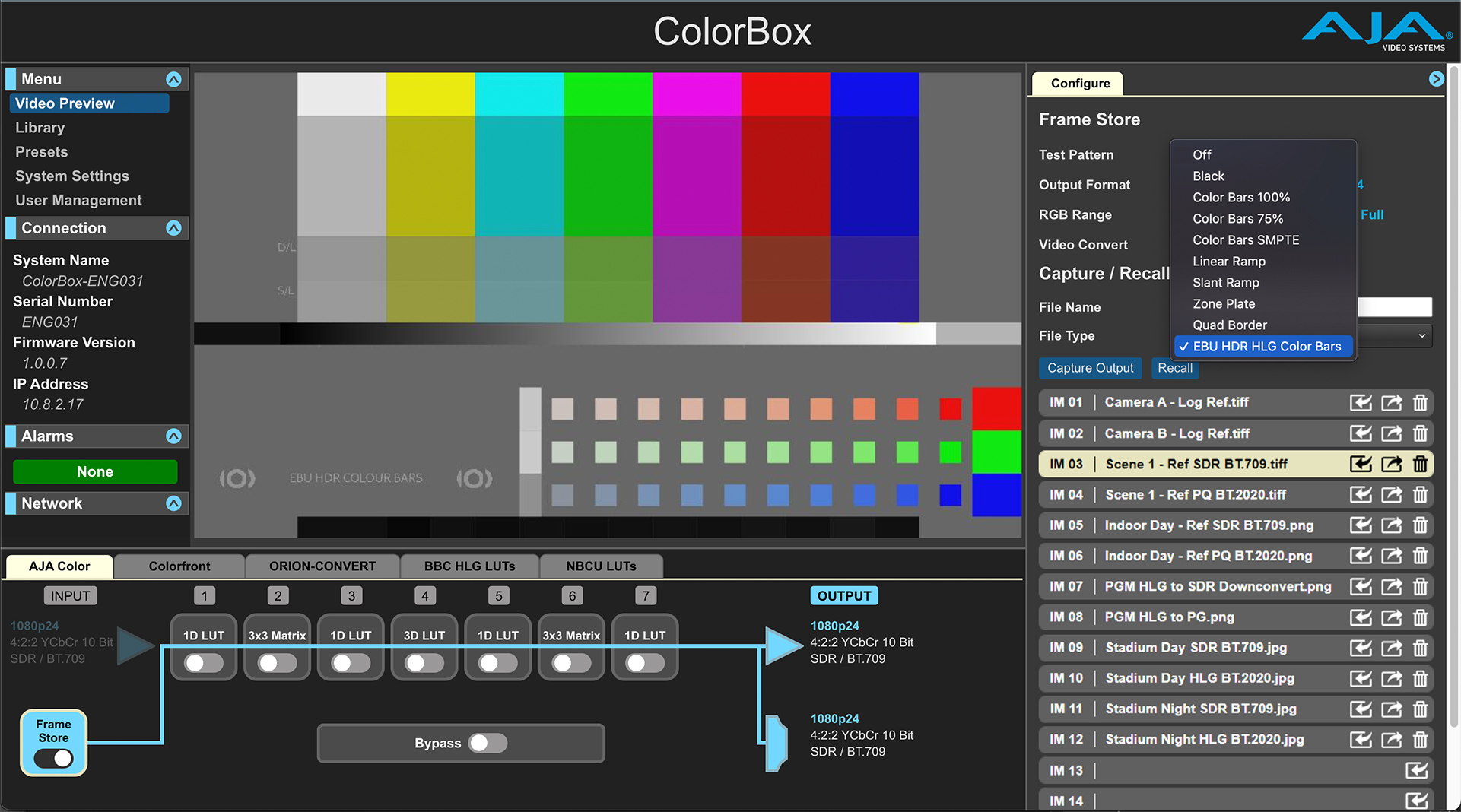

Frame Store	• Capture and Recall up to 4K/UltraHD 16-bit .TIFF • Capture and Recall .TIFF, .PNG, .JPEG • Capture input or output • Nonvolatile storage of 16 imagesr
Test Pattern Generator	• 10 or 12-bit • 9x patterns built-in • SDR and HDR test patterns

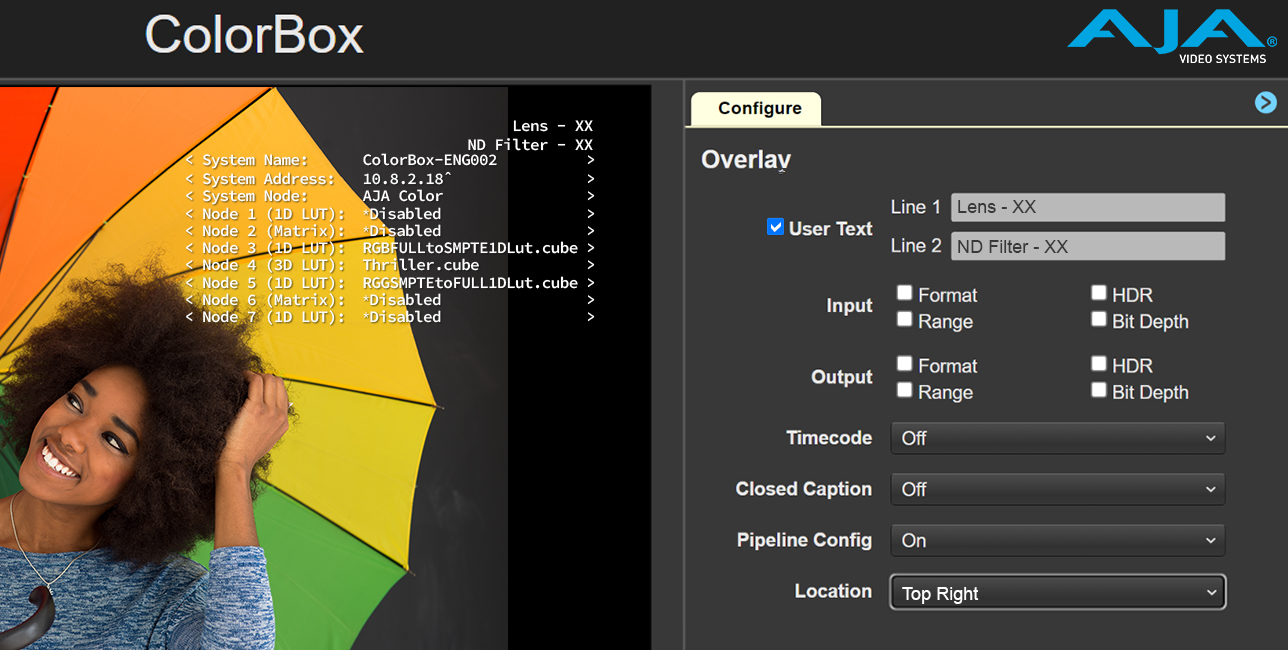

Ancillary Data	• All embedded ANC packets pass-through, including camera ancillary data • Overlay ancillary data on image
Audio Input Digital	• SDI embedded audio, 24-bit, 16-channel
Audio Output Digital	• SDI embedded audio, 24-bit, 16-channel • SHDMI embedded audio, 24-bit, 8-channel
Network Interface	• 1x RJ-45, 10/100/1000 Ethernet • Embedded web server for remote control • REST Interface • WiFi control available via 3rd party WiFi USB adapter* *Lynksys AC1200 and Netgear AC1900
USB Interface	• 1x Mini-USB for IP configuration using AJA eMini-Setup
Presets	• 10 Pipeline Presets per mode (AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs) • Startup Preset
Size (w x d x h)	• 4.10" x 7.54" x 1.66" (104.1 x 191.6 x 42.1 mm)
Weight	• 1.0 lb (0.5 kg)
Power	• External power supply required • Enclosure: 10-18VDC regulated, 4-pin mini-XLR, 16W typical 3G-SDI, 21W typical 12G-SDI, 25W max. • AC Adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W • Optional spare AC adapter sold separately, AJA-PWR-12-60W
Environment	• Safe Operating Temperature: 0 to 50 C (32 to 122 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet)
