AJA Dante AV 4K 影音轉換器 - Dante AV 4K-T / Dante AV 4K-R

Video Formats	• (4K) 4096x2160p • (UltraHD) 3840x2160p • (2K) 2048x1080p • (HD) 1920x1080p • (HD) 1280x720p
VESA Formats	• (WUXGA) 1920x1200 • (UXGA) 1600x1200 • (SXGA) 1280x1024 • (XGA) 1024x768 Note: VESA Formats are always RGB 4:4:4 60 8-bit
Discovery, Registration, and Control	• Dante Controller Software from Audinate (Windows or Mac) • Dante Ecosystem Friendly: Compatible with existing Dante-enabled products
Media Transport Interfaces	• SDI - YCbCr, 4:2:2, 10-bit • NDI - UYVY, 4:2:2, 8-bit - UYVA, 4:2:2, 8-bit - P216, 4:2:2, 16-bit (output only)
Video Processing	• Network Interface: Standard 1 GigE Ethernet • Audio Flow: Audio Flow x 8 Flows / 8-channels per Flow (unicast or multicast) • Video Flow: Video Flow x 1 Flow / 1-channel per Flow (unicast or multicast) • Timestamp: Hardware timestamping, supporting sample accurate playback
Video Input Digital(4K-T)	• 1x 12G-SDI BNC, SMPTE 292 (1.5Gb/s), 424, 425-A(3Gb/s), 2081, 2082, 352 SDI Metadata Supported - YCbCr 4:2:2 - 10-bit - Two Sample Interleave (2SI) 4K/UltraHD source mapping • 1x 12G SDI - (4K) 4096x2160p 50, 59.94, 60 - (UltraHD) 3840x2160p 50, 59.94, 60 • 1x 6G SDI - (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 - (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 • 1x 3G-SDI (Level A) - (2K) 2048x1080p 50, 59.94, 60 - (HD) 1920x1080p 50, 59.94, 60 • 1x 1.5G-SDI - (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 - (HD) 1280x720p 50, 59.94, 60 • 1x HDMI Type A connector, HDMI v2.0 - YCbCr 4:4:4, 4:2:2 - RGB 4:4:4, SMPTE, or Full RGB - 8, 10, 12-bit (4K/UltraHD 4:4:4 limited to 8-bit) - (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (HD) 1280x720p 50, 59.94, 60 - (WUXGA) 1920x1200 - (UXGA) 1600x1200 - (SXGA) 1280x1024 - (XGA) 1024x768 Note: VESA Formats are always RGB 4:4:4 60 8-bit
Video Output Digital (4K-R)	• 1x 12G-SDI BNC, SMPTE 292 (1.5Gb/s), 424, 425-A(3Gb/s), 2081, 2082, 352 SDI Metadata Supported - YCbCr 4:2:2 - 10-bit - Two Sample Interleave (2SI) 4K/UltraHD source mapping • 1x 12G SDI - (4K) 4096x2160p 50, 59.94, 60 - (UltraHD) 3840x2160p 50, 59.94, 60 • 1x 6G SDI - (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 - (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30 • 1x 3G-SDI (Level A) - (HD) 1920x1080p 50, 59.94, 60 • 1x 1.5G-SDI - (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 - (HD) 1280x720p 50, 59.94, 60 • 1x HDMI Type A connector, HDMI v2.0* - YCbCr 4:4:4, 4:2:2, SMPTE, or Full RGB - 8, 10, 12-bit (4K/UltraHD 4:4:4 limited to 8-bit) - (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - (HD) 1280x720p 50, 59.94, 60 - (WUXGA) 1920x1200 - (UXGA) 1600x1200 - (SXGA) 1280x1024 - (XGA) 1024x768 Notes: 1. VESA Formats are always RGB 4:4:4 60 8-bit 2. Only one input can be used at a time. Unit will auto-detect source, or user can select input in software if both SDI & HDMI inputs are connected. *If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio).
Audio Input Digital(4K-T) & Audio Output Digital (4K-R)	• SDI embedded audio, 24-bit, 8-channel, 48 kHz PCM24 • HDMI embedded audio, 24-bit, 8-channel, 48 kHz PCM24
Audio Output Analog	• 2x RCA analog audio / Levels at -10 dBu (nominal)
IP Video Input (4K-R) & IP Video Output (4K-T)	• Dante AV Ultra - Single video channel
IP Audio Input (4K-R) & IP Audio Output (4K-T)	• Dante Audio - Up to 8-channel audio, 24-bit per channel, 48 kHz PCM24 - High quality, low jitter with onboard clock generator for audio - SRC Conversion Range: 1:8 to 8:1 - ASRC Latency: 80 samples (1.6ms 48 kHz)
Reference	• 1x BNC - (4K-T) Reference Out connector (For future use) - (4K-R) Reference Input connector (For future use)
Codec	• Video Codec: Optimized implementation of JPEG 2000 codec in FPGA, Licensed By IntoPIX; Dante API management interface • Video Resolutions and Color Depth: - SDI: Up to 4096x2160 60p; YCbCr 4:2:2 10-bit - HDMI: Up to 4096x2160 60p; RGB 4:4:4 8-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:2 8, 10, 12-bit • Audio Formats: Dante Audio over IP • Bit Rates: Up to 700 Mbps • Video Streaming: Unicast or Multicast • Copy Protection: HDCP 2.2, HDCP 2.3 for network • Latency: 0.5 frame (e.g., 2160p 60 Hz latency is < 8 ms between encoder and decoder), overall latency may increase depending on network configurations • Bandwidth 1: 4Kp60 10-bit 4:2:2; 500-600Mbps, results may vary depending on network configuration and management settings • Bandwidth 2: 1080p60 10-bit 4:2:2; 150-250Mbps, results may vary depending on network configuration and management settings

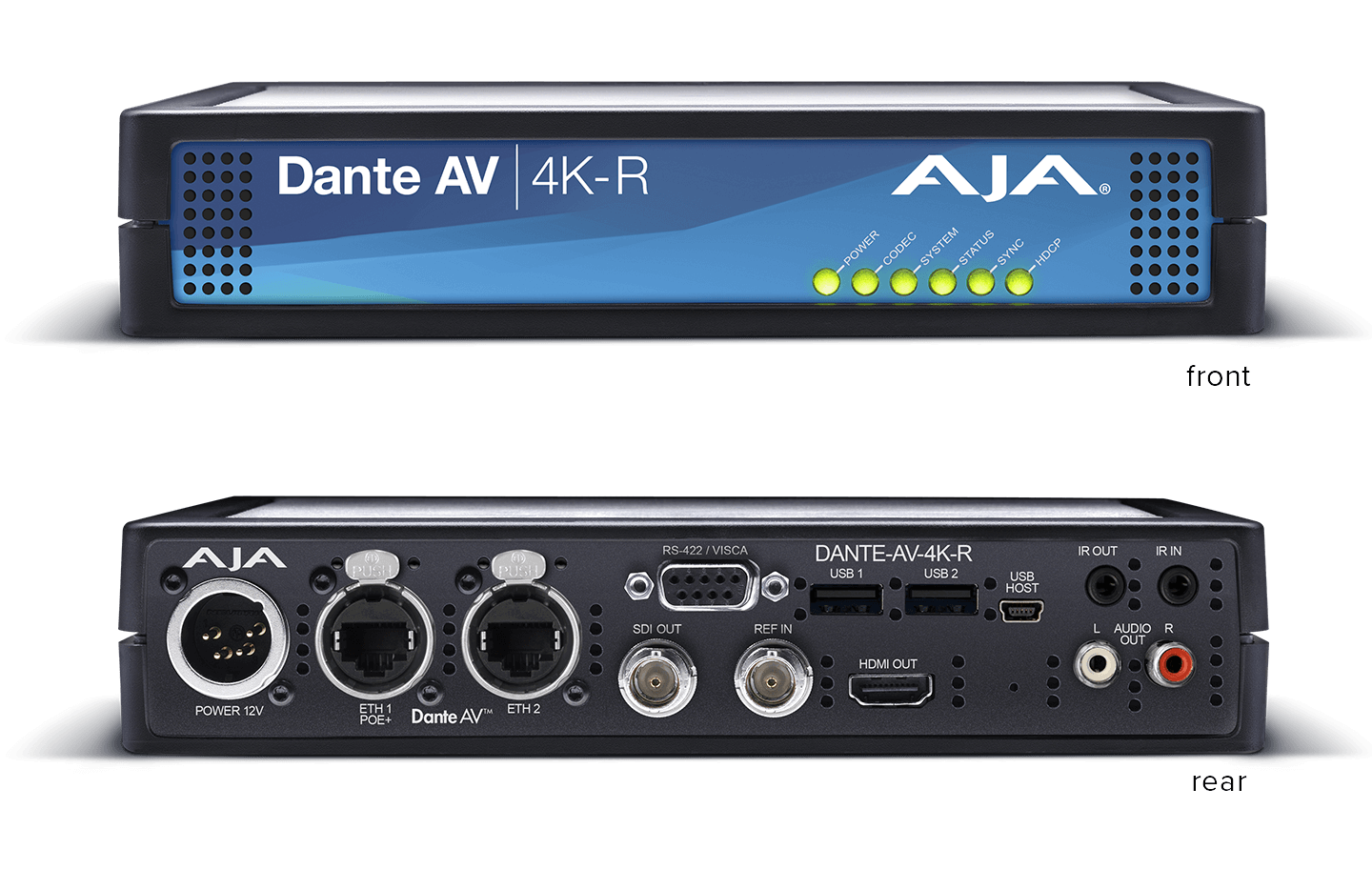

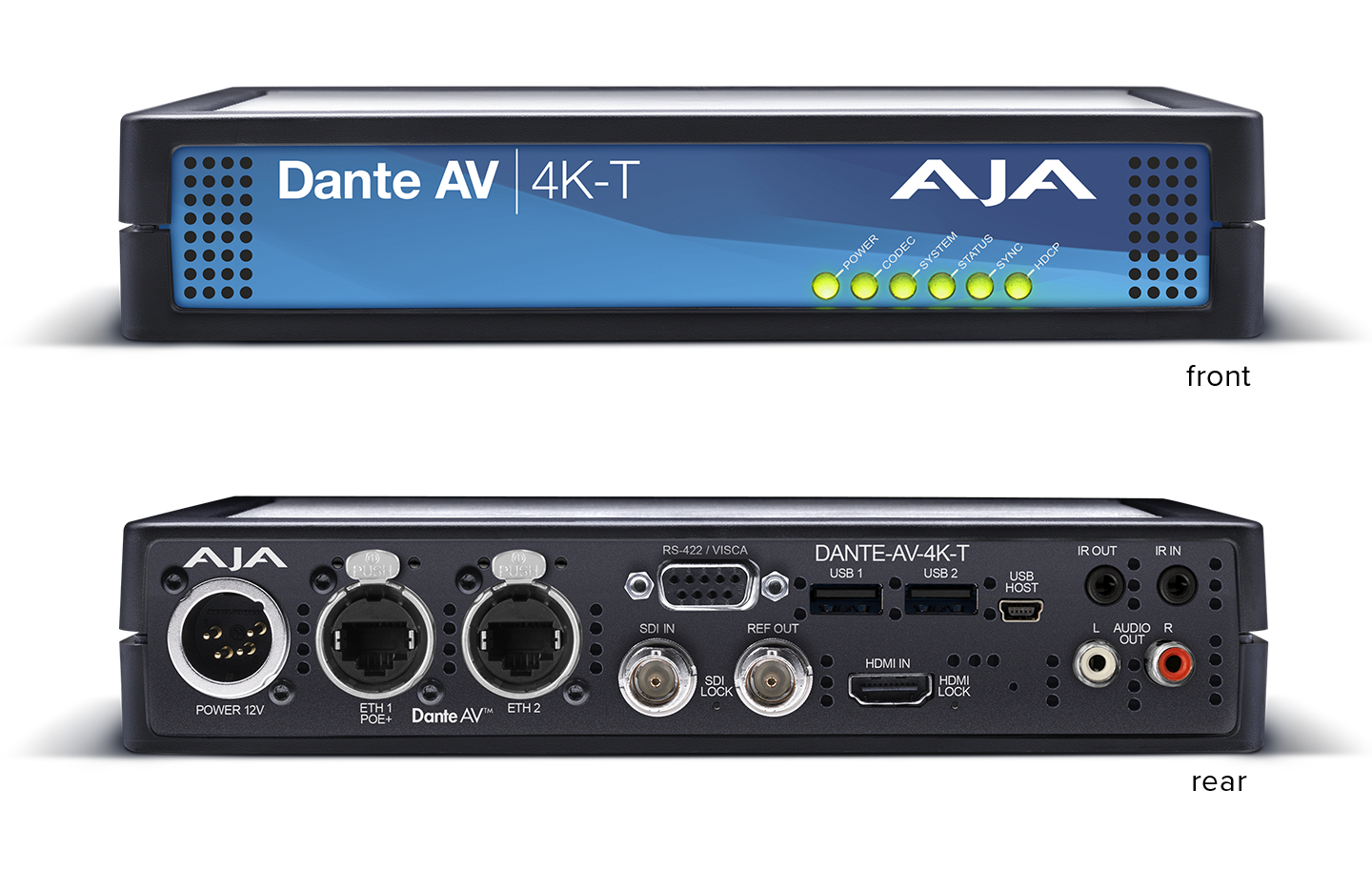

Hardware Interface	• 1x Neutrik etherCon RJ45 Connector – 1 GigE (Dante AV & POE+) • 1x Neutrik etherCon RJ45 Connector – 1 GigE (For future use) • 1x DB-9 RS-422/ VISCA Serial Port • 2x USB 2.0 Type A Connector • 1x USB 2.0 Mini-B Host connector • 3.5mm IR Tx jack for IR over IP • 3.5mm IR Rx jack for IR over IP • Front LED Indicators: Power, Codec, System, Status, Sync, & HDCP
Size (W x D x H)	8.74" x 7.09" x 1.65" (222.0 x 180.09 x 41.91 mm)
Weight	3.1 lbs (1.5 kg)
Power	30 Watts Maximum; 12V DC IN has priority over Ethernet 1 POE+. Ethernet 1 POE+ will become active a fraction of a second after 12V DC IN is disconnected.
Environment	• Safe Operating Temperature: 0 to 40 C (32 to 104 F)) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)) • Operating Relative Humidity: 10-90% noncondensing) • Operating Altitude: < 3,000 meters (<10,000 feet)



關鍵字 : #AJA.#aja video.#AJA Dante AV 4K.#Dante AV 4K-T.#Dante AV 4K-R。

*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
