FS4 檔案同歩器

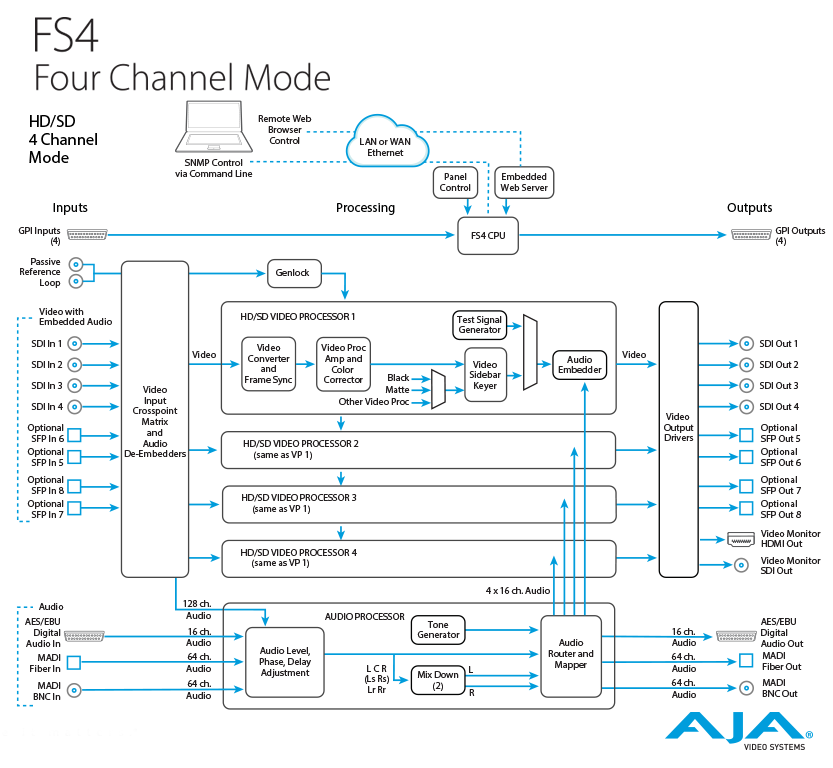

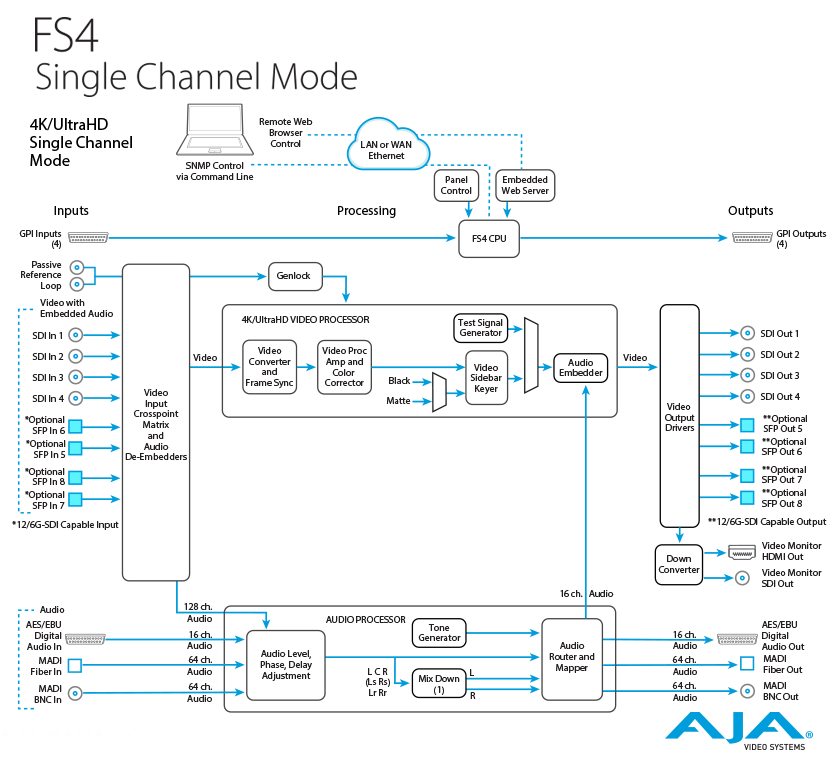

Modes of Operation	Four Channel Mode - 4x Independent 2K, HD, or SD Video Processors Single Channel Mode - 1x 4K, UltraHD, 2K, HD, or SD Video Processor Enhanced Single Channel Mode - 1x 4K, UltraHD Video Processor with simultaneous 4K/UltraHD and 2K/HD/SD outputs
Video Formats	• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 • (HD) 1920 x 1080i 50, 59.94, 60 • (HD) 1280 x 720p 50, 59.94, 60  • (SD) 625i 50 • (SD) 525i 59.94 • YCbCr, 4:2:2, 10-bit

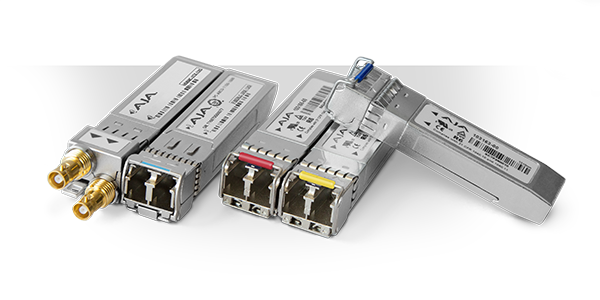

Video Input Digital	• • 4 x 3G-SDI inputs, 4 x BNC • 4 x 3G-SDI inputs, 4 x Fiber or HD-BNC (optional SFP modules)   • SFP fiber modules, 3G-SDI, dual LC, single LC, or single SC, SMPTE-297   • SFP fiber module, 12G/6G-SDI, dual LC, SMPTE-297   • SFP coax module, 12G/6G-SDI, dual HD-BNC • 12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082   • Single Link 12G/6G-SDI (with optional SFP module)   • Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5   • Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3   • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425   • Quad Link HD-SDI (4 x 1.5G)   • Dual Link HD-SDI (2 x 1.5G), SMPTE-372   • Single Link HD/SD • Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD input pixel mapping • 8 x 1 selector feeds video processor(s)
Video Output Digital	• 4 X 3G-SDI outputs, 4 x BNC • 4 x 3G-SDI outputs, 4 x fiber or HD-BNC (optional SFP modules)   • SFP fiber modules, 3G-SDI, Dual LC, Dual LC CWDM, Single LC, or Single SC, SMPTE-297   • SFP fiber module, 12G/6G-SDI, dual LC, SMPTE-297   • SFP coax module, 12G/6G-SDI, dual HD-BNC • 12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082   • Single Link 12G/6G-SDI (with optional SFP module)   • Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5   • Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3   • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425   • Quad Link HD-SDI (4 x 1.5G)   • Dual Link HD-SDI (2 x 1.5G), SMPTE-372   • Single Link HD/SD • Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD output pixel mapping
Monitor Output Digital	• 1 x BNC, 1 x 3G-SDI output    • 3G-SDI/HD/SD, SMPTE-259/292/424, 10-bits • 1 x HDMI, 1 x HD output   • 2K/HD/SD, HDMI v1.4a • Monitored Video Processor output (video and audio) is simultaneously output on both connectors • 4K/UltraHD down-converted to 2K/HD • Crop control on HDMI output
Video Processing	• Motion adaptive deinterlacer • Proc amp controls • Color corrector • Legalizer • Framerate conversion/film cadence removal/insertion (3:2, 1:2, 2:1, 2:3) • Adjustable delay 0-6 frames with H and V timing controls in lines and pixels • Closed Caption conversion (CEA-608/CEA-708) • AFD input detection, down-convert control, and output pass through or overwrite • Freeze (manual or on input signal loss) to black or last good frame • Matte generator for background fill • Video test generator • Nominal video delay, HD/SD, 2 frames (LFR), 4 frames (HFR)
Format Conversion	• Convert any supported input format to any supported output format, within the same frame rate family. These three families are:   • 59.94, 29.97, 23.98   • 50, 25   • 60, 30, 24
Scaling	• Supported in 2K/HD/SD formats   • Zoom in and out   • Reposition   • Region of Interest (ROI)
Up-Conversion	• Hardware 10-bit • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars • Zoom Letterbox: results in image zoomed to fill fullscreen • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting will introduce a small aspect ratio change
Down-Conversion	• Hardware 10-bit • Anamorphic: fullscreen • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved • Crop: image is cropped to fit video output format
Aspect Ratio Conversion for SD to SD	• Letterbox: Transforms SD anamorphic material to a letterboxed image • H Crop: Produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame • SD Pillarbox: Produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center • V Crop: Transforms SD letterbox material to an anamorphic image
Audio Input Digital	• 48 kHz sample rate • 8 x SDI embedded inputs (16-Channels each)   • 128-Channels, 24-bit (20-bit SD), SMPTE-272/299 • 8 x balanced AES inputs (16-Channels), 1 x DB-25   • 16-Channels, 24-bit, AES-3 • 2 x MADI inputs, 1 BNC, 1 x ST Fiber   • 128-Channels, 24-bit, AES-10
Audio Output Digital	• 48 kHz sample rate • 1 x SDI embedded output per Video Processor (16-Channels each)   • 16-Channels (in single Video Processor mode), 24-bit (20-bit SD), SMPTE-272/299   • 64-Channels (in four Video Processor mode), 24-bit (20-bit SD), SMPTE-272/299 • 8 x balanced AES outputs (16-Channels), 1 x DB-25   • 16-Channels, 24-bit, AES-3 • 2 x MADI outputs, 1 BNC, 1 x ST Fiber   • 128-Channels, 24-bit, AES-10
Audio Processing	• 277 x 208 mono audio matrix, route 1 to 1, 1 to many   • Inputs:  128 embedded, 16 AES, 128 MADI, 2 stereo mixdowns, 3 tone generator   • Outputs (Four Channel mode): 16 AES, 128 MADI, 64 embedded   • Outputs (Single Channel mode): 16 AES, 128 MADI, 16 embedded • Input adjustment controls for each channel   • Gain +18 to -18 dB in 0.5 dB steps   • Phase invert • Input adjustment controls for each channel pair   • Delay -16ms to +1sec in 20.8 us steps • Two independent 5.1 or 7.1 to stereo mixdown processors with gain adjust • High quality Sample Rate Conversion supported on all audio inputs • SRC bypass for non-PCM audio (e.g. Dolby E, AC-3, etc) • Audio tone generator (mute, 400 Hz, 1 kHz)
Reference Input	• External, 2 x BNC   • Looping, nonterminating   • Blackburst or tri-level sync
Genlock	• Lock to External Reference   • Lock to SDI input 1 thru 8   • Free run based on Temperature Compensated Crystal Oscillator
Network Interface	• 1 x RJ-45, 10/100/1000 Ethernet • Embedded web server for remote control • SNMP

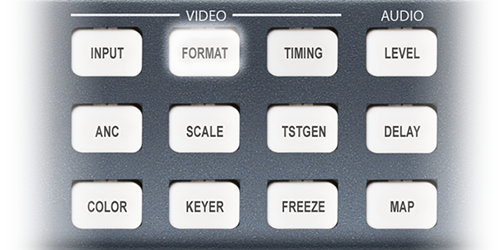

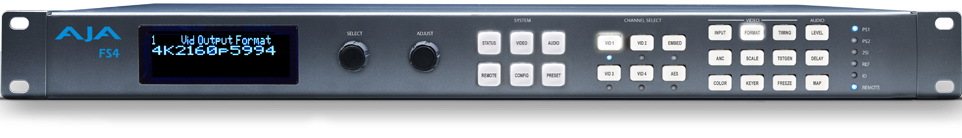

Front Panel	• Display • Keypad with status LEDs • Two rotary/push knobs • Comprehensive alarm indicators
Presets	• Each mode supports 40 Presets
GPI	• 1 x 25-pin D-Connector     • Four optically isolated GPI inputs     • Four optically isolated GPO outputs
Size (w x d x h)	• 17.5” x 16” x 1.75” (1RU) (444.5mm x 406.5mm x 44.4mm)
Weight	• 7.0 lb (3.6 kg)
Power	• 100-240 VAC 50/60 Hz (Dual, redundant power supplies), 55W typical; 70W max.
Environment	• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet)
