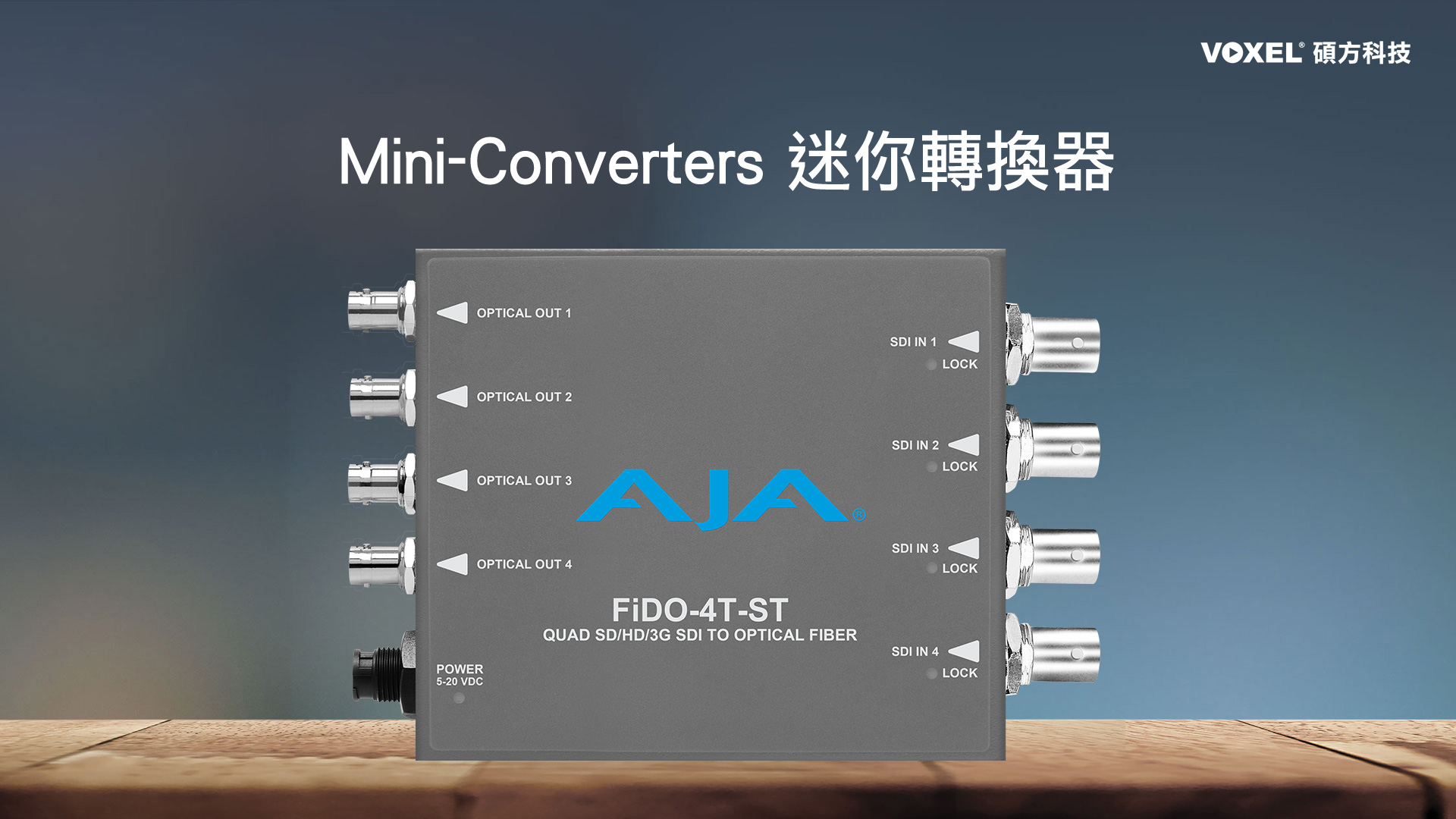

FiDO-4T-ST 迷你轉換器

Formats	150 Mbps - 3 Gbps, format agnostic
Video Input Digital	4-channel independent 3G-SDI BNC connectors, SMPTE 259/292/424
Video Output Digital	4-channel Single Mode ST Fiber Output, SMPTE-297 Nominal Wavelength: 1310 nm Optical Power: -8dBm (Min), -3dBm (Max) Extinction Ratio: 9dB (Typ)
Reclocking	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select All other rates are passed through and not reclocked
Size (w x d x h)	4.6" x 4.02" x 0.85" (117.0 x 102.11 x 21.6mm)
Weight	0.8 lb (0.4 kg)
Power	5 watts, max Uses 5-20VDC power, universal power supply included
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
