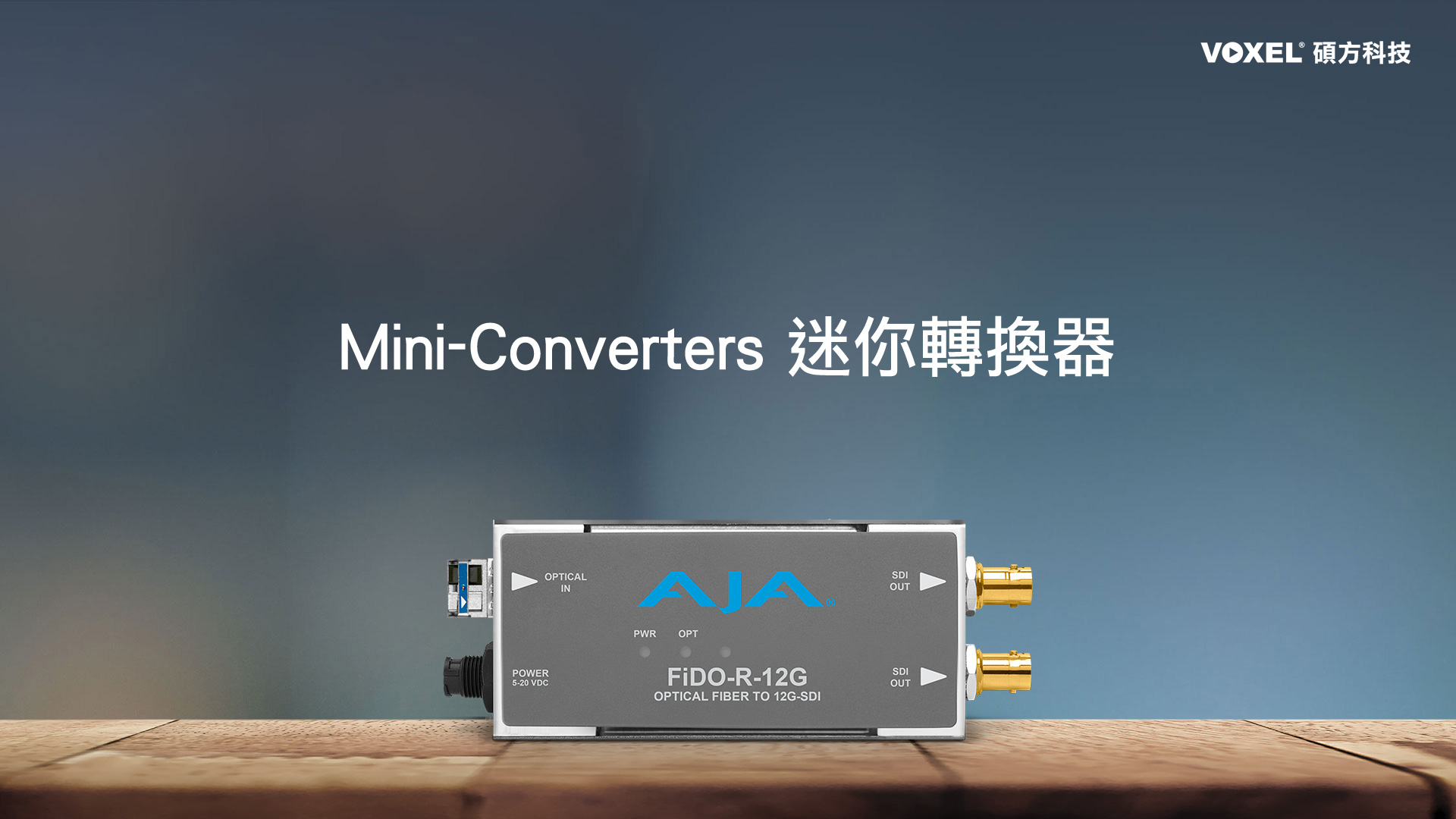

FiDO-R-12G 迷你轉換器

Formats	270 Mbps - 12 Gbps, format agnostic
Video Input Digital	1-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max) Optical Sensitivity: -10 dBm (Max) for 6 Gbps & 12 Gbps, -14 dBm (Max) for 270Mbps, 1.5 Gbps & 3 Gbps Overload Power: -2 dBm (Min)
Video Output Digital	1-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
Reclocking	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select All other rates are passed through and not reclocked
Size (w x d x h)	4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6 mm)
Weight	0.4 lb (0.2 kg)
Power	2 watts, max Uses 5-20VDC power, universal power supply included
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
