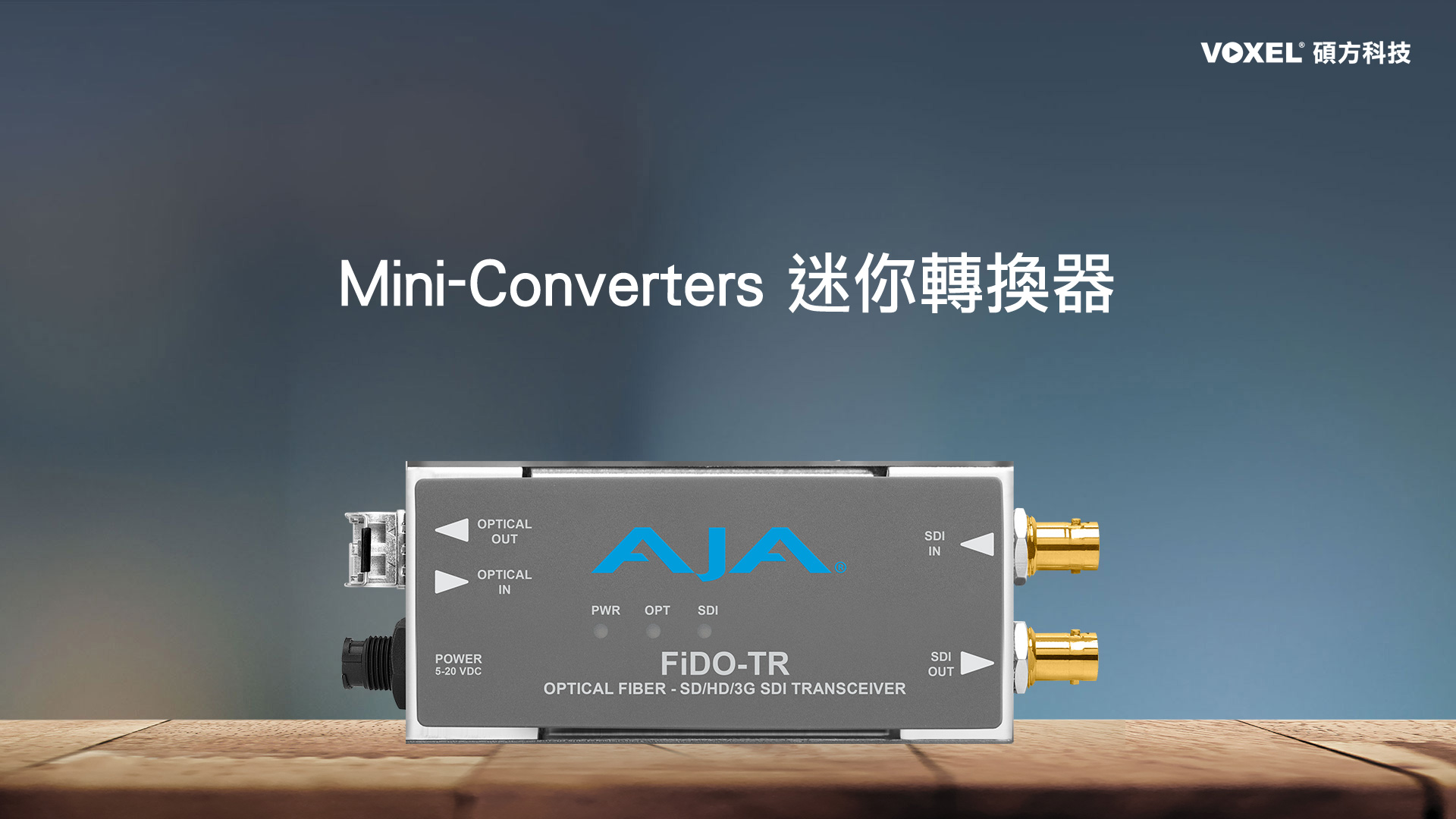

Fido-TR-MM 迷你轉換器

Formats	270 Mbps - 12 Gbps, format agnostic
Video Input Digital	1-channel independent 3G-SDI BNC connector, SMPTE 259/292/424 1-channel independent 3G-SDI Multi-Mode LC Fiber connector, SMPTE 297 Nominal Wavelength: 1260-1620 nm Optical Sensitivity: -18dBm (Max) Overload Power: -3dBm (Min)
Video Output Digital	1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424 1-channel Multi-Mode LC Fiber Output, SMPTE-297 Nominal Wavelength: 1310 nm Optical Power: -5dBm (Min), 0dBm (Max) Extinction Ratio: 7.5dB (Typ)
Reclocking	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, - Auto Select All other rates are passed through and not reclocked
Size (w x d x h)	4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6 mm)
Weight	0.4 lb (0.2 kg)
Power	3 watts, max Uses 5-20VDC power, universal power supply included
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)



*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
