Network Video Input	32 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input	32 x IP inputs via NDI, resolution-independent, with support for key and fill
SDI Video Input	8 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates* - 1080p: 59.94, 50, 29.97, 25 - 1080i: 59.94, 50 - 720p: 59.94, 29.97, 25 - 576i 50 - 480i 59.94 * Optionally supports up to 32 simultaneous 3G/HD/SD-SDI video inputs or quad-link 3G-SDI video inputs (4K UHD) via network integration with NewTek NC1 conversion modules 2 Available frame rates determined by session video standard (NTSC or PAL)

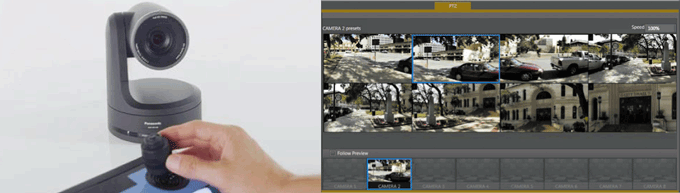

PTZ	Support for up to 32 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system

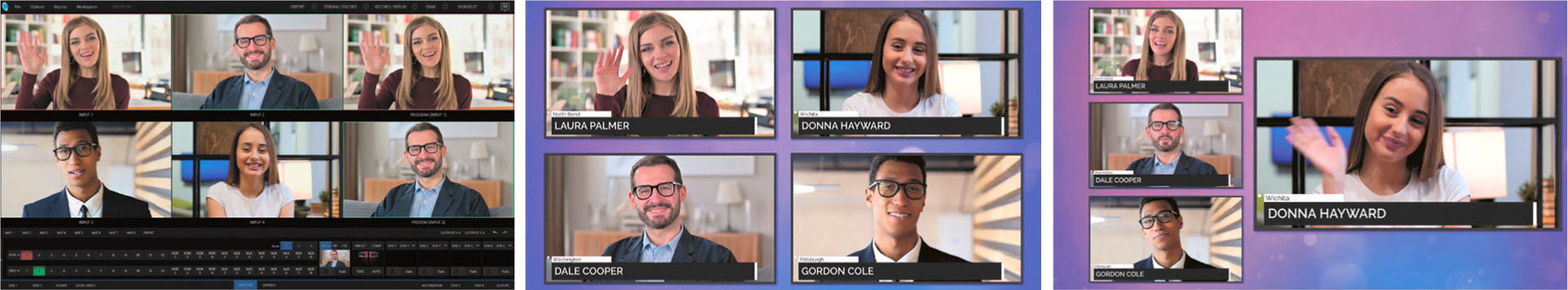

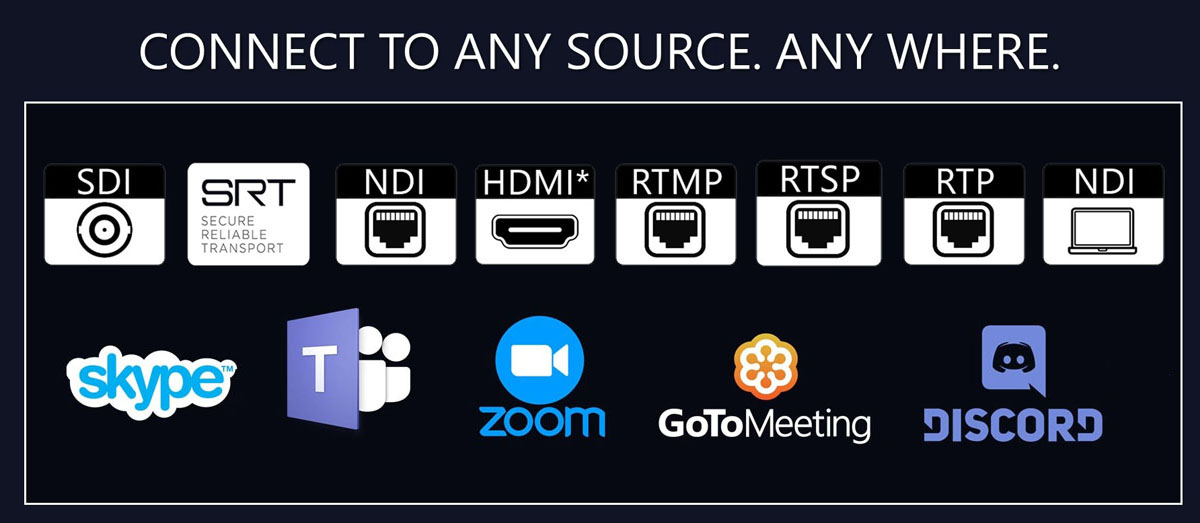

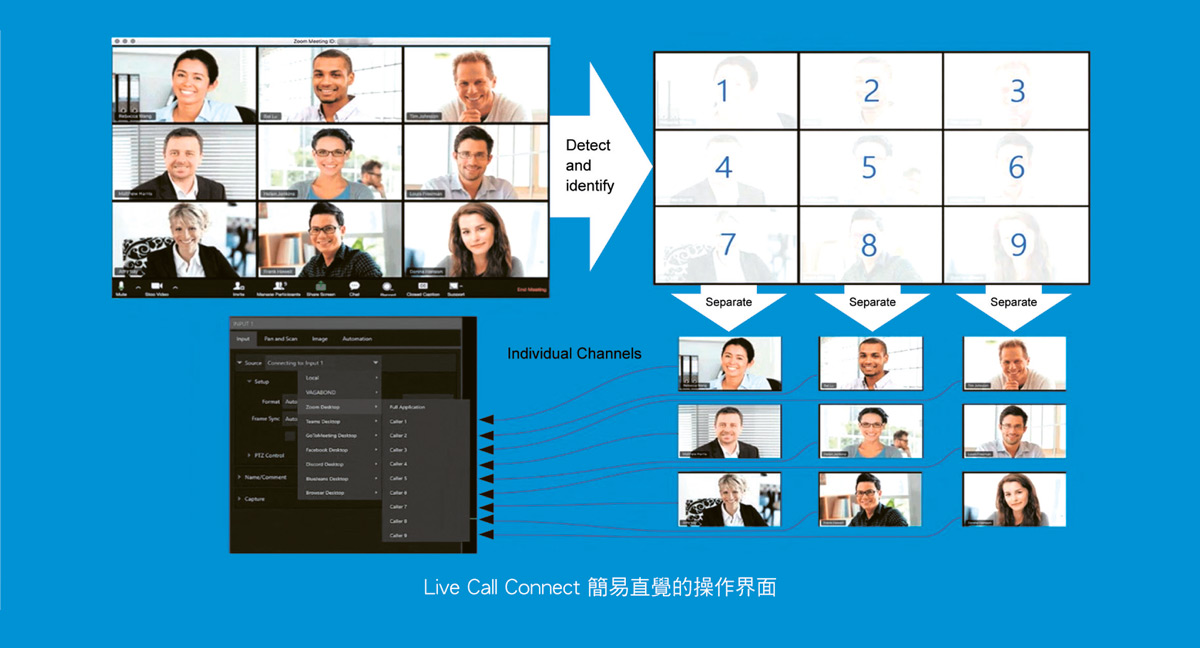

Conference Calling	Support for multiple simultaneous video call inputs with Microsoft Skype, Microsoft Teams, Zoom Meetings, GoToMeeting, Discord, and Tencent software integration using the Live Call Connect feature.
Video Output	Configurable for up to 8 independent HD or 2 UHD video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output	48 x IP outputs via NDI (HD and SD sessions only) - 8 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps (1080p 59.94) or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94) - 8 x direct IP source outputs via NDI translation of local SDI inputs or 2 x upconverted UHD outputs at up to 60 frames per second (2160p 59.94) - 4 x direct IP source outputs via NDI translation of media players, with support for embedded alpha channel - 15 x direct IP source outputs via NDI translation of media buffers, with support for embedded alpha channel - 3 x Multiviewer outputs (if 3 monitors are connected).4K support on 2x Multiviewer outputs while the 3rd outputs in HD - 1 x User Interface with dedicated multiviewer - 1 x teleprompter output (LiveStory Creator) - 8 x selectable IP outputs via internal NDI matrix router
SDI Video Output	- 8 x 3G/HD/SD-SDI connections, optionally configurable for: - 8 x independent 3G/HD/SD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates* - 2 x UHD video mix output via 3G-SDI quad-link grouping, supporting frame rates up to 60fps (2160p 59.94) * Available frame rates determined by session video standard (NTSC or PAL)

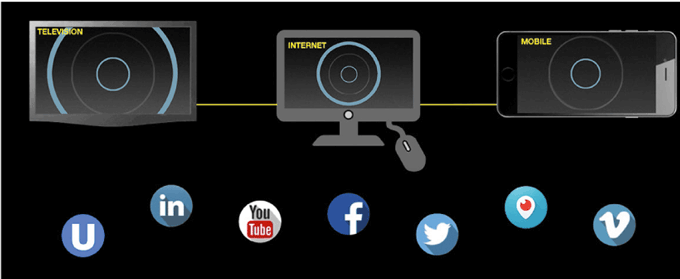

Stream Output	3 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream recording. Support for SRT streaming has been enabled.
Multiviewer Output	4 x multiviewer outputs supporting standard display resolutions, using any combination of available connections. Support for 4K on 2x DisplayPorts 1 x HDMI 3 x DisplayPort
Mix/Effect Buses (M/E)	8 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 4 sources 4 x KEY layers per bus 9 x memory slots per bus 1 x PREVIZ configuration and preview bus
DSK Channels	4 x DSK channels

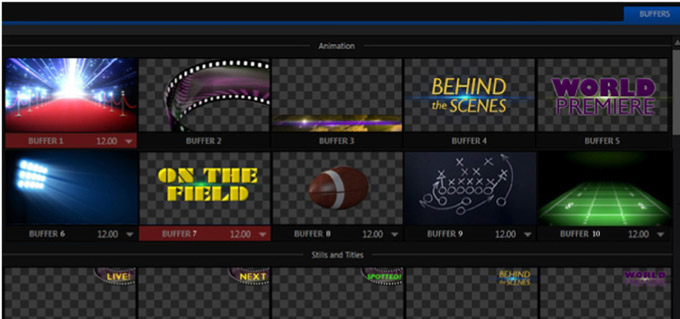

Media	- 5 x media players - 4 x DDR - 1 x Sound - 15 x media buffers - 10 x animation buffers with GIF support - 5 x graphic buffers

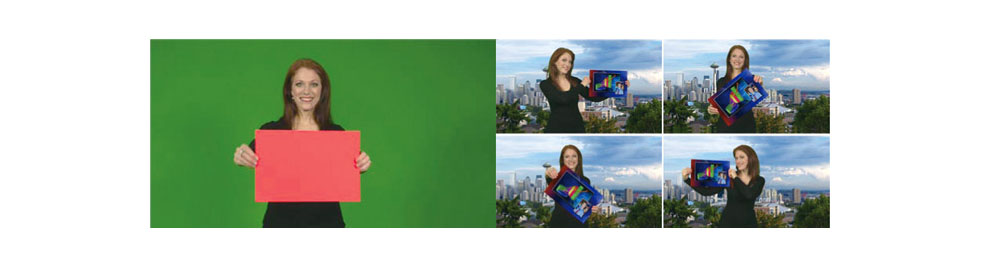

Keyers	Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses - 32 x input keyers - 4 x media player keyers - 8 x M/E keyers - 1 x PREVIZ keyer - 15 x buffer keyers
COMPs	Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences - 16 x configurable COMP presets per bus

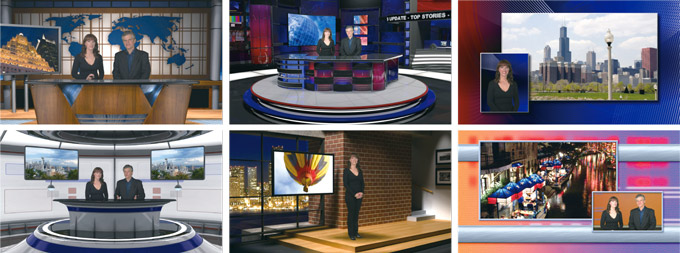

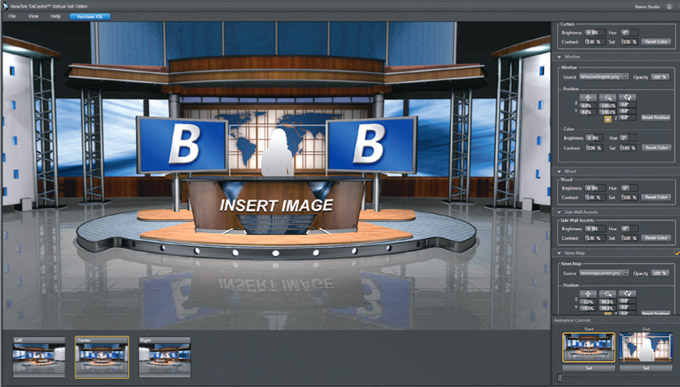

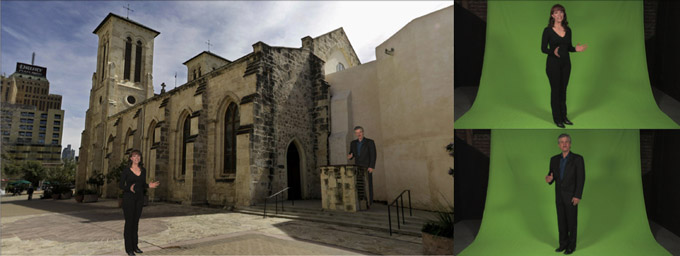

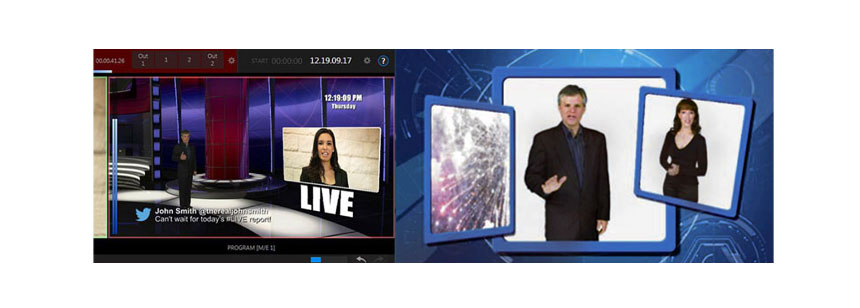

Virtual Sets	Integrated LiveSet technology with 30+ live virtual sets and box effects included

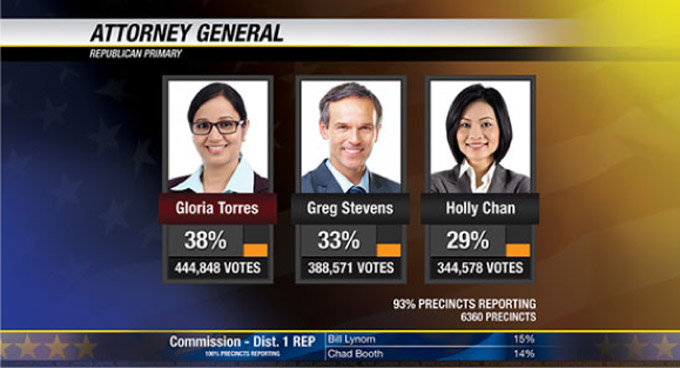

DataLink	Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences - Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers - Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions - Supports control via web-based interface
Recording	- 32 x total video recording channels - 8 x configurable M/E channels for HD or 2 x for UHD - 8 x physical SDI inputs - 4 x DDR’s - 2 x streaming encoders - Support for growing file playback from DDR’s - Instant Replay capability on each input - 32 x total configurable inputs
Storage	1 x 4TB SSD internal storage - Quantity varies by format, resolution and file specification - Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2 type C, 1 USB 2.0 2(Gen2, Type A) - Supports shared storage integration and third-party partner solutions
Grab	Grab full resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

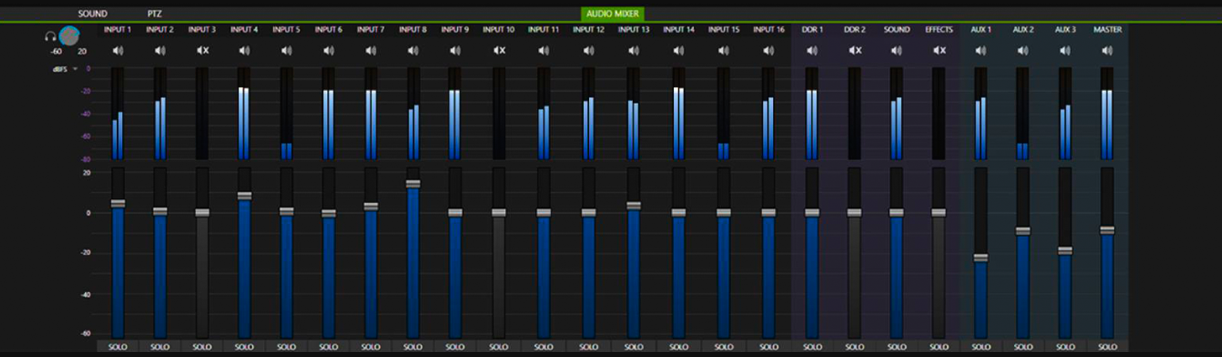

Audio	16 channels of audio passthrough Integrated multi-channel audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing
Local Audio Input	- 8 x SDI embedded - 1 x Balanced XLR stereo pair (Line) - 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output	- 8 x SDI Embedded - 1 x Balanced XLR stereo pair - 1 x Balanced 1/4” stereo pair - 1 x Stereo 1/4" (phones)
Network Audio	- Native support for network audio input and output via NDI - Embedded audio supported for all NDIinput and output video signals - Integrated support* for Dante networking protocol from Audinate Support for AES67 protocol via compatible WDM audio drivers** * Requires Dante Virtual Soundcard license from Audinate (sold separately) ** Requires third-party virtual sound card license (sold separately)
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more - Audio: AIFF, MP3, WAV, and more

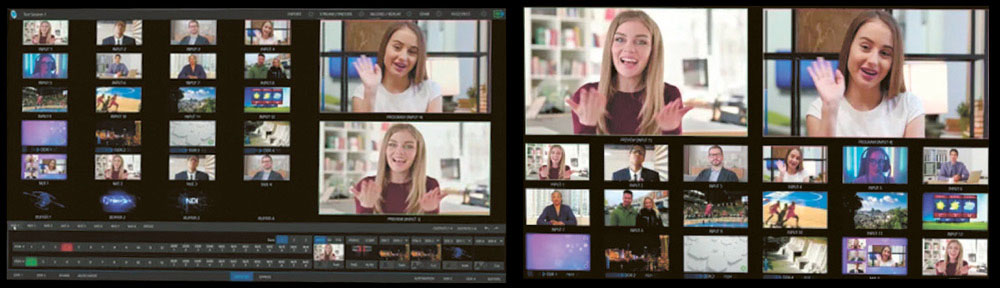

Monitoring	Support for up to 4 multiviewer displays with configurable workspaces and viewports. Support for 4K on 2 multiviewers while the other 2 multiviewers output in HD.
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	- Video: Floating Point YCbCr +A 4:4:4:4 - Audio: Floating Point, 96 kHz
Throughput	Latency~1.0-1.5 frames
A/V Standards	- UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split) - 3G-SDI video conforms to SMPTE 424M (Level A) - HD-SDI video conforms to SMPTE 292M - SD video conforms to SMPTE 259M and ITU-R BT.656 - Analog audio levels conform to SMPTE RP-155
Tally	Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard
Genlock	Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
GPI	Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI	Support for standard MIDI protocol enabling third-party device control
System Drive	250GB SSD
NIC	- 1 x 10 Gigabit SFP NIC* Intel Ethernet Converged Network Adapter X520 10Gbps PCI Express - 1 x 1 Gigabit NIC * Requires customer-supplied copper or optical SFP's

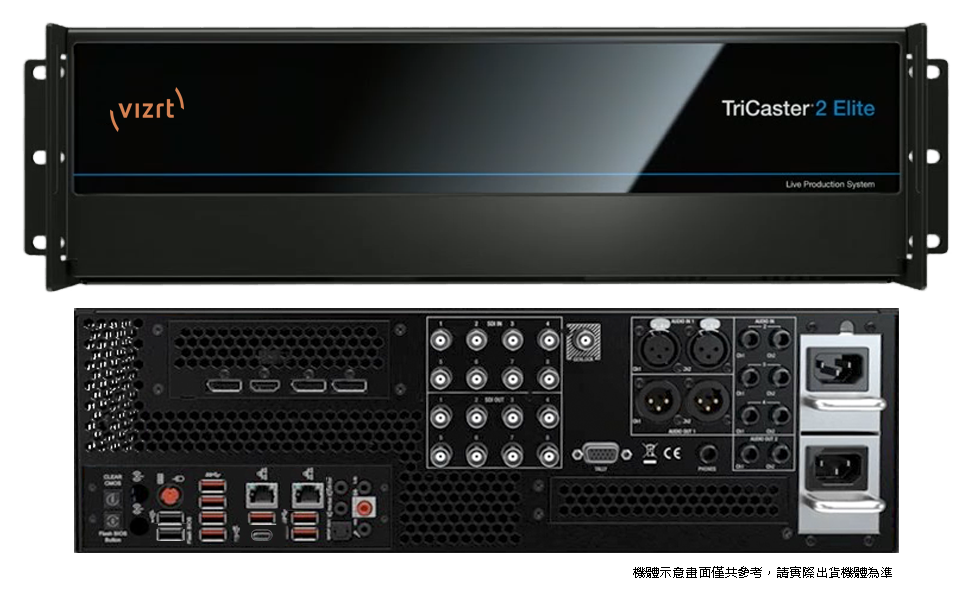

System Physical	3RU chassis with 650W redundant PSU and multi-tiered hardware and software fail-safe - 19.0 x 5.25 x 19.57 in (48.3 x 13.34 x 49.7 cm) with rack ears attached - 34 lbs (15 kg)



輸入輸出模組（選購）

NC2 I/O

可擴充8 組 NDI I/O，支援 3G/HD/SD NDI 與 SMPTE ST 2110。

專屬控盤（選購）

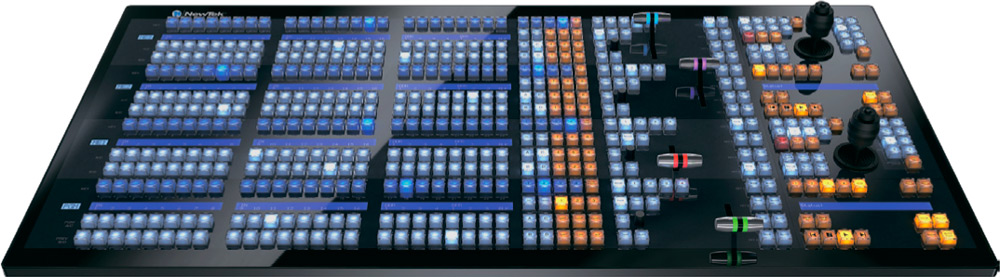

4-Stripe Control Panel

● 直覺的操作界面
● 支援網路 IP 技術多引擎控制
● 獨立式分區控制能支援多線操作
● T型搖桿與亮燈動態LCD顯示標籤
● 提供專業級即時視訊精確操作
● 兼具一流的工藝，最佳性能，人體工程學
● 107.7 x 54.0 x 15.6 cm

專屬控盤（選購）

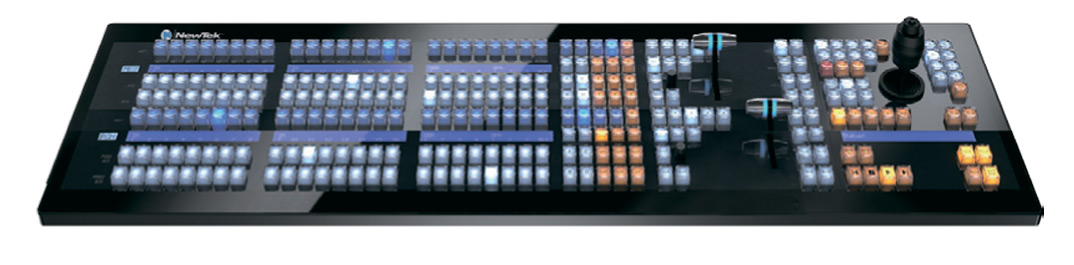

2-Stripe Control Panel

● 直覺的操作界面
● 支援網路 IP 技術多引擎控制
● 獨立式分區控制能支援多線操作
● T型搖桿與亮燈動態LCD顯示標籤
● 提供專業級即時視訊精確操作
● 兼具一流的工藝，最佳性能，人體工程學
● 90.7 x 30.4 x 12.7 cm

TriCaster Flex 專屬控盤（選購）

TriCaster Flex Dual Control Panel

TriCaster Flex Dual Control Panel
● 具有 24 個交叉點與 2 條獨立控制區域。控制燈鍵顏色與 UI 相同，能快速進行各種製播操作 ● 提供 4 行 LCD 顯示匯流排與媒體播放器狀態，與 2 行 LCD 顯示 10 鍵動態選單狀態與操作資訊 ● 每條控制區的具備使用者自定義功能，支援表列與通用控制 ● 全尺寸三向操作搖桿具有定位和 PTZ 控制功能 ● 音訊控制鍵，可用於聲音輸出 （1 與 2）、Talk Back 和耳機輸出 ● 動態 10 鍵選單系統支援每條控制區 ● 支援媒體播放器和巨集指令控制 ● 具備串流、擷取與重播多工操作 ● 內建 T 形桿漸變轉換控制 ● 93.06 x 46.27 x 8.2 cm

TriCaster Flex 專屬控盤（選購）

TriCaster Flex Control Panel

● 透過 NDI 網路控制網路上的視訊交換器
● 直接在單一控播盤上，控制音訊和視訊、PTZ 控制和對講機
● 借助音訊 I/O，可立即擴展任何 TriCaster 內建的 I/O，讓更多外部源直接從面板進入 NDI 製作系統
● 實用的 RGB 全彩按鍵燈效、T 型搖桿與 LCD 智慧動態提示
● 精確控制專業現場即時視訊的操作處理
● 實現最佳性能、人體工學與獨具風格的完美工藝
● 63.5 x 23.1 x 9.6cm

碩方科技 TriCaster 歷史延革

碩方科技從 2006 的 大導演-eTV系列開始行銷 TriCaster 全媒體廣播級多M/E製作導播系統，從早期的SDI SD/HD eTV-9000HD、eTV-8000HD、eTV-7000HD、eTV-5000HD 大導演製作多M/E導播機開始，一直到 2014 中期的 TriCaste VMC1、TriCaster8000、TriCaster TC1、TriCaster410、TriCaster Mini 更完整的廣播級多M/E製作導播系統， 到 2024 最新的TriCaster 2 Elite、TriCaster 1 Pro、TriCaster TC1、、TriCaster TC410Plus、 TriCaster Mini 4k、TriCaster Mini X、TriCaster Mini Go、TriCaster Vectar、TriCaster Now 提供全系列 NDI IP 製作與更強大的雲端服務，人性化友善操作界面，快速上手，不但整合動畫字幕圖形、虛擬場景、AR/VR/MR虛擬製作、多路串流錄製、多平台發布 、數位混音器、多監看畫面、兼具SDI/NDI IP製作、視訊會議製播與 4K UHD P60等強大的規格功能可以滿足最專業的影音製作。 二十多年來，TriCaster 已帶給教育、政府、企業、宗教與各種廣播級專業影音製作，最好的製播選擇。 未來，在AI技術覺醒的年代，智慧神經音訊擷取、自動AI追蹤、自動巨集控制與更強大AR/VR的製播能力都將更強大， 並加入更多實用的未來功能。 馬上擁有 Vizrt TriCaster 全媒體廣播級多M/E製作導播系統是最快速掌握未來製播的捷徑。放大故事力，技術一歩到位輕鬆前進未來。
