專業NDI轉換器
Magewell Pro Convert
For NDI to HDMI 4K
影音網路 NDI 連結轉換器
Magewell Pro Convert HDMI 4K Plus | HDMI Plus | HDMI TX |
12G SDI 4K Plus | SDI 4K Plus | SDI Plus | SDI TX |
NDI to HDMI AIO | NDI to HDMI | NDI to HDMI 4K

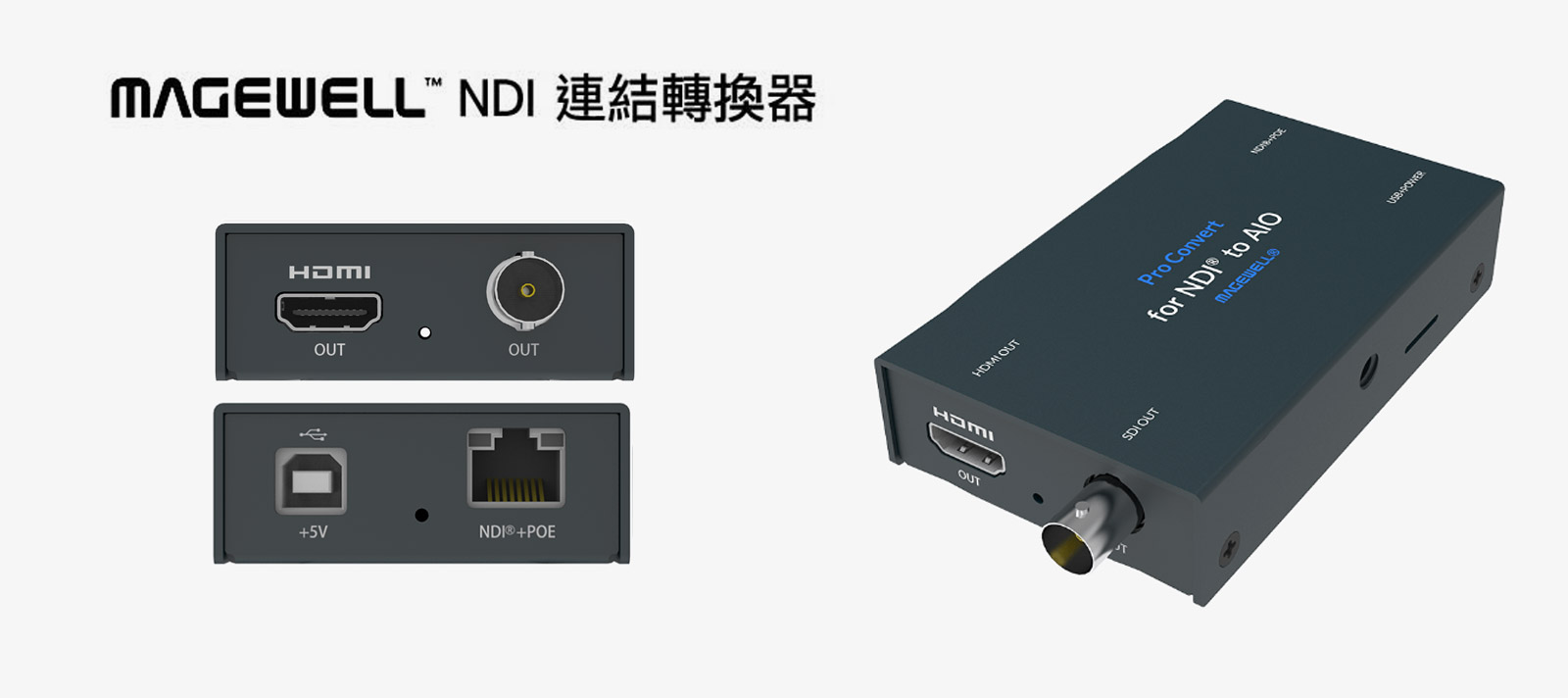

Pro Convert AIO 影音網路 NDI 連結轉換器， 獨立標準 NDI 解碼器
重點功能
● 將 NDI 視訊轉成 HD HDMI/3G-SDI信號

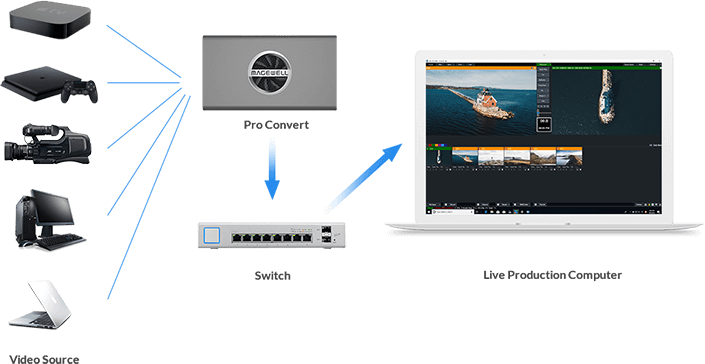

設備連線
產品規格
Magewell Pro Convert 系列機型 ：
Pro Convert for NDI to HDMI 4K
Pro Convert for NDI to HDMI 4K
| Model | Pro Convert for NDI to HDMI 4K | ||
| Supported Web Browser (tested) |
Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above |
||
| Outputput Interfaces |
HDMI - HDMI 1.4 - HDMI 2.0 |
||
| Storage Interface | SD Card (functions to be developed) | ||
| Screw Mounting Hole | ¼–20 mounting hole | ||
| Network Interfaces |
10/100/1000Mbps Ethernet IEEE 802.3af PoE |
||
| USB Interface |
USB 2.0 Type B - 5V/2.1A power supply - USB RNDIS/ECM USB 3.0 Type A - Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings |
||
| Control Buttons | MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options | ||
| HDMI Output Features |
Support for up to 4:4:4 8-bit 4096x2160 60fps output HDMI resolutions Support for 96KHz 16bits 8-channel audio streams Support for delivering videos at the preferred video format according to the EDID of the connected monitor |
||
| Stream Decoding Features |
Support for decoding streams of NDI, RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP Support for decoding videos in H.264 and H.265 format Support for decoding up to 4K 60fps signal Support for modifying configurations using the Web UI or the Options menu Setting Video OSD composition, including - Source name & resolution - Tally indicators - Audio meter - Audio meter scale - Center cross - Safe area Video scaling, frame rate and aspect ratio conversion Video color format conversion - Auto or manual selection of input color format - Support for YUV BT.601, YUV BT.709 color formats Video vertical and mirror flip Remote controlling the PTZ device connected to the video source Setting audio gain, sample rate and channels Support for decoding sources in different network segment but can be able to pinged Support for decoding alpha channel, options are - Alpha only - Alpha blend with white - Alpha blend with black - Alpha blend with checkboard |
||
| NDevice Name |
Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting board-index, from 0 to F, through the on-board rotary switch |
||
| Firmware Upgrade | Support for manual update using Web UI | ||
| LED Indicator |
Power LED status indicator - On: power connected - Off: power unconnected Decode LED status indicator - On: decoding in progress - Blinks: decoding error - Off: source unselected |
||
| Form Factor | 117.5mm (L) x 66.7mm (W) x 23.4mm (H) | ||
| Accessories |
USB 2.0 A to B Cable 5V/2.1A power adaptor L-bracket |
||
| Power Consumption | 5V max current: ~1.6A / Max power consumption: ~7.2W | ||
| Working Environment |
Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
||
美樂威 Magewell Pro Convert 系列NDI轉換器
HDMI TX
HDMI Plus
HDMI 4K Plus
SDI TX
SDI Plus
SDI 4K Plus
12G SDI 4K Plus
NDI to HDMI AIO
NDI to HDMI
NDI to HDMI 4K
關鍵字 : #magewell. #ndi.#ip製作.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
