專業NDI轉換器

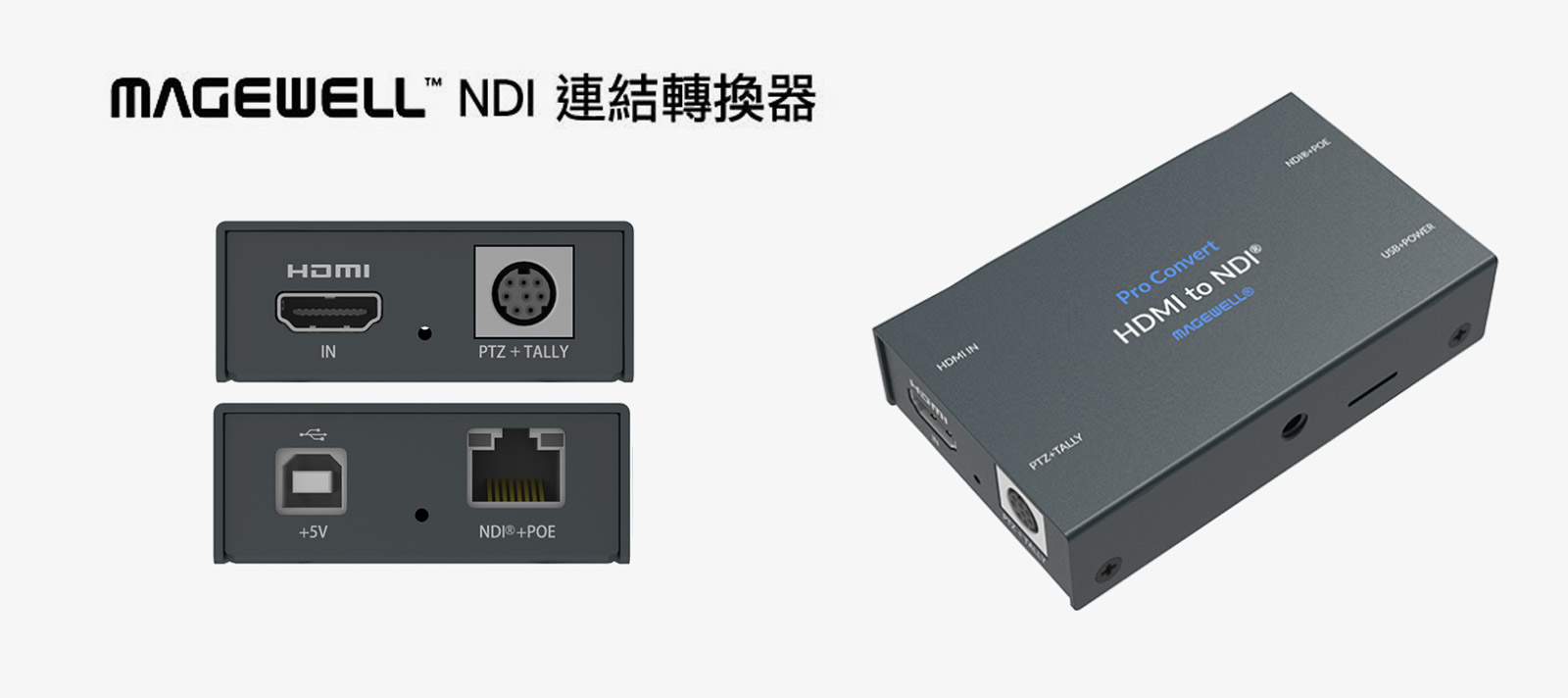

Magewell Pro Convert
HDMI TX
影音網路 NDI 連結轉換器
Magewell Pro Convert HDMI 4K Plus | HDMI Plus | HDMI TX |
12G SDI 4K Plus | SDI 4K Plus | SDI Plus | SDI TX |
NDI to HDMI AIO | NDI to HDMI | NDI to HDMI 4K
Pro Convert HDMI TX 影音網路 NDI 連結轉換器，一路 HD 訊號轉換器
重點功能
● 將一路 HDMI 信號 + 內嵌音訊轉為 NDI 視訊串

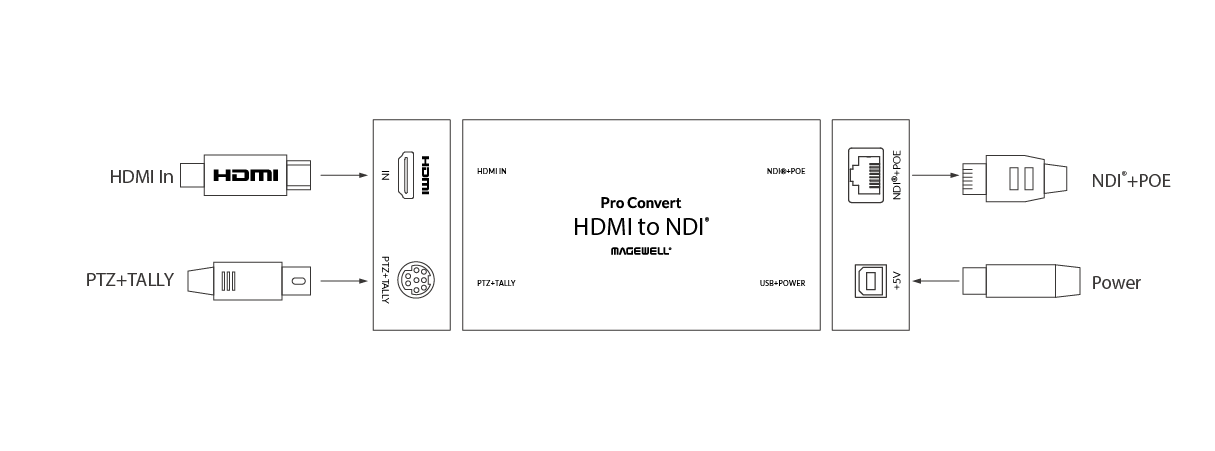

設備連線
產品規格
Magewell Pro Convert 系列機型 ：
Pro Convert HDMI TX
Pro Convert HDMI TX
| Model | Pro Convert HDMI TX | ||
| Supported Web Browser (tested) |
Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above |
||
| Supported Software (tested) |
OBS XSplit vMix VidBlasterX Wirecast streamstar SW mimoLive Any other NewTek NDI-enabled encoding or streaming software |
||
| Input Interfaces |
HDMI - DVI-D 1.0 - HDMI 1.4 |
||
| Storage Interface | SD Card (functions to be developed) | ||
| PTZ + TALLY Control | Mini-DIN–8 jack | ||
| Screw Mounting Hole | ¼–20 mounting hole | ||
| Network Interfaces |
10/100/1000Mbps Ethernet IEEE 802.3af PoE |
||
| USB Interface |
USB2.0 Type B 5V/2.1A power supply USB RNDIS/ECM |
||
| Input feature | Support input video resolutions at up to 2048x12000 | ||
| HDMI Specific Features |
165MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio InfoFrames Full colorimetry support Support up to 2048x1200 4:4:4/4:2:2 60fps input signals Support for 8 channel IEC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |
||
| NDI Output Format |
Support for 4:2:2 8-bit output Support for up to 2048x1200 60fps Support for NDI 4.1 |
||
| Video Processing Features |
Video processing pipelines with 160 Mpixels/s Video brightness, contrast, saturation, hue adjustment Video de-interlacing - Top field only - Bottom field only Video aspect ratio conversion - Auto or manual selection of output aspect ratio Video color format conversion - Auto or manual selection of input color format & quantization range - Auto or manual selection of output color format, quantization range & saturation range - Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats - Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats - Support for Limited or Full quantization range - Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video mirror flip |
||
| NDI Source Name |
Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’. Support for setting board-index, from 0 to F, through on-board rotary switch |
||
| Firmware Upgrade | Support for manual update using Web UI | ||
| LED Indicator |
Status LEDs indicate: - the state of power supply: on/off - the state of input signal: locked/unlocked |
||
| Form Factor | 100.9smm (L) x 60.2mm (W) x 23.3mm (H) | ||
| Accessories |
USB 2.0 A to B Cable 5V/2.1A power adaptor Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY) Tally lights L-bracket LED matrix panel (optional) |
||
| Power Consumption | 5V max current: ~1.5A / Max power consumption: ~6W | ||
| Working Environment |
Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
||
美樂威 Magewell Pro Convert 系列NDI轉換器
HDMI TX
HDMI Plus
HDMI 4K Plus
SDI TX
SDI Plus
SDI 4K Plus
12G SDI 4K Plus
NDI to HDMI AIO
NDI to HDMI
NDI to HDMI 4K
關鍵字 : #magewell. #ndi.#ip製作.
*本產品將持續創新，規格可能會有變動，當產品設計／規格變動，恕不另行通知。
